Analog Inputs and Relay Outputs

Wiring for your inputs and outputs are both done on 12 position screw clamp terminal blocks. When
connecting your wires, consider the following:
• Strip length: 6 mm (0.25")
• Torque: 0.5-0.6 Nm (4.4-5.3 lb-in)
• Wire size: 0.2mm

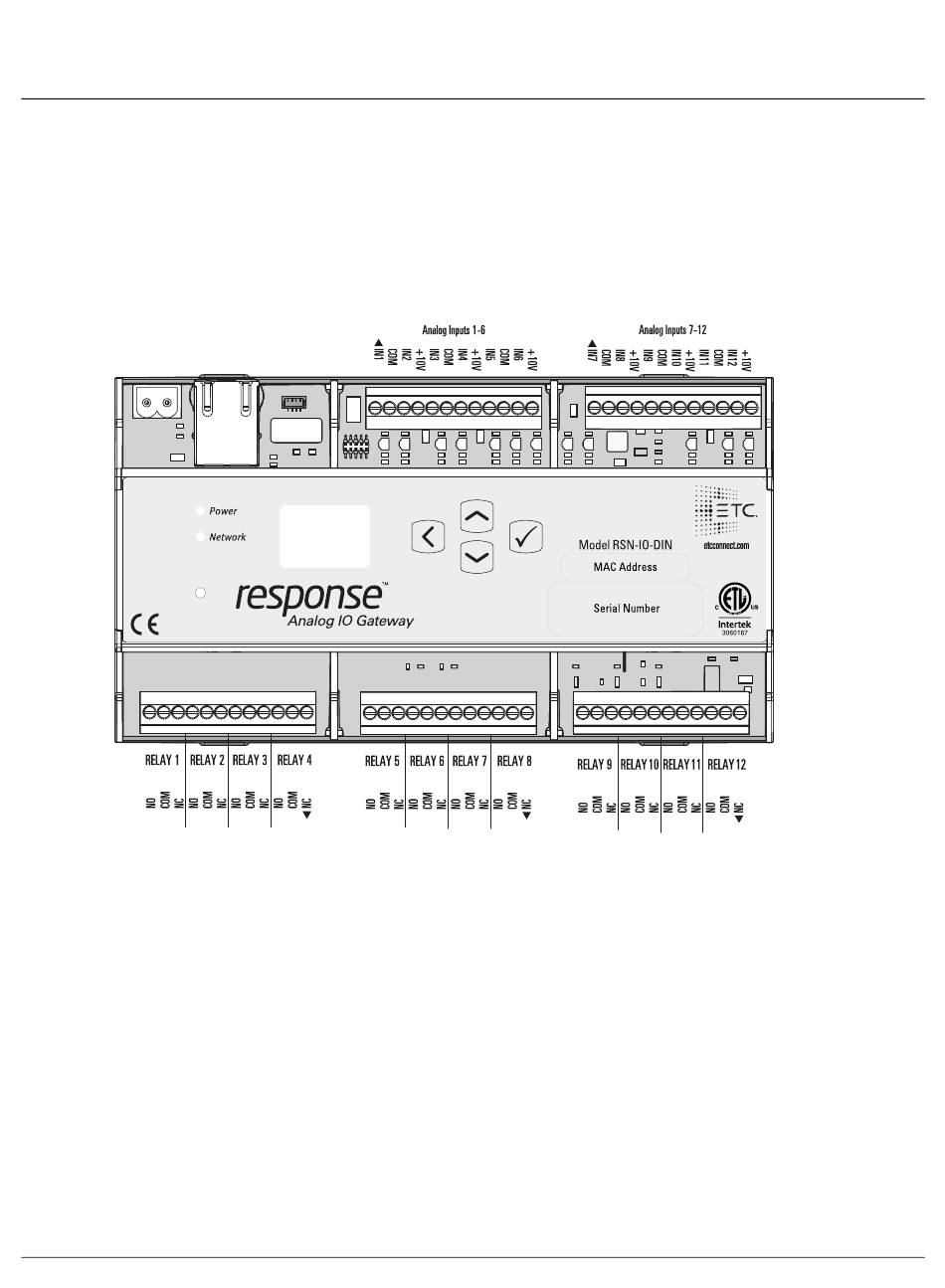

Reference the pinout diagram below for wiring details:
The NO and NC terminals on the relays represent Normally Open and Normally Closed, respectively
Once you have finished wiring, replace the connectors in their appropriate positions on the gateway.

Configuration

The following sections provide information on basic configuration directly from the device. Detailed
configuration can be performed using the Net3 Concert application, available from etcconnect.com.

View Device Information

To view information specific to your gateway, select the About menu from the home screen. From the
About menu, you can select one of the following three options:
• Version - Provides the version of software running on the device
• Analog - Provides information for each of your 12 analog inputs, including level, sACN address, and
whether the input is enabled for UDP
• Relay - Provides information for each of your 12 relay outputs, including whether the relay is on or
off, the source type, and sACN address. For a relay with the On designation, the Normally Open (NO)
contact is closed and Normally Closed (NC) contact is open. For an Off designation, NO is open and
NC is closed.
Analog IO Gateway
2 2
-4mm (24-12AWG)
