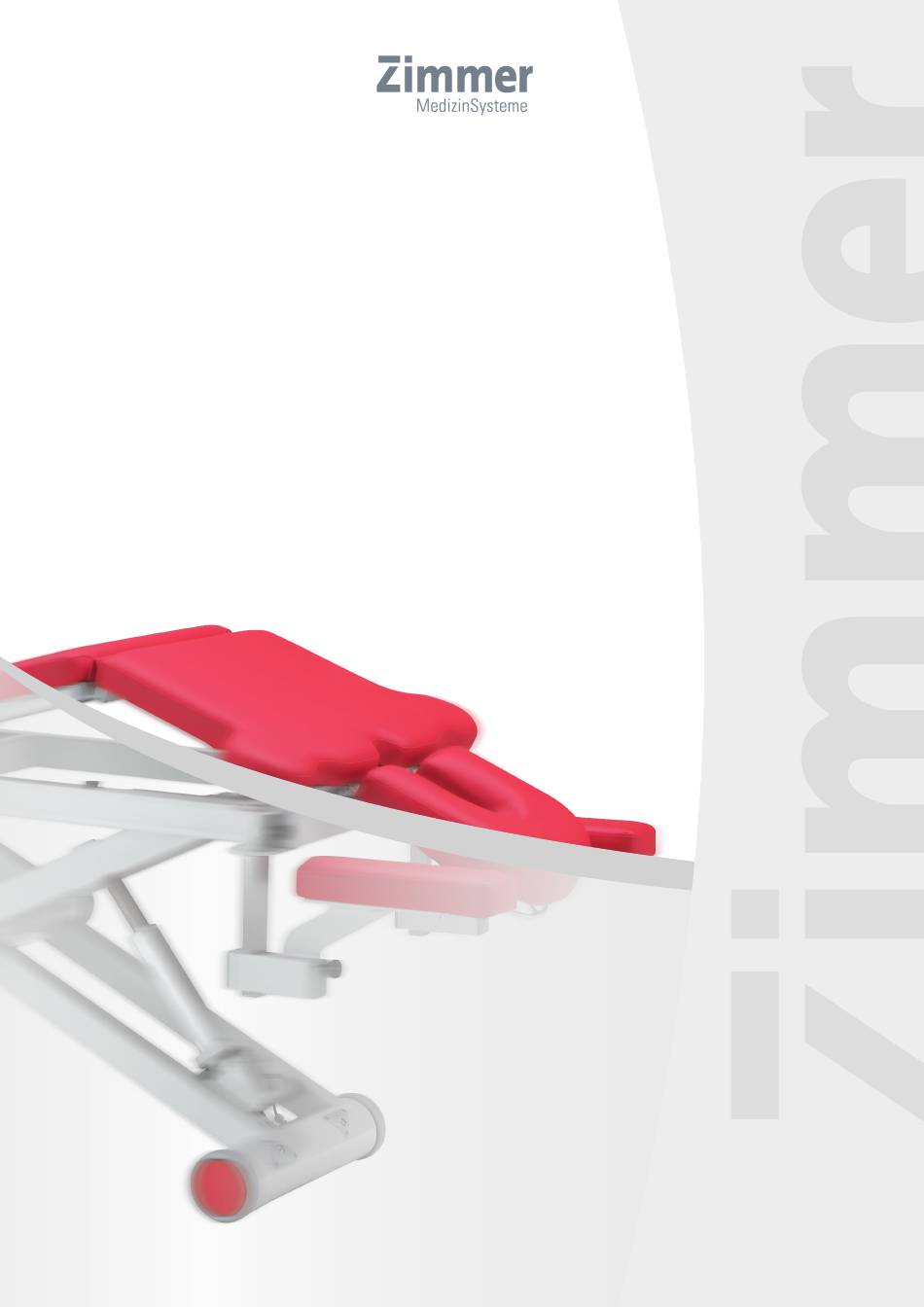

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Contents Foreword Zimmer MedizinSysteme GmbH Symbols Important information 4.1 Warnings 4.2 Hazards Delivery and opening Warranty Intended use Regulations First use and function test 9.1 Connecting the bench 9.2 Removing the transport lock Complete drawing Description of functions 11.1 Adjusting the height of the bench 11.2 Moving the bench with all direction wheel system (optional)

  • Page 3: Foreword

    Foreword This manual contains general information on safety, operation, maintenance and care for owners and users of aXion benches. These instructions are up to date at the date of printing. Because the requirements for the product and therapeutic techniques are continuously changing, we reserve the right to make technical and design changes.

  • Page 4: Zimmer Medizinsysteme Gmbh

    Zimmer MedizinSysteme GmbH Zimmer MedizinSysteme has more than 40 years of experience in working closely with therapists to develop devices that are "Made in Germany" in all aspects – efficient, innovative, easy-to-use, long service life – an investment in the present and the future of your work and its value. Professional equipment for professionals.

  • Page 5: Symbols

    Symbols The instructions are highlighted by special symbols. Please familiarise yourself with the symbols and their definitions before using the bench. Definition of symbols Explosion Hazard A section highlighted by the explosion hazard symbol, describes possible violations of safety regulations if this device is operated in the vicinity of flammable anaesthetics. Hazard A section highlighted by the hazard symbol, describes possible violations of safety regulations that may result in imminently dangerous situations, which may cause death or severe injury.

  • Page 6: Important Information

    Important information Read and apply the instructions and directions. Familiarise yourself with the limitations and hazards involved with the operation of electrically, height-adjustable, treatment benches. Follow all precautions and instructions displayed on labels on the bench. During any adjustments the moving parts of the bench must be closely watched and supported by the user or therapist if necessary.

  • Page 7: Hazards

    Important information The bench is fitted with a special safety lock for improved safety. The personal magnetic pin for • the safety lock may only be inserted by the authorised person and must always be carried or stored in a safe place by this person. The magnetic pin must be inserted to activate the motor to allow the height of the bench to be •...

  • Page 8: Delivery And Opening

    If there are parts missing or defects are found (including minor damage to the packaging), these must be noted on the freight documents presented by the transport company before acknowledging receipt. Please send information about shipping damage to Zimmer MedizinSysteme GmbH immediately. Opening The shipment must be checked for damage immediately on receipt.

  • Page 9: Warranty

    We also guarantee that the device has been thoroughly tested and all functions checked before shipping. Zimmer MedizinSysteme GmbH offers a two-year warranty on the complete bench with the exception of the upholstery on the headrest (wear part), which has a six-month warranty.

  • Page 10: Intended Use

    Intended use This product is exclusively intended for professional use by trained and qualified users for physiotherapy, rehabilitation, occupational therapy and medical treatment. The manufacturer does not guarantee the suitability of this product for a specific therapeutic and diagnostic purpose. The therapist is responsible for its use.

  • Page 11: Regulations

    Regulations Observe the applicable national laws and regulations when setting up and using this therapy bench. In Germany, the applicable regulations are the MPBetreibV (Medical Devices Operator Regulations) in the current version and BGV A3.

  • Page 12: First Use And Function Test

    First use and function test 9.1 Connecting the bench Before connecting the device, check that the voltage required to operated the device is the same as the available mains voltage. Install the plug required for your country and plug it into a correctly installed power socket. Lay out the power cable so it is not a hazard (trip hazard).

  • Page 13: Complete Drawing

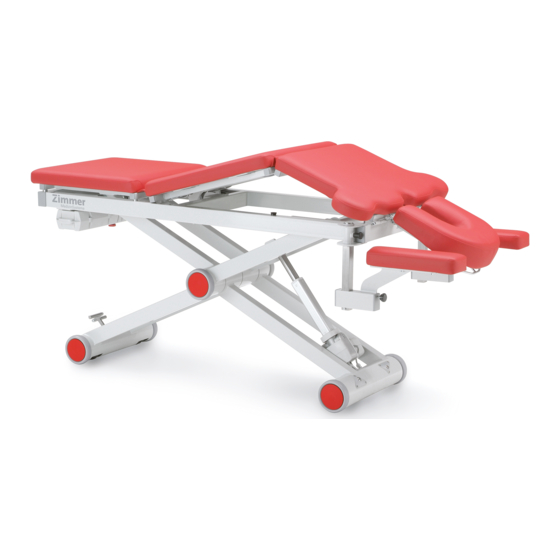

    Complete drawing aXion 6 bench Parts Head rest, adjustable Lock for head rest Arm rest, swivelling, height-adjustable, left + right Lock for arm rest height adjustment Upper torso cushion Middle torso cushion Leg cushion Scissor frame Centre axis Lift motor Activation lever for all-direction wheel system (optional) Wheel (standard) Foot switch for height adjustment...
  • Page 14 Complete drawing aXion 2 aXion 3 aXion 4 aXion 5 aXion 6 80° 30° aXion 3, aXion 5 90° 30° 20 cm aXion 6 90°...

  • Page 15: Description Of Functions

    Description of functions Use the original controls only. They are installed at the factory. Raising the bench 11.1 Adjusting the height of the bench using the touch switch or hand switch The buttons on the hand switch and foot switch* are marked with symbols. Press the appropriate button until the bench is at the desired height.

  • Page 16: Moving The Bench With All Direction Wheel System (Optional)

    Caution! Adjustments or repairs to the membrane buttons must be conducted by authorised dealers and service representatives of Zimmer MedizinSysteme GmbH only. 11.2 Moving the bench with all-direction wheel system (optional) The universal wheels are combined with an integrated wheel lifting system. Press the foot lever down to be able to move the bench.

  • Page 17: Adjusting The Headrest Position

    Description of functions 11.3 Adjusting the head rest position The head rest can be locked at any position within a range of -90° to +30°. Patients or therapists must not sit on the head rest of the aXion bench. The headrest is not designed for this weight and may be damaged or cause injury.
  • Page 18 Description of functions Head rest with arm rests We have developed a special head rest with two side arm rests for optimum positioning in a supine or prone position. The three-part head rest consists of a head piece that can be positioned vertically between +30° and –90° and two separately adjustable arm rests.
  • Page 19 Description of functions Push lever to the side and up. This releases the gas spring and raises the upholstery. With recumbent patients the upholstery must be lifted slightly with the other hand (depending on the weight of the patient).

  • Page 20: Accessories And Features

    3 aXion 4 aXion 4 aXion 5 aXion 5 aXion 6 aXion 6 comfort comfort comfort comfort comfort Item no. Zimmer MedizinSysteme GmbH 3110 3120 3130 3140 3150 3160 3170 3180 3190 3195 Steel scissor frame with pinch guard...
  • Page 21 Accessories and features Arm rest adjustment All-direction wheel system with smooth swivelling wheels Membrane button for height adjustment...
  • Page 22 Accessories and features Options Foot switch, membrane button for front and rear crossbar 50.870.010 Hand button, membrane button, left + right under bench 50.870.020 Paper roll holder 50.870.050 Paper roll, (1= 8 x 50 m) 50.870.040 Disposable tissues for face insert (500 per pack) 50.870.060 All-direction wheel system with swivelling wheels, for a crossbar / 50.870.000...

  • Page 23: Possible Faults And How To Correct Them

    Possible faults and how to correct them Zimmer MedizinSysteme GmbH products are designed for a very long service life. Faults in operation can generally be corrected with ease. Check that the plug is correctly plugged into the socket. No response to activation of...

  • Page 24: Maintenance And Care

    Maintenance and care The magnetic pin or the power plug must always be pulled out to disconnect the bench from the mains power before any maintenance and care work is carried out. Separate servicing is not required for this product. However, at regular intervals (at least every six months) check that the bench is in good mechanical condition by checking that screws are tight, no cables are damaged, etc.

  • Page 25: Tested And Recommended Cleaning Agents

    The piston rod must be wiped at intervals with a soft cloth to prevent dust causing damage to the piston rod seal of the linear drive. 14.5 Disposal Zimmer MedizinSysteme GmbH will dispose of parts that cannot be repaired. Do not dispose of the bench as bulk waste.

  • Page 26: Specifications

    Specifications Length 200 cm Width 54/75 cm for aXion 6 / 4 or 70 cm for aXion 2 / 3 / 5 Height 44 cm to 95 cm Frame Tubular steel, light grey or grey-silver* Upholstery cover Synthetic leather Upholstery thickness 6 cm Head rest Adjustable from 30°...

  • Page 27: Manufacturer's Emc Declaration

    Manufacturer's EMC declaration Medical electrical devices such as the motor of the aXion therapy bench are subject to special precautions with respect to EMC (Electromagnetic Compatibility) and must be installed and commissioned in accordance with the EMC instructions in the User Manual or the accompanying documentation.
  • Page 28 Manufacturer's EMC declaration Guidelines and manufacturer's declaration – electromagnetic interference immunity The aXion therapy bench is intended for use in an electromagnetic environment as specified below. The customer or the user of this device should ensure that it is used in such an environment. Interference immunity IEC 60601 test level Compliance level...
  • Page 29 Manufacturer's EMC declaration Significant performance features of the aXion are: safe support of patients, trouble-free operation of all functions. Guidelines and manufacturer's declaration – electromagnetic immunity The motor of the aXion therapy bench is intended for use in an electromagnetic environment as specified below. The customer or the user of the aXion device should ensure that it is used in such an environment.
  • Page 30 Manufacturer's EMC declaration Recommended separation distances between portable and mobile RF communications equipment and the motor The motor of the aXion therapy bench is intended for use in an environment in which radiated RF disturbances are controlled. The customer or user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device, as recommended below, according to the maximum output power of the communications equipment.

  • Page 31: Declaration Of Conformity

    Declaration of conformity This product carries the CE mark in accordance with the EU Directive on Medical Devices 93/42/EEC and conforms to the basic requirements of Annex I of this Directive. The product has been developed, manufactured and tested using the quality management system in accordance with DIN EN ISO 13485.
  • Page 32 User Manual Zimmer MedizinSysteme GmbH Junkersstraße 9 D-89231 Neu-Ulm Tel. +49 731. 97 61-291 Fax +49 731. 97 61-299 export@zimmer.de www.zimmer.de...
