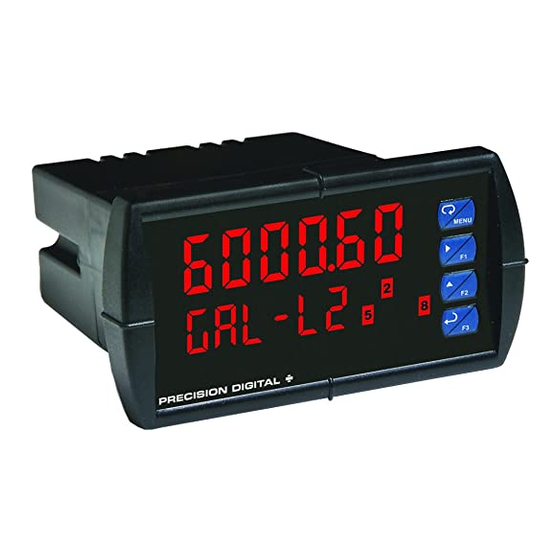

PD6400
P
V
High Voltage & Current Meter
RO
U
•
1/8 DIN Digital Panel Meter with NEMA 4X, IP65 Front
•
(1) High Voltage and (1) High Current Input
•
Multiplication for Apparent Power Calculation
•
0-300 VAC or VDC Voltage Input
•
0-5 AAC or ADC Current Input
•
Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
•
2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options
•
Free PC-Based MeterView Pro USB Programming Software
•
No Assembly Required
•
Optional SunBright Display Models for Outdoor Applications
•
Operating Temperature Range: -40 to 65°C (-40 to 150°F)
•
UL & C-UL Listed. E160849; 508 Industrial Control Equipment
•
Input Power Options Include 85-265 VAC or 12-24 VDC
•
Programmable Display, Function Keys & Digital Input
•
External 4-Relay, Dual 4-20 mA Outputs & Digital I/O Expansion Modules
•
RS-232 & RS-485 Serial Communication Options with Modbus RTU
•
Light / Horn & Reset Button Accessory
•
Split Core AC Current Transformers Up to 1000 A AC Available
•
Control Station Accessory For Remote Operation of ProVu
PRECISION DIGITAL CORPORATION
HIGH VOLTAGE & CURRENT
www.predig.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Precision Digital Corporation PROVU Series
Summary of Contents for Precision Digital Corporation PROVU Series

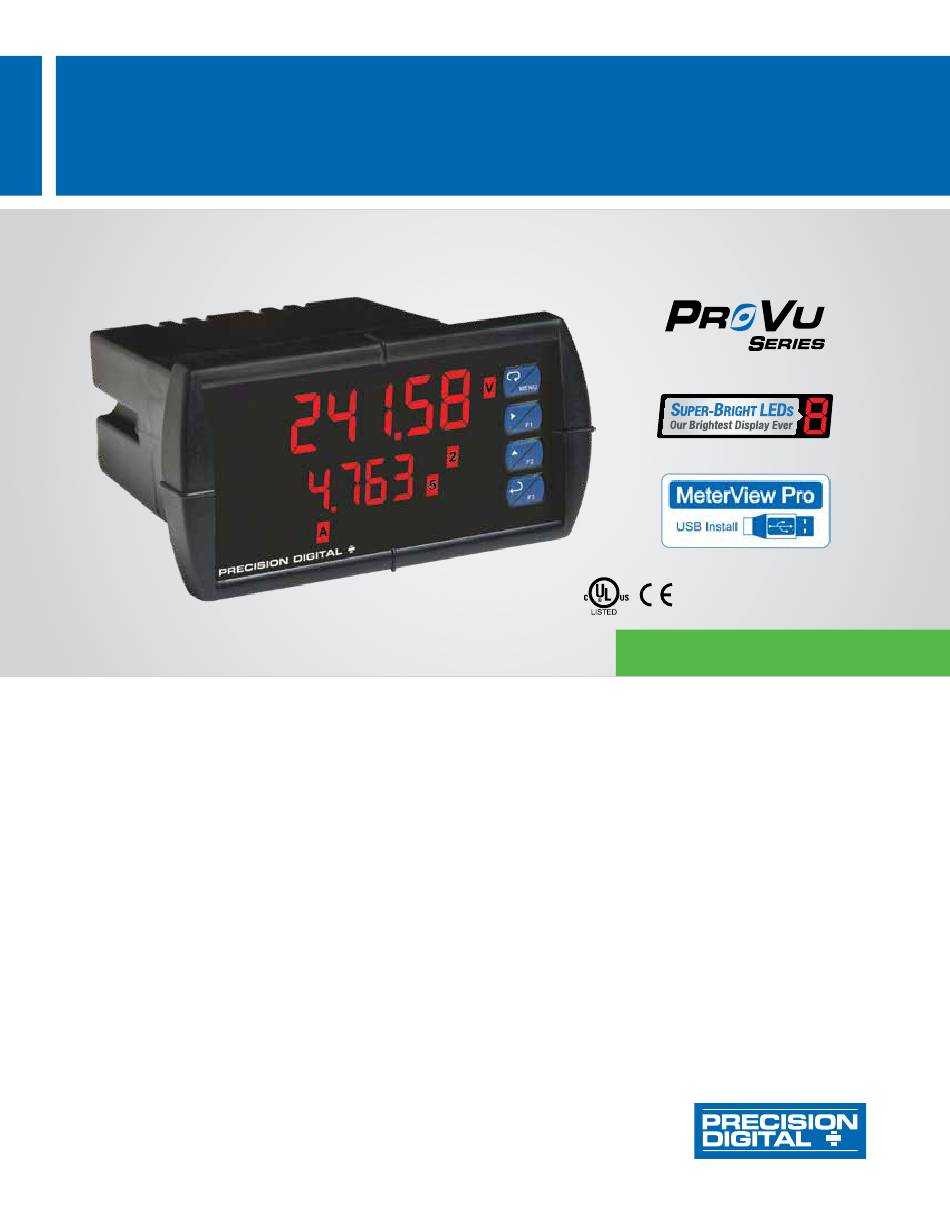

- Page 1 RS-232 & RS-485 Serial Communication Options with Modbus RTU • Light / Horn & Reset Button Accessory • Split Core AC Current Transformers Up to 1000 A AC Available • Control Station Accessory For Remote Operation of ProVu www.predig.com PRECISION DIGITAL CORPORATION...
-
Page 2: Table Of Contents
PD6400 High Voltage & Current Meter TABLE OF CONTENTS OVERVIEW ADVANCED DISPLAY FEATURES QUICK & EASY SCALE & PROGRAMMING METHODS 4-20 MA OUTPUT & RELAYS APPLICATION EXAMPLES DIGITAL COMMUNICATIONS FIELD EXPANSION MODULES PHYSICAL FEATURES OPERATIONAL FEATURES NEMA 4 & 4X FIELD ENCLOSURES LIGHT / HORN &... -
Page 3: Overview
PD6400 High Voltage & Current Meter OVERVIEW Front Front Panel UV Resistant NEMA 4X Rated Sunlight Readable Large PD6400 0.6" Digits User Configurable Rugged Front Model PD6400 High Voltage & Current Meter Instruction Manual Upper Display (Showing Voltage) Connections Dual-Line All connections are made to removable screw terminal connectors located at the rear of the meter. -
Page 4: Advanced Display Features
PD6400 High Voltage & Current Meter ADVANCED DISPLAY FEATURES Display Voltage and Current Individually Dual-Line Makes All the Difference or at Same Time The PD6400 can display voltage, current, and apparent power. The dual line display can show any two parameters The P PD6400 can accept both a voltage and a current simultaneously, or alternate between any parameters as well... -
Page 5: Quick & Easy Scale & Programming Methods
PD6400 High Voltage & Current Meter QUICK & EASY SCALE & PROGRAMMING METHODS The ProVu can be programmed either via the front panel push buttons or free, PC-based MeterView Pro software. MeterView Pro is resident on the ProVu and is accessed by a provided USB cable, so it is by far the easiest way to program the ProVu. The ProVu can be calibrated either by applying a known signal or scaled by entering a desired value with the front panel buttons or MeterView Pro software. - Page 6 PD6400 High Voltage & Current Meter Setup Screen ● Select Voltage or Current Input ● Select Decimal Point ● Set Line 1 Display Parameters ● Set Line 2 Display Parameters ● Set Analog Output Values ● Enable Manual Control ● Test Relays & Digital Outputs Programming Screen ●...
- Page 7 PD6400 High Voltage & Current Meter Save/Open Configuration At the bottom of most MeterView screens are two tabs: 1. Get Meter Data: This reads the programming of the meter that is currently connected to the PC. 2. Send Meter Data: Clicking this button, sends current MeterView programming to the meter. Specifications The configuration file can be sent, or retrieved, from the directory of your choice.
-
Page 8: 4-20 Ma Output & Relays
PD6400 High Voltage & Current Meter 4-20 mA OUTPUT & RELAYS The 4-20 mA output can either be programmed using the front panel push buttons or free MeterView Pro software. 4-20 mA Analog Output Front Panel Push Button Programming The isolated analog output can be configured to represent The 4-20 mA analog output can be scaled to provide a 4-20 the process variable (PV), maximum (peak) value, minimum mA signal for any display range selected. - Page 9 PD6400 High Voltage & Current Meter Relays for Alarm & Control Applications Adding relays to the ProVu meter turns it into a sophisticated alarm device as well as a powerful, yet simple, alternative to a more complicated PLC system for control applications. The ProVu can be equipped with up to four 3 A Form C (SPDT) internal relays and an additional four more 3 A Form A (SPST) external relays.
- Page 10 Take control of any output interlock relays. Requires PDA1044 Digital I/O module or with this feature. All relays use of on-board digital input F4. Please see ProVu Series can be forced ON or OFF, Safety Interlock Feature whitepaper on our website for more and the 4-20 mA output information.
-
Page 11: Application Examples
Required External Fuse: 5 A max, 250 V Slow Blow Figure 7. Power Connections Signal Connections PD6400 High Voltage & Current Meter Signal connections are made to a four-terminal connector labeled SIGNAL on Figure 6. The I+ and I- terminals are used for Channel A (CH-A) as the current input terminals. - Page 12 PD6400 High Voltage & Current Meter Converting High AC Current with the PDA6405 Split Core AC Current Transformer PD6400 High Voltage & Current Meter 0-5 AAC 75 AAC Motor Power TO CURRENT TRANSFORMER PDA6405-100 Current Transformer Measuring Current with PDA6405-100 Current Transformer PD6400 Connections from PDA6405 Current Transformer and PD6400 digital panel meter with AC Switch Selected...
-
Page 13: Digital Communications
PD6400 High Voltage & Current Meter DIGITAL COMMUNICATIONS FIELD EXPANSION MODULES Add functionality to the PD6400 n the field with easy-to install Modbus RTU Serial Communications ® external expansion modules. External expansion modules are With the purchase of a serial communication adapter, P available for RS-232 or RS-485 communications, digital I/O, meters can communicate with any Modbus Master device 4 relays and dual 4-20 mA outputs. -
Page 14: Physical Features
PD6400 High Voltage & Current Meter PHYSICAL FEATURES Secured-in-Place Rugged Mounting Brackets If you’re installing the ProVu outdoors in the hot or cold The ProVu is designed for ease-of-use in industrial weather, the last thing you want to do is fumble around with applications. -
Page 15: Operational Features
PD6400 High Voltage & Current Meter OPERATIONAL FEATURES Function Keys, F4 Terminal, Digital Inputs The F4 terminal is particularly useful for wiring up a remote switch to reset the relays as shown here: There are three ways the user can interact with the ProVu to perform a variety of useful functions: 1 Three Front Panel Function Buttons The default settings for the function keys are:... - Page 16 PD6400 High Voltage & Current Meter Remote Operation of Front Panel Buttons Datalog Report Collected data logger information can be sent to a CSV file for The user can operate the front panel buttons from a remote importing into a spreadsheet program. Below is an example of location by using digital inputs programmed in the following one such file.
- Page 17 1 (*through 8) has been display values on line 1 triggered (digital outputs only) FK: Function Keys DI: Digital Inputs DO: Digital Outputs Watch video about the programmable function keys, digital inputs, and all the capabilities these features offer on the ProVu Series. www.predig.com...
-
Page 18: Nema 4 & 4X Field Enclosures
PD6400 High Voltage & Current Meter NEMA 4 & 4X FIELD ENCLOSURES Plastic Enclosures (Internally Mounted) Precision Digital offers a variety of rugged enclosures that provide a high degree of protection against harsh operating environments. Thermoplastic and stainless steel NEMA 4X, PDA3400 Series (Covers with screws) and painted steel NEMA 4 enclosures for up to 10 ProVu This is Precision Digital’s only line of enclosures for the... -
Page 19: Light / Horn & Reset Button Mounted To Enclosure
PD6400 High Voltage & Current Meter LIGHT / HORN & RESET BUTTON MOUNTED TO ENCLOSURE ProVu Meter in a PDA2301 Enclosure with MOD-LH Light / Horn and Reset Button Enclosure & MOD-LH Sold Separately. Assembly Required. Light with 85 dB Horn ProVu Process Meter PDA2301... - Page 20 PD6400 High Voltage & Current Meter PDA1024-01 24 VDC DIN Rail Power Supply Wiring Connections for MOD-LH Models For Light/Horn applications using the PD6400, an external The following diagrams are for MOD-LH models with a single power supply such as Precision Digital’s PDA1024-01 must color light.
- Page 21 PD6400 High Voltage & Current Meter Complete Product Line of Displays and Controllers IN ALL SHAPES, SIZES & LOCATIONS Universal 85-265 4-20 mA, 0-10 V, Up To Four Big, Bright Displays Large Dual-Line 24 VDC MeterView Pro USB ® VAC or 12-24 VDC Thermocouple, RTD, 3 A Form C For Indoor or Outdoor...
-
Page 22: Dimensions
PD6400 High Voltage & Current Meter DIMENSIONS Units: Inches (mm) Optional Connectors Installed 1.76" (44.5 mm) 2.45" 4.17" (62 mm) (106 mm) (121 mm) 3.61" 0.59" 4.77" (15 mm) (91.5 mm) 5.05" (128 mm) Model PD6400 High Voltage & Current Meter Instruction Manual 6"... -
Page 23: Specifications
PD6400 High Voltage & Current Meter UL File Number: UL & C-UL Listed. E160849; 508 Industrial Control SPECIFICATIONS Equipment. Except where noted all specifications apply to operation at +25°C. Warranty: 3 years parts & labor General USB Connection: Display: Upper display: 0.60" (15 mm) high. Lower display: 0.46" (12 mm) high. - Page 24 PD6400 High Voltage & Current Meter MOD-LH Light / Horn Relays Rating: 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A Light Colors: external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP MOD-LHRB1: Red (≈...
-
Page 25: Ordering Information
PDA-LHR and the PDA-BUTTON1R separately and drill holes and mount as desired. ©2015 -2019 Precision Digital Corporation. All rights reserved. 2. For other light color options see the MOD-LH Series manual (LIMMODLH).
