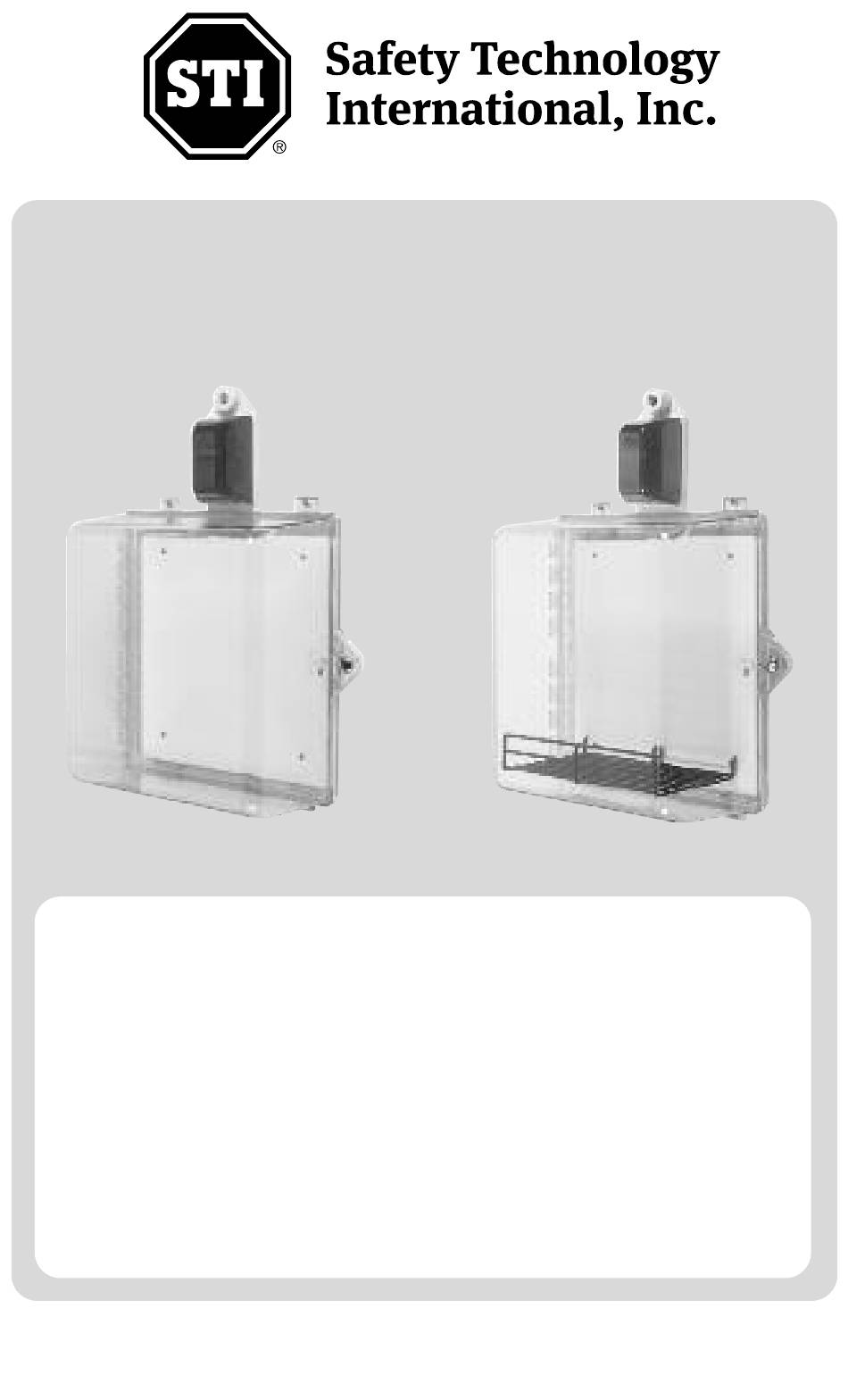

Protective Cabinet
STI-7534, STI-7535 and STI-7535AED
Features
• Clear, protective polycarbonate cover with siren/strobe alarm.
• Design allows visibility at any angle.
• Complete with mounting hardware and gasket.
• Includes wire shelf, backing plate and siren/strobe alarm — AED models
• External mounting tabs or internal drill dimples.
• Cover includes a coated steel internal mounting plate with a baked on white
enamel finish.
• Siren/strobe alarm lens is red. Also available with amber, green, blue or white lens.
• Siren offers 32 user selectable tones.
• Alarm can be set for a piercing 100 dB or 85 dB.
• Independent strobe and siren timing of 15 seconds, 30 seconds, 60 seconds or
continuous.
• Powered by a 9 VDC battery or external 12-30 volts.
• Low battery indicator.
We protect the things that protect you.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for STI STI-7534
Summary of Contents for STI STI-7534
- Page 1 Protective Cabinet STI-7534, STI-7535 and STI-7535AED Features • Clear, protective polycarbonate cover with siren/strobe alarm. • Design allows visibility at any angle. • Complete with mounting hardware and gasket. • Includes wire shelf, backing plate and siren/strobe alarm — AED models •...
-
Page 2: Table Of Contents
WARNINGS All units are recommended for indoor use. Unit must be tested periodically to verify the life of battery. STI recommends you change the 9 Volt battery twice a year. When purchasing a siren/strobe alarm, you will need to periodically test the connections to make sure audibles function at a sound level to alert staff. -
Page 3: Dimensions
DIMENSIONS FRONT VIEW 6.44 in. (164mm) BOTTOM VIEW SPECIFICATIONS OPERATING VOLTAGE Internal power 9 VDC battery (not included) Remote power 12-30 VDC OPERATING TEMPERATURE 32°F -120° POWER CONSUMPTION Stand by: 50µA Siren low volume: 85mA Siren high volume: 90mA Strobe: 25mA SIREN VOLUME Low: 85 dB High: 100 dB... -
Page 4: Installation Of Cabinet
Mark and drill (4) 1/4 in. diameter holes. Insert the (4) 19033 anchors. Mount cabinet by driving in the four #10 x 1 1/2 in. screws. 3. For STI-7531AED select one of the two shelf mounting locations, install shelf. Close and lock cabinet. INSTALLATION OF ALARM... -
Page 5: Alarm Electronic Setup
STEP 2 - ELECTRONIC SETUP - SELECT ALARM TONE AND TIMING SEQUENCE SIREN ALARM TONE ALARM TIMING LED QTY 10 STROBE TIMING VOLUME BATTERY LOW BATTERY INDICATOR LED TERMINAL STRIP BATTERY CABLE WIRE ENTRY TAMPER SWITCH (REAR VIEW) NOTE: Select-Alert must be on a flat surface and lens must be installed or the tamper switch will trigger the alarm. -
Page 6: Alarm Terminal Strip Connections
STEP 5 - ELECTRONICS ASSEMBLY Wiring: After mounting circuit board assembly, connect wires. Refer to terminal strip connections (step 6). Lens installation: Slide lip of lens behind circuit board mounting plate. Rotate lens into position. Secure with tamperproof screw and special wrench. Unit will not operate properly if lens cover is not installed. -
Page 7: Assembly Parts List
• To service, turn key switch off. WARRANTY INFORMATION • Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components). • Electronic warranty form at www.sti-usa.com/wc14. -
Page 8: Accessories & Replacement Parts
AED label - 2 included (applied to sides of cabinet; must be factory installed) STI-SA5000-R Replacement Siren/Strobe Alarm 18054 Replacement key for cabinet lock on STI-7534 18075 Replacement key for Siren/Strobe Alarm 07530WR Wire shelf (included with AED models) 2306 Airport Road Waterford, Michigan 48327-1209 Phone: 248-673-9898 •...
