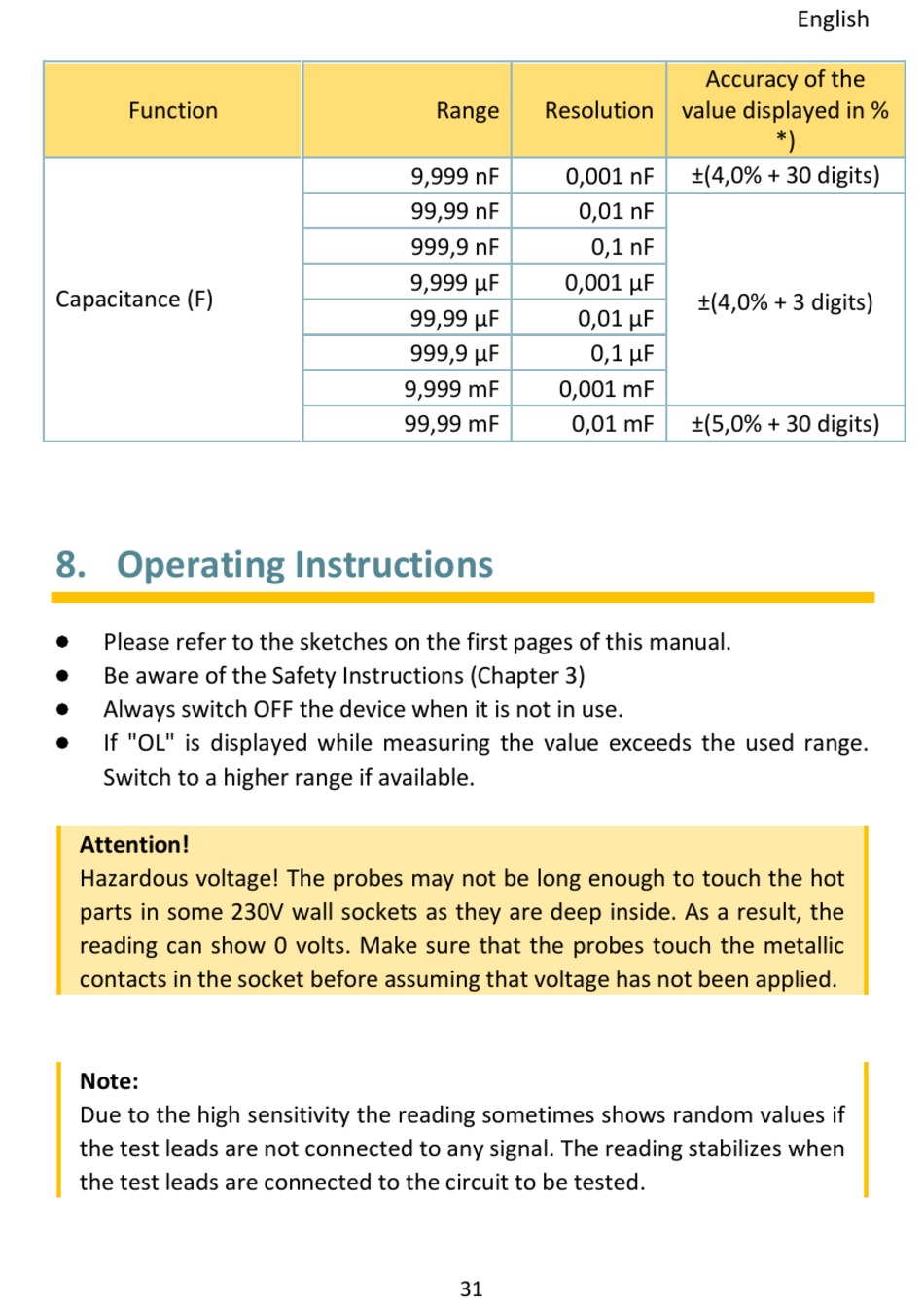

8. Operating Instructions


Please refer to the sketches on the first pages of this manual.

Be aware of the Safety Instructions (Chapter 3)

Always switch OFF the device when it is not in use.

If "OL" is displayed while measuring the value exceeds the used range.
Switch to a higher range if available.
Attention!
Hazardous voltage! The probes may not be long enough to touch the hot
parts in some 230V wall sockets as they are deep inside. As a result, the
reading can show 0 volts. Make sure that the probes touch the metallic
contacts in the socket before assuming that voltage has not been applied.
Note:
Due to the high sensitivity the reading sometimes shows random values if
the test leads are not connected to any signal. The reading stabilizes when
the test leads are connected to the circuit to be tested.
Range Resolution
9,999 nF 0,001 nF
99,99 nF 0,01 nF
999,9 nF
9,999 µF 0,001 µF
99,99 µF 0,01 µF
999,9 µF
9,999 mF 0,001 mF
99,99 mF 0,01 mF
31
Accuracy of the
value displayed in %
±(4,0% + 30 digits)
0,1 nF
±(4,0% + 3 digits)
0,1 µF
±(5,0% + 30 digits)
