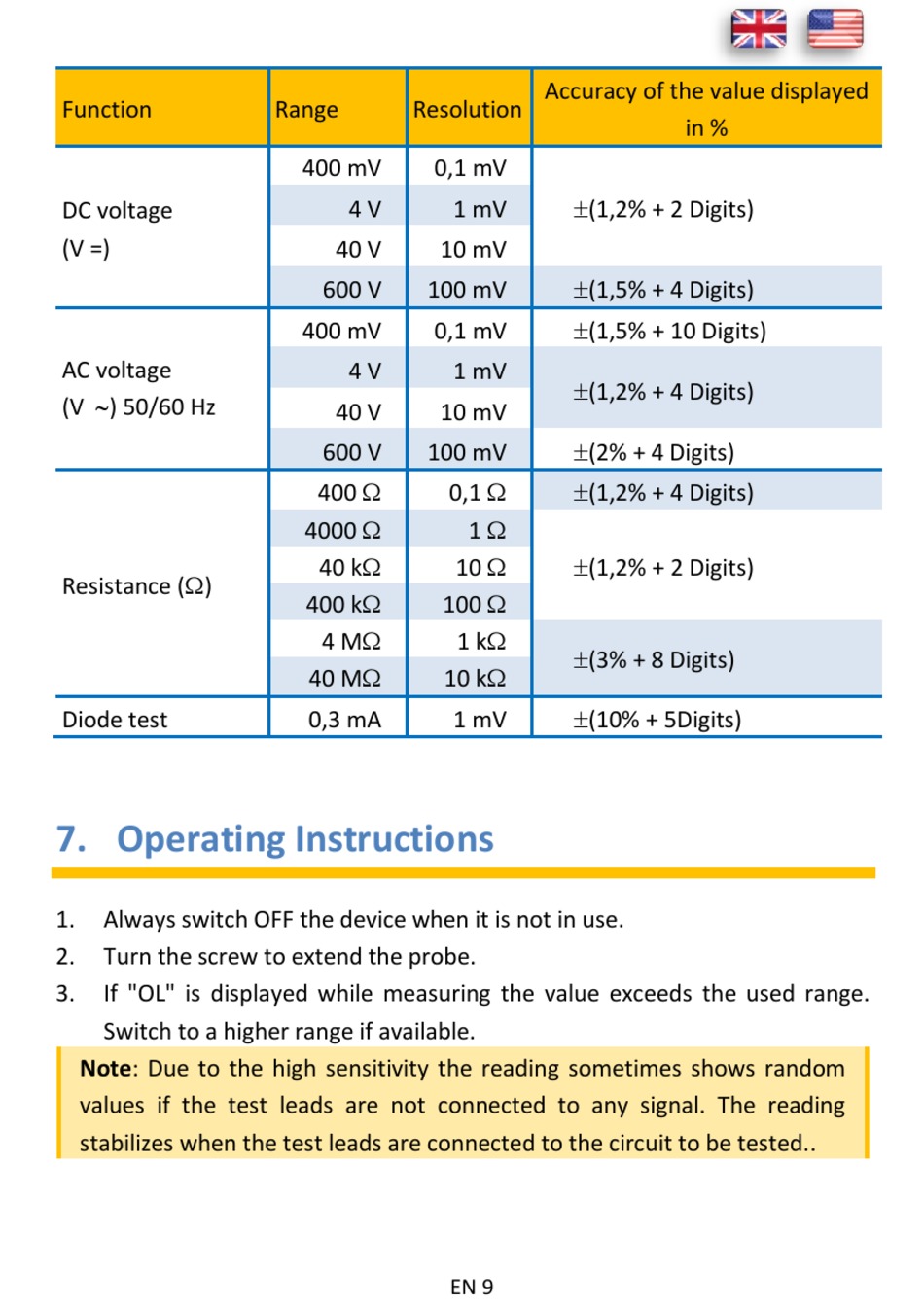

Operating Instructions - PANCONTROL PAN Multistift Manual

Function
DC voltage
(V =)
AC voltage
(V ) 50/60 Hz
Resistance ()
Diode test

7. Operating Instructions

1. Always switch OFF the device when it is not in use.
2. Turn the screw to extend the probe.
3. If "OL" is displayed while measuring the value exceeds the used range.
Switch to a higher range if available.
Note: Due to the high sensitivity the reading sometimes shows random
values if the test leads are not connected to any signal. The reading
stabilizes when the test leads are connected to the circuit to be tested..
Range Resolution
400 mV 0,1 mV
4 V
40 V 10 mV
600 V 100 mV
400 mV 0,1 mV
4 V
40 V 10 mV
600 V 100 mV
400  0,1 
4000 
40 k
100 
400 k
4 M
40 M 10 k
0,3 mA
Accuracy of the value displayed
(1,2% + 2 Digits)
1 mV
(1,5% + 4 Digits)
(1,5% + 10 Digits)
1 mV
(1,2% + 4 Digits)
(2% + 4 Digits)
(1,2% + 4 Digits)
1 
10  (1,2% + 2 Digits)
1 k
(3% + 8 Digits)
(10% + 5Digits)
1 mV
EN 9
in %
