9.2. Acquiring Alarm Information
91
9.2
Acquiring Alarm Information
When an alarm occurs, the motor become Servo OFF and then stops by free run and at the same
time displays alarm message.

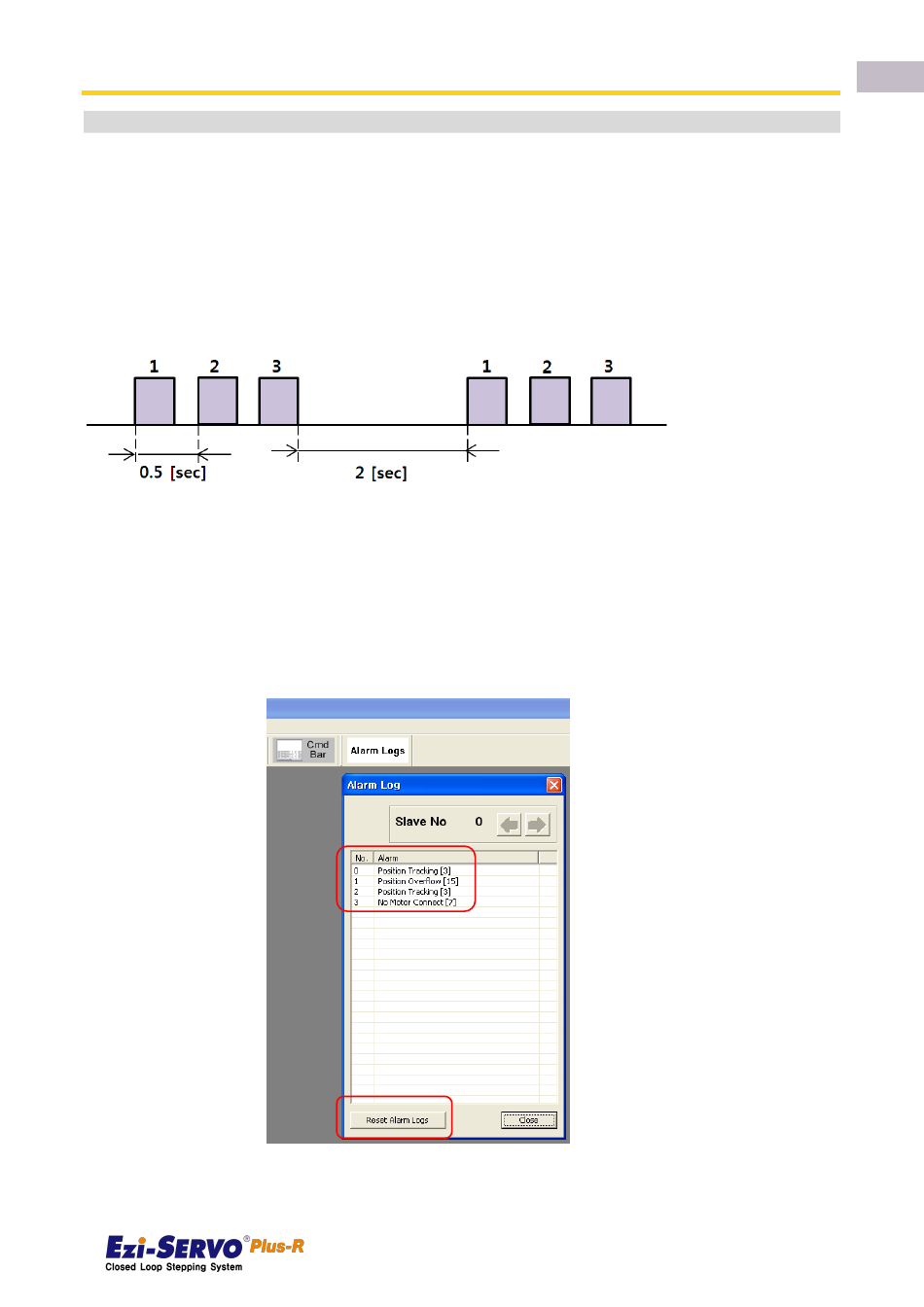

Also, 'AlarmBlink' signal repeats On/Off according to the timing as illustrated below. The red LED
flash every 0.5 second in accordance with alarm number and wait for 2 seconds. And then red LED
flash repeatedly until inputting 'AlarmReset'signal.
(Example) Alarm 3： 'AlarmBlink' display signal occurred when the step-out is occured
If the alarm condition happens, the history of alarm happened is saved to ROM area and can be
check afterwards.
① Maximum 30 history can be save.
② Checking alarm history can be support in Servo OFF status only.
③ To remove alarm history, use 'Reset Alarm Logs' function.
* Ezi-SERVO ALL-28 is not support this function.
