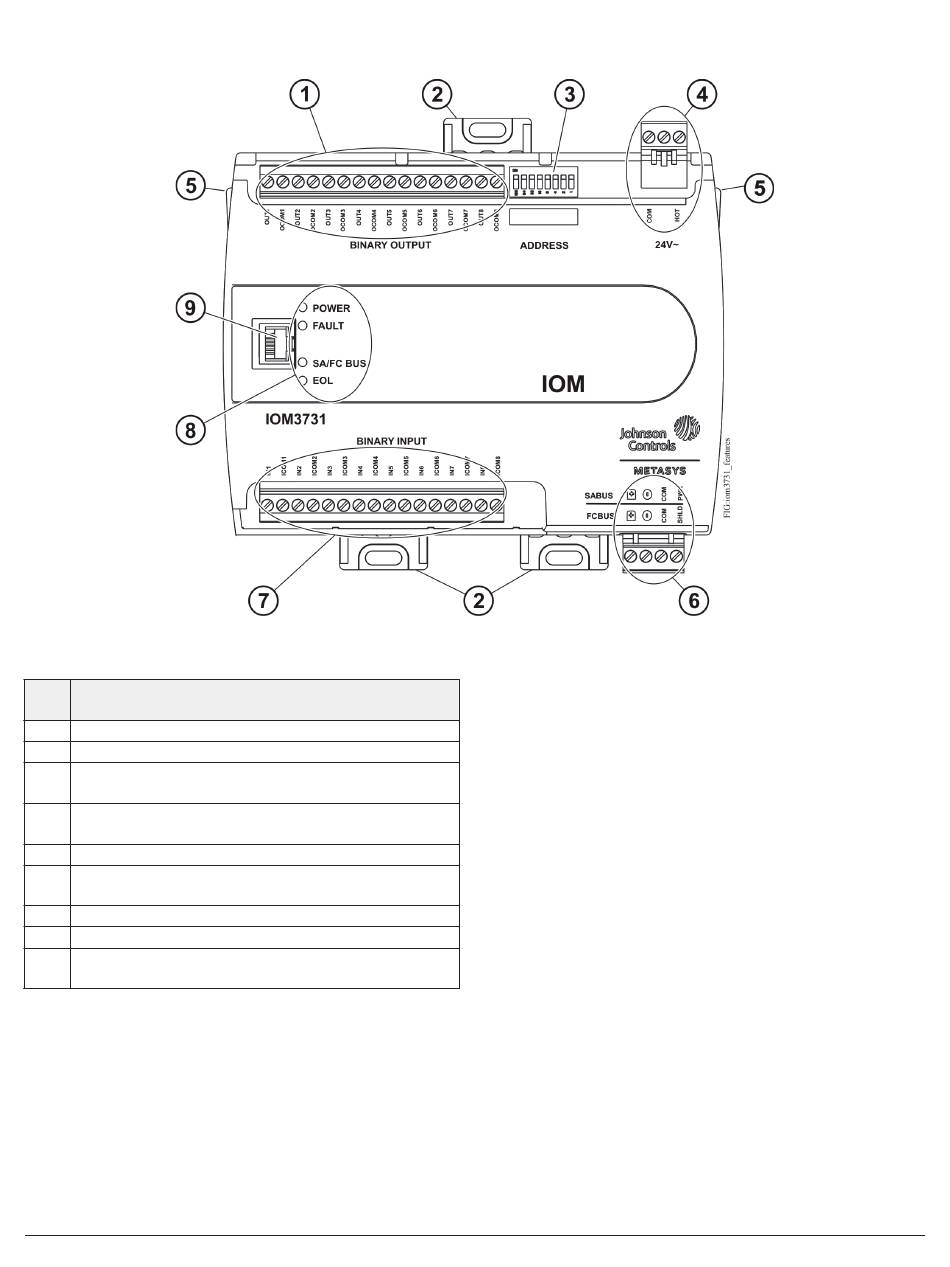

Figure 1: IOM3731 physical features
Table 1: IOM3731 physical features callouts and
descriptions
Callo
Physical feature: description and references
ut
1
Binary Outputs (BOs) Terminal Block (see Table 2)
2
Mounting Clip
Device Address DIP Switch Block (see
3
addresses)
24 VAC, Class 2 Supply Power Terminal Block (see
4
power terminal
block)
5
Cover Lift Tab (see
Removing the Controller
Sensor Actuator (SA) Bus / Field Controller (FC) Bus
6
Terminal Block (see
7
Binary Inputs (BIs) Terminal Block (see Table 2)
8
LED Status Indicators
Sensor Actuator (SA) Bus or Field Controller (FC) Bus Port
9
(RJ-12 6-pin Modular Jack) (see
Mounting
Observe these guidelines when mounting a field
controller:
• Ensure the mounting surface can support the
controller, DIN rail, and any user-supplied enclosure.
• Mount the controller horizontally on 35 mm DIN rail
whenever possible.
2
IOM3731 Input/Output Module Installation Guide
Setting the device
cover)
SA/FC bus terminal
block)
SA/FC bus
port)
• Mount the controller in the proper mounting position
(Figure 2).
• Mount the controller on a hard, even surface whenever
possible in wall-mount applications.
• Use shims or washers to mount the controller securely
and evenly on the mounting surface.
• Mount the controller in an area free of corrosive vapors
and observe the Ambient Conditions requirements in
Table 9.
• Provide for sufficient space around the controller for
Supply
cable and wire connections for easy cover removal
and good ventilation through the controller (50 mm
[2 in.] minimum on the top, bottom, and front of the
controller).
• Do not mount the controller on surfaces prone to
vibration, such as duct work.
• Do not mount the controller in areas where
electromagnetic emissions from other devices or wiring
can interfere with controller communication.
Observe these additional guidelines when mounting a
controller in a panel or enclosure:
• Mount the controller so that the enclosure walls do
not obstruct cover removal or ventilation through the
controller.
• Mount the controller so that the power transformer
and other devices do not radiate excessive heat to the
controller.
• Do not install the controller in an airtight enclosure.
