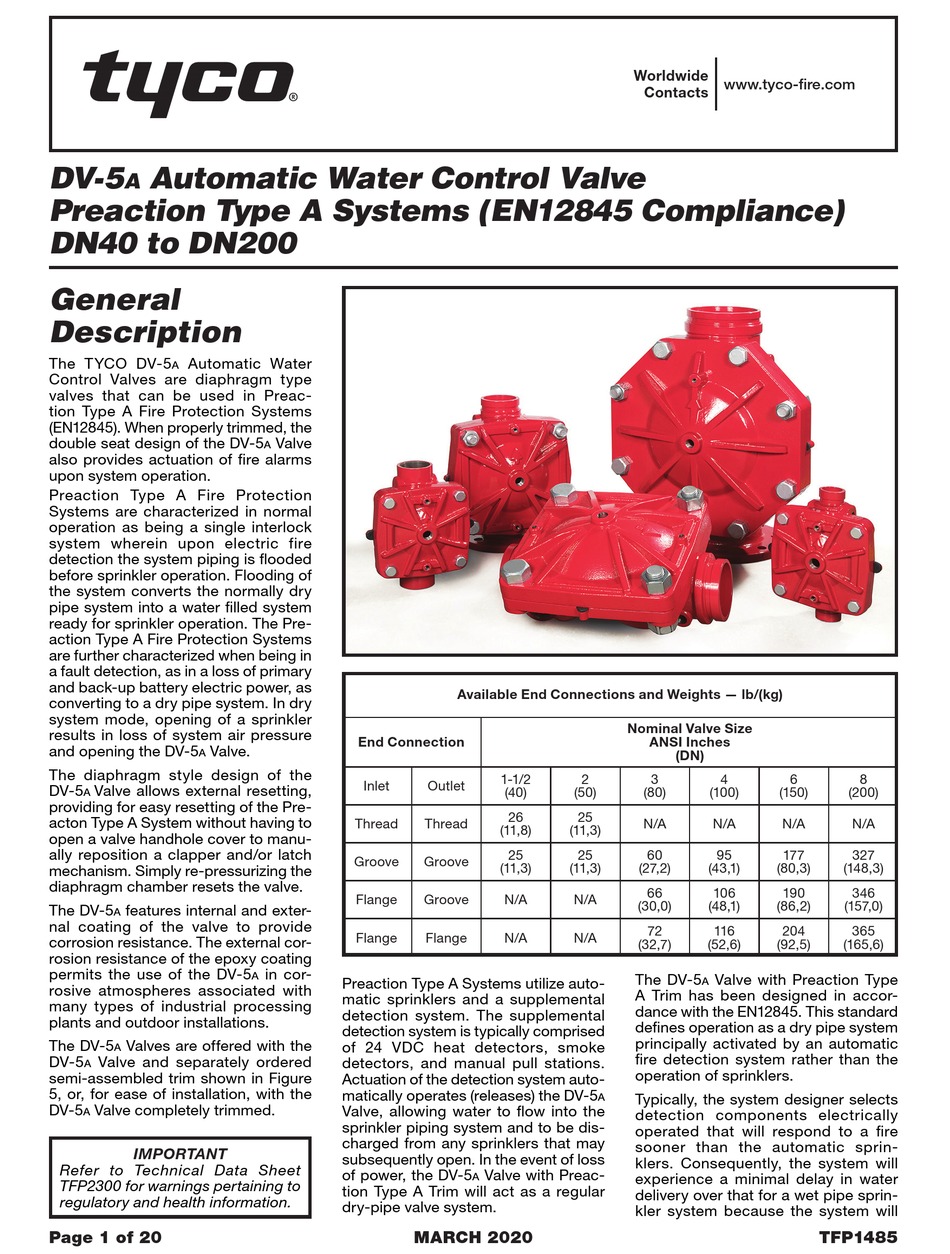

DV-5 Automatic Water Control Valve
a
Preaction Type A Systems (EN12845 Compliance)
DN40 to DN200
General
Description
The TYCO DV-5 Automatic Water
a
Control Valves are diaphragm type
valves that can be used in Preac-
tion Type A Fire Protection Systems
(EN12845). When properly trimmed, the
double seat design of the DV-5
also provides actuation of fire alarms
upon system operation.
Preaction Type A Fire Protection
Systems are characterized in normal
operation as being a single interlock
system wherein upon electric fire
detection the system piping is flooded
before sprinkler operation. Flooding of
the system converts the normally dry
pipe system into a water filled system
ready for sprinkler operation. The Pre-
action Type A Fire Protection Systems
are further characterized when being in
a fault detection, as in a loss of primary
and back-up battery electric power, as
converting to a dry pipe system. In dry
system mode, opening of a sprinkler
results in loss of system air pressure
and opening the DV-5 Valve.
a
The diaphragm style design of the
DV-5 Valve allows external resetting,
a
providing for easy resetting of the Pre-
acton Type A System without having to
open a valve handhole cover to manu-
ally reposition a clapper and/or latch
mechanism. Simply re-pressurizing the
diaphragm chamber resets the valve.
The DV-5 features internal and exter-
a
nal coating of the valve to provide
corrosion resistance. The external cor-
rosion resistance of the epoxy coating
permits the use of the DV-5
rosive atmospheres associated with
many types of industrial processing
plants and outdoor installations.

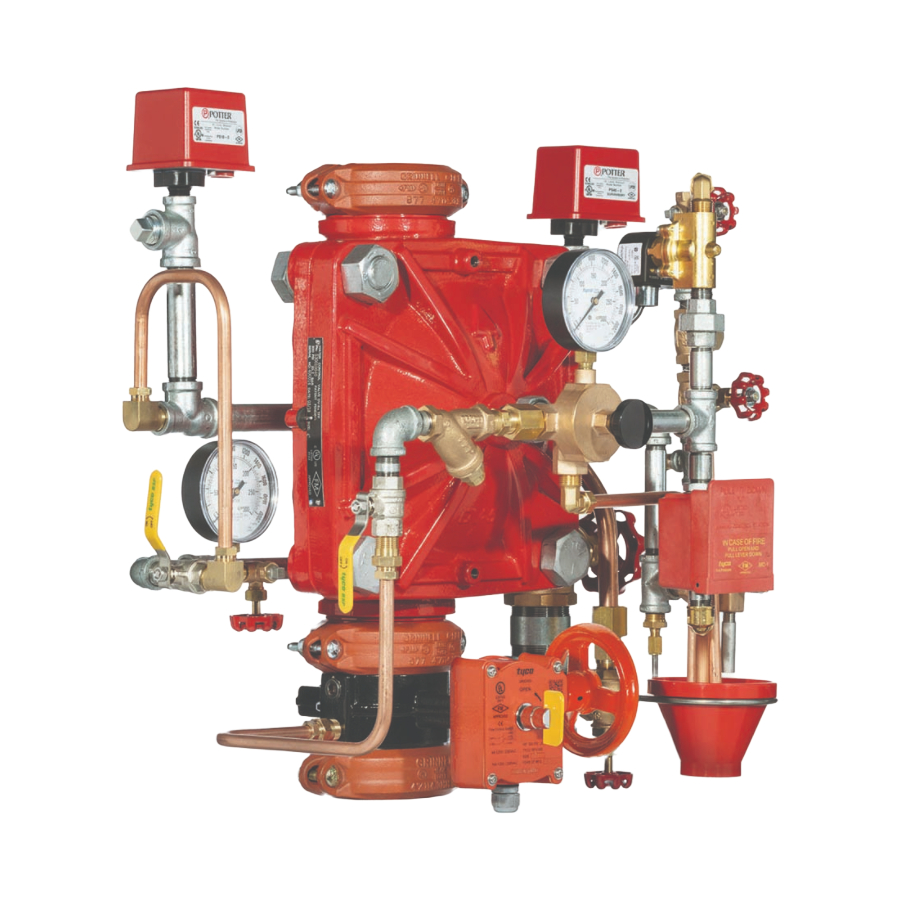

The DV-5 Valves are offered with the
a
DV-5 Valve and separately ordered
a
semi-assembled trim shown in Figure
5, or, for ease of installation, with the
DV-5 Valve completely trimmed.
a
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Page 1 of 20
Valve
a
End Connection
Inlet Outlet
Thread Thread
Groove Groove
Flange Groove
Flange Flange
in cor-
a
Preaction Type A Systems utilize auto-
matic sprinklers and a supplemental
detection system. The supplemental
detection system is typically comprised
of 24 VDC heat detectors, smoke
detectors, and manual pull stations.
Actuation of the detection system auto-
matically operates (releases) the DV-5
Valve, allowing water to flow into the
sprinkler piping system and to be dis-
charged from any sprinklers that may
subsequently open. In the event of loss
of power, the DV-5
tion Type A Trim will act as a regular
dry-pipe valve system.
MARCH 2020
Worldwide
Available End Connections and Weights — lb/(kg)
Nominal Valve Size
1-1/2 2
(40) (50)
26 25
(11,8) (11,3)
25 25
(11,3) (11,3)
N/A N/A
N/A N/A
The DV-5
A Trim has been designed in accor-
dance with the EN12845. This standard
defines operation as a dry pipe system
principally activated by an automatic
fire detection system rather than the
operation of sprinklers.
a Typically, the system designer selects
detection components electrically
operated that will respond to a fire
sooner than the automatic sprin-
klers. Consequently, the system will
Valve with Preac-
a experience a minimal delay in water
delivery over that for a wet pipe sprin-
kler system because the system will
www.tyco-fire.com
Contacts
ANSI Inches
(DN)
3 4 6
(80) (100) (150)
N/A N/A N/A
60 95 177
(27,2) (43,1) (80,3)
66 106 190
(30,0) (48,1) (86,2)
72 116 204
(32,7) (52,6) (92,5)
Valve with Preaction Type
a
8
(200)
N/A
327
(148,3)
346
(157,0)
365
(165,6)
TFP1485
