Fasep 2000 srl
Rev. 1.1

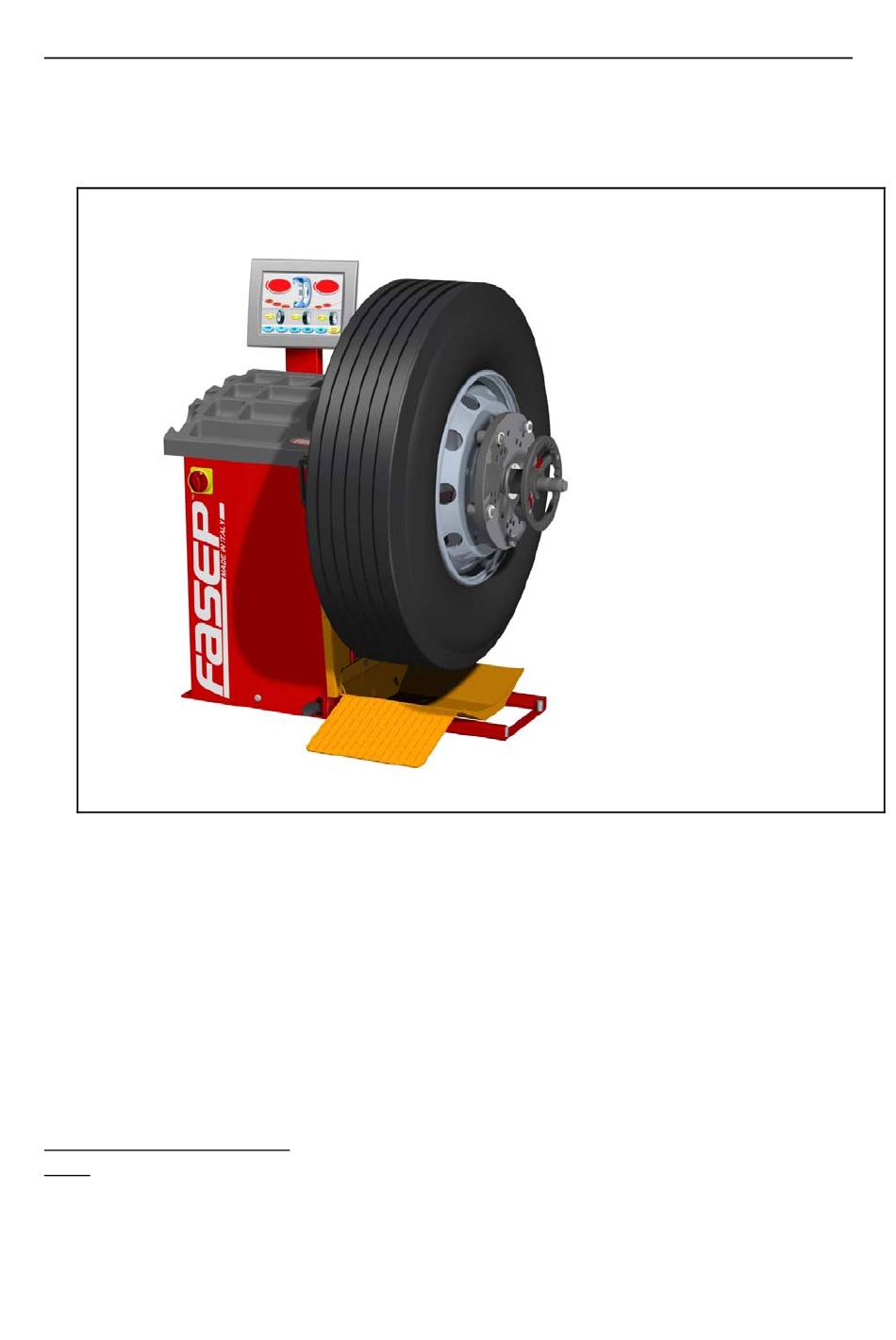

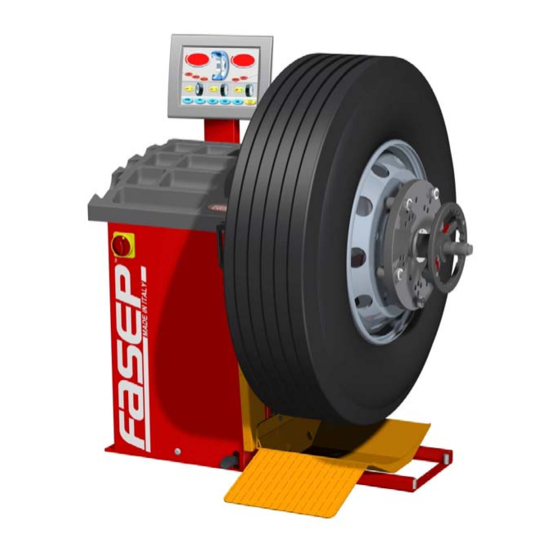

Balatron B350.G3
10 September 2012
BALATRON B350.G3
USER'S MANUAL
F
. 1 B350.G3.T
IG
www.fasep.it
For any information, please contact:
info@fasep.it
e-mail:
FASEP 2000 srl
Via Faentina 96
50032 Ronta (Fi) Italy
Tel. #39 055 8403126
Fax #39 055 8403354
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B350.G3 and is the answer not in the manual?

Questions and answers

Related Manuals for Fasep B350.G3

Summary of Contents for Fasep B350.G3

  • Page 1 Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 BALATRON B350.G3 USER’S MANUAL . 1 B350.G3.T www.fasep.it For any information, please contact: info@fasep.it e-mail: FASEP 2000 srl Via Faentina 96 50032 Ronta (Fi) Italy Tel. #39 055 8403126 Fax #39 055 8403354...

  • Page 2: Warning

    10 September 2012 WARNING .This document contains information which is the property of FASEP 2000 srl and all rights are reserved. This manual shall not be photocopied or reproduced in any way without the prior written consent of FASEP 2000 srl.

  • Page 3: Table Of Contents

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 ORIGINAL INSTRUCTIONS TABLE OF CONTENTS WARNING ..................ii SYMBOLS AND CONVENTIONS .

  • Page 4: Presentation

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 PRESENTATION Intended Use This unit is designed to measure and correct static and dynamic unbalance of vehicle wheel, the dimension and weight of which are within the working range of the machine (see “Technical Data”appendix for reference).

  • Page 5: Lifter - Intended Use

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 Lifter - Intended Use The lifter of this wheel balancer is designed to move wheel of vehicles complete with tire, with size and weight within the work range specified (see Appendix 'Technical Data').

  • Page 6: Air Compressed

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 Air compressed 2.5.1 Connect the inlet air to a network of compressed air pressure of 8 -10 bar. 2.5.2 Check that the air supply tube passage has a useful diameter of 6 mm.

  • Page 7: Use The Control Panel

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 USE THE CONTROL PANEL . 6: Panel Balatron 350 Meaning of keys at the keyboard These instructions apply to Normal Operating Mode. Other function maybe activated by these keys in other operating modes (see Special Functions).

  • Page 8: Use Of The Lifter

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 Use of the lifter 3.3.1 Commands Lifting \ lowering is controlled by the lever (A) of the valve, located on the lift arm, represented in the figure that has three possible...

  • Page 9: Calibration

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 CALIBRATION NOTE: the following symptoms indicate need for calibration: a) check calibration program fails. b) constant low or high weight readings. c) indicated point of umbalance constantly wrong. d) more than 2 spins required to balance wheels repeatedly.

  • Page 10: How To Calibrate The Wheel Balancer B350-Tc

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 How to calibrate the Wheel Balancer B350-TC Switch on the wheel balancer. Press <SET> when SOF X.XX (software version) is displayed. Spin the empty shaft (see the picture 13). . 13 Place a wheel on the flange (see the picture 14).

  • Page 11: How To Control The Calibration Of Wheel Balancer B350-T

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 How to control the calibration of Wheel Balancer B350-T Press <+/-> to select CAL TEST. . 17 Place the truck flange (see picture 17). Put the calibration weight as shown in the picture 18.

  • Page 12: How To Control The Calibration Of Wheel Balancer B350-Tc

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 How to control the calibration of Wheel Balancer B350-TC Press <+/-> to select CAL TEST. . 21 Place a wheel on the flange (see the picture 21). Put the calibration weight as shown in the picture 22.

  • Page 13: Measurement And Correction Of Umbalance

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 MEASUREMENT AND CORRECTION OF UMBALANCE Placing the wheel on the wheel balancer 5.1.1 Select the cone or flange suitable for the wheel to be balanced. NOTE: the operation of centering and tightening of the wheel on the flanges is of basic importance for correct balancing.

  • Page 14: Input Of Rim Dimensions (Trucks)

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 Input of Rim Dimensions (trucks) NOTE: DOUBLE OPERATOR option: this wheel balancer can be used from 2 operators in the same time. Everyone can memorize the dimensions of the wheel to balance with <OPER> buttom. The machine memorizes the operating procedure too.

  • Page 15: Detecting And Correction Of The Umbalance

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 Detecting and correction of the umbalance 5.4.1 After setting wheel dimensions, press <START> to spin the wheel and start the measurement run. 5.4.2 At the end of the spin the wheel will brake automatically and the display will show the weight position and weight requirement to correct the wheel’s umbalance.

  • Page 16: How To Optimize Umbalance Of The Wheel

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 HOW TO OPTIMIZE UMBALANCE OF THE WHEEL Measure the umbalance of the rim only. Once the measurement of rim umbalance is calculated, press <FUNC> to enter optimization function. Mount the tyre on the rim. After mounting the tyre, the wheel must be put on the shaft in the same position as before.

  • Page 17: How To Use Split Weight Function

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 HOW TO USE SPLIT WEIGHT FUNCTION Measure the umbalance of the wheel and press <FUNC> to enter split function. Turn the wheel until POS 1 is displayed. Mark the tyre when the first spoke selected is at 12 o’clock.

  • Page 18: Special Functions Menu

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 SPECIAL FUNCTIONS MENU Enter in the special functions menu Switch on the wheel balancer and press <SET> before SOF X.XX will disappear. The possible functions are: Calibration of wheel balancer...

  • Page 19: Appendix

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 APPENDIX Technical Data Power source 3Ph, 50-60Hz, 220-380V Balancing speed 82-98 rpm Measuring time 10-25 s. Measure precision 20grs (B350.G3.T) Wheel dimensions Rim Diameter da 8" (200mm) a 26" (650mm) Wheel Diameter max 34"...

  • Page 20: Environmental Data, Safety Features And Requirements

    [when servicing the unit] Make sure power sources are disconnected before service on the unit is performed. Service to PCB, electrical and mechanical parts should be done only by an Authorized FASEP 2000 Service Center. Lifter Service By its nature, the lift must not be subjected to special attention for maintenance. However, to work better keep clean the slide rails.
  • Page 21 Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 The pneumatic system which is home to a machine and which provides the energy for the lifting of the wheel is equipped with a filter-pressure regulator which prevents any moisture present in the plant upstream from penetrating inside the circuit of the lift .

  • Page 22: C: Errors And Malfunctions Recognized By The Computer

    Fasep 2000 srl Rev. 1.1 Balatron B350.G3 10 September 2012 Errors and Malfunctions recognized by the Computer Errors may apply to some model only. ERR 1: Shaft does not rotate ERR 13: Printer not connected ERR 2: Rotation Direction is wrong...
