Fasep 2000 srl
Rev. 1.3
Videotronic V653.G2: User's Manual
02 april 2010

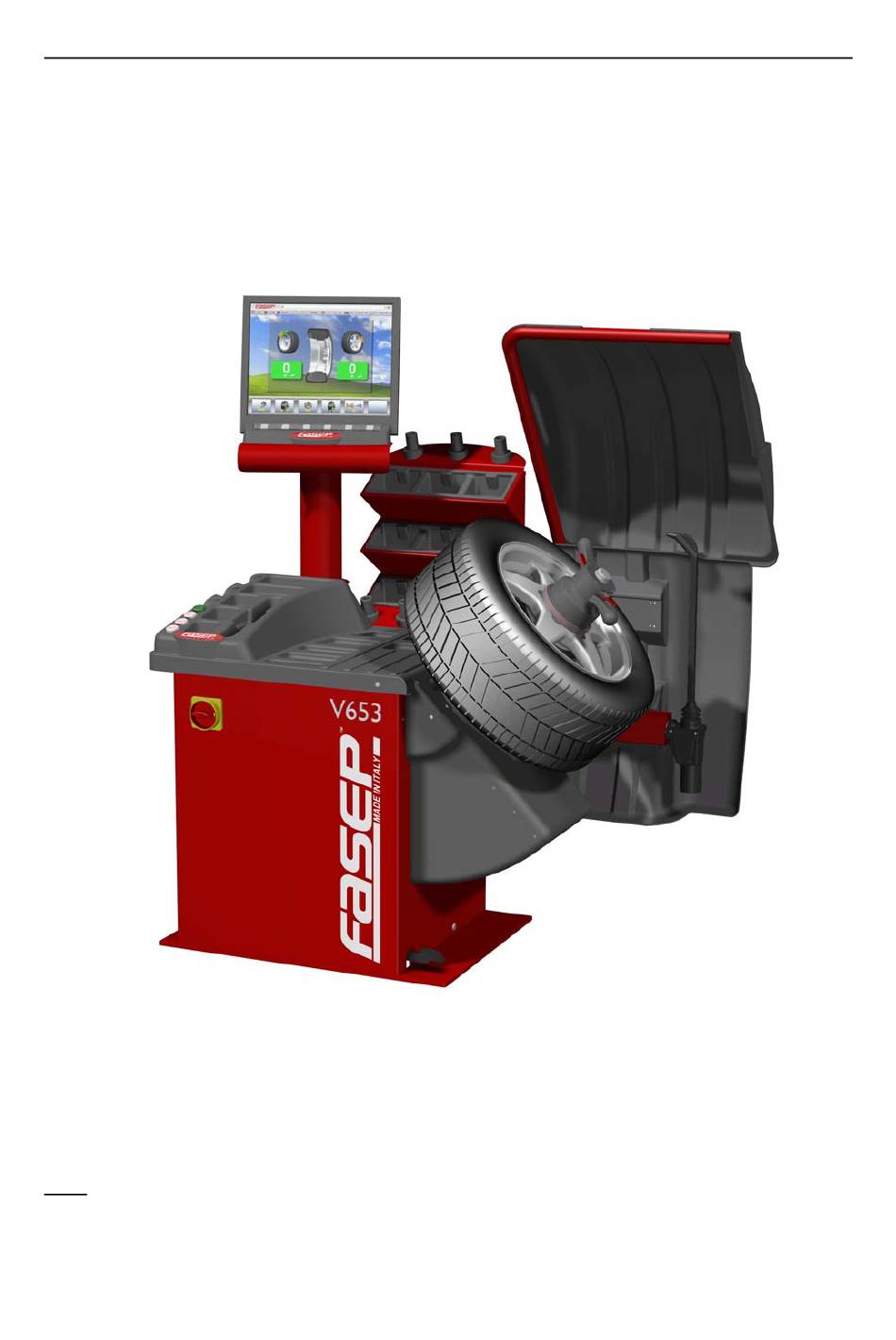

VIDEOTRONIC V653.G2
USER'S MANUAL
www.fasep.it
For any information, please contact:
info@fasep.it
e-mail:
FASEP 2000 srl
Via Faentina 96
50032 Ronta (Fi) Italy
Tel. #39 055 840 3126
Fax #39 055 840 3354
i
