Videotronic V548.G4: User's Manual
15 April 2019
VIDEOTRONIC V548.G4
USER'S MANUAL

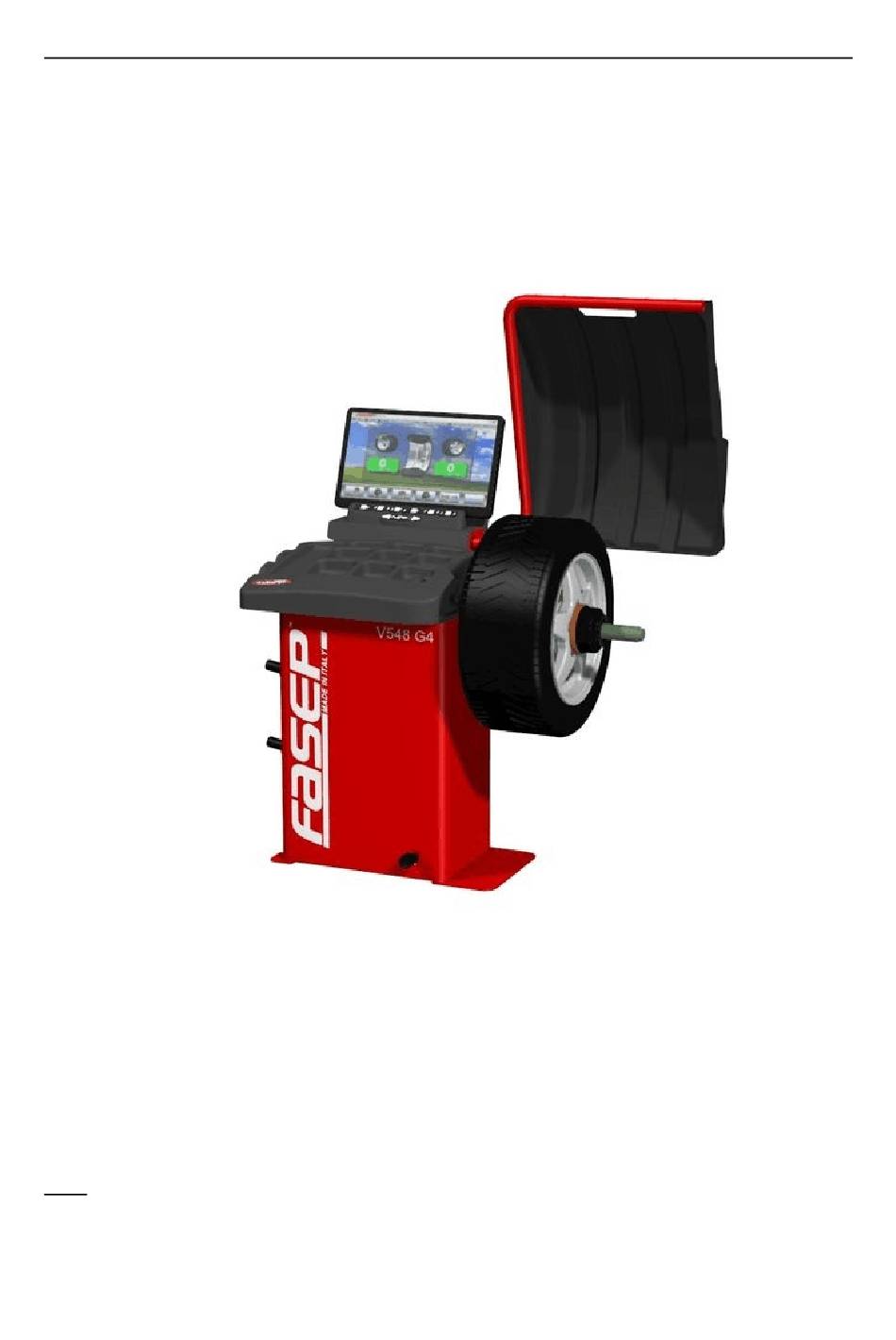

Fig. 1 V548.G4.A
www.fasep.it
For any information, please contact:
support@fasep.it
e-mail:
FASEP 2000 srl
Via Faentina 96 - Ronta
50032 Borgo San Lorenzo (Fi) Italy
Tel. #39 055 840 3126
Fax #39 055 840 3354
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIDEOTRONIC V548.G4 and is the answer not in the manual?

Questions and answers

Related Manuals for Fasep VIDEOTRONIC V548.G4

Summary of Contents for Fasep VIDEOTRONIC V548.G4

  • Page 1 Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 VIDEOTRONIC V548.G4 USER’S MANUAL Fig. 1 V548.G4.A www.fasep.it For any information, please contact: support@fasep.it e-mail: FASEP 2000 srl Via Faentina 96 - Ronta 50032 Borgo San Lorenzo (Fi) Italy Tel.

  • Page 2: Warning

    15 April 2019 WARNING .This document contains information which is the property of FASEP 2000 rl and all rights are reserved. This manual shall not be photocopied or reproduced in any way without the prior written consent of FASEP 2000 srl.

  • Page 3: Table Of Contents

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 ORIGINAL INSTRUCTIONS TABLE OF CONTENTS WARNING ..................2 SYMBOLS AND CONVENTIONS .

  • Page 4: Presentation

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 PRESENTATION Intended Use This unit is designed to measure and correct static and dynamic unbalance of vehicle wheel, the dimension and weight of which are within the working range of the machine (see “Technical Data”appendix for reference) This unit is meant for a professional use.

  • Page 5: Installation

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 INSTALLATION Moving the unit  WARNING When the unit has to be moved: never lift balancer by motor shaft or by neighborhood of it. Assembling the unit For ease of transportation, the wheel balancer might be disassembled into units.

  • Page 6: Use Of Control Panel

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 USE OF CONTROL PANEL Fig. 6 Panel V555 Meaning of the icons on the screen Select balancing mode Delete last character in input activation code Fig. 7 Fig. 10...
  • Page 7 Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 Diagnostic Laser calibration Fig. 13 Fig. 20 Key down Put in the rod laser in rest position Fig. 14 Fig. 21 Position calibration Start laser Fig. 15 Fig. 22...
  • Page 8 Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 Key SET/OK Set measures Fig. 27 Fig. 34 Double operator Go to setup menù Fig. 28 Fig. 35 Optimize Skip current operation Fig. 29 Fig. 36 Restart software Split function Fig.

  • Page 9: Calibration Of Wheel Balancer

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 CALIBRATION OF WHEEL BALANCER (USER) How to calibrate the wheel balancer  NOTE: the following symptoms indicate need for calibration:: a) check calibration program fails. b) constant low or high weight readings.

  • Page 10: How To Control The Calibration Of Wheel Balancer And Position Weight

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 How to control the calibration of wheel balancer and position weight (USER) Switch on the wheel balancer. Select SET UP > CALIBRATION > SET/OK > CHECK CALIBRATION > SET/OK.

  • Page 11: Calibration Alu-Se

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 Calibration ALU-SE Switch on the wheel balancer. MAIN MENU > MENU > RESET > CALIB > ALU-SE CALIBRATION > SET/OK (fig..49). Put the rod on rest position (fig.49) and press SET/ OK.

  • Page 12: Calibration Sme

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 Calibration SME Switch on the wheel balancer. MAIN MENU > MENU > RESET > CALIB > SME CALIBRATION > SET/OK (fig. 52) Put the rod on rest position (fig. 52) and press SET/ OK.

  • Page 13: Measurement And Correction Of Unbalance

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 MEASUREMENT AND CORRECTION OF UNBALANCE Placing the wheel rim on the wheel balancer 7.1.1 Select the cone or flange suitable for the wheel to be balanced. Specific mounting instructions are delivered with each flange ...

  • Page 14: Input Of Rim Dimensions (Alu-Se)

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 Input of Rim Dimensions (ALU-SE) MAIN MENU > INPUT > ALU MODE Press ALU MODE untill the required position of weight is on the video (fig.57). Insert the distance (IN1).

  • Page 15: How To Apply The Weight Using Alu-Se Applicator

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 How to apply the weight using ALU-SE applicator Place the weight as in the picture 62. Turn the wheel until reach the application position of the weight (fig. 61).

  • Page 16: Special Functions

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 SPECIAL FUNCTIONS Language selection 8.1.1 MAIN MENU >SET UP > USER SET UP > LANGUAGE > SET OK >. 8.1.2 Select the language and press SET OK. Setup 8.2.1...

  • Page 17: Appendix

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 APPENDIX Technical data Power requirement 400W Speed Balancing 98RPM Measuring time 4-15 s. Accuracy ±1grammo (±1/28 once) Wheel Dimensions Diameter Rim diameter 8" (200 mm) - 26" (650 mm) Rim Width (with wheel-guard) max 16"...

  • Page 18: B: Environmental Data, Safety Features And Requirements

    Make sure counterweights are securely attached before checking residual umbalance. [when servicing the unit] Make sure power sources are disconnected before service on the unit is performed. Service to PCB, electrical and mechanical parts should be done only by an Authorized FASEP 2000 Service Center.

  • Page 19: C: Errors And Malfunctions Recognized By The Computer

    Fasep 2000 srl Rev. 1.6 Videotronic V548.G4: User’s Manual 15 April 2019 Errors and Malfunctions recognized by the Computer Errors may apply to some model only. ERR 1: Shaft does not rotate ERR 2: Rotation Direction is wrong ERR 3: Rotation speed is not ready...
