Technical Specifications - Seneca Z-KEY Installation Manual

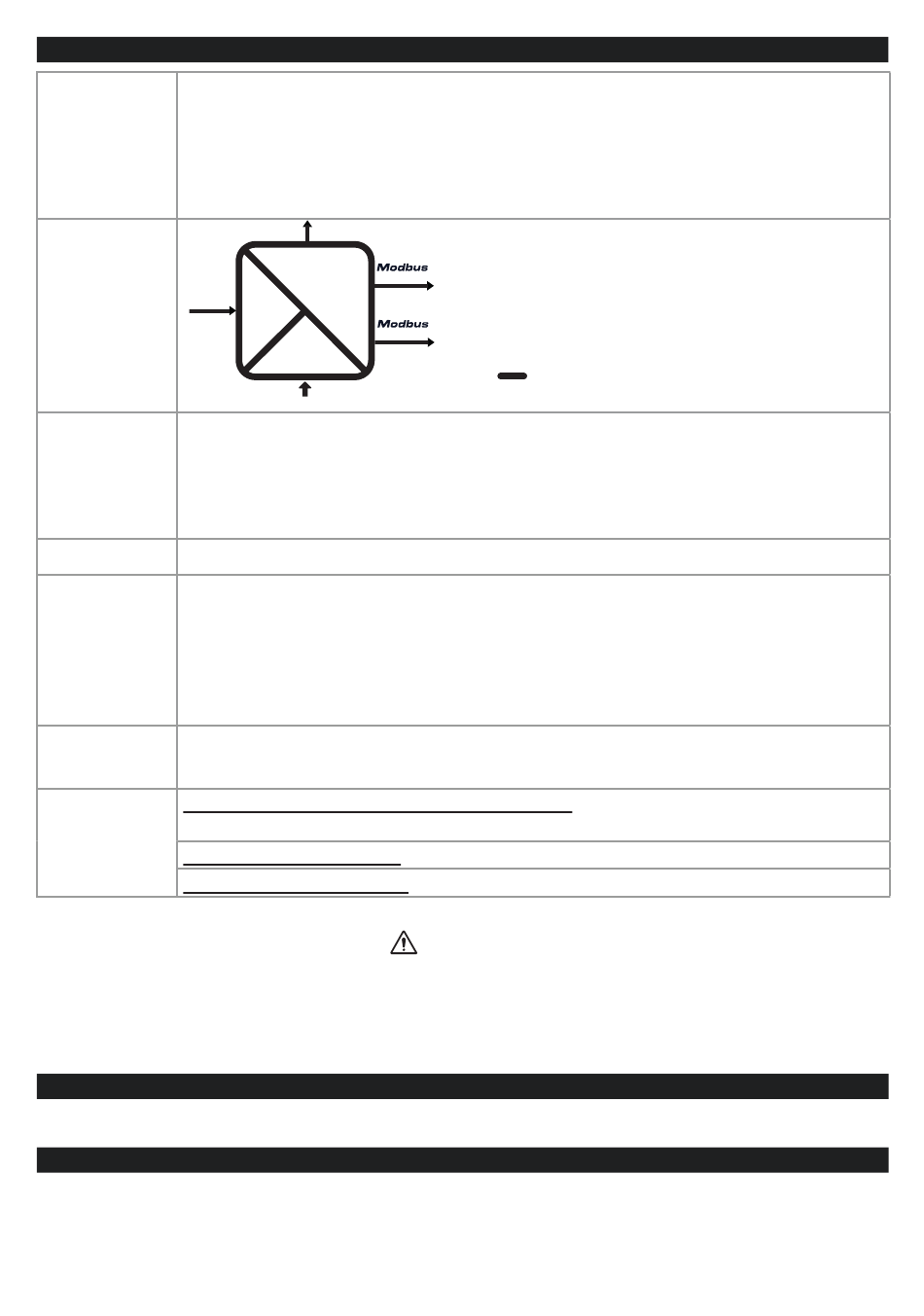

TECHNICAL SPECIFICATIONS

STANDARDS
INSULATION
ENVIRONMENTAL
CONDITIONS
ASSEMBLY
CONNECTIONS
POWER SUPPLY
COMMUNICATION
PORTS
The device may only be powered by a power supply unit with a limited energy electric circuit max.
40Vdc / 28Vac Max output in accordance with CAN/CSA-C22.2 No. 61010-1-12 / UL Std. No. 61010-1 (3rd Edi-
tion) chapter 6.3.1/6.3.2 and 9.4 or class 2 according to CSA 223/UL 1310.
FACTORY IP ADDRESS
The default module IP address is static: 192.168.90.101
WEB SERVER
To access the maintenance Web Server with 192.168.90.101 factory IP address:
Default user: admin, Default password: admin, http://192.168.90.101
MI00369-5-EN
EN61000-6-4 Electromagnetic emissions, industrial environment.
EN61000-6-2 Electromagnetic immunity, industrial environment.
EN60950-1 Security in information processing equipment
Additional notes: a 1 A delayed fuse must be installed near the module, in series with the
power supply connection.
USB
Comm.
ETH
Comm.
Power
Supply
11..40 Vdc / 19..28 Vac (IDC10)
emperature:
T
Humidity:
Altitude:
Storage temperature:
Protection rating:
IEC EN60715, 35mm DIN rail in vertical position.
3-way removable screw terminals, pitch 5 mm
Rear connector IDC10 for DIN bar 46277
RJ45 front connector
SMA antenna connector
side micro USB port
microSD card slot
Voltage: 11 – 40 Vdc; 19 – 28 Vac 50 – 60 Hz
Absorption: Max. 1,5W
RS242 or RS485 switchable on terminal 10 - 11 - 12
Maximum Baud rate 115 k, maximum cable length RS232 < 3m
RS485 IDC10 rear connector: Maximum Baud rate 115 k.
RJ45 front Ethernet connector: 100 Mbit/s, maximum distance 100 m
RS485
(IDC10)
RS485/232
1500 V
-25 °C – + 65 °C
30%– 90% non condensing.
Up to 2000 m above sea level
-30 °C – + 85 °C
IP20 (Not evaluated by UL)
ATTENTION
INSTALLATION MANUAL
ac
3/4
