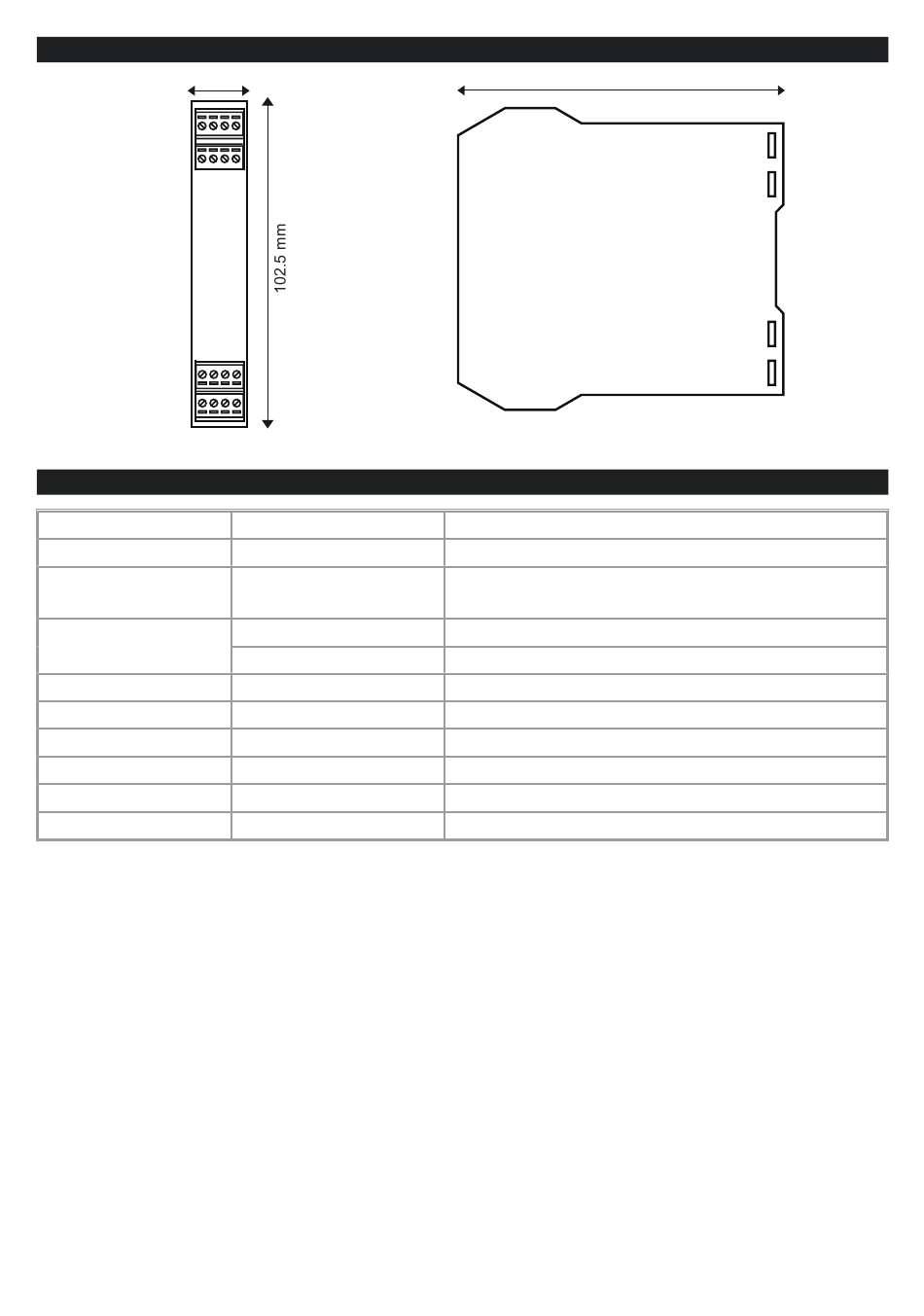

MODULE LAYOUT
Dimensions: 17.5 x 102.5 x 111 mm, Weight: 100 g; Enclosure: PA6, black
SIGNALS VIA LED ON FRONT PANEL
LED
PWR
SD / COM
Z-KEY version only
SD / COM
Z-KEY-P version only
TX1
RX1
TX2
RX2
ETH ACT Green
ETH LNK Yellow
MI00369-5-EN
17.5 mm
STATUS
ON
Flashing
Flashing
Off
Flashing
Flashing
Flashing
Flashing
Flashing
ON
INSTALLATION MANUAL
111 mm
LED meaning
The device is powered correctly
Accessing the microSD card
Profinet communication active
No Profinet communication
Data transmission on port #1 RS485
Data receipt on port #1 RS485
Data transmission on port #2 RS485/RS232
Data reception on port #2 RS485/RS232
Packet transmission on Ethernet port
Ethernet connection present
2/4
