  • Page 1 ICAM Commissioning Guide May 2018 Document: 14972_02 Part Number: 29303...
  • Page 3 You acknowledge that you have not relied on any oral or written information, representation or advice given by or on behalf of Xtralis or its representatives.
  • Page 4 To commission the ICAM system you must have the necessary certification issued by Xtralis or an authorized distributor. Commissioning before you receive the appropriate training may void the warranty.

  • Page 5: Table Of Contents

    ICAM by Xtralis ICAM Commissioning Guide Table of Contents Introduction to ICAM Commissioning The Commissioning Process Pre-Commissioning Before going to the Site ICAM Commissioning Form - Prerequisites Once on Site System Configuration and Setting Thresholds IFT Detector Configuration ILS Detector Configuration...
  • Page 6 ICAM Commissioning Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...

  • Page 7: Introduction To Icam Commissioning

    ICAM by Xtralis ICAM Commissioning Guide Introduction to ICAM Commissioning Commissioning is the final stage of any ICAM system installation. It forges together the elements of designing and installing a pipe network, installing the detectors, cabling for power and communications, and the powering up of the system.
  • Page 8 ICAM Commissioning Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...

  • Page 9: The Commissioning Process

    ICAM by Xtralis ICAM Commissioning Guide The Commissioning Process The commissioning process is a step by step process designed to systematically check and validate all the operational aspects of the ICAM system. The process benchmarks the performance levels tailored for each site and generates necessary documentation for the effective management and maintenance of the system.
  • Page 10 ICAM Commissioning Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...

  • Page 11: Pre-Commissioning

    6. A set of ICAM commissioning forms. 7. Other forms required by the local codes and standards. 8. A PC/Laptop with Xtralis VSC software and Serial lead (9-pin null modem cable) to configure and commission the system. Note: Where the PC/Laptop does not have a serial port, an RS232 to USB converter is required.
  • Page 12 Change the settings to suit site requirements: Normalizing the air flow - Normalize the air flow using Xtralis VSC or the display panel (if applicable) Create smoke at the farthest sampling hole from the Detector to confirm that the detector registers the presence of smoke within the time anticipated by ASPIRE but also within the maximum time according to local codes and standards.

  • Page 13: System Configuration And Setting Thresholds

    All other products will appear under ancillary devices. For a detailed explanation of the Xtralis VSC software forms and tabs, please refer to the online help for the software. For detailed explanations on how to setup the IFT series, ILS or IAS detectors through a display panel (if applicable) please refer to the relevant product guides.

  • Page 14: Ift Detector Configuration

    Access Code Entry may be aborted by pressing the MENU button. All of the following settings can be entered using the Xtralis VSC configuration software and a PC. This can reduce the time taken to enter certain values and parameters.
  • Page 15 ICAM by Xtralis ICAM Commissioning Guide Parameters to change the display resolution for obscuration, language or imperial/metric units are found in the SETUP menu option. Setting Time and Date Minimum Access Code Required: Level 1 The time and date settings can be configured through the TIME DATE menu option. The user will be able to sequentially change the date, month and year, then the seconds, minutes and hours.

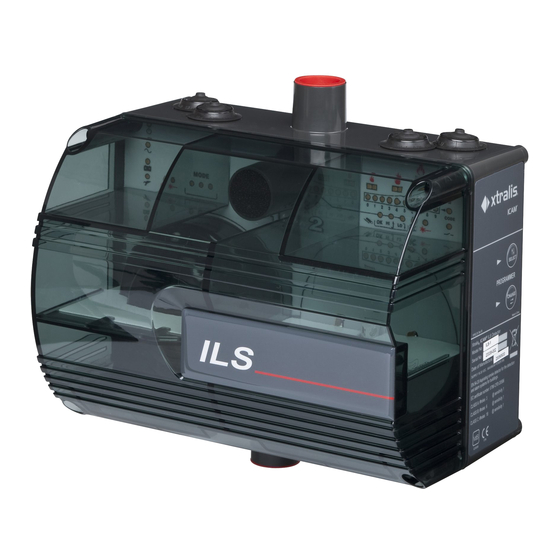

  • Page 16: Ils Detector Configuration

    4.2.1 ILS Detector Programmable Functions The user may configure the ILS detector through the user interface panel or via Xtralis VSC software. This section gives a overview of how to navigate through the configurable parameters and the types of parameters that can be set.

  • Page 17: Ias Detector Configuration

    4.3.1 IAS Detector Programmable Functions The user may configure the IAS detector through the user interface panel or via Xtralis VSC software. This section gives a overview of how to navigate through the configurable parameters and the types of parameters that can be set.
  • Page 18 ICAM Commissioning Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...

  • Page 19: System Integrity Test

    ICAM by Xtralis ICAM Commissioning Guide System Integrity Test ICAM systems can be tested in a number of different ways. Most sites will require different types of testing for different customer environments. Before conducting smoke tests you must check to see if the local codes and standards specify which type of smoke test is to be performed.
  • Page 20 ICAM Commissioning Guide ICAM by Xtralis 5.1.2 Pipe Integrity Smoke Testing This test should be used to test pipe integrity in any typical customer site. This method is suitable for the testing of standard sensitivity fire detection systems. You will need a smoke source, a stopwatch, and a fire extinguisher.
  • Page 21 0.3 mm, the cross sectional area of the conductor being 0.078 mm². Xtralis has developed a test kit to assist field testing of wire burns. For more information please contact your nearest Xtralis office and ask for information on VTT-10000.
  • Page 22 ICAM Commissioning Guide ICAM by Xtralis 1. Ensure that the local fire panel is isolated from the external fire reporting equipment and that any automatic extinguishing or suppressant systems are also isolated. 2. With the power turned off, connect each end of a 1 meter (3 ft.) length of the specified wire to the VTT- 10000.

  • Page 23: Testing Devices

    The tests results should be recorded on a copy of the ICAM commissioning forms. Once the forms have been completed and signed, they should be forwarded along with relevant attachments to all those mentioned in Chapter 6. Copies of the commissioning forms are available in the document library at www.xtralis.com (Xtralis document number 16022). www.xtralis.com...
  • Page 24 ICAM Commissioning Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...

  • Page 25: Hand Over

    Ensure that the ICAM commissioning forms are complete and all relevant sections have been filled in If you have used Xtralis VSC select the Device or Address then select File | Print to print out a copy of configuration details and include a copy with the hand over documents.
  • Page 26 ICAM Commissioning Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
