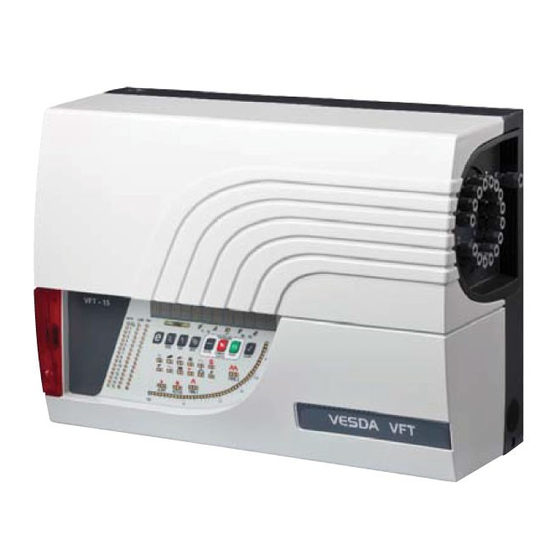

Xtralis VESDA VFT-15 Product Manual

Aspirating smoke detector
Hide thumbs Also See for VESDA VFT-15:
Table of Contents

Advertisement

Quick Links

VESDA VFT
Product Guide
May 2011
Document: 16316
Revision: B
Build: 1
Part Number: 29318

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VESDA VFT-15 and is the answer not in the manual?

Questions and answers

Related Manuals for Xtralis VESDA VFT-15

Summary of Contents for Xtralis VESDA VFT-15

  • Page 1 VESDA VFT Product Guide May 2011 Document: 16316 Revision: B Build: 1 Part Number: 29318...
  • Page 3 You acknowledge that you have not relied on any oral or written information, representation or advice given by or on behalf of Xtralis or its representatives.
  • Page 4 VESDA by Xtralis VESDA VFT Product Guide Document Conventions The following typographic conventions are used in this document: Convention Description Bold Used to denote: emphasis Used for names of menus, menu options, toolbar buttons Italics Used to denote: references to other parts of this document or other documents.
  • Page 5 Class C 15 holes, 1.0% obs/m (0.305% obs/ft) 15 holes, 1.0% obs/m (0.305% obs/ft) * The VFT-15-C is not available in all regions. Please consult your nearest Xtralis office before placing an order. Approvals CE - EMC, LVD and CPD EN54-20 www.xtralis.com...
  • Page 6 VESDA by Xtralis VESDA VFT Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 7: Table Of Contents

    VESDA VFT Product Guide VESDA by Xtralis Table of Contents Introduction Principle of Operation 2.1 Flow Monitoring 2.2 Alarms and Trace Mode 2.3 Detector Display Panel Installation 3.1 Mounting the Detectors 3.2 Cable Connections 3.3 Microbore Connections 3.4 Remote Display Panel Starting Up 4.1 Flow Normalization...
  • Page 8 VESDA by Xtralis VESDA VFT Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 9: Introduction

    VFT-15 is 1500 m² (16,150 ft²) with 15 sampling tubes. The basic system includes RS232, RS485 and TCP/IP interfaces for connecting to Xtralis VSC and Xtralis VSM4 software. When connected by TCP/IP, Xtralis VSM4 enables the configuration and monitoring of a large number of systems by a single PC, which can be accessed from anywhere via any standard internet connection.
  • Page 10 VESDA by Xtralis VESDA VFT Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 11: Principle Of Operation

    VESDA VFT Product Guide VESDA by Xtralis Principle of Operation Air samples are drawn from the protected area through a microbore pipe network towards the detector. Microbore systems normally sample air from the end of the microbore tube via a microbore sampling point.

  • Page 12: Alarms And Trace Mode

    VESDA by Xtralis VESDA VFT Product Guide Alarms and Trace Mode The default settings of the four alarm states (Alert, Action, Fire1 and Fire2) and Trace are shown in the following table. Table 2-1: Default Behavior of Alarm States and Trace Mode...

  • Page 13: Detector Display Panel

    VESDA VFT Product Guide VESDA by Xtralis Detector Display Panel VFT detectors have a full display panel fitted to the main system. The display panel is used for annunciating the detector status and smoke levels, and can also be used to configure the detector.
  • Page 14 VESDA by Xtralis VESDA VFT Product Guide The following describes the display panel for the VFT detector. 1. Control and Configuration Buttons All local user-interface options are done using these buttons. A. Not used for VFT detectors E. Isolate / parameter scroll up key B.
  • Page 15 VESDA VFT Product Guide VESDA by Xtralis 5. Display LEDs Table 2-2: LED Descriptions Description Power Indicates that the power supply is ON. If the system processor is faulty, the General Fault, Power and Comms LEDs will be activated simultaneously.
  • Page 16 VESDA by Xtralis VESDA VFT Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 17: Installation

    VESDA VFT Product Guide VESDA by Xtralis Installation The detector shall be installed in accordance with the following installation instructions and in a manner acceptable to the local Authority Having Jurisdiction (AHJ). The detector is also intended to be installed in accordance with local installation codes such as NFPA 72 National Fire Code and FIA Code of Practice.

  • Page 18: Cable Connections

    Enables TCP/IP connections to a PC with Xtralis VSC or VSM4 via LAN/WAN. RS 232 Enables a direct serial connection to a PC with Xtralis VSC or VSM4 for configuration and monitoring. More information on connecting and using the communications interfaces can be found in Appendix D.
  • Page 19 VESDA VFT Product Guide VESDA by Xtralis Detector Access To gain access to the interior of the detector, first disconnect the power supply then remove the front cover. It is secured by two screws underneath and hinged at the top, allowing complete removal. If the beacon option is fitted, a cable-loom is attached;...
  • Page 20 VESDA by Xtralis VESDA VFT Product Guide 1. Knock-out cable entry holes 7. Beacon connector 2. M5 Chassis grounding stud 8. Display & valve connector 3. RS232 connector 9. Programming connector 4. Ethernet connector 10. Optional I/O modules 5. Fuse (1 A) 11.
  • Page 21 VESDA VFT Product Guide VESDA by Xtralis 3.2.2 Connection Interfaces The following tables define input and output connections for the VFT-15. For more information on how to connect the detectors to each other and PC software using the TCP/IP, RS232 and RS485 interfaces, refer to Appendix D.
  • Page 22 VESDA by Xtralis VESDA VFT Product Guide CN7: Output Relay Interface FIRE 2 Requires 7 x 0.2 - 6 A (24 AWG) cable Notes: Maximum relay contact rating is 2 A @ 30 VDC. Refer to Section 5.4.1 for details of individual sector relay FIRE 1 options.
  • Page 23 VESDA VFT Product Guide VESDA by Xtralis Table 3-5: Connections from Current Output Board (Optional Module) Output Connections (i624) Output 1 All outputs have the following specifications: 20 VDC max. 4 - 20 mA output current (optional 0 - 20 mA) Output 2 7 x 0.2 - 6 A (24 AWG) cable...

  • Page 24: Microbore Connections

    VESDA by Xtralis VESDA VFT Product Guide Microbore Connections Note: For more details refer to the VESDA Pipe Installation Guide or Appendix B. The VFT detectors require microbore, which is 6 mm (0.24 in) OD and 4mm (0.16 in) ID flexible tube. The length of the tubes must be 50 m (164 ft).

  • Page 25: Starting Up

    VESDA VFT Product Guide VESDA by Xtralis Starting Up After installation, it will be necessary to power up the system for configuring the detector according to site requirements and also to ensure that the detector and associated microbore tubes are properly installed.
  • Page 26 VESDA by Xtralis VESDA VFT Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 27: Setup And Button Functionality

    VESDA by Xtralis Setup and Button Functionality The configuration of the detector is achieved by using a PC loaded with Xtralis VSC software or through the display panel. This section provides information on the button functionality in the display panel, and how to setup the detector and navigate through the Main Menu options.

  • Page 28: User Functions

    VESDA by Xtralis VESDA VFT Product Guide User Functions User functions associated with some configuration and control buttons are described in this section. For more information on setup and configuration, refer to Chapter 5. Table 5-2: Description of User Functions for the Display Panel...

  • Page 29: Main Menu Modes

    Access Code Entry may be aborted by pressing the MENU button. All of the following settings can be entered using the Xtralis VSC configuration software and a PC. This can reduce the time taken to enter certain values and parameters.
  • Page 30 VESDA by Xtralis VESDA VFT Product Guide Table 5-3: Engineering Parameters and Values Parameter Value Description VERSION *.** Version of Software in the processor module in the Main Unit. The software can be upgraded using a PC and a special interconnect lead.
  • Page 31 VESDA VFT Product Guide VESDA by Xtralis Table 5-4: Configuration Mode Parameters and Values Display Panel Parameter Range Factory Default Shorthand OPCODE Operator Function Access Code 0 to 999 ENDSCTR End Sector (number of sectors used) 1 - 15 DENSLOG Log of density change 0.01 to 20.00...
  • Page 32 VESDA by Xtralis VESDA VFT Product Guide Notes: Avoid setting to values already defined for Level 1 or 2 Access Codes. To revert all Configuration parameters to their factory default values go to the LOAD DEFAULTS menu item and press ENTER (Level 2 Access Code is required). The Unit will restart with default parameters.
  • Page 33 VESDA VFT Product Guide VESDA by Xtralis SETFAN This sets the speed of the pump. The default value of 7 should be maintained to comply with VdS and UL requirements. Note that during an alarm condition the pump will increase speed to the maximum value of 10.
  • Page 34 VESDA by Xtralis VESDA VFT Product Guide 5.3.5 SECTORS ALMS: Set Sector Day and Night Alarms Minimum Access Code Required: Level 1 The display will now show DAY VALUES, use Parameter UP & DOWN to change to NIGHT VALUES. Press ENTER to access the settings for all the sectors.
  • Page 35 VESDA VFT Product Guide VESDA by Xtralis 5.3.6 TIME DATE: Set Time and Date Minimum Access Code Required: Level 1 Figure 5-2: Display for setting time and date. After accessing this menu item, the display will now show the date in the format 'day - date - month - year' (refer to Figure 5-2), with the date flashing.
  • Page 36 VESDA by Xtralis VESDA VFT Product Guide 5.3.7 WEB: Set IP Address and Mask Minimum Access Code Required: Level 1 Figure 5-3: IP Address and IP Mask display - default values shown. The display will now show the text IP ADDRESS. Press UP button to show the IP Address with the first field flashing: 1.
  • Page 37 0.01 to 0.001). Note: It is highly recommended to leave this value at 0. Changing the value from 0 will cause some configuration values to change. Connection to Xtralis fire configuration and management software will automatically change this value back to 0.
  • Page 38 VESDA by Xtralis VESDA VFT Product Guide Table 5-7: Country Codes for the VFT Language Code English (default) United States (English) French Spanish Portuguese Italian German 5.3.9 LASER CAL: Laser Detector Calibration Minimum Access Code Required: Level 3 Factory use only.
  • Page 39 VESDA VFT Product Guide VESDA by Xtralis Table 5-8: Maintenance Parameters Description Parameter LASERIN Current smoke value for the laser detector output LASERHI Additional smoke detector data (Factory Use) LASERM Additional smoke detector data (Factory Use) LASERLO Additional smoke detector data (Factory Use)

  • Page 40: Input-Output Modules

    VESDA by Xtralis VESDA VFT Product Guide Input-Output Modules VFT detectors have 5 relays fitted as standard. The I/O functionality may be extended by adding I/O modules. These plug onto the standard I/O module in a stackable chain of up to 5. They are recognized by the processor as Modules 1 to 5 going from left to right.
  • Page 41 VESDA VFT Product Guide VESDA by Xtralis Figure 5-4: Relay Module Single pole double throw (SPDT) contacts are used in the relay modules with a rating of 2 A at 24 VDC. www.xtralis.com...
  • Page 42 VESDA by Xtralis VESDA VFT Product Guide 5.4.2 8-Channel, 4 - 20mA Output Module The 8-Channel Output Module may be used for retransmission of airflow or smoke levels. Note: Not tested for UL/ULC Fire Alarm connection application. Figure 5-5: 8-Channel, 4 - 20 mA Output Module...
  • Page 43 VESDA VFT Product Guide VESDA by Xtralis To install and configure the output module, set applicable parameters according to the following table. Table 5-11: 8-Channel Output Module Configuration Parameters Menu Item Parameter Value SETUP (MODULE n) Set to ANOUT 8...
  • Page 44 VESDA by Xtralis VESDA VFT Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 45: Maintenance

    VESDA VFT Product Guide VESDA by Xtralis Maintenance Note: Routine tests should be carried out by qualified personnel. Inspection The following steps should be carried out in accordance with local codes and standards: 1. Check control panel for fault indications etc.
  • Page 46 VESDA by Xtralis VESDA VFT Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 47: Specifications

    Humidity (non-condensing) 10% to 95% Note: Consult your Xtralis office for operation outside these parameters or where sampled air is continually above 0.05% obs/m (0.015% obs/ft) under normal operating conditions. * Product UL listed for use from 0 °C to 38 °C (32 °F to 100 °F)

  • Page 48: Alarm

    VESDA by Xtralis VESDA VFT Product Guide Alarm Range 0.001 to 20 % obs/m (0.0003 to 6.10 % obs/ft) Levels Trace, Alert, Action, Fire1, Fire2 Individually programmable for each level Communication Protocols Modbus over RS232, RS485 and TCP/IP Event Log...

  • Page 49: A Display Panel Navigation

    VESDA VFT Product Guide VESDA by Xtralis A Display Panel Navigation www.xtralis.com...
  • Page 50 VESDA by Xtralis VESDA VFT Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 51: B Microbore Networks

    VESDA VFT Product Guide VESDA by Xtralis B Microbore Networks The detectors rely on a properly designed and installed microbore network to sample air. Guidelines for designing and installing microbore networks are described in this section. For detailed information refer to the VESDA Pipe Network Design and Installation Guides.
  • Page 52 Microbore system performance is mainly dependant upon transport time and hole sensitivity. Alarm thresholds can be configured for the detector via Xtralis VSC software or through the display panel, but transport time is influenced by the number of microbore tubes used by the detector.
  • Page 53 VESDA VFT Product Guide VESDA by Xtralis B.1.5 Recording Microbore Network Design Specifications Keeping an accurate record of the microbore network design specifications assists the installation engineer to correctly configure the microbore network. This information is also useful to complete the commissioning form.

  • Page 54: Microbore Installation Guidelines

    VESDA by Xtralis VESDA VFT Product Guide Microbore Installation Guidelines These instructions are the basic sequence of steps you will be required to perform when installing a microbore network. The normal procedure for installation is: 1. Check the design documents to gather information on the pipe network design specifications.

  • Page 55: C The Commissioning Process

    VESDA VFT Product Guide VESDA by Xtralis C The Commissioning Process The commissioning process is a step by step process designed to systematically check and validate all operational aspects of the VESDA system. The process benchmarks the performance levels tailored for each site and generates necessary documentation for the effective management and maintenance of the system.

  • Page 56: Pre-Commissioning

    4. Microbore network installation record. 5. Relevant product and installation guides. 6. A set of VESDA commissioning forms (Xtralis Document 12678). 7. Other forms required by the local codes and standards. 8. A PC or Laptop with appropriate PC Software and Serial lead (9-pin female-to-female null modem cable) to configure and commission the system.

  • Page 57: System Configuration

    Ensure that the VESDA commissioning forms are complete and all relevant sections have been filled If you have used Xtralis VSC, select the Device or Address then select File | Print to print out a copy of configuration details and include a copy with the hand over documents.
  • Page 58 VESDA by Xtralis VESDA VFT Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 59: D Communications Guide

    PC via a standard internet connection. To set up the detector for TCP/IP communications to a PC with Xtralis VSC or VSM4 software, you will need standard Cat 5 Ethernet cables for connecting the PC Ethernet port to a LAN/WAN point, and each detector's Ethernet port to a LAN/WAN point.

  • Page 60: Rs232 Communications

    To set up the detector for an RS232 connection to a PC with Xtralis VSC or VSM4 software, you will need a serial lead (9-pin female-to-female null modem cable). To connect the PC to the detector, use the serial lead to connect the serial port on the detector to the serial port on the PC.

  • Page 61: Rs485 Communications

    PC via a RS485/RS232 converter For connecting VFT detectors to a PC loaded with Xtralis VSC or VSM4 software, you will need an RS232 to RS485 converter (Xtralis recommends the ADAM-4520 RS232/RS485 isolated converter). The requirements for RS485 cabling and installation are outlined in Section D.4.
  • Page 62 VESDA by Xtralis VESDA VFT Product Guide Network Termination Terminate the network with 120 Ω resister at both the start and end of the network as shown in the following diagram. A. RS232 / RS485 Converter B. Bias Jumpers Required...

  • Page 63: Installation Guide For Rs485 Equipment

    VESDA VFT Product Guide VESDA by Xtralis Installation Guide for RS485 Equipment Communications to RS485 standard are designed to reject a degree of interference, but care must still be taken when designing and implementing the installation to minimize the level of interference imposed on the equipment.
  • Page 64 VESDA by Xtralis VESDA VFT Product Guide D.4.2 Cable Material RS485 communication is established by current switching between a pair of wires at data rates of up to 250 kbps. The cable construction is specified as: Twisted pair of nominal 10 turns per meter or yard 40 pF to 60 pF meter between conductors 100 Ω...

  • Page 65: E Laser Chamber Safety

    VESDA VFT Product Guide VESDA by Xtralis E Laser Chamber Safety VESDA VFT detector laser chambers incorporate a 658 nm laser with an average power less than 10mW and are located on the underside of the detector when mounted upright on a wall. The laser chamber is identified by two safety labels shown in the following diagrams.
  • Page 66 VESDA by Xtralis VESDA VFT Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 67: Ful/Ulc Wiring Requirements For Fire Alarm Connection Application

    VESDA VFT Product Guide VESDA by Xtralis UL/ULC wiring requirements for Fire Alarm connection application Figure F-1: ULC input and output requirements 1. 24 VDC input power applied to terminals 1 & 2 of CN2 as shown in item A above. 24 VDC supply shall be a ULC-527 Listed Fire Alarm Control Panel or ULC-527 Listed power supply.
  • Page 68 VESDA by Xtralis VESDA VFT Product Guide CN7: Output Relay Interface FIRE 2 Requires 7 x 0.2 - 6 A (24 AWG) cable Note: Maximum relay contact rating is 2 A @ 30 VDC. Refer to Section 5.4.1 for further details.
