Summary of Contents for Xtralis ICAM ILS-2
- Page 1 ICAM ILS-2 Product Guide September 2018 Document Number: 16278_04 Part Number: 09-0114-10...
- Page 3 You acknowledge that you have not relied on any oral or written information, representation or advice given by or on behalf of Xtralis or its representatives.
- Page 4 Class A - 3 holes Class B - 6 holes Class C - 18 holes Regional approvals listings and regulatory compliance vary between ICAM product models. Refer to www.xtralis.com for the latest product approvals matrix. Document: 16278_04 Part Number: 09-0114-10 www.xtralis.com...
-
Page 5: Table Of Contents
ICAM by Xtralis ICAM ILS-2 Product Guide Table of Contents Introduction Detector Installation Mounting the Detector Wiring Connections Field Connections Pipe Installation Pipe Specification Fixings Bends End Cap Holes Exhaust Filters Standard Pipe Configuration Detectors Setup Display Functions User Functions... - Page 6 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
-
Page 7: Introduction

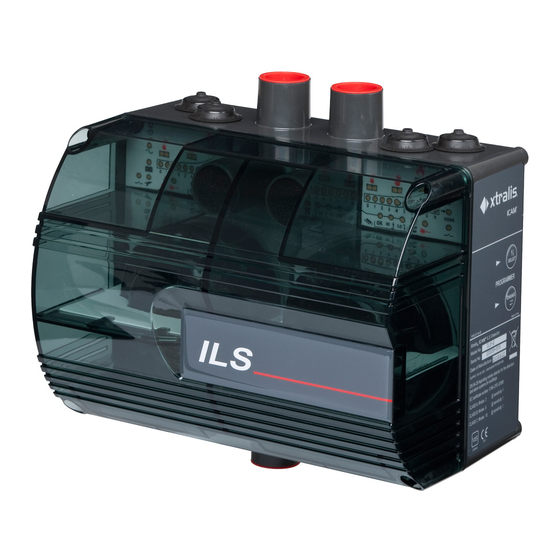

ICAM ILS-2 Product Guide Introduction The ICAM ILS-2 system is an aspirating smoke system that utilizes an air-sampling pipe network to draw air towards two high sensitivity point detectors in an aspirated enclosure. Each detector monitors the air from separate sampling pipes allowing for a large area of coverage in comparison to traditional point detectors. - Page 8 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
-
Page 9: Detector Installation
ICAM by Xtralis ICAM ILS-2 Product Guide Detector Installation The ICAM ILS-2 is provided with the following components: 1 detector 1 corner stud key 1 ferrite core 1 installation sheet with mounting template 1 product guide Check all components for damage and refer any concerns to your authorized representative. -
Page 10: Mounting The Detector
ICAM ILS-2 Product Guide ICAM by Xtralis Mounting the Detector Notes: This equipment must be installed by a qualified installer in accordance with all local and national code requirements. The detector must be installed at an accessible position to facilitate maintenance and testing. - Page 11 ICAM by Xtralis ICAM ILS-2 Product Guide Dimensions 37.5mm 188.0mm 140.0mm 32.5mm 165.7mm 241.7mm 53.0 mm 102.8mm 71.3mm 159.3mm 258.6mm Figure 2-3: Detector Enclosure Dimensions www.xtralis.com...
- Page 12 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
-
Page 13: Wiring Connections
ICAM by Xtralis ICAM ILS-2 Product Guide Wiring Connections For correct operation of the unit it is essential that the case is fully sealed so that air can only be drawn into the system through the aspirating pipe. For this reason, all wiring must pass through the cable seals provided and no additional holes should be made. - Page 14 ICAM ILS-2 Product Guide ICAM by Xtralis 3.1.1 Battery / Input Power Connection Figure 3-2: Ferrite core and battery supply wiring The ILS-2 unit is designed to run from a 24 VDC power supply. The power supply should be connected to the two-way BATTERY terminal on the main circuit board ensuring that the wires are correctly orientated.
-
Page 15: Pipe Installation
A simple guide to pipe installation follows with examples of standard configurations. Note: ASPIRE may be downloaded from www.xtralis.com and should be used to calculate transport times, dilution effects etc. for all installations beyond the scope of this guide. Use 25 mm (or ¾”) Red ABS pipe with sampling point holes drilled along its length. The pipe run is terminated with an end cap that has a hole drilled in its center. -
Page 16: End Cap
Where the ICAM ILS-2 is located outside the protected area, consideration must be given to returning the exhaust air to the protected environment to balance pressure differences that may exist between the two areas. -
Page 17: Filters
The sampled air is passed through a filter (order code: FL53) before entering the detector chamber. Figure 4-4: Xtralis Inline Filter Additional filtration of sampled air may be required in harsh environments. Refer to the Xtralis Inline Filter Application Note (17785) for further information. - Page 18 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
-
Page 19: Detectors
ICAM by Xtralis ICAM ILS-2 Product Guide Detectors The ILS-2 is supplied with two point detectors. The detectors interface directly with the ILS-2 system. This allows the detectors status and analog smoke level output to be read and interpreted by the ILS-2 processor. - Page 20 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
-
Page 21: Setup
ICAM by Xtralis ICAM ILS-2 Product Guide Setup Display Functions ALERT Alarm ACTION Alarm BARGRAPH of Smoke level or Airflow speed FIRE Alarm SMOKE DETECTOR FAULT (1 per detector) AIRFLOW OK - HIGH AIRFLOW - LOW AIRFLOW ISOLATE The following LEDs are common to both channels. -
Page 22: User Functions
ICAM ILS-2 Product Guide ICAM by Xtralis User Functions Figure 6-1: Programming buttons on the unit Press and hold SELECT and CHANGE keys simultaneously until the sounder beeps to initialize function selection. Press and release SELECT key to sequentially step through functions. - Page 23 ICAM by Xtralis ICAM ILS-2 Product Guide Table 6-1: User Functions (continued...) Function Display Special Instructions Set sensitivity of Channel 2 FLOW 2 OK Please refer to Table 6-2 for more details. bargraph to changes in airflow flashes. velocity Bargraph display...
- Page 24 ICAM ILS-2 Product Guide ICAM by Xtralis Table 6-1: User Functions (continued...) Function Display Special Instructions Set Channel 2 smoke detector FIRE 2 LED Please refer to Table 9-1. FIRE alarm threshold flashes. Set SOUNDER On or Off If it sounds short beeps, this signifies it is in the Off setting.
-
Page 25: Parameters
ICAM by Xtralis ICAM ILS-2 Product Guide Parameters The Fan Speed, Flow Limits and Flow Sensitivity need to be set for each installation prior to Flow Calibration and testing. The following guidelines will assist in the commissioning of the unit. - Page 26 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
-
Page 27: Testing
ICAM by Xtralis ICAM ILS-2 Product Guide Testing Note: Testing should only be carried out by qualified personnel. Before undertaking any testing, ensure that the proper authorities have been informed and that the unit has been isolated from the fire control panel if necessary to prevent unwanted alarms. - Page 28 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
-
Page 29: Maintenance
ICAM by Xtralis ICAM ILS-2 Product Guide Maintenance With normal use, the filter element will eventually become contaminated with dust particles. It is recommended that the filter element (order code: FL53) is replaced and detectors cleaned every six months (more frequently for dirty environments). - Page 30 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
-
Page 31: 54-20 Sensitivity Classes
ICAM by Xtralis ICAM ILS-2 Product Guide EN 54-20 Sensitivity Classes The detectors used in the ILS-2 have been independently tested and certified for use in EN54-20 approved Class A, B or C installations. The following information will show the requirements for compliance in each category. - Page 32 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
-
Page 33: 10 Problem Solving
ICAM by Xtralis ICAM ILS-2 Product Guide 10 Problem Solving Problem Possible Solutions Power light flashing Ensure supply to BATTERY connector within limits. No lights on display. Fan not running Ensure supply to BATTERY connector within specified limits. Ensure supply leads correctly orientated. - Page 34 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
-
Page 35: 11 Specifications
ICAM by Xtralis ICAM ILS-2 Product Guide 11 Specifications Table 11-1: General ILS-2 Specifications Number of Detectors 2, High Sensitivity Analog Addressable Filtration Single stage dust particle filter Flow Monitoring Thermal device, high and low thresholds. 10 element bar graph indication. - Page 36 ICAM ILS-2 Product Guide ICAM by Xtralis This page is intentionally left blank. www.xtralis.com...
