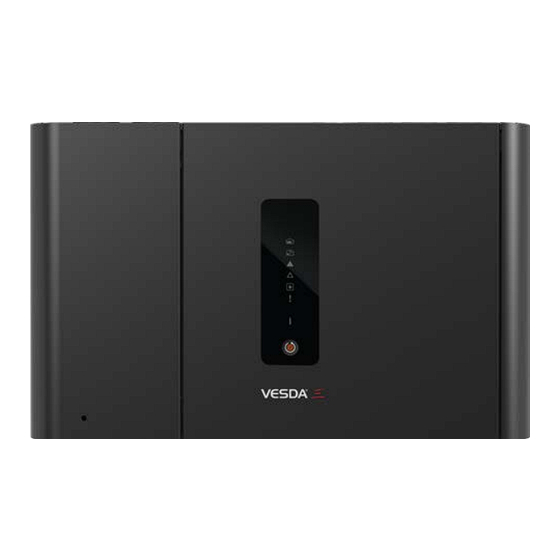

Xtralis VESDA-E VEP-A00-UL Product Manual
  1. Manuals
  2. Brands
  3. Xtralis Manuals
  4. Smoke Alarm
  5. VESDA-E VEP-A00-UL
  6. Product manual

Xtralis VESDA-E VEP-A00-UL Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VESDA-E VEP-A00-UL Product Guide
September 2023
Doc. No. 35710_A5
Part No. AD31041-006
VEP-A00-P-UL (4 Pipes)
VEP-A00-1P-UL (1 Pipe)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VESDA-E VEP-A00-UL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xtralis VESDA-E VEP-A00-UL

Summary of Contents for Xtralis VESDA-E VEP-A00-UL

  • Page 1 VESDA-E VEP-A00-UL Product Guide VEP-A00-P-UL (4 Pipes) VEP-A00-1P-UL (1 Pipe) September 2023 Doc. No. 35710_A5 Part No. AD31041-006...
  • Page 3 You acknowledge that you have not relied on any oral or written information, representation or advice given by or on behalf of Xtralis or its representatives.
  • Page 4 VESDA-E VEP-A00-P-UL Product Guide Scope The VESDA-E VEP-A00-UL Product Guide provides a comprehensive description of the VESDA-E VEP-A00- UL detector and its accessories. This guide introduces the VEP-A00-UL features, technical specifications and gives an understanding of its components and their function. You will also find instructions on installing, cabling and powering up the detector.
  • Page 5 This Xtralis product incorporates a laser device and is classified as a Class 1 laser product that complies with FDA regulations 21 CFR 1040.10. The laser is housed in a sealed detector chamber and contains no serviceable parts.
  • Page 6 Xtralis recommends a balance of at least 50% to ensure that designed pipework systems include a sufficient safety margin for reliable operation when deployed. This means that the ratio between the minimum sensitive hole and the maximum sensitive hole is not more than 1:2.
  • Page 7 VESDA-E VEP-A00-P-UL Product Guide SPECIAL APPLICATION Xtralis VESDA-E detectors may be optionally configured for use in special application environments with higher Fire Alarm sensitivity that is, by default not allowed by the ANSI UL 268 Ed7 standard. Special application mode is suitable for areas where early warning is paramount, in this mode, the detector may not be compliant with the Nuisance requirement of UL 268 Ed7 standard.
  • Page 8 Note that the maximum pipe length is dependent on pipe layouts and fittings used. Ensure that the correct setting for UL7 mode in the Smoke Thresholds setting screen of Xtralis VSC is set correctly for the application, special application modes permit higher sensitivities and must only be used where cooking will not occur.
  • Page 9 0.01 8.00 0.003 2.509 114 4000 Duct 0 - 4000 1.65 8.00 0.506 2.509 Product Listings CSFM Regional approvals listings and regulatory compliance vary between product models. Refer to www.xtralis.com for the latest product approvals matrix. Document: 35710_A5 Part Number: AD31041-006 www.xtralis.com...
  • Page 10 Figure 1: Wrist Strap application Remove the Fascia 1. Turn off the 24V DC power to the detector. 2. Remove the two screws along side the door hinge, as shown below in Figure 2: Fascia removal - remove screws. viii www.xtralis.com...
  • Page 11 Precaution: Electrostatic precautions must be followed to prevent damage to the detector. Précaution : Les précautions électrostatiques doivent être respectées pour éviter d'endommager le détecteur. Figure 2: Fascia removal - remove screws 3. Remove the fascia and allow it to hang by the two tether straps. www.xtralis.com...
  • Page 12 VESDA-E VEP-A00-P-UL Product Guide Figure 3: Fascia hanging on two tethers www.xtralis.com...
  • Page 13 Access to PCs on which Xtralis VSC, Xtralis VSM4 configuration software and system configuration information are installed must be restricted to authorized persons if saved passwords are used. Xtralis PC software such as VSC or VSM, must only be installed on PCs with current active Windows support from Microsoft.

  • Page 14: Table Of Contents

    Managing the Exhaust Air Installation Prepare the Detector Mounting Wiring Powering Up Installation Checklist Preliminary System Check Configuration Communication between Xtralis VSC and the detector Connecting to the Detector Security Commands Configuration Options Factory Default Settings Commissioning AutoLearn Smoke AutoLearn Flow...
  • Page 15 VESDA-E VEP-A00-P-UL Product Guide Air Sampling Test Results Glossary Index www.xtralis.com...

  • Page 16: Introduction

    VESDA-E VEP-A00-P-UL Product Guide Introduction The VESDA-E VEP-A00-UL is an aspirating smoke detector (ASD) that provides very early warning of fire conditions by drawing air samples through an air sampling pipe network. Figure 1-1: VESDA-E VEP-A00-UL Aspirating Smoke Detector The detector easily interfaces with fire warning and fire suppression release systems and can be integrated into a building management system (BMS).

  • Page 17: Product Information

    The detector has a LED user interface. A series of LEDs display Alarm, Fault, Disable and detector power on status. The detector has a buzzer which can be configured to signal alarm, fault, disable and standby status. A button allows the user to Reset or Disable the detector or to acknowledge status. www.xtralis.com...

  • Page 18: Front Panel

    Status LEDs: Alert, Action, Fire 1, Fire 2, Disabled, Fault and Power. Controls: Reset and Disable button. 2.3.1 Status LEDS The VESDA-E VEP-A00-UL detector features a range of LED Indicators which illuminate when their respective activation conditions are met. Table 2-1: LED Indicators Symbol...

  • Page 19: Internal Buttons

    The USB port is used for configuration purposes ONLY. It allows direct connection between the VEP-A00-UL detector and a PC or laptop running the Xtralis VSC software. Refer to Section 4.3.4 for information on connecting the USB lead, and Section 5.1.2 for information on creating connection profiles in Xtralis VSC.

  • Page 20: Vesdanet

    Xtralis VSC. A password is required to access the detector via Ethernet connection. It is initially set using Xtralis VSC during configuration with the USB port, and the user is required to enter it when creating an Ethernet connection profile in Xtralis VSC.

  • Page 21: Specifications

    0.015% * Sampled Air temperature shall reach Ambient Detector temperature upon obs/ft (0.05% obs/m) under normal operating entry into Detector. Refer to Xtralis Design Guides & Application Notes for conditions. sampled air pre-conditioning.
  • Page 22 Recommended 14 days Thresholds are automatically changed from the previously set values to the updated values after the AutoLearn process has completed. Note: AutoLearn function is unavailable when detector configuration set to Open area mode. Referencing Adjustment for external ambient conditions www.xtralis.com...
  • Page 23 Two Fault Warning Levels Maintenance and Major Fault Maintenance Aids Filter and flow monitoring Event reporting via VESDAnet and event log Table 2-4: Ordering Information VESDA-E VEP-A00-UL Detector VEP-A00-P-UL (4 Pipes) VEP-A00-1P-UL (1 Pipe) Exhaust Adaptor US VSP-961 Note: Refer to Table 7-2 on page 86 for the spare parts list.

  • Page 24: Dimensions

    134.0 5.28 34.0 1.34 34.0 1.34 34.0 1.34 34.0 1.34 26.5 1.04 350.0 13.78 224.0 8.82 230.2 9.06 135.5 132.3 5.21 28.5 1.12 35.0 1.38 45.0 1.77 127.0 143.0 5.63 26.0 1.02 Figure 2-4: Front, top, bottom and side dimensions www.xtralis.com...
  • Page 25 VESDA-E VEP-A00-P-UL Product Guide inch 17.5 0.69 315.0 12.4 17.5 0.69 D 144.99 5.71 77.2 3.04 Figure 2-5: Rear dimensions with Mounting Bracket www.xtralis.com...
  • Page 26 VESDA-E VEP-A00-P-UL Product Guide inch 224.0 8.82 112.0 4.41 40.9 1.61 D 268.39 10.57 40.71 20.25 183.5 7.22 20.25 Figure 2-6: Rear Dimensions with hole locations for direct mounting www.xtralis.com...

  • Page 27: Pipe Network Design And Installation

    Remove the plugs from only those pipe inlet ports intended for use. To remove the plug, place a large screwdriver in the large slot and twist, or use a small screwdriver in the side slots to lever the plug out. Insert the pipes into the pipe inlet(s) ensuring a firm fit. www.xtralis.com...

  • Page 28: Managing The Exhaust Air

    For example, where pressure difference exceeds 50 Pa, or where hazardous substances are present inside the area. Return air pipes need to be as short as possible to minimise the effect of airflow impedance in the return air pipe network and modelled in ASPIRE. www.xtralis.com...

  • Page 29: Installation

    VESDA-E VEP-A00-P-UL Product Guide Installation The VEP-A00-UL detector is shipped with the following components: 1 VESDA-E VEP-A00-UL detector Installation Sheet Mounting bracket Mounting template for directly mounting the detector to the mounting surface Exhaust Adaptor (US only) 1 End of Line resistor for the monitored GPI Check all components for damage and refer any concerns to your authorized representative.

  • Page 30: Mounting

    Refer to Section 4.2.2 for further information. Direct mounting: A minimum clearance of 20 mm (0.8 in.) is required between the detector and a wall or obstruction, on both sides of the detector. Refer to Section 4.2.3 for further information. Figure 4-4: Mounting location www.xtralis.com...
  • Page 31 1. Place the detector on a flat surface with the back plate facing down. 2. Open the front door and remove the fascia. Refer to Sections 7.2 on page 71 and Electrostatic discharge (ESD) precaution on page viii for further information. Figure 4-5: Detector with fascia removed www.xtralis.com...
  • Page 32 A Top cover retaining tabs B Bottom cover retaining tabs Figure 4-6: Tabs used to remove top and bottom cover 4. Detach the tethers, Figure 4-7 and Figure 4-8. (You can leave the cables from the detector to the fascia connected.) Figure 4-7: Detaching the tethers www.xtralis.com...
  • Page 33 Précaution : Les précautions électrostatiques doivent être respectées pour éviter d'endommager le détecteur. Figure 4-8: Detector with tethers detached 5. Detach the front door from the fascia by removing pin A from the hinge (Figure 4-9, Figure 4-10). Leave pin B in place – do not remove it. www.xtralis.com...
  • Page 34 VESDA-E VEP-A00-P-UL Product Guide Figure 4-9: Removing door hinge pin A Figure 4-10: Detaching door www.xtralis.com...
  • Page 35 Rotate the detector 180 degrees. c. Rotate the door 180 degrees and place it next to the right side of the fascia. 7. Replace the door hinge pin. (Figure 4-12, Figure 4-13) Figure 4-11: Rotate detector and door and move door to right side of fascia www.xtralis.com...
  • Page 36 VESDA-E VEP-A00-P-UL Product Guide Figure 4-12: Replacing the door hinge pin - showing correct positioning of door and pin www.xtralis.com...
  • Page 37 Figure 4-13: Replacing the door hinge pin Figure 4-14: Correct positioning of door hinge pin when fully in place 8. Re-attach the tethers. Attach at the slots circled in Figure 4-15. Position the tethers in the slots and pull up as shown in Figure 4-16. www.xtralis.com...
  • Page 38 Figure 2: Fascia removal - remove screws. 11. The detector is now inverted. The display should be upright while the exhaust vent is at the top and sampling pipe inlets at the bottom. The electrical connections and filter should be accessible by opening the door. www.xtralis.com...
  • Page 39 B Keyholes Figure 4-18: Mark keyholes 3. Insert two screws into the mounting surface at marked positions (Figure 4-19). 4. Slide plate onto the mounting screws and tighten them with a screwdriver (B). Legend A Mounting bracket B Screwdriver Figure 4-19: Tighten screws www.xtralis.com...
  • Page 40 7. Open the door on the front of the detector (Figure 4-22). Refer to Section 7.2 on page 71 for further information on how to open the door. 8. Insert and tighten the locking screw (A). This secures the detector to the mounting bracket. Legend A Locking screw Figure 4-22: Locking Screw www.xtralis.com...
  • Page 41 For metric pipes, cut the pipe to the inner depth line marked on the mounting template. For imperial pipes, fit the pipe adaptor (C) and cut the pipe to the outer depth line marked on the mounting template. 7. Position electrical conduit (D) on the marked center lines. www.xtralis.com...
  • Page 42 Position the right keyhole on the rear of the detector over the head of the right screw (A) (Figure 4-27). Upright Inverted Detector Detector Figure 4-27: Position detector over screw Slide the detector to the left, or to the right for inverted detectors, to lock the detector on the screw (Figure 4-28). www.xtralis.com...
  • Page 43 Rotate the detector anticlockwise, or clockwise for an inverted detector, to lock the detector on to the screw (Figure 4-30). Upright Inverted Detector Detector Figure 4-30: Rotate the detector 12. Insert an M4 screw at the small end of the detector’s bottom-left, or bottom-right for an inverted detector, keyhole (Figure 4-31). www.xtralis.com...
  • Page 44 VESDA-E VEP-A00-P-UL Product Guide Upright Detector Inverted Detector Figure 4-31: Locking screw 13. Tighten the top and bottom screws. 14. Insert the pipes and electrical conduit. www.xtralis.com...

  • Page 45: Wiring

    A00-UL. 4.3.1 Cabling Inlets The VESDA-E VEP-A00-UL contains four inlets for power, relay and network cabling, located on the upper and lower sides of the detector base. The holes have a diameter of 26 mm (1.02 inch). Note: To maintain the specified IP rating, cable glands or conduit must be used.
  • Page 46 Attention : Le détecteur de fonctionnement lorsque la tension d'alimentation DC est en dehors de la plage de tension spécifiée peut endommager les composants internes. Pour plus d'informations, se reporter au notice descriptive du produit à la page 8. www.xtralis.com...
  • Page 47 The USB port is used for initial configuration and local maintenance or servicing of the VEP-A00-UL using a PC installed with Xtralis VSC software. Install Xtralis VSC prior to connecting the VEP-A00-UL to the PC or Laptop. This ensures that the required USB drivers are present.
  • Page 48 Figure 4-35: Example closed loop VESDAnet network The VESDA-E VEP-A00-UL detector is shipped with the VESDAnet A and B terminals looped. Remove the A and B links prior to connecting the detector to the VESDAnet. If the detector is not to be networked with other devices, then do not remove the A and B links.
  • Page 49 6 are permanently set for Urgent Fault and Fire 1 respectively. Table 4-2 below illustrates the default assignments of functions (conditions) to relays and summarizes the default behavior of each relay. Section 5.5.10 describes how to configure the relay behavior using Xtralis VSC. It is possible to assign more than one condition to a relay.
  • Page 50 A 10K end of line resistor is used to allow the detector to monitor for open circuit faults in the wiring from the detector to the contact. Refer to Section 4.3.11 for information on correct wiring of the End of Line resistor. www.xtralis.com...
  • Page 51 EOL* = Normal (NC) Short = PSU Fault Open = Wiring Fault (NO) EOL* *EOL: End of Line Resistor This shows normal operation (no fault). The power supply’s fault reporting relay is energized. Figure 4-38: Input/Output Loop Module with EOL www.xtralis.com...
  • Page 52 Of Line (EOL) resistor is correctly installed. Refer to Section 4.3.8 on page 37 for further information. Legend A External device (1 to N) B End of Line Resistor at device end of wiring C GPI Pin 1 D GPI Pin 2 Figure 4-39: Power Supply Connection Diagram www.xtralis.com...
  • Page 53 0.32 Detector set to Fan Speed 5 0.38 0.41 Detector Fixed Fan Speed 0.34 0.37 Other 24V Loads Total Total Normal Hours Alarm Hours Normal Capacity Alarm Capacity Total Capacity = Normal + Alarm Multiply by battery factor X1.25 www.xtralis.com...

  • Page 54: Powering Up

    (Figure 4-33). This process must only be performed by Xtralis accredited personnel. If the system fails to power up, check all power wires are secured to their terminals and that the polarity is correct.

  • Page 55: Installation Checklist

    To perform the preliminary system check: Power up the detector by connecting the power supply to the Power In terminal. Check that the display is functioning. Check that the aspirator is functioning by determining whether air is being expelled from the exhaust port. www.xtralis.com...

  • Page 56: Configuration

    For example, the installer would connect directly to a VEP-A00-UL using the USB port with a laptop running Xtralis VSC in order to configure the detector to enable Ethernet, the parameters of which could be unique for each installation. A connection profile would need to be defined for the temporary USB connection, and then for the permanent connection using VESDAnet or Ethernet.
  • Page 57 Figure 5-1: Connection Manager 2. Select Add. The Add Connection dialog is displayed (Figure 5-2). Figure 5-2: Add Connection 3. Select the VESDAnet connection option, then select Next. Adding a USB Connection 1. Select USB, then select Next (Figure 5-3). Figure 5-3: Select USB www.xtralis.com...
  • Page 58 Select Next (Figure 5-6). Note: The IP address and password of the detector is configured in the Ethernet options section during initial setup with a USB connection. Refer to Section 5.5.3 on page 55 for further information. Figure 5-6: Enter IP Address www.xtralis.com...
  • Page 59 VESDA-E VEP-A00-P-UL Product Guide 3. Enter a unique name for the Connection or accept the pre-generated name, then select Finish (Figure 5-7). Figure 5-7: Enter a Connection Name www.xtralis.com...

  • Page 60: Connecting To The Detector

    5.2.1 Connecting to a detector via USB Direct connection between the detector and the PC installed with Xtralis VSC can be made using a Type A to Type B USB interface lead. Figure 5-8: Connecting to a detector via USB Connect to a detector using Xtralis VSC 1.
  • Page 61 Connect to a detector using Xtralis VSC 1. Using the normal building network connection process, connect the PC to the network. 2. Add an Ethernet connection using Connection Manager in Xtralis VSC. Refer to Section 5.1.2 for further information. 3. Enter the IP address of the detector previously set when enabling Ethernet connections. Where the IP address is not known, it may be viewed on the detector status screen using a USB connection.

  • Page 62: Security

    When accessing the VEP-A00-UL detector via Xtralis VSC, user functionality is initially limited. For additional privileges, the user must log in to the detector using an 4 digit numeric PIN code. In Xtralis VSC, select Logon from the Connection menu and enter the PIN.

  • Page 63: Commands

    The following commands are able to be issued to the detector. As indicated below in Table 5-2, a small number of basic commands can be executed from the detector via buttons, while the full range of commands can be executed using the Xtralis VSC software. Table 5-2: Detector Commands...
  • Page 64 Software Detector Start AutoLearn Flow In Xtralis VSC you will be prompted to set the period of time that the environment is monitored to allow the system to decide what flow thresholds are most appropriate. When the AutoLearn has finished, the flow thresholds are overwritten.
  • Page 65 VESDA-E VEP-A00-P-UL Product Guide Table 5-2: Detector Commands (continued...) Command Description Execute From A button Xtralis VSC on the Software Detector Start Minor Fault Test Generates a minor fault on the detector and de- energizes the fault relay for 2 minutes. Start Alarm Test...

  • Page 66: Configuration Options

    Network Name: The name of the VESDAnet network. (The user can leave this blank if desired.). Location: A description of the physical location of the detector. This name will appear on Xtralis VSC and on the LCD display of the A10 model detector.
  • Page 67 Loop Open Ended on This Device: This should be checked if the network has been wired so either VESDAnet port A or VESDAnet B is not connected on this detector. (Xtralis recommends that VESDAnet ports A and B are always connected so this option should normally not be checked.).
  • Page 68 Static IP Address Configuration IP Address: IPV4 static address. This address must be used when creating a connection profile for the detector in Xtralis VSC. The default IP address is 192.168.0.200. This allows direct connection between a PC or Laptop and the VEP-A00-UL using a standard Ethernet lead.
  • Page 69 Xtralis VSC for this period of time. Ethernet connection idle timeout (hours): Ethernet connections will be dropped after no activity from the user on Xtralis VSC on the particular connection for this period of time. The user can also choose the option of no timeout.
  • Page 70 Holidays: The settings used to define a holiday period. Use the dropdown calendars to choose the start and end times of the holiday (or break) period. Night time thresholds are used during the holiday period. UL7 Mode: Sets the required UL7 operating mode: Open Area. Special Applications. Not Applicable: For non UL7 installations. www.xtralis.com...
  • Page 71 Pipes in Use: The pipes that are actually being used. Refer to Section 3.3 on page 14 for further information. This setting is not available for the VEP-A00-1P-UL. Aspirator: Select the required Aspirator Speed setting 1 through 5, as determined using ASPIRE. This setting is not available for the VEP-A00-1P-UL. www.xtralis.com...
  • Page 72 The Filter option page allows you to define the time period after which a filter fault will be generated. Figure 5-17: Filter Options Service Interval (days): The time period after a new filter is installed at which non urgent fault "Filter smoke- dust limit nearly exceeded " (Fault 767) will be generated. www.xtralis.com...
  • Page 73 Delay: The length of time between the measurement of the external smoke level by the reference detector and the internal subtraction of this smoke level from the VEP-A00-UL smoke level. Dilution Factor: The percentage of the reference signal to be subtracted from the VEP-A00-UL. www.xtralis.com...
  • Page 74 Table 5-3: GPI Operation Function State Change External Reset Unmonitored GPI The detector resets on a 0 VDC to 5 VDC Reset rising edge. Closed Monitored GPI Open The detector resets on a contact closure. Reset www.xtralis.com...
  • Page 75 The detector is enabled on a 5 VDC to 0 VDC falling edge. Monitored GPI Closed Disabled The detector is held disabled while Open contact is closed. Enabled The detector is enabled when the contact opens. Note: No alarms are signalled while the detector is disabled. www.xtralis.com...
  • Page 76 When the detector is disabled or set to standby via the GPI, the status cannot be changed through the normal enable / disable function on the front panel or via Xtralis VSC or a remote display. Refer to Section 2.3.2 on page 5 for further information.
  • Page 77 Latching can be enabled for any alarm condition or for urgent or minor fault by checking the corresponding latching checkbox to the right of the condition. Beep: The detector's buzzer can be configured using the checkboxes under heading "Beep". If checked the buzzer will beep when the condition occurs. www.xtralis.com...

  • Page 78: Factory Default Settings

    0.00003 % obs/ft 0.0610 % obs/ft (0.005 % obs/m) (0.0001 % obs/m) (0.2 % obs/m) Change - VESDAnet Work Days Monday through Friday Day Night Changeover Time Enabled Unchecked Unchecked Checked Day Start 7 AM Night Start 7 PM Holidays www.xtralis.com...
  • Page 79 15 minutes 16 days The Xtralis VSC software forces the user to move the detector to a valid zone number. The user must set the password the first time. There is no default password. Default value set in factory. Not modified by return to factory defaults command.
  • Page 80 VESDA-E VEP-A00-P-UL Product Guide Pipes in Use can not be configured for VEP-A00-1P-UL. Aspirator Speed can not be configured for VEP-A00-1P-UL. www.xtralis.com...

  • Page 81: Commissioning

    For code-specific information, see Codes and Standards Information for Air Sampling Smoke Detection on page iii. AutoLearn Smoke AutoLearn Smoke is initiated by using Xtralis VSC or the AutoConfig button located on the main board of the detector. During the AutoLearn Smoke process, the detector determines the average smoke and peak smoke obscuration levels and sets suitable alarm thresholds for the operating environment.

  • Page 82: Autolearn Flow

    Refer to Section 6.3 on page 69 when the detector is configured for mimic mode. AutoLearn Flow AutoLearn Flow process is initiated within Xtralis VSC or the AutoConfig button located on the main board of the detector. During the AutoLearn Flow process, the detector normalizes the airflow and then monitors over time the average, maximum and minimum air flow levels and sets suitable air flow thresholds that will not give rise to nuisance flow faults due to normal flow variations.

  • Page 83: Maintenance

    Fault Relay (Relay #3). To set the detector to Standby mode using Xtralis VSC, select Go to Standby from the Device menu. The Disabled LED will blink and the aspirator will turn off. If configured the buzzer will beep once per minute if the Standby beep checkbox on the Relay configuration screen (section 5.5.10) is ticked.

  • Page 84: Open The Door

    Open the Front Door 1. Release the door latch by inserting a thin screwdriver into the hole at the bottom left of the door and firmly pushing perpendicular to the door surface. 2. Pull the door open. Figure 7-1: Open the door www.xtralis.com...

  • Page 85: Replacing The Filter

    1. Open the front door. Ensure that the area around the filter is free of lint and dust before removing the filter. Refer to Section 7.2 on page 71 for further information. 2. Press on release mechanism in the direction arrowed (Figure 7-2). Figure 7-2: Release Filter www.xtralis.com...
  • Page 86 4. Lift the filter out of the detector case (Figure 7-4). Figure 7-4: Remove Filter Reinstall the Filter Note: Ensure that the new filter is free of lint and dust. 1. Tilt the filter towards the left and position its hinge pins in their recess (Figure 7-5). www.xtralis.com...
  • Page 87 VESDA-E VEP-A00-P-UL Product Guide Figure 7-5: Engage hinge pins 2. Tilt the filter to the right. 3. Firmly press, as shown in Figure 7-6, until the filter makes a distinct clicking sound and no additional movement is possible. Figure 7-6: Reinstall the Filter www.xtralis.com...

  • Page 88: Replacing The Aspirator

    3. Disconnect the aspirator cable (A) (Figure 7-7). Figure 7-7: Disconnect the aspirator cable 4. Remove the six screws holding the aspirator to the detector base (Figure 7-8). Figure 7-8: Remove aspirator mounting screws 5. Remove the aspirator perpendicular to the detector body (Figure 7-9). www.xtralis.com...
  • Page 89 Precaution: Electrostatic precautions must be followed to prevent damage to the detector. Précaution : Les précautions électrostatiques doivent être respectées pour éviter d'endommager le détecteur. Figure 7-9: Remove aspirator from the detector Reinstall the replacement Aspirator To replace the aspirator, follow the removal procedure in reverse. www.xtralis.com...

  • Page 90: Replacing The Smoke Detection Chamber

    1. Turn off the 24V DC power to the detector. 2. Remove the Filter. Refer to Section 7.3 on page 72 for further information. 3. Remove the four screws holding the chamber to the detector base (Figure 7-10). Figure 7-10: Undo Chamber retaining screws www.xtralis.com...
  • Page 91 Précaution : Les précautions électrostatiques doivent être respectées pour éviter d'endommager le détecteur. 4. Disconnect the chamber loom from the connector labeled J3 (Figure 7-11). Figure 7-11: Disconnect Chamber Loom 5. Remove the chamber from the detector base (Figure 7-12). Figure 7-12: Remove the Chamber from the detector base www.xtralis.com...
  • Page 92 This will ensure that, when installing the chamber, the looms are not caught between the chamber and the air flow sensing module. Looms beside module Air flow sensing module Figure 7-13: Position the gray loom 2. Position the chamber looms (A) and (B) as shown in Figure 7-14. www.xtralis.com...
  • Page 93 Figure 7-15: Install the Chamber 4. Secure the four screws which hold the chamber to the detector base (Figure 7-10). 5. Reconnect the loom to J3 (Figure 7-11). 6. Reinstall the Filter. Refer to Section 7.3 on page 72 for further information. www.xtralis.com...

  • Page 94: Replacing The Sampling Module

    1. Turn off the 24V DC power to the detector. 2. Open the front door and remove the front fascia. Refer to Sections 7.2 and Electrostatic discharge (ESD) precaution for further information. 3. Disconnect the Sampling Module cable (Figure 7-16). Figure 7-16: Disconnect the Sampling Module cable www.xtralis.com...
  • Page 95 Precaution: Electrostatic precautions must be followed to prevent damage to the detector. Précaution : Les précautions électrostatiques doivent être respectées pour éviter d'endommager le détecteur. 4. Press on the lever on the connector to release the catch (Figure 7-17). Figure 7-17: Release the Sampling Module cable www.xtralis.com...
  • Page 96 Precaution: Electrostatic precautions must be followed to prevent damage to the detector. Précaution : Les précautions électrostatiques doivent être respectées pour éviter d'endommager le détecteur. 5. Undo the three screws holding the Sampling Module (Figure 7-18). Figure 7-18: Undo Sampling Module screws www.xtralis.com...
  • Page 97 Precaution: Electrostatic precautions must be followed to prevent damage to the detector. Précaution : Les précautions électrostatiques doivent être respectées pour éviter d'endommager le détecteur. 6. Remove the Sampling Module. Be sure to include the rubber seal on the base of the Sampling Module (Figure 7-19). Figure 7-19: Remove Sampling Module www.xtralis.com...
  • Page 98 Sampling Module is seated on the pipes in the detector (Figure 7-20). You will feel the module slide onto the pipes. Figure 7-20: Reinstall Sampling Module 2. Tighten the three screws and re-connect the Sampling Module cable (Figure 7-16). www.xtralis.com...

  • Page 99: Spare Parts

    VESDA-E Mounting Bracket VSP-961 VESDA-E Exhaust Adaptor US VSP-962 VESDA-E Filter VSP-962-20 VESDA-E Filter - 20 Pieces VSP-963 VESDA-E Aspirator VSP-964-04 VESDA-E Smoke Detection Chamber - MK4 VSP-965 VESDA-E Sampling Module VSP-968 VESDA-E VEP-A00-P-UL/1P Front Cover - Plastic - LEDs www.xtralis.com...

  • Page 100: Troubleshooting

    If the VEP-A00-UL detector identifies a fault condition, the Fault LED on the front of the detector illuminates and an event containing details of the condition is written to the Xtralis VSC active event list and the detector's event log. The buzzer will beep once every 30 seconds if the Urgent fault beep and Minor fault beep checkboxes on the Relay configuration screen (section 5.5.10) are ticked.

  • Page 101: Troubleshooting With Xtralis Vsc

    Xtralis VSC and the date, time, fault number and description of any faults can be viewed. The Xtralis VSC software also displays any current faults in the active event list. The list displays the date and time of the fault, the serial number of the device on which the fault has occurred, the zone number, fault number, and a description of the fault.

  • Page 102: A Commissioning Forms

    The alarm and fault relay outputs are wired to the fire panel. Test the detector’s Relay outputs connection to the fire panel using the Xtralis VSC Relay Test command. (Turn each relay on/off individually.) See below. Relay 1 Tested (Default assignment = Disable)
  • Page 103 The alarm and fault relay outputs are wired to the fire panel. Test the Remote Display/Relay’s Relay output connections to the fire panel using the Xtralis VSC Relay Test command. (Turn each relay on/off individually.) See below. Relay 1 Tested (Default assignment = Disable)

  • Page 104: Vep-A00-Ul Detector Commissioning Configuration

    VEP-A00-UL Detector Commissioning Configuration To record the detector's configuration you can print it using Xtralis VSC. To print the configuration select the detector on the Xtralis VSC tree view at left and choose the Print command on the File menu.
  • Page 105 If the cause of a condition is removed (for example, smoke decreases below the threshold) and latching is enabled, the detector “remembers” the condition and holds the corresponding relays and displays in the active state as though the cause of the condition were still active. www.xtralis.com...
  • Page 106 The detector signals that it is in Standby mode using Relay 1. Z Zone A defined area within the protected premises from which an alarm signal can be received. www.xtralis.com...
  • Page 107 7, 36-37 cancel AutoLearn flow cancel AutoLearn smoke EOL resistor 16, 37-39 disable viii, 32, 71, 77 enable ethernet 3-4, 6-8, 16, 33-34, 55, 61, 65 normalize air flow event log 3, 9, 49, 57-58, 65, 92 rebuild zone list www.xtralis.com...
  • Page 108 14, 68 7, 48, 92 exhaust flow rate 14, 68 isolate 33, 36, 63 inlet pipes inlet ports 14, 16 installation 3-5, 41, 61, 70, 87 length maintenance mounting 17, 26, 28 www.xtralis.com...
  • Page 109 32, 37-38 alert address loop module fault 33, 36 FACP fire 33, 36 power isolate VESDAnet options remote display 7, 53, 87 zone 51, 53, 70, 92 reset 4-5, 37, 41, 50, 61, 63, 68 sampling module 4, 81, 86 www.xtralis.com...
  • Page 110 Part No. AD31041-006 without the express prior written consent of Xtralis. Installation information: In order to ensure full functionality, September 2023 refer to the installation instructions as supplied. © Xtralis...
