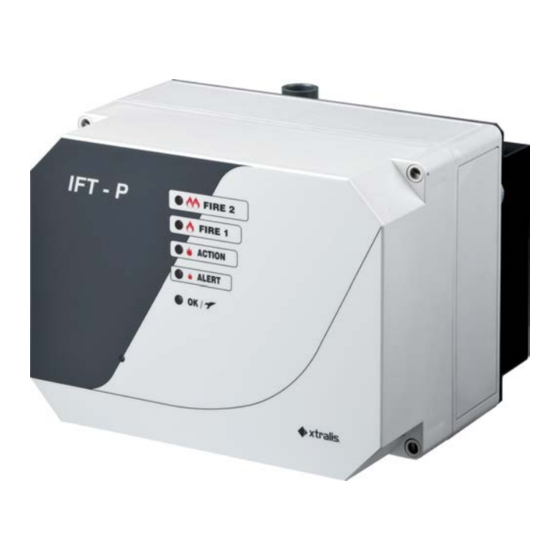

ICAM IFT-P
Product Guide
February 2017
Document: 19317
Revision: A
Build: 1
Part Number: 29714

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICAM IFT-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xtralis ICAM IFT-P

Summary of Contents for Xtralis ICAM IFT-P

  • Page 1 ICAM IFT-P Product Guide February 2017 Document: 19317 Revision: A Build: 1 Part Number: 29714...
  • Page 3 You acknowledge that you have not relied on any oral or written information, representation or advice given by or on behalf of Xtralis or its representatives.
  • Page 4 ICAM by Xtralis ICAM IFT-P Product Guide Document Conventions The following typographic conventions are used in this document: Convention Description Bold Used to denote: emphasis. Used for names of menus, menu options, toolbar buttons. Italics Used to denote: references to other parts of this document or other documents.
  • Page 5 Laser Chamber Safety ICAM IFT-P detector laser chambers incorporate a 658 nm laser with an average power less than 10mW and are located on the underside of the detector when mounted upright on a wall. The laser chamber is identified by two safety labels shown in the following diagrams.
  • Page 6 3.6% obs/m, 60 secs The product is compliant with EN54-20 flow monitoring requirements provided that the following conditions are met: Flow Low and Flow High parameters should be set to 85% and 115% respectively for ICAM IFT-P detectors. Additional Information...

  • Page 7: Table Of Contents

    ICAM IFT-P Product Guide ICAM by Xtralis Table of Contents Description and Operation 1.1 Introduction 1.2 Principle of Operation 1.3 Flow Monitoring 1.4 Alarms 1.5 Detector Display Panel 1.6 Communications Interface Installation and Configuration 2.1 Mounting the Detectors 2.2 Cable Connections 2.3 Connection of Air Sampling Network 2.4 Starting Up...
  • Page 8 ICAM by Xtralis ICAM IFT-P Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 9: Description And Operation

    The aspirator draws air from the pipe network into the detector inlets where the samples are combined, filtered, and directed to the laser detection chamber. The ICAM IFT-P uses a T-piece of pipe to combine air sampled from two inlet pipes.

  • Page 10: Flow Monitoring

    ICAM by Xtralis ICAM IFT-P Product Guide Flow Monitoring The control system monitors for blockages or disconnection of the pipe network by detecting when the air flow is above or below acceptable flow thresholds. Flow thresholds are dependent on air flows measured during normalization.

  • Page 11: Detector Display Panel

    This Blue LED is activated when POWER is supplied to the detector. Communications Interface ICAM IFT-P detectors can connect to a PC with Xtralis VSC or VSM4 software via Ethernet, through a RS232 direct serial connection or with RS485 via a RS485/RS232 converter. More details may be found in the ICAM Communications Guide.
  • Page 12 ICAM by Xtralis ICAM IFT-P Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 13: Installation And Configuration

    Not installed above a heat source such as a radiator or in direct air flow source such as Air Conditioners. Secure and free from operation by unauthorized personnel. 254,0mm (10in) 21,0mm (0.83in) 170,0mm (6.7in) 85,0mm (3.35in) 180,0mm 140,0mm (7.09in) (5.5in) 164,5mm (6.48in) 44,0mm (1.73in) 208,5mm (8.2in) Figure 2-1: ICAM IFT-P Mounting Diagram and Dimensions www.xtralis.com...

  • Page 14: Cable Connections

    2.2.1 Detector Connections ICAM IFT-P units are powered by an external 24 VDC power supply. Access to the interior of the unit is gained by removal of the front cover. This is secured by four screw lock fixings (one at each of the four corners), releasing these fixings allows the removal of the cover complete with the ‘self-retained’...
  • Page 15 Enables TCP/IP connections to a PC with Xtralis VSC or VSM4 via LAN/WAN. CN1 - RS232 Interface Name Description Receive Enables a direct serial connection to a PC with Xtralis VSC or VSM4 for Data configuration and monitoring. Requires a null modem cable, up to a maximum distance of 15m (50ft). Transmit...
  • Page 16 Remote Isolate: Activated by applying 24 VDC for 8 seconds or more. Once 24 VDC is removed, the system reverts to normal operation. The function of this input is programmed using Xtralis VSC or the Setup Menu of the optional Remote Display Unit. Refer to Appendix D for further information.
  • Page 17 ICAM IFT-P Product Guide ICAM by Xtralis CN7 - Output Relay Interface Group Name Description FIRE 2 Requires 7 x 0.2 - 6 A (24 AWG) cable Fault Relay Output Activates when a Fault is detected. Alarm Relay Outputs FIRE 1 Alarm relays for each Alarm level (Alert, Action, Fire 1, Fire 2) that are activated when the corresponding alarm level is detected.
  • Page 18 ICAM by Xtralis ICAM IFT-P Product Guide Connections from Current Output Board (Optional Module) Output Connections (i624) Output 1 All outputs have the following specifications: 20 VDC max. 4 - 20 mA output current (optional 0 - 20 mA) Output 2 7 x 0.2 - 6 A (24 AWG) cable Note: Refer to Appendix D for further information.

  • Page 19: Connection Of Air Sampling Network

    ICAM IFT-P Product Guide ICAM by Xtralis Connection of Air Sampling Network Note: For more details please refer to the ICAM Pipe Network Installation Manual. There are several common guidelines that should be followed when attaching the pipe network to the ICAM...

  • Page 20: Starting Up

    Flow normalization is necessary for the detector to learn the air flow characteristics of the system. Normalization may be achieved using Xtralis VSC or VSM4 software or a Remote Display Unit, and takes about 6 minutes. It is advised that the user does not try to change any settings during the normalization process.

  • Page 21: Maintenance

    6 12 18 24 30 36 42 48 Check control panel for faults X X X X X X X X Using Xtralis VSC, check data logs & record main X X X X X X X X events (Faults/Alarms etc.)
  • Page 22 ICAM by Xtralis ICAM IFT-P Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 23: Specifications

    10% to 95% Note: Please consult your Xtralis office for operation outside these parameters or where sampled air is continually above 0.05% obs/m (0.015% obs/ft) under normal operating conditions. * Product UL listed for use from 0 °C to 38 °C (32 °F to 100 °F)

  • Page 24: Alarm

    ICAM by Xtralis ICAM IFT-P Product Guide Alarm Range 0.001 to 20 % obs/m (0.0003 to 6.10 % obs/ft) UL / ULC Special applications sensitivity range is 0.001 %/m – 1.6 %/m (0.0003 %/ft to 0.50 %/ft). (For Special Application it is required obtain approval from the Local Authority Having Jurisdiction).

  • Page 25: A Input-Output Modules

    A Input-Output Modules ICAM IFT-P detectors have 5 relays fitted as standard. The I/O functionality may be extended by adding I/O modules. These plug onto the standard I/O module in a stackable chain of up to 3 positions. They are recognized by the processor as Modules 1 to 3 going from left to right.

  • Page 26: 8-Channel, 4 - 20Ma Output Module

    ICAM by Xtralis ICAM IFT-P Product Guide 8-Channel, 4 - 20mA Output Module The 8-Channel Output Module may be used for retransmission of airflow or smoke levels. Note: Not tested for UL/ULC Fire Alarm connection application. Figure A-2: 8-Channel, 4 - 20 mA Output Module...
  • Page 27 ICAM IFT-P Product Guide ICAM by Xtralis The Analogue Output Module is configured using Xtralis VSC. The optional remote display may also be used as follows: Table A-2: 8-Channel Output Module Configuration Parameters Menu Item Parameter Value SETUP (MODULE n) Set to ANOUT 8...
  • Page 28 ICAM by Xtralis ICAM IFT-P Product Guide This page is intentionally left blank. www.xtralis.com...

  • Page 29: B Detector Wiring Diagram Examples

    ICAM IFT-P Product Guide ICAM by Xtralis B Detector Wiring Diagram Examples OUTPUT 2 OUTPUT 3 OUTPUT 4 VPS-250-E FUSE BOARD POWER SUPPLY PCB OUTPUT FAULT RELAY OUTPUT 1 Detector I/O BOARD VBAT RS232 FAULT RELAY OUTPUT Figure B-1: Fault Relay - Closed for Normal...
  • Page 30 ICAM by Xtralis ICAM IFT-P Product Guide OUTPUT 2 OUTPUT 3 OUTPUT 4 VPS-250-E FUSE BOARD POWER SUPPLY PCB OUTPUT FAULT RELAY OUTPUT 1 DETECTOR I/O BOARD VBAT RS232 FAULT RELAY OUTPUT Figure B-2: Fault Relay - Open for Normal www.xtralis.com...

  • Page 31: Cul/Ulc Wiring Requirements

    ICAM IFT-P Product Guide ICAM by Xtralis C UL/ULC Wiring Requirements This chapter covers the UL/ULC Wiring Requirements for Fire Alarm Connection Application. Figure C-1: ULC input and output requirements 1. 24 VDC input power applied to terminals 1 & 2 of CN2 as shown in item A above. 24 VDC supply shall be a ULC-527 Listed Fire Alarm Control Panel or ULC-527 Listed power supply.
  • Page 32 ICAM by Xtralis ICAM IFT-P Product Guide CN7: Output Relay Interface FIRE 2 Requires 7 x 0.2 - 6 A (24 AWG) cable Note: Maximum relay contact rating is 2 A @ 30 VDC. Note: Refer to section A.1 for further information.

  • Page 33: D Remote Display Unit

    ICAM IFT-P Product Guide ICAM by Xtralis D Remote Display Unit The Remote Display Unit (RDU) allows the IFT family of aspirated smoke detection systems to be monitored, controlled and programmed remotely. RS485 communication is used between the detector and the remote display unit.
  • Page 34 ICAM by Xtralis ICAM IFT-P Product Guide It is recommended that galvanically isolated power supplies (in accordance with UL1481) are used since the RS485 inputs/outputs are not usually isolated from the equipment internal zero volt line. The RS232/RS485 converter should also be galvanically isolated.
  • Page 35 ICAM IFT-P Product Guide ICAM by Xtralis D.1.2 Remote Display Unit Connection 1. Jumper Link 2. RS485 3. 24 VDC power Figure D-2: Display board and terminal for remotely connecting the Remote Display Unit Table D-1: Connections to Remote Panel (Optional) i620 Control Board...
  • Page 36 2. NO DET FLOW - the flow measurement through the detector chamber itself may be disabled D.1.4 Remote Display Operation The ICAM IFT-P must be configured to communicate with the Remote Display Unit using the Xtralis VSC. Refer to the Xtralis VSC online help for further information. www.xtralis.com...

  • Page 37: Remote Display Unit Navigation

    ICAM IFT-P Product Guide ICAM by Xtralis Remote Display Unit Navigation Figure D-3: Remote Display Unit Navigation www.xtralis.com...

  • Page 38: Remote Display Unit Button Functions

    This section covers all functions available to the Remote Display Unit. Some of these functions are not applicable to the ICAM IFT-P. This section provides information on the functions of the buttons in the Remote Display Unit, and how to setup the detector and navigate through the Main Menu options.
  • Page 39 6. All activated LEDs on the panel and LED segments on the Status Display 7. Normal display The ICAM IFT-P detector can also be reset remotely by applying 24 VDC to the remote reset input on the Main I/O PCB. Refer to section 2.2.1 for further information. Note:...
  • Page 40 Access Code Entry may be aborted by pressing the MENU button. All of the following settings can be entered using the Xtralis VSC configuration software and a PC. This can reduce the time taken to enter certain values and parameters.
  • Page 41 CONFIGURE: Configuration Mode Minimum Access Code Required: Level 1 The ICAM IFT-P detector uses many configuration parameters, and is shipped with factory default values. The Configuration Mode allows changes to be made to these parameters. Below is a list of user definable parameters, and their Factory Default values.
  • Page 42 0 to 30 31 (off) TESTTIM Time between automatic scans. 0 to 20160 mins 1440 Note: TESTIM is also used for ICAM IFT-P Flow normalization by pressing ENTER. MIN DWELL Rotary valve dwell time 0 to 60s GAIN X See description...
  • Page 43 ICAM IFT-P Product Guide ICAM by Xtralis OPCODE This is the Operator Access Code (or Access Code Level 1 or 2) that must be entered to enable ISOLATE, SOUNDER SILENCE and RESET buttons. The default value is 0. It may be changed within the range 0 to 999, but 260 and 693 should be avoided as these are reserved for Level 1 and 2 access codes.
  • Page 44 ICAM by Xtralis ICAM IFT-P Product Guide GAIN X The GAIN X setting is used to condition output signals from the 8 channel 4 - 20 mA Output Module where it is set to measure Smoke (real time smoke density). Gain settings range from 1 to 100.
  • Page 45 ICAM IFT-P Product Guide ICAM by Xtralis Table D-6: Sector Alarm Parameters and Values (continued...) Parameter Description Class A/B/C Range Default F2DEL Fire 2 Delay 0 to 60 secs 3 secs F1DEL Fire 1 Delay 0 to 60 secs 3 secs ACTDEL...
  • Page 46 ICAM by Xtralis ICAM IFT-P Product Guide WEB: Set IP Address and Mask Minimum Access Code Required: Level 1 Figure D-6: IP Address and IP Mask display - default values shown. The display will now show the text IP ADDRESS. Press UP button to show the IP Address with the first field flashing: 1.
  • Page 47 I/O modules are installed, their type must be entered here. modules The ICAM IFT-P detector can operate in a number of different languages. To change the language, the correct country code (CCODE) must be entered. Table D-8: Country Codes...
  • Page 48 ICAM by Xtralis ICAM IFT-P Product Guide LOAD DEFAULTS: Load Defaults Minimum Access Code Required: Level 2 This menu option will enable the user to reload all factory defaults for all configuration parameters under the Configuration and Sector Alarms menus. It is recommended that the system configuration is saved prior to applying this menu option.
