6. Fuse the power line according to local safety practices.
The double-fuse arrangement requires 20-mm fuses.
Fuse Block
DOUBLE-FUSE ARRANGEMENT
The power cord must be disconnected from the analyzer when installing or
replacing fuses. Failure to do so could result in electrical shock.

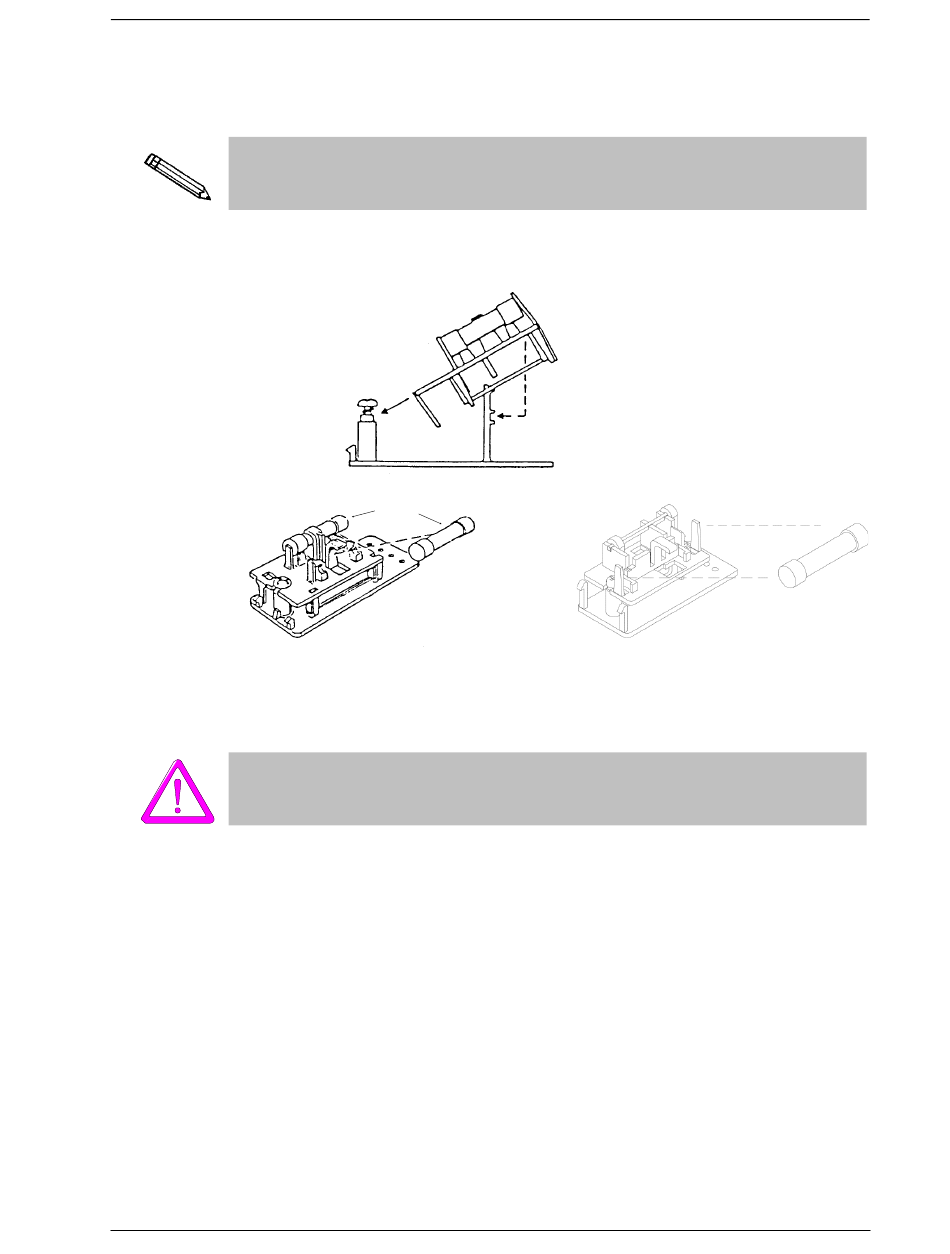

a. Observe the position of the fuse block, using the illustration shown
Aug 00
Fuse
Retaining
Screw
Fuses
Cover
above for reference.
•
If the single-fuse arrangement is desired, position the fuse block so
that the side with the single fuse slot and the jumper bar is away from
the cover.
•
If the double-fuse arrangement is desired, position the fuse block so
that the side with the double fuse slots is away from the cover.
Selecting the Input Power
Fuse Block
Cover
Jumper Bar
Fuse Block
Cover
SINGLE-FUSE ARRANGEMENT
Fuse
