Components and Controls

Components and Controls
This section provides a brief description of the use, manipulation, and function of
major components and controls of the FlowSorb.

Sample Tube

Glass tubes in a variety of generally U-shaped configurations are used to hold the
sample. Pertinent details about these tubes are given in Appendix D. The two
stems of a tube are inserted into tightenable connectors on the sample tube
holder. The tightenable connectors seal by means of compressed O-rings. This as-
sembly is then installed in the Degas or Test position on the front panel. Chapter
2 provides instructions on how to install a sample tube.
1-10
Sample Tube

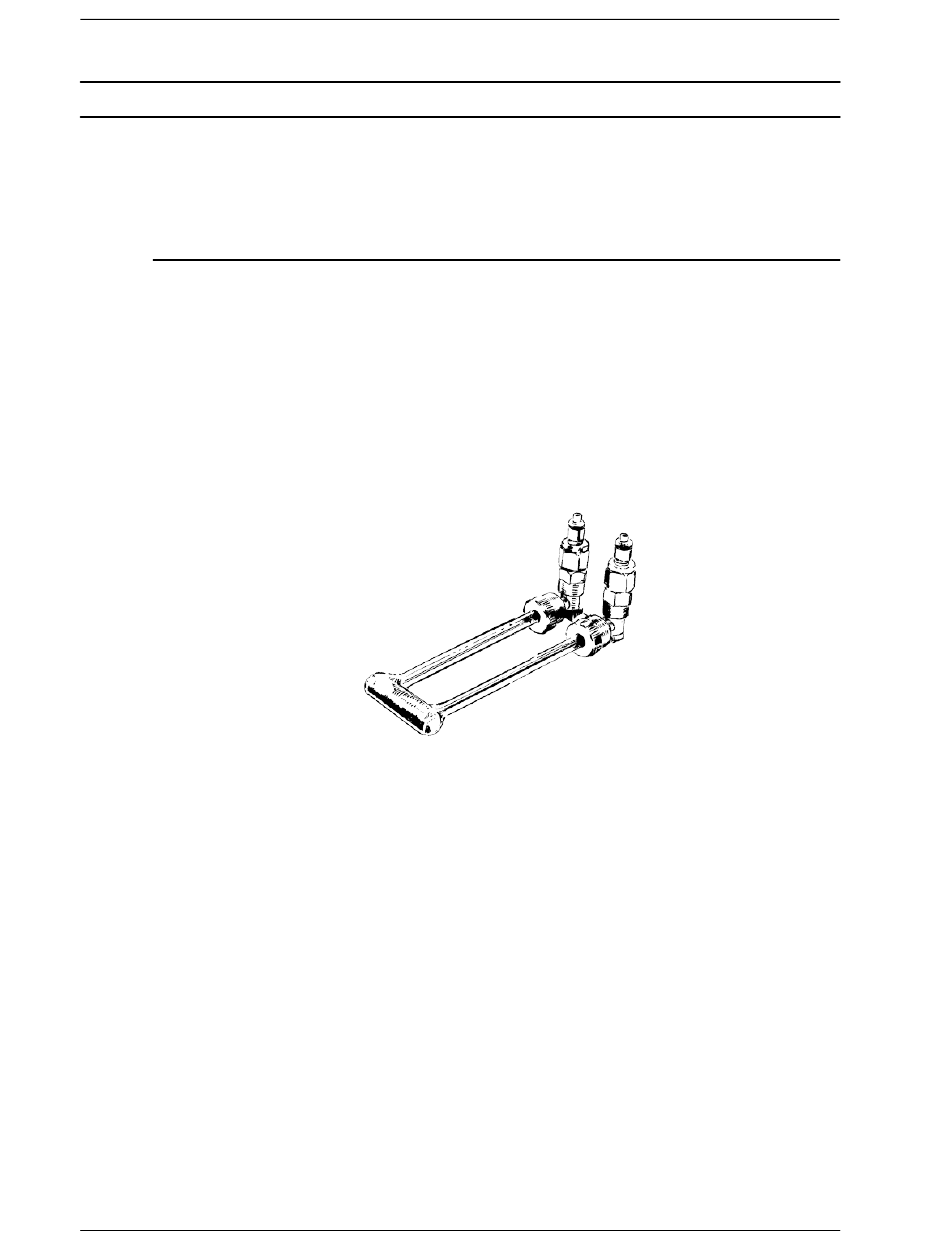

Figure 1-2. Sample Tube and Holder
FlowSorb III
Sample Tube Holder
