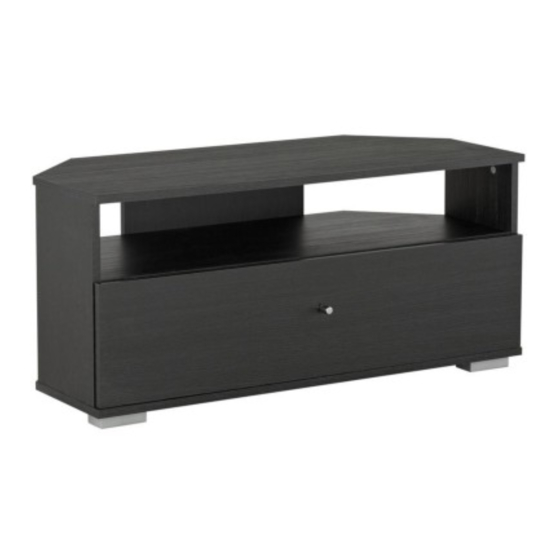

Montana - Corner TV Unit
Assembly Instructions -
Dimensions
Width - 90cm
Depth - 39.5cm
Height - 41cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Please keep for future reference
395/6883
391/7657
MADE IN
BRITAIN
Issue 2 - 08/05/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Montana 395/6883
Summary of Contents for Argos Montana 395/6883
- Page 1 Montana - Corner TV Unit Assembly Instructions - 395/6883 Please keep for future reference 391/7657 Dimensions Width - 90cm Depth - 39.5cm MADE IN Height - 41cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 Issue 2 - 08/05/15...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 17kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Left End 2 Right End Back (DF3541) (DF3542) (DF3543) (353 x 216mm) (353 x 216mm) (353 x 394mm) 5 Base...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Prepare the drawer front Screw 2 metal dowels into the drawer front Note: Tighten the metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the left side Place a runner onto the left side Finished Slide back the top of front edge runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into...
- Page 8 Assembly Instructions Step 9 Prepare the right side Place a runner onto the right side Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Finished Slide the runner front edge back the other way and fit the 2nd screw into...
- Page 9 Assembly Instructions Step 10 Prepare the top Screw 6 metal dowels into the top Step 11 Fit the right side to the top Push the right side onto the top Use a screwdriver to Finished tighten the 2 large front edge locking nuts fitted to the right side...
- Page 10 Assembly Instructions Step 13 Fit the horizontal Push the horizontal onto the right side Use a screwdriver to tighten the 2 large locking nuts fitted to the horizontal Step 14 Fit the left side to the top and horizontal Push the left side onto the top horizontal Use a screwdriver to...
- Page 11 Assembly Instructions Step 16 Fit the back Push the back onto the top Use a screwdriver to tighten the 2 large locking nuts fitted to the back Step 17 Secure the back Fix the back to the horizontal using 2 screws Step 18 Fit the base...
- Page 12 Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3147...
