ViM KUBAIR F400 Instruction Manual

Smoke extract unit f400 - 120 (400 c 120 min)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
INSTALLATION | WIRING | COMMISSIONING | MAINTENANCE |
I S O 9 0 0 1
ISO 14001
Q u a l i t é
Environnement
AFNOR CERTIFICATION
AFNOR CERTIFICATION
KUBAIR
F400
®

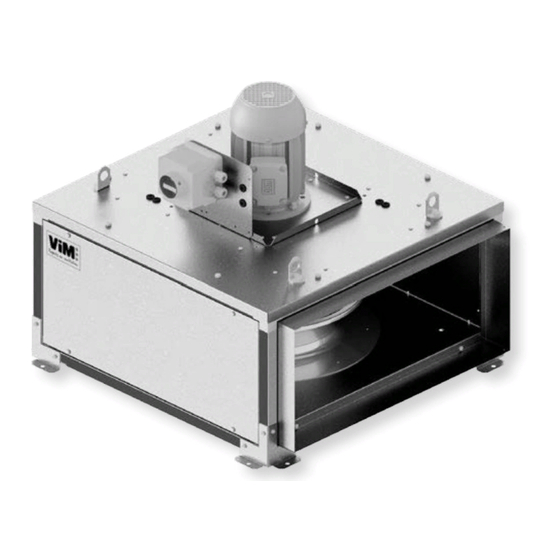

Smoke extract unit F400 - 120 (400°C 120 min)
NT-50907501-KUBAIR-F400-AN-210312

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KUBAIR F400 and is the answer not in the manual?

Questions and answers

Related Manuals for ViM KUBAIR F400

Summary of Contents for ViM KUBAIR F400

  • Page 1 INSTRUCTION MANUAL INSTALLATION | WIRING | COMMISSIONING | MAINTENANCE | I S O 9 0 0 1 ISO 14001 Q u a l i t é Environnement AFNOR CERTIFICATION AFNOR CERTIFICATION KUBAIR F400 ® Smoke extract unit F400 - 120 (400°C 120 min) NT-50907501-KUBAIR-F400-AN-210312...
  • Page 2 INDEX GENERAL ............................3 Warnings ..........................3 Safety instructions ........................3 Acceptance – Storage ......................3 Warranty ........................... 4 PRODUCT PRESENTATION ......................4 INSTALLATION ..........................4 Dimensions and weight (mm) ....................5 Summary charts of assembly and accessories ................ 7 Accessories (dimensions in mm) ....................

  • Page 3: Safety Instructions

    (72) hours by sending a recommended letter to the transporter, as well as a copy to VIM. Acceptance of the equipment without any reservation will deprive the Purchaser of any subsequent recourse against us.

  • Page 4: Warranty

    1.4 Warranty The equipment is guaranteed for 24 months from the invoice date. The warranty is limited to the replacement of parts or equipment whose operation is recognized as defective by maker, excluding any compensation or penalties. The costs of labor, removal and rest, travel related to the replacement are the responsibility of the Customer.
  • Page 5 3.1 Dimensions and weight (mm) KUBAIR F400 MV ® Assembly with horizontal motor axis Tipping risk during handling operations Assembly with vertical motor axis KUBAIR F400 CC ® Assembly with horizontal motor axis Assembly with vertical motor axis Size 1022 1081 1039 1145...
  • Page 6 Weights (kg) Weights (kg) Weights (kg) Weights (kg) Rated P. Model Rated P. (kW) MV Naked/ CC Naked/ Model MV Naked/ CC Naked/ (kW) Insulated Insulated Insulated Insulated MOTOR 1 SPEED 1 PHASE 4 POLES MOTOR 2 SPEEDS TRI - BOB. IND. 4/6 P 0,25 39/42 59/65...
  • Page 7 3.2 Summary charts of assembly and accessories KUBAIR F400 CC ® KUBZ 06 KUBZ 02 KUBZ 17 KUBZ 12 KUBZ 04 straight KUBZ 08 KUBZ 12 KUBZ 10 MSCZ MSDZ KUBZ 15 CC KUBZ 04 straight KUBZ 12 KUBZ 16 KUBZ 07 KUBZ 01 CC KUBZ 06...
  • Page 8 KUBAIR F400 MV ® KUBZ 03 KUBZ 12 KUBZ 12 KUBZ 17 KUBZ 10 KUBZ 08 KUBZ 08 KUBZ 03 KUBZ 11 KUBZ 15 MV KUBZ 03 KUBZ 16 KUBZ 07 KUBZ 01 MV KUBZ 06 KUBZ 10 The TCDZ accessories on the diagram below can ®...
  • Page 9 KUBAIR F400 MV ® with vertical axis motor TCDZ03 TCDZ05* TCDZ08 TCDZ03 TCDZ 04 TCDZ 07 TCDZ 02 TCDZ 09 Optional accessory according to selection. ENGLISH 9/28 NT-50907501-KUBAIR-F400-AN-210312...
  • Page 10 3.3 Accessories (dimensions in mm) Circular flexible spool piece Rectangular flexible spool piece MSDZ MSCZ Ø F KUBZ 01 Standard support for horizontal axis motor: This support means that the casing can be attached to the floor with the motor in a horizontal position (horizontal axis).
  • Page 11 KUBZ 07 KUBZ 08 Rain guard with bird guard These guards are attached after the supplied smooth flange (KUBZ 12) has been detached from the casing. KUBZ 10 Manual flow control damper Attaches to the discharge using the 4 bolts supplied. Allows to reduce and adjust the airflow.
  • Page 12 1100 1188 1228 KUBZ 10 Air performances The airflow adjustment of a KUBZ 10 depends on the initial pressure airflow running point, fan speed. KUBAIR F400 MV 355 KUBAIR F400 MV 400 ∆Pstat (Pa) Pabs (W) ∆Pstat (Pa) Pabs (W)
  • Page 13 KUBAIR F400 MV 450 KUBAIR F400 MV 500 ∆Pstat (Pa) Pabs (W) ∆Pstat (Pa) Pabs (W) 1400 2400 4 poles 4 pôles 2100 1200 4 poles 4 pôles 1800 4 pôles 4 poles 1000 1500 4 poles 4 pôles 1200 6 poles 6 pôles...
  • Page 14 KUBAIR F400 CC 450 KUBAIR F400 CC 500 ∆Pstat (Pa) Pabs (W) ∆Pstat (Pa) Pabs (W) 1400 2400 4 poles 4 pôles 4 poles 4 pôles 2100 1200 1800 4 poles 4 pôles 1000 4 poles 4 pôles 1500 1200 6 poles 6 pôles...
  • Page 15 TCDZ 02 Sealing frame Embed the frame into the constructed support and make sure that the fixing lugs are embedded into the concrete. TCDZ 03 Energy-saving component Assemble the energy-saving component inside the upstands, under the casing. It is incompatible with the use of the TCDZ 05 adapter plates.
  • Page 16 TCDZ 08 200 mm upstand lift Allows to increase the height of the casing by 200 mm, allows to insert a TCDZ 05 adapter plate between the Energy saving casing and the TCDZ 03 energy-saving component or to Roof adapter flap mount a TCDZ 03 energy-saving component onto a TCDZ heightener...

  • Page 17: Casing Assembly

    3.4 Handling To keep people safe or prevent damage to property, use compliant handling equipment that is in a good condition. The casing must be lifted at the 4 lifting lugs. Use slings with a length that is at least double the width of the casing. Make sure that the slings do not rub against the motor cowl or the electrical accessories.

  • Page 18: Preliminary Precautions

    ELECTRICAL CONNECTION 4.1 Preliminary precautions Electrical connections must be set up by qualified staff. Do not forget the earthing connection. In addition, the cables routing must be protected from mechanical aggressions when the connection is made to the motor’s terminal box or to the unit’s safety switch. If used for comfort application, the electric motor must be protected by a suitable magnetothermal protec- tion device.
  • Page 19 Rated Nom. I. Nom. I. VFTM Mono VFTM Tri VFKB Mono VFKB Tri Efficiency Id / In Start-up Model calibre calibre Calibre Calibre category time(s) (kW) 230V 400V (kW) (kW) (kW) (kW) 4.33 2.49 0.75 0.75 0.75 4.07 2.34 0.75 0.75 0.75 5.67...
  • Page 20 Rated P. Nom. I. (A) Nom. I. (A) Id / In Start-up Model Starter GV/PV (kW) GV 400V PV 400V GV/PV time(s) THREE-PHASE MOTOR WITH 2 SPEEDS - SEPARATE WINDINGS 4/6 POLES 0.3/0.1 0.99 0.72 5/3.5 DEMZ BI 0.74/1.3 0.55/0.2 1.75 1.05 5/3.7...
  • Page 21 Three-phase motors with 2 speeds LS inlet HS inlet 400 V 50H z 400 V 50H z LS inlet HS inlet 400 V 50Hz 400 V 50H z three phases Dahlander winding 2S motor three phases 2 windings 2S motor N ote : Please respect the state of the art for Dahlander motor connection to avoid motor destruction 4.4 Wiring of versions with INTZ safety switch...
  • Page 22 4.4.3 KUBAIR F400 wiring with 1 speed and with INTZ 1V43 safety switch ® Three phases inlet 1S 40 0Vac 50H z Three phases motor 1S Y230 /D 400 V 4.4.4 KUBAIR F400 wiring with 2 speeds and with INTZ 2V15 safety switch ®...
  • Page 23 4.5 Wiring of PILOTAIR control panel (French regulation) ® Refer to the instructions for use of the PILOTAIR ® control panel (French regulation) which comes with the casing. 4.6 Electrical connection of pressure switch A pressure switch is optional with the casing or supplied already assembled and air connected (INTZ + BDEZ version).

  • Page 24: Maintenance

    START-UP Before the turbine is started up, make sure that the whole motor and wheel are able to rotate freely and that there are no objects which may be projected by the turbine. The accessories must be attached to the casing to avoid any accidental contact with the rotating parts.
  • Page 25 6.2 Spare parts KUBAIR F400 ® Model Code Designation KUBAIR F400 355 4PM 0,25kW ® 506154 Capacitor 30µF/400V for single-phase electric motor KUBAIR F400 355 6PM 0,18kW ® 506153 Capacitor 20µF/400V for single-phase electric motor KUBAIR F400 400 4PM 0,55kW ®...
  • Page 26 Model Code Designation KUBAIR F400 800 6PT IE2 4,0kW ® ® 646840 MTTE KUBAIR 800 6PT IE2 4,0kW Spare motor + impeller KUBAIR F400 800 6PT IE3 4,0kW ® ® 646841 MTTE KUBAIR 800 6PT IE3 4,0kW Spare motor + impeller KUBAIR F400 450 8PT IE1 0,18kW ®...

  • Page 27: Waste Management

    WASTE MANAGEMENT 7.1 Treatment of Packagings and non dangerous wastes The packagings (unconsigned pallets, cartons, films, wooden boxes) and other non dangerous wastes must be made reusable by an approved service provider. It is strictly prohibited to burn, bury or dump them in nature.
  • Page 28 Les prés de Mégy Sud – SOUDAN CS 60120 - 79401 ST MAIXENT L’ECOLE CEDEX Tél. : 05 49 06 60 38 ou 05 49 06 60 25 – Fax : 05 49 06 60 36 sav@vim.fr - www.vim.fr 28/28 NT-50907501-KUBAIR-F400-AN-210312...
