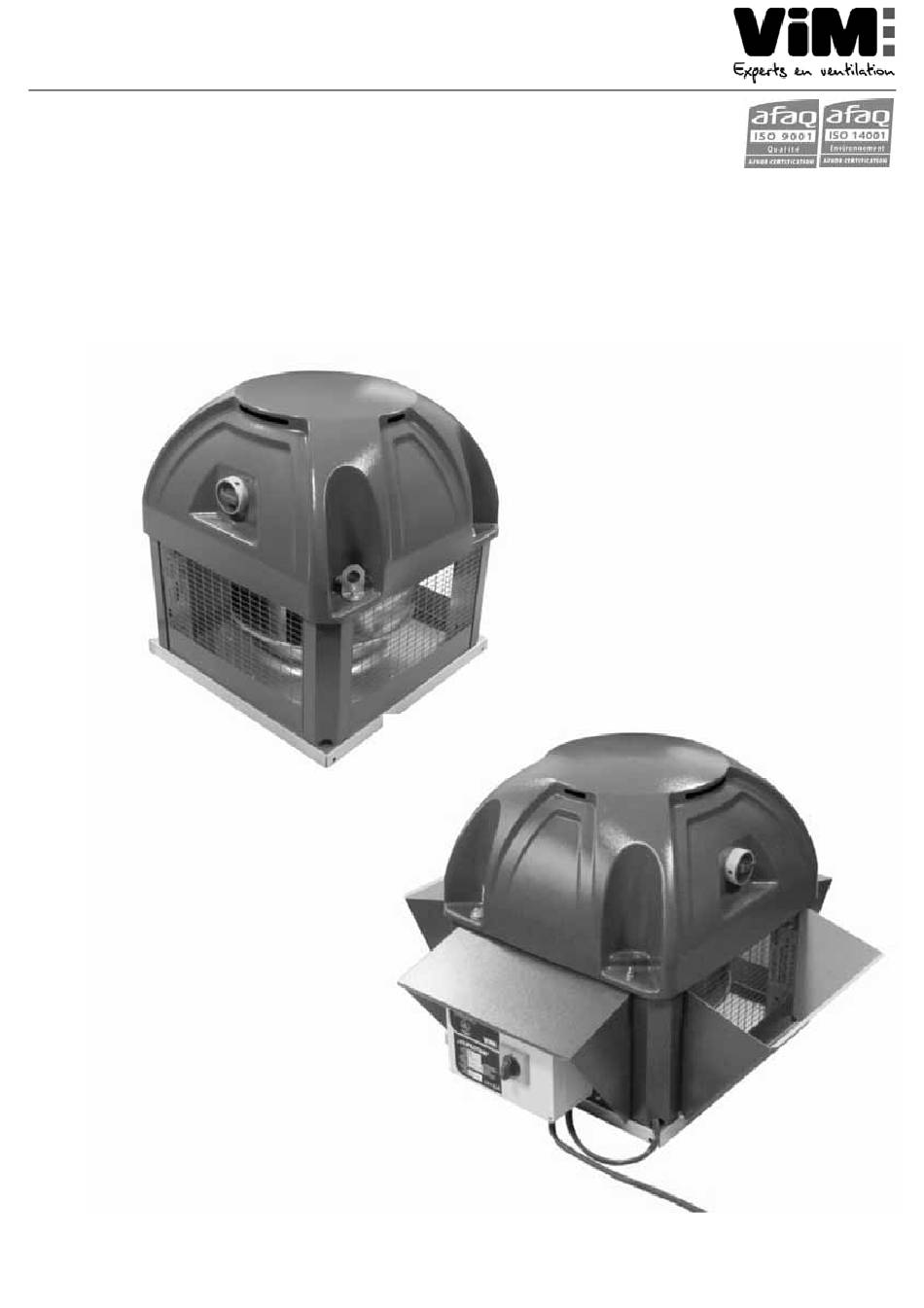

- Page 1 TECHNICAL MANUAL INSTALLATION |CONNECTION| COMMISSIONING | MAINTENANCE | TEDH F400 / TEDV F400 Roof Fan F400-120 (400°C 120 min) Backward impeller NT_50897401_TEDH-V F400-AN_140115.docx...
-
Page 2: Table Of Contents
CONTENTS 1. GENERAL..............................3 1.1 Disclaimers ..............................3 1.2 Safety instructions ............................. 3 1.3 Acceptance – Storage ..........................3 1.4 Warranty ..............................4 2. PRODUCT PRESENTATION ........................4 3. INSTALLATION ............................5 3.1 Dimensions and weight ..........................5 3.2 Handling ..............................6 3.3 ... -
Page 3: General

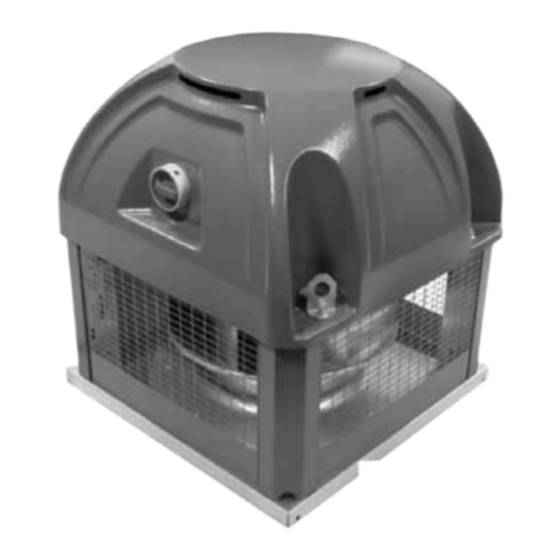

The TEDH F400 and TEDV F400 centrifugal backward roof fans are intended for smoke extraction and ventilation applications in residential buildings, tertiary buildings, industrial buildings and professional kitchens: ... -
Page 4: Warranty
The equipment is warranted for twelve (12) months – Parts only – from date of manufacture. VIM agrees to replace parts or the equipment whose operation is recognised defective by our departments, excluding all damages or penalties, such as operating losses, commercial prejudice, or other intangible or indirect losses. -
Page 5: Installation
3. INSTALLATION 3.1 Dimensions and weight ØD Ø D Fixing E Fixing E Fixing Fixing Ø20 Ø20 ØD ØD Fixing E Fixing E Fixing Fixing Ø20 Ø20 Model weight weight (kg) (kg) 214,0 256,6 289,1 325,8 1038 366,5 1055 407,3 1219 455,2 1268... -
Page 6: Handling
WARNING: Do not leave the slings on the product once it is installed. VIM shall be relieved of any responsibility in case these slings are not properly used. WARNING: Do not lift the product by holding it by the plastic cover cap. -
Page 7: Mounting Roof Fan Accessories
3.3 Mounting roof fan accessories TEDH with TEDV with TEDH TEDV PILOTAIR PILOTAIR SILS TCDZ06 TCDZ05* TCDZ03 TCDZ03 TCDZ08 TCDZ01 TCDZ04 TCDZ07 TCDZ02 TCDZ09 * Some adaptation plate diameters are not compatible with the following accessories: TCDZ 02, 04, 07 and 08 (see §... - Page 8 3.3.2 Embedding frame: TCDZ 02 Seal the frame in the concrete support and make sure that the sealing pads are embedded in the concrete. Tower Accessory Weight size size (kg) 250/315 355/400 450/500 560/630 695-810 100 1100 1150 * Dimensions in mm 3.3.3 Energy saver flap : TCDZ 03 Mount the energy saver flap inside the inserts under the roof fan.
- Page 9 3.3.5 Tipping-up kit: TCDZ 06 This kit allows safely swinging the roof fan for cleaning operations. It is placed on the embedding frames TCDZ 02, roof adapters TCDZ 04, TCDZ 07 or TCDZ 09 and can be placed on top of the adaptation plates TCDZ 05 or the energy saver flap TCDZ 03.
- Page 10 3.3.6 Sound attenuators : SILS Provide for an 80 Pa pressure drop. Ø12 Accessory Weight unit size (kg) size 250/315 355/400 Ø19 450/500 560/630 695/810 1250 800 1100 1150 * Dimensions in mm 3.3.7 Horizontal and inclined roof adapters: TCDZ 04, TCDZ 07 or TCDZ 09 It is possible to associate an energy save flap TCDZ 03 or an adaptation plate TCDZ 05 (except for TCDZ 09) placed inside the insert.
-
Page 11: Removing The Caps
3.6 Mounting the roof fan deflectors 3.6.1 Vertical discharge kit KRVT Allows transforming a horizontal roof fan TEDH F400 into a vertical roof fan TEDV F400. It is recommended to wear protective gloves to handle the various elements. Sizes 250 to 500: ... - Page 12 Sizes 560 to 900 : Deflector Lay the deflector surface on the floor edge Insert the edge in the fold by aligning the tenon of the surface with the opening of the edge Deflector Raise the edge surface ...
-
Page 13: Electrical Connection
4. ELECTRICAL CONNECTION 4.1 Preliminary precautions Electrical connections must be made by a qualified personnel. The mains connection will be made according to the NF C15-100 standard indicating that the electric motor must be protected by a unipolar device having an opening distance of 3mm per contact. -
Page 14: Technical Data
4.2 Technical data INTZ* INTZ* Nom. P. Nom. I. (A) Smoke Model Id/In Comfort (kW) 230V Extract 230V 230V 1 speed single-phase 2-pole motor 0,37 3,00 INTZ 1V15 1 speed single-phase 4-pole motor 0,25 2,50 INTZ 1V15 0,25 2,50 INTZ 1V15 0,25 2,50 INTZ 1V15... - Page 15 INTZ* INTZ* INTZ* INTZ* Efficiency Nom. P. Nom. I. (A) Nom. I. Smoke Smoke Model Id/In Comfort Comfort class (kW) 230V (A) 400V Extract Extract 230V 400V 230V 400V 1 speed three-phase 8-pole motor 0,18 1,50 0,86 INTZ 1V15 INTZ 1V15 0,18 1,26 0,73...
-
Page 16: Wiring Of Version Without Intz Safety Isolation Switch
4.3 Wiring of version without INTZ safety isolation switch 4.3.1 Single-phase motors One phase motor 230V 4.3.2 1 speed three-phases motors Three phases inlet 1S Three phases inlet 1S 230Vac 50Hz 230Vac 50Hz Three phases motor 1S Three phases motor 1S Y230/D400V Y230/D400V 4.3.3 2 speed three-phases motors... -
Page 17: Wiring Of Version With Intz Safety Isolation Switch
4.4 Wiring of version with INTZ safety isolation switch Unit with safety switch delivered factory wired and mounted Note: the safety switch is sized to be used in smoke removal for a 400V three-phase or 230V single-phase network connection. 4.4.1 Wiring of TEDH/TEDV F400 – 1 speed with 1V15 Three phases inlet 1S 1 phase inlet 1S 400Vac 50Hz... -
Page 18: Wiring Of The Pilotair ® Control Panel (Used In France)
4.4.4 Wiring of TEDH/TEDV F400 – 2 speeds with 2V15 LS inlet HS inlet 400Vac 50Hz 400Vac 50Hz Three phases 2S 400V 4.4.5 Wiring of TEDH/TEDV F400 – 2 speeds with 2V22 or 2V29 LS inlet HS inlet 400Vac 50Hz 400Vac 50Hz Three phases 400V motor 2S ®... -
Page 19: Electrical Connection Of The Pressure Switch
4.7 Electrical connection of the pressure switch A pressure switch can be supplied as an option with the roof fan or delivered mounted and air connected (version INTZ+BDEZ). In this case, it is placed under the plastic top cap. Set a high enough pressure value to avoid any accidental triggering of the pressure relief switch. -
Page 20: Maintenance
6. MAINTENANCE Maintenance periodicity depends on the operating conditions. If the air is dirty (poor quality), the interval between two inspections should be more frequent. WARNING: Before any maintenance operation, cut off the electrical power supply upstream from roof fan and make sure that it cannot be switched on during the intervention (consignment by locking). The electric motors used do not require any special maintenance. -
Page 21: Waste Management
7. WASTE MANAGEMENT 7.1 Treatment of Packagings and non dangerous wastes The packagings (unconsigned pallets, cartons, films, wooden boxes) and other non dangerous wastes must be made reusable by an approved service provider. It is strictly prohibited to burn, bury or dump them in nature. -
Page 22: Appendices
8. APPENDICES Spare parts list Model VIM code Designation TEDH/V F400 250 2PM 0000506157 Capacitor 12µF/400V for single-phase electric motor TEDH/V F400 250 4PM 0000506154 Capacitor 30µF/400V for single-phase electric motor TEDH/V F400 315 4PM 0000506154 Capacitor 30µF/400V for single-phase electric motor 0000506153 Capacitor 20µF/400V for single-phase electric motor... - Page 23 Model VIM code Designation TEDH‐V 450 4PM 690059 MTTE TEDH‐V 450 4PM 1.1kW Motor + Impeller TEDH‐V 450 6PM 690109 MTTE TEDH‐V 450 6PM 0.25kW Motor + Impeller TEDH‐V 450 6PT 690209 MTTE TEDH‐V 450 6PT 0.37kW IE1 Motor + Impeller TEDH‐V 450 8PT 690229 MTTE TEDH‐V 450 8PT 0.18kW IE1 Motor + Impeller TEDH‐V 450 4PT 690389 MTTE TEDH‐V 450 4PT 1.1kW IE2 Motor + Impeller TEDH‐V 450 6PT 690449 MTTE TEDH‐V 450 6PT 0.37kW IE2 Motor + Impeller TEDH‐V 450 8PT 690559 MTTE TEDH‐V 450 8PT 0.18kW IE2 Motor + Impeller TEDH‐V 450 4/6PT 690689 MTTE TEDH‐V 450 4/6PT 1.1/0.30kW Motor + Impeller TEDH‐V 450 4/8PT 690739 MTTE TEDH‐V 450 4/8PT 1.2/0.30kW Motor + Impeller TEDH‐V 450 6/8PT 690769 MTTE TEDH‐V 450 6/8PT 0.37/0.20kW Motor + Impeller TEDH‐V 500 4PM 690069 MTTE TEDH‐V 500 4PM 1.5kW Motor + Impeller TEDH‐V 500 6PM 690119 MTTE TEDH‐V 500 6PM 0.37kW Motor + Impeller TEDH‐V 500 6PT 690219 MTTE TEDH‐V 500 6PT 0.55kW IE1 Motor + Impeller...
- Page 24 Les prés de Mégy Sud – SOUDAN CS 60120 - 79401 ST MAIXENT L’ECOLE&CEDEX, FRANCE Tel. : 33 (0)5 49 06 60 38 – Fax : 33 (0)5 49 06 60 36 www.vim.fr – sav@vim.fr 24/24 NT_50897401_TEDH-V F400-AN_140115.docx...
