TECHNICAL MANUAL
INSTALLATION | CONNECTION| COMMISSIONING | MAINTENANCE |
I S O 9 0 0 1
ISO 14001
Q u a l i t é
Environnement
AFNOR CERTIFICATION
AFNOR CERTIFICATION
®
®
KUBAIR
F400 ECOWATT

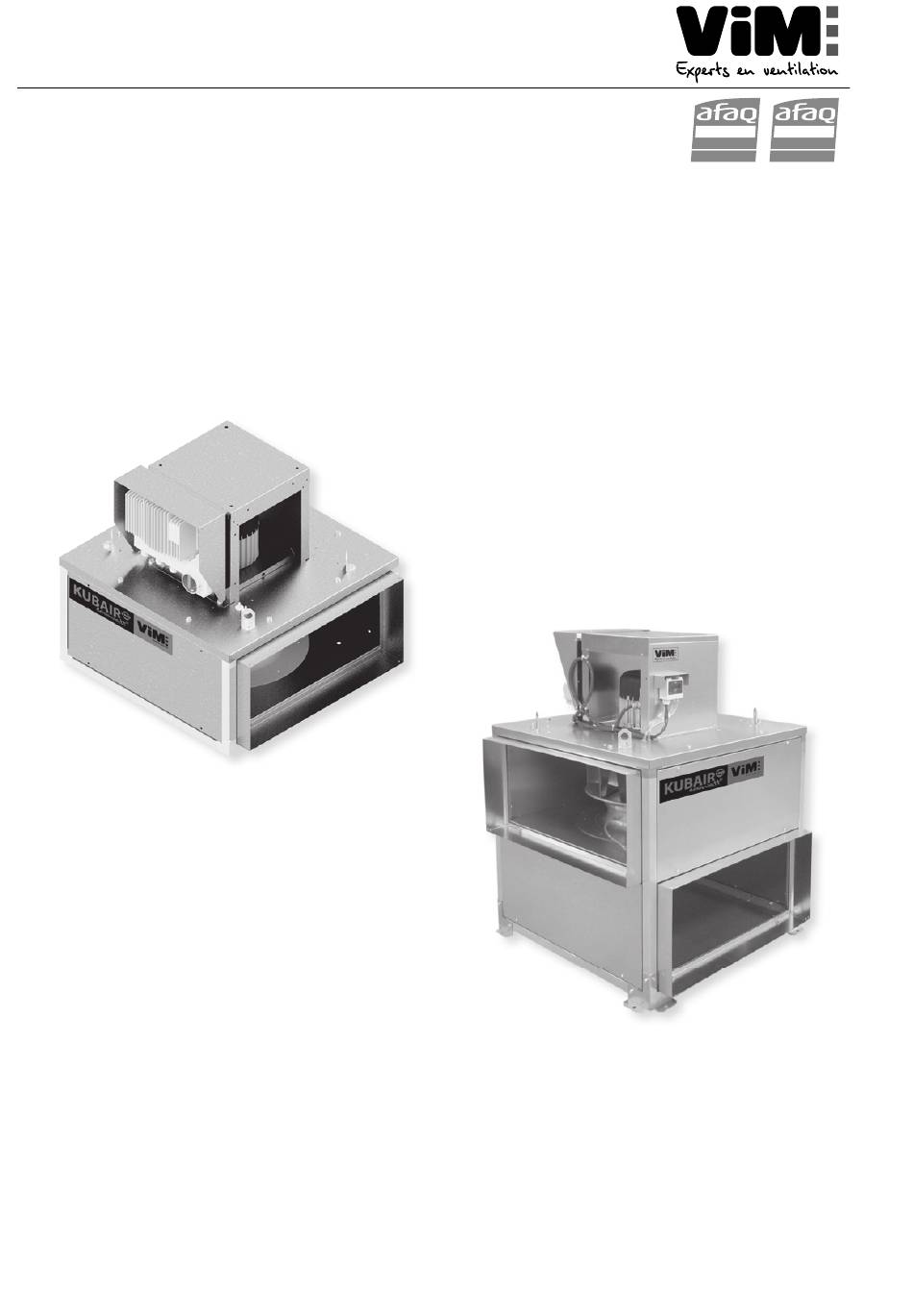

Smoke extract unit F400 - 120 (400°C 120 min)
NT-50907601-KUBAIR-F400-ECOWATT-AN-191025
