ViM TEDH F400 Technical Manual

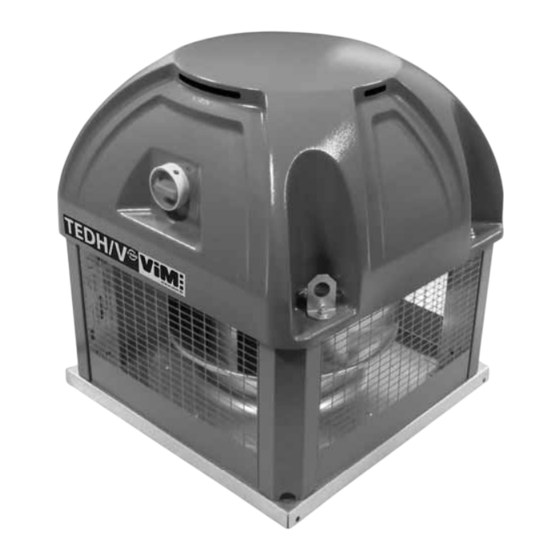

Roof fan f400-120 (400 c 120 min), backward impeller
Hide thumbs Also See for TEDH F400:
Table of Contents

Advertisement

Quick Links

Download this manual
TECHNICAL MANUAL
INSTALLATION | CONNECTION| COMMISSIONING | MAINTENANCE |
I S O 9 0 0 1
ISO 14001
Q u a l i t é
Environnement
AFNOR CERTIFICATION
AFNOR CERTIFICATION
TEDH F400 / TEDV F400
Roof Fan F400-120 (400°C 120 min)
Backward impeller
NT-50897401-TEDH-V-F400-AN-170322

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEDH F400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ViM TEDH F400

Summary of Contents for ViM TEDH F400

  • Page 1 INSTALLATION | CONNECTION| COMMISSIONING | MAINTENANCE | I S O 9 0 0 1 ISO 14001 Q u a l i t é Environnement AFNOR CERTIFICATION AFNOR CERTIFICATION TEDH F400 / TEDV F400 Roof Fan F400-120 (400°C 120 min) Backward impeller NT-50897401-TEDH-V-F400-AN-170322...

  • Page 2: Table Of Contents

    SOMMAIRE GENERAL ............................3 Disclaimers ..........................3 Safety instructions ........................3 Acceptance – Storage ......................4 Warranty ........................... 4 PRODUCT PRESENTATION ......................4 INSTALLATION ..........................5 Dimensions and weight ......................5 Handling ........................... 6 Mounting roof fan accessories....................7 Removing the caps ........................11 Mounting the roof fan......................

  • Page 3: General

    The TEDH F400 and TEDV F400 centrifugal backward roof fans are intended for smoke extraction and ventilation applications in residential buildings, tertiary buildings, industrial buildings and professional kitchens: •...

  • Page 4: Acceptance - Storage

    The equipment is warranted for twelve (12) months – Parts only – from date of manufacture. VIM agrees to replace parts or the equipment whose operation is recognised defective by our departments, excluding all damages or penalties, such as operating losses, commercial prejudice, or other intangible or indirect losses.

  • Page 5: Installation

    INSTALLATION 3.1 Dimensions and weight TEDH F400 TEDV F400 ØD ØD Fixing E Fixing E Fixing Fixing Ø20 Ø20 ØD Ø D Fixing E Fixing E Fixing Fixing Ø20 Ø 20 Modèle Poids H** Poids V** 214,0 256,6 289,1 325,8...

  • Page 6: Handling

    WARNING: Do not leave the slings on the product once it is installed. VIM shall be relieved of any responsibility in case these slings are not properly used. WARNING: Do not lift the product by holding it by the plastic cover cap.

  • Page 7: Mounting Roof Fan Accessories

    3.3 Mounting roof fan accessories TEDH F400 TEDH F400 TEDV F400 TEDV F400 with PILOTAIR with PILOTAIR ® ® TDCZ06 TCDZ03 TCDZ05* TCDZ03 TCDZ08 TCDZ01 TCDZ 04 TCDZ 07 TCDZ 02 TCDZ 09 Optional accessory following selection * : Some adaptation plate diameters are not compatible with the following accessories: TCDZ 02, 04, 07 and 08 (see § "3.3.4 Adaptation plate : TCDZ 05").
  • Page 8 3.3.2 Embedding frame: TCDZ 02 Seal the frame in the concrete support and make sure that the sealing pads are embedded in the concrete. Tower Accessory Weight size size (kg) 250/315 355/400 450/500 560/630 695 à 810 100 1100 1150 * Dimensions in mm 3.3.3 adaptation plates TCDZ 05 and the standard support TCDZ 01.
  • Page 9 3.3.5 Tipping-up kit: TCDZ 06 This kit allows safely swinging the roof fan for cleaning operations. It is placed on the embedding frames TCDZ 02, roof adapters TCDZ 04, TCDZ 07 or TCDZ 09 and can be placed on top of the adaptation •...
  • Page 10 3.3.6 Sound attenuators : SILS Provide for an 80 Pa pressure drop. Unit size Accessory G* Weight size (kg) Ø12 250/315 355/400 450/500 560/630 695 à 810 Ø19 1250 800 1100 1150 *Dimensions in mm 3.3.7 Horizontal and inclined roof adapters : TCDZ 04, TCDZ 07 ou 09 09) placed inside the insert.

  • Page 11: Removing The Caps

    3.3.8 Roof adapter heightener (TCDZ 08) Allows to rise the roof fan by 200mm, allows to insert an adaptation plate TCDZ 05 between roof fan TCDZ 02. Energy saver Roof adapter flap heightener Accessory Weight Unit size size (kg) Adaptation Roof plate 250/315...

  • Page 12: Mounting The Roof Fan

    3.6.1 Vertical discharge kit KRVT Allows transforming a horizontal roof fan TEDH F400 into a vertical roof fan TEDV F400. It is recommended to wear protective gloves to handle the various elements. Size 250 to 500 : •...
  • Page 13 Sizes 560 to 900 : Deflector edge • Insert the edge in the fold by aligning the tenon of the surface with the opening of Deflector the edge • Raise the edge surface • Do the same with the other edge •...

  • Page 14: Electrical Connection

    ELECTRICAL CONNECTION 4.1 Preliminary precautions Do not forget to connect the unit to ground. In addition, the cables routing must be protected from mechanical aggressions when the connection is made to the motor’s terminal box or to the unit’s safety switch. If used for comfort application, the electric motor must be protected by a suitable magnetothermal protec- tion device.

  • Page 15: Technical Data

    Minimum distance = 1.5m min Electrical accessory added by installer H or V unit 4.2 Technical data INTZ* INTZ* Nom. P. Nom. I. (A) Starting Model Id/In Comfort Smoke Extract (kW) 230V time 230V 230V 1 SPEED SINGLE-PHASE 2-POLE MOTOR 0,37 INTZ 1V15 1 SPEED SINGLE-PHASE 4-POLE MOTOR...
  • Page 16 INTZ* INTZ* INTZ* INTZ* Nom. P. Nom. I. Nom. I. Starting Smoke Smoke Model Id/In Comfort Comfort class (kW) (A) 230V (A) 400V time Extract Extract 230V 400V 230V 400V 1 SPEED THREE-PHASE 6-POLE MOTOR 0,18 1,28 0,74 INTZ 1V15 INTZ 1V15 0,18 1,26...
  • Page 17 INTZ* INTZ* Nom. I. (A) Nom. I. (A) Starting Model Nom. P. (kW) Id/In Comfort Smoke Extract 400V GV 400V PV time 400V 400V 2 SPEED THREE-PHASE 4/8-POLE MOTOR - DAHLANDER WINDINGS 0,60/0,15 1,82 0,81 5,5/3,1 INTZ 2V15 0,60/0,15 1,82 0,81 5,5/3,1 INTZ 2V15...

  • Page 18: Wiring Of Version Without Intz Safety Isolation Switch

    4.3 Wiring of version without INTZ safety isolation switch 4.3.1 Single-phase motors One phase motor 230V 4.3.2 1 speed three-phases motors Three phases inlet 1S Three phases inlet 1S 230Vac 50Hz 400Vac 50H z Three phases motor 1S Three phases motor 1S Y230 /D 400 V Y230 /D 400 V 4.3.3 2 speed three-phases motors...

  • Page 19: Wiring Of Version With Intz Safety Isolation Switch

    4.4 Wiring of version with INTZ safety isolation switch Unit with safety switch delivered factory wired and mounted Note: the safety switch is sized to be used in smoke removal for a 400V three-phase or 230V single-phase network connection. 4.4.1 Wiring of TEDH/TEDV F400 – 1 speed with 1V15 1 phase inlet 1S Three phases inlet 1S 23 0Vac 50H z...

  • Page 20: Wiring Of The Pilotair Control Panel (Used In France)

    4.4.4 Wiring of TEDH/TEDV F400 – 2 speeds with 2V15 LS inlet HS inlet 40 0Vac 50Hz 400Vac 50Hz Three phases 2S 400V 4.4.5 Wiring of TEDH/TEDV F400 – 2 speeds with 2V22 or 2V29 LS inlet HS inlet 40 0Vac 50H z 40 0Vac 50H z Three phases 400V motor 2S 4.5 Wiring of the PILOTAIR...

  • Page 21: Electrical Connection Of The Pressure Switch

    4.7 Electrical connection of the pressure switch A pressure switch can be supplied as an option with the roof fan or delivered mounted and air connected (version INTZ+BDEZ). In this case, it is placed under the plastic top cap. Set a high enough pressure value to avoid any accidental triggering of the pressure relief switch.

  • Page 22: Commissioning

    COMMISSIONING Before starting fan, make sure that the electric motor and impeller assembly rotate freely and that there is no object likely to be ejected by the turbine. The protection housings must be fastened to roof fan to prevent any accidental contact with rotating parts. The machine should be attached to its support before power is applied.

  • Page 23: Maintenance Periodicity

    6.1 Maintenance periodicity Unit/Item At commissioning Every 6 months minimum Check the rotating direction ; make sure that the Clean, if necessary ; make sure that the moving Turbine Check the connections, in particular, the ground Retighten the lugs, if necessary ; check the Electric motor connection nominal current...

  • Page 24: Spare Parts Tedh / Tedv F400

    6.3 Spare parts TEDH / TEDV F400 Model VIM code Designation TEDH/V F400 250 2PM 0000506157 Capacitor 12μF/400V for single-phase electric motor 0000506154 Capacitor 30μF/400V for single-phase electric motor TEDH/V F400 250 4PM TEDH/V F400 315 4PM 0000506154 Capacitor 30μF/400V for single-phase electric motor TEDH/V F400 315 6PM 0000506153 Capacitor 20μF/400V for single-phase electric motor...
  • Page 25 Model VIM code Designation TEDH-V 400 4PM 690049 MTTE TEDH-V 400 4PM 0,55kW Motor + Impeller 690099 MTTE TEDH-V 400 6PM 0,25kW Motor + Impeller TEDH-V 400 6PM TEDH-V 400 4PT 690169 MTTE TEDH-V 400 4PT 0,55kW IE1 Motor + Impeller...
  • Page 26 Model VIM code Designation TEDH-V 710 8PT 690279 MTTE TEDH-V 710 8PT 2,2kW IE1 Motor + Impeller 690499 MTTE TEDH-V 710 6PT 3kW IE2 Motor + Impeller TEDH-V 710 6PT TEDH-V 710 8PT 690609 MTTE TEDH-V 710 8PT 2,2kW IE2 Motor + Impeller...

  • Page 27: Waste Management

    WASTE MANAGEMENT 7.1 Treatment of Packagings and non dangerous wastes must be made reusable by an approved service provider. It is strictly prohibited to burn, bury or dump them in nature. 7.2 Treatment of a Professional WEEE This product must not be dumped or treated with household refuse, but must be deposited in an appro- priate collection point for waste electrical and electronic equipment (WEEE).
  • Page 28 Les prés de Mégy Sud – SOUDAN CS 60120 - 79401 ST MAIXENT L’ECOLE CEDEX Tél. : 05 49 06 60 38 ou 05 49 06 60 25 – Fax : 05 49 06 60 36 sav@vim.fr - www.vim.fr 28/28 NT-50897401-TEDH-V-F400-AN-170322...
