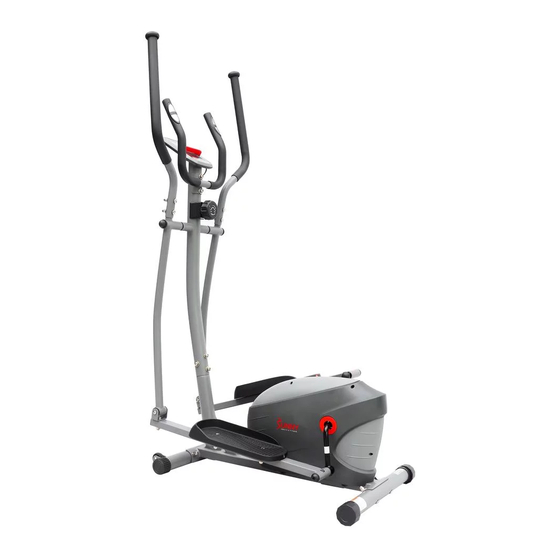

PERFORMANCE INTERACTIVE SERIES
ELLIPTICAL
SF-E320033
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PERFORMANCE INTERACTIVE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny PERFORMANCE INTERACTIVE Series

Summary of Contents for Sunny PERFORMANCE INTERACTIVE Series

  • Page 1 PERFORMANCE INTERACTIVE SERIES ELLIPTICAL SF-E320033 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST .Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Description Spec. Qty. Main Frame Meter Handlebar Post Nut Cap 3L/R Swing Bar 1PR. Nut Cap Pedal Support Tube 43L/R Pedal 1PR. Armrest Manual 6L/R...

  • Page 4: Hardware Package

    HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓...
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Remove 2 Paper Tubes (No. E), 4 Carriage Bolts (No. 13), 4 Arc Washers (No. 24) and 4 Cap Nuts (No.
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 2: Remove 4 Screws (No. 12), 4 Spring Washers (No. 25) and 4 Arc Washers (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Remove 2 Hex Screws (No. 16), 2 Spring Washers (No. 25), 2 Flat Washers (No. 22) and 2 Wave Washers (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Attach 2 Handlebars (No. 6L/R) on the 2 Swing Bars (No. 3L/R) with 4 Carriage Bolts (No.
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Remove 2 Screws (No. 12), 2 Spring Washers (No. 25) and 2 Arc Washers (No.

  • Page 10: Adjustment Guide

    ADJUSTMENT GUIDE ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the elliptical is stabled and secured. If you notice that the elliptical is unbalanced during use, you should adjust the Rear End Caps (No.

  • Page 11: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT Battery Battery Cover BATTERY INSTALLATION 1. Take out 2 AAA batteries from computer box. 2. Press the buckle of battery cover on the Meter (No. 34), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 34). Pay attention to the battery + and –...

  • Page 12: Function Buttons

    EXERCISE METER FUNCTION BUTTONS: MODE: Press the button to select TIME, DISTANCE, and CALORIES to preset. Press the button for selection function display value on LCD or enter after setting. Press the button and hold for 3 seconds to reset all values except odometer to zero.

  • Page 13: App Connection

    7. CALORIES: Accumulates calories burned during training from 0.0 to 9999 (Cal). The user may also preset the target calories before training by pressing the SET & MODE buttons. Each setting increment is 1 Cal and will automatically counts down from target value during exercise. NOTE: This data is a rough guide which cannot be used in medical treatment.

  • Page 14: Exploded Diagram

    EXPLODED DIAGRAM 1 EXPLODED DIAGRAM 2...

  • Page 15: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Tension Controller Handlebar Post Tension Cable 3L/R Swing Bar 1PR. Sensor Extension Wire 2 Pedal Support Tube Sensor Extension Wire 1 Armrest Tension Hook 6L/R Handlebar 1PR. Wire Plug U Bracket Pulse Wire Front Stabilizer Pulse Sensor...
  • Page 16 Description Spec. Qty. Description Spec. Qty. Crank Cover Spanner S13,S14 Allen Wrench Spanner S17,S19 Allen Wrench Nylon Nut Allen Wrench Adjustable Belt Bolt M6x36 Spanner S13,S14,S15 Sensor Wire Version 1.0...
