Procedure
Motor
Axial fl ow blade
Reactor
Right side plate

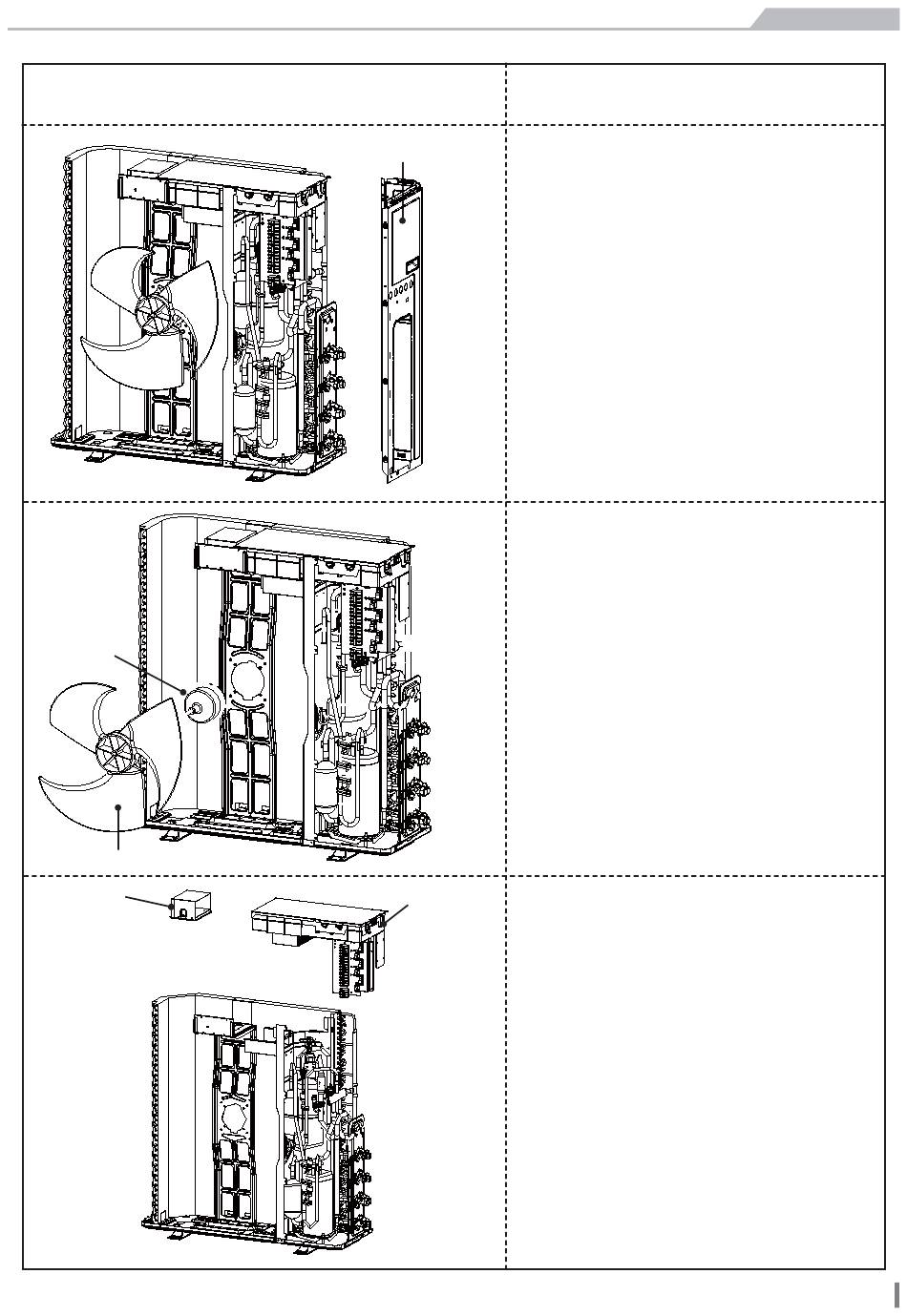

6. Remove right side plate
Remove connection screws connecting the right
side plate with the valve support and the electric
box. Then remove the right side plate.
7.Remove axial fl ow blad
Remove the nut fi xing the blade and then remove the
axial fl ow blade.
Remove motor
Remove tapping screws fi xing the motor
anddisconnect the leading wire insert of the
motor. Then remove the motor.
Electric box assy
Note
8. Remove electric box assy
Remove screws fi xing the electric box assy;
loosen the wire bundle and unplug the wiring
terminals. Then lift the electric box to remove it.
Remove Reactor
Take off the fi xed scre,and you could take
off the reactor.
