Removal Procedure Removal Procedure
56
Procedure
Expansion valve Assy
Valve Block

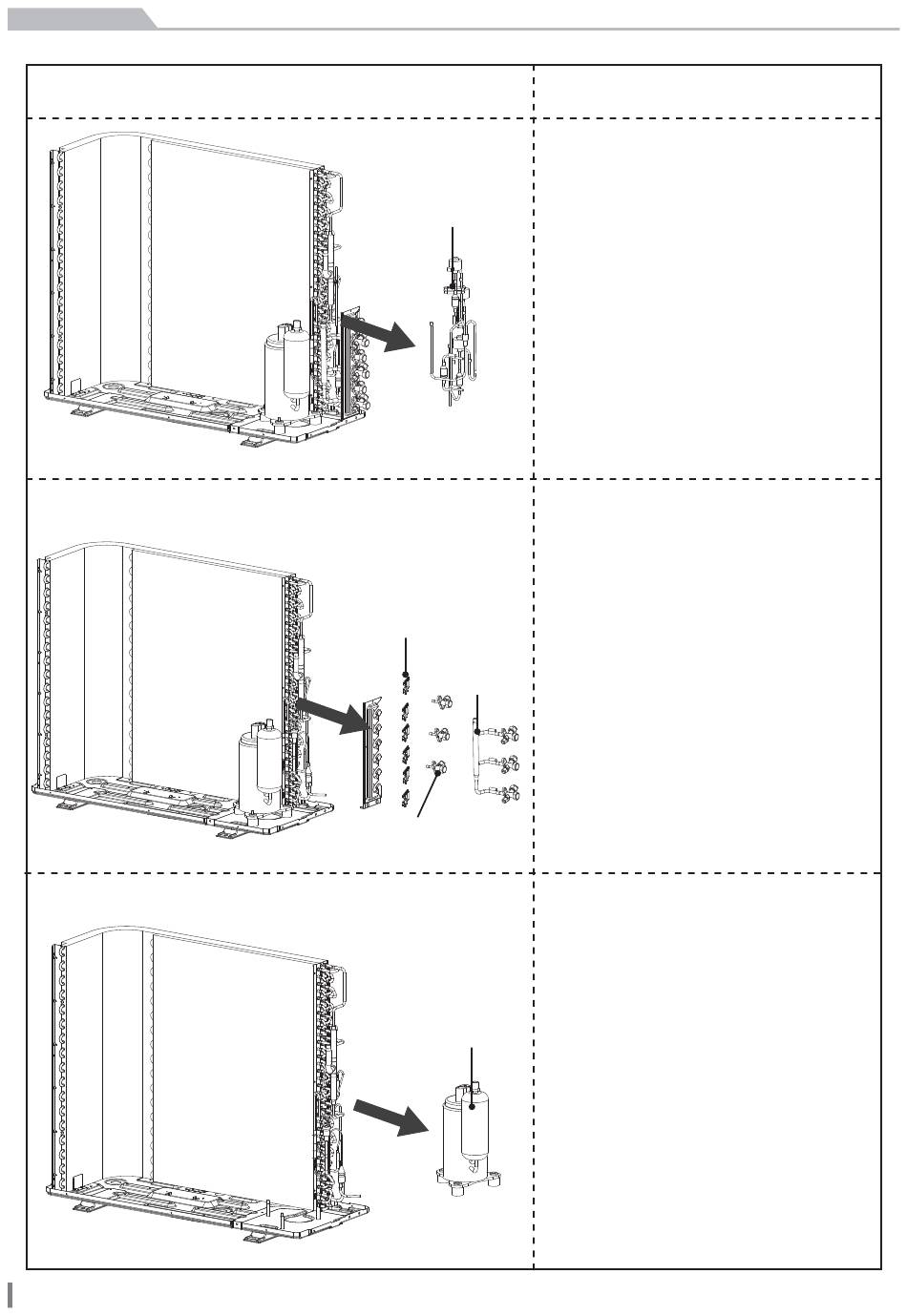

16. Remove Expansion valve Assy
Unsolder the spot weld of expansion valve
assy, liquid valve and condenser, and then
remove the expansion valve assy .
17. Split the valve and valve support
Pull out the valve block with the hands or tools.
Screwdriver unscrew the valve and valve bracket set
screw, remove the air valve subassembly and hydraulic
valve. (open air valve subassembly of spot welding, take
down the various valve) Screwdriver unscrew the valve
bracket and the chassis of the fi xed screw, take down the
Air Valve
valve support.
subassembly
Hydraulic valve
18. Remove
Remove the foot nuts on the compressor
and then remove the compressor.
Compressor
Note
Compressor
