Removal Procedure Removal Procedure
Front panel
Grille
Axial fl ow blade
52
Procedure
side plate
Note

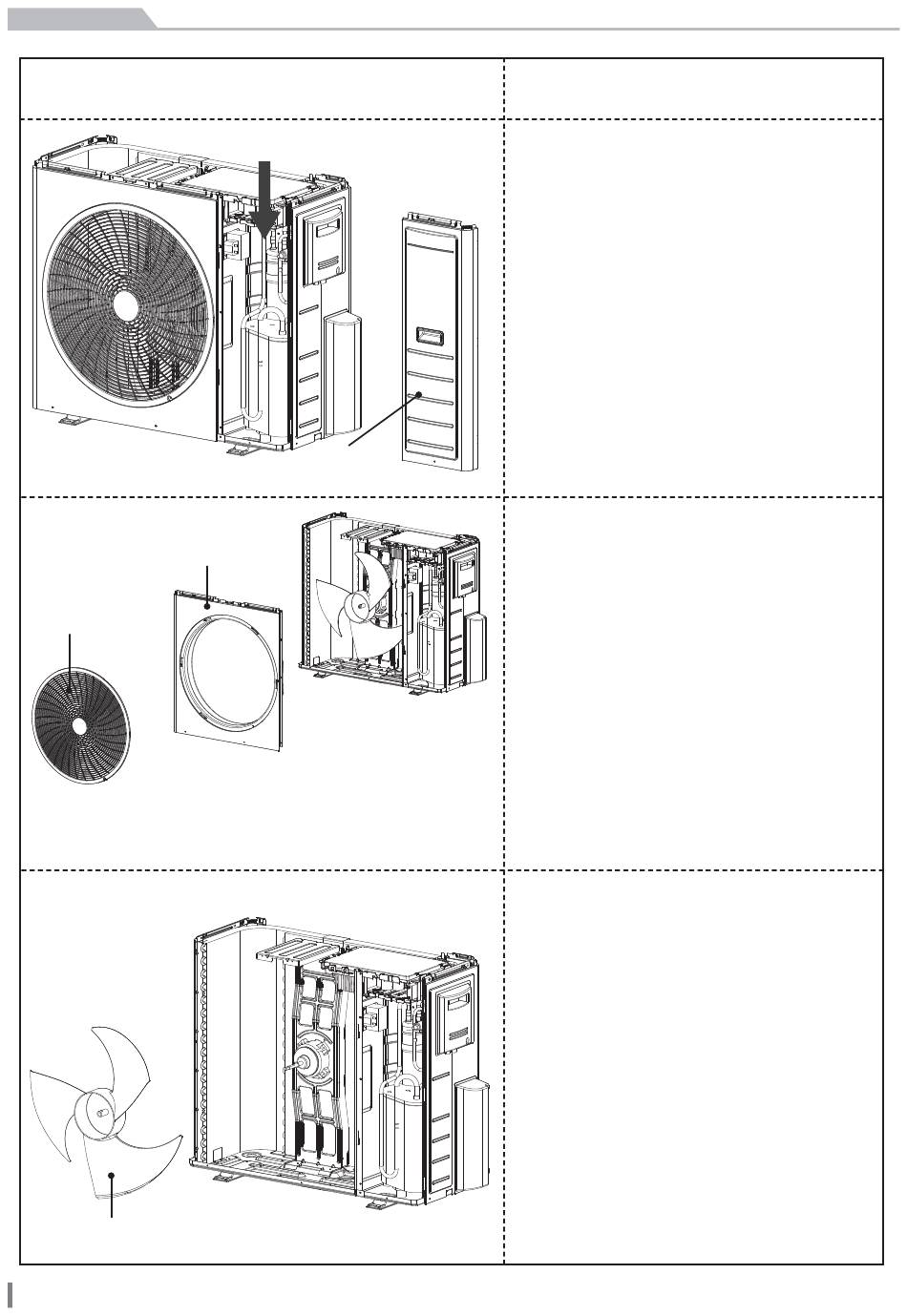

4.Open the side plate
Use screwdriver unscrewed the fi xed screw of the side plate
and the chassis, and then descend into the handle of the side
plate hole by hand press, make the side plate and on the right
side of card board, panel button out, again ask outside, can
remove the side plate.
5.Remove grille and panel
A: Remove connection screws between the front
grille and the front panel. Then remove the front
grille.
B: Remove connection screws connecting
the front panel with the chassis and the motor
support, and then remove the front panel.
6.Remove axial fl ow blad
Remove the nut fi xing the blade and then remove the
axial fl ow blade.
