Single Channel EEG Test System | User Manual
WHALETEQ
Single Channel EEG Test System
(SEEG 100E)
User Manual
Revision 2020-10-21
PC Software Version 1.0.5.10
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEEG 100E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WHALETEQ SEEG 100E

  • Page 1 Single Channel EEG Test System | User Manual WHALETEQ Single Channel EEG Test System (SEEG 100E) User Manual Revision 2020-10-21 PC Software Version 1.0.5.10...
  • Page 2: Table Of Contents

    2.1 Installation and Environment..............7 2.1.1 System requirements..................7 2.1.2 SEEG Software Installation................7 2.1.3 First Time Using WhaleTeq Product - USB Driver Installation ......8 2.1.4 First Time Using WhaleTeq Product – Microsoft .Net Framework 4.0 Installation........................9 2.2 Connecting to the EEG ................9 2.3 Environment, noise reduction ..............10...
  • Page 3: Introduction

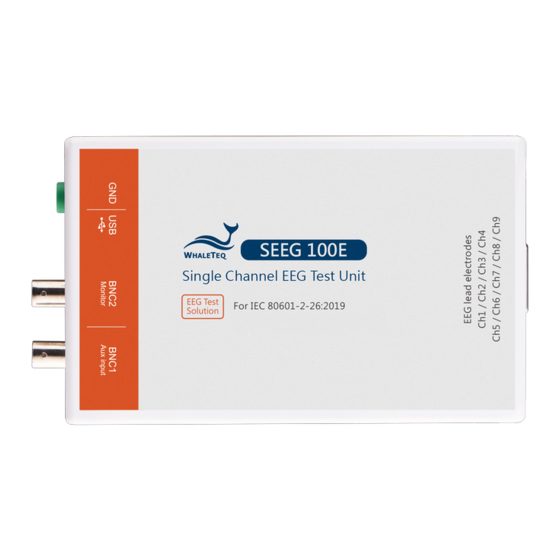

    Ch10~Ch22 (Figure 1) Single channel concept Via a SEEG 100E, the system produces arbitrary waveforms (streamed from the PC with digital to analogue conversion) at up to ±1V, which is then applied to a precision 500:1 divider to produce the voltages at up to ±1mV level (2mVpp). The SEEG 100E contains resistor/capacitor networks, dc offset, and relay switching to provide the full range of single channel performance tests in IEC standard.
  • Page 4: Standards/Application

    Single Channel EEG Test System | User Manual 1.2 Standards/Application The following table shows the standards for which this system has been designed for, and includes any limitations: Standard Clause(s) Limitations/Notes IEC 80601-2- 201.12.1 201.12.1 all performance tests except 26:2012 201.12.1.104 input noise and 201.12.1.106 CMRR tests General limitation:...
  • Page 5: Block Diagram/Seeg 100E Module Overview

    Single Channel EEG Test System | User Manual 1.3 Block diagram/SEEG 100E Module overview The following is a simplified block diagram of the system inside the SEEG 100E module: Precision dc offset ±150mV 500:1 Divider (50KΩ 0.1%) 500:1 Divider (50KΩ...
  • Page 6: Main Specifications

    ➢ WhaleTeq does not recommend to connect test equipment with DUT to conduct Electrostatic Discharge (ESD) test. This may cause unexpected...
  • Page 7: Pc Software Mode

    Single Channel EEG Test System | User Manual damages to test equipment. Please contact WhaleTeq for alternatives before ESD test. ➢ Warranty void if QC PASS label is removed or tampered with. 2 PC Software Mode 2.1 Installation and Environment 2.1.1 System requirements...
  • Page 8: First Time Using Whaleteq Product - Usb Driver Installation

    Single Channel EEG Test System | User Manual If SEEG software can’t be executed properly or this is the first time using WhaleTeq product, please refer to section 2.1.3 and 2.1.4 to confirm that USB driver and Microsoft .Net Framework 4.0 are all installed.
  • Page 9: First Time Using Whaleteq Product - Microsoft .Net Framework

    (from 2:03). 2.2 Connecting to the EEG For connecting the EEG device to the SEEG 100E and use the provided 22 channels “EEG breakout box”. There are only 9 terminals (Ch1~Ch9) could output waveforms, and the rest 13 terminals (Ch10~Ch22) are connected to ground. Below is the photo of EEG breakout box.
  • Page 10: Environment, Noise Reduction

    (a) using a metal bench or metal sheet underneath the EEG device under test and the WhaleTeq SEEG test unit, and (b) connecting SEEG GND terminal to the sheet and also the frame ground (or EP terminal) of the EEG device under test:...
  • Page 11: Main Screen

    Single Channel EEG Test System | User Manual 2.4 Main screen Select the main function (waveform) type, such as sine, triangle and square wave. Select the pulse function (waveform) type, such as rectangle pulse, triangle pulse and Hysteresis. Parameter setting Select the pulse width for rectangle and triangle pulse only, time constant for hysteresis only.
  • Page 12: Description Of Functional Groups

    Single Channel EEG Test System | User Manual 2.5 Description of Functional groups 2.5.1 Main function (main waveform) This group allows the operator to select the main waveform to be used in the test, from the following: Waveform Description Sample waveform type Sine Basic sine wave, according to...
  • Page 13: Main Parameters

    Single Channel EEG Test System | User Manual 2.5.2 Main parameters Amplitude: Can be set in either mV or µV, changing one will automatically change the other to match. The waveform amplitude from -2 mV to +2 mV at a 0.001mV (1 µV) resolution.
  • Page 14: Input Impedance Test

    Single Channel EEG Test System | User Manual 2.5.4 Input impedance test This check box allows the user to switch in an impedance of 620kΩ//4.7nF in series with the main function, for testing the input impedance of the EEG device under test. When the check box is ticked, the impedance is shorted.
  • Page 15: Special Functions

    “Load waveform”. For these two features, the amplitude and frequency settings have no effect. Special Waveforms: WhaleTeq SEEG can play PhysioNet waveforms with 1 electrode at each time. This feature will download waveforms from PhysioNet directly. Please check your internet status before use this feature.
  • Page 16: Iec 80601-2-26 Helper

    2.6 IEC 80601-2-26 Helper It is a companion software add-on to enhance the function of SEEG 100E. It supports the latest EEG standards IEC80601-2-26:2019 with detailed preset parameter settings and actual test sequence for testing needs.
  • Page 17: Calibration, Software Validation

    Single Channel EEG Test System | User Manual 2.7 Calibration, software validation WHALETEQ SEEG 100E has undergone a detailed system validation including software. A report for this can be provided on request. Prior to shipping, each unit is tested for component values and output voltages, using a calibrated precision multi-meter.
  • Page 18: Calibration Procedure

    Single Channel EEG Test System | User Manual 2.7.1 Calibration procedure Parameter Nominal Method value, tolerance Input 620kΩ±1% This can be measured as follows: • impedance Set Main function to “Off” • resistor Set output to ch1 • Uncheck “620KΩ/4.7nF” Measure the resistance between ch1 and ch2 Input 4.7nF±5%...
  • Page 19 Single Channel EEG Test System | User Manual • Confirm all values are within 1% or 5µV of the set value • Note: The Fluke 8845A has suitable accuracy at 10mVpp but has borderline accuracy at 1mVpp and lower. An alternate method is to measure the output at BNC2 and then use the divider ratio above.
  • Page 20: Trouble Shooting

    Move the main function mode to “Off” and then stops responding return to the function being used. If this does not work, close WhaleTeq software, disconnect the SEEG 100E module, reconnect the SEEG 100E module and re-start the SEEG 100E module. 4 Contact details WHALETEQ Co., LTD service@whaleteq.com | (O)+886 2 2596 0701...
