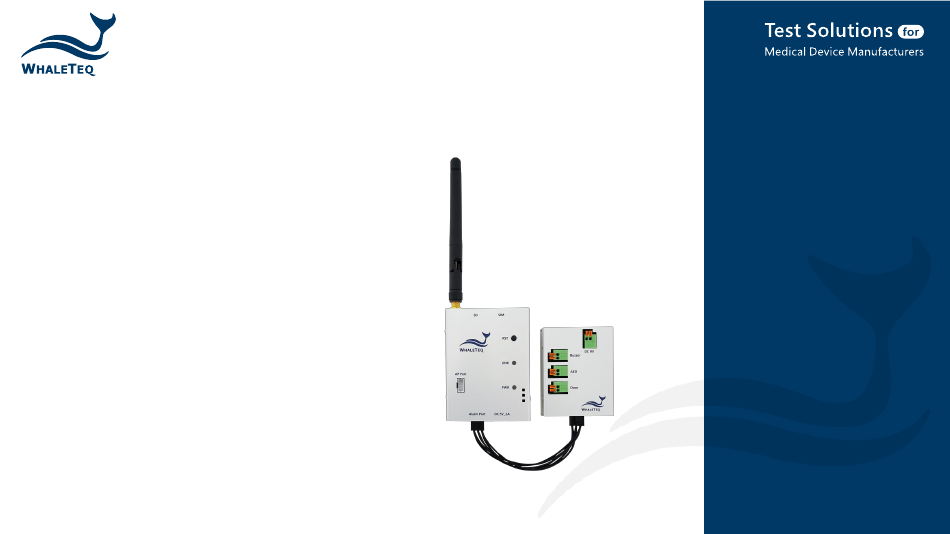

- Page 1 WAIOT-N AED NB-IoT Module Quick Start Guide Released: 2023-01-13 Verify and Validate Your Product Design with Ease © 2022 WhaleTeq All Rights Reserved...
- Page 2 ◼ Test Software – SIM Status ◼ Test Software – Misc. (SD card) and Save Test Reports ◼ Establish the connection between the WAIOT-N and WhaleTeq AED AIMS Cloud CMS ◼ Test the connection between the WAIOT-N and WhaleTeq AED AIMS Cloud CMS...
-
Page 3: Front View
Use a USB to UART unit and the WhaleTeq cable to connect the AIMS Cloud CMS main unit to a computer for on-site Power LED inspection and DC 5V Power Jack maintenance © 2022 WhaleTeq All Rights Reserved... -
Page 4: Bottom View
Bottom View Power Connection Terminal Main Unit Connection Terminal Connect to the power supply of the buzzer. Applicable voltage range: DC 9V~12V Buzzer Connection Terminal AED Weight Sensor Connection Terminal Door Sensor Connection Terminal © 2022 WhaleTeq All Rights Reserved... - Page 5 Test Software – Before starting the tests ① Connect a computer to the WAIOT-N main unit using a USB to UART cable and make sure that the computer connects to the Internet. ② Activate the WAIOT-N test software. ③ Check the serial number of the...
- Page 6 ③ Auto Off Click the TEST button, and the alarm buzzer will keep ringing for 1 minute and then turn off automatically. ◆ Automatically turn off: click (Y) ◆ Fail to automatically turn off: click (N) © 2022 WhaleTeq All Rights Reserved...
- Page 7 Test Software – Cabinet Testing Please test in the following order: ① Battery Voltage Please use the WhaleTeq DFS200 tester with a battery measurement probe to measure the voltage of the cabinet battery and manually enter the test result. ② AED Relay Status...
- Page 8 ◆ Click the TEST button to play the alert sound of AED anomalies. Note: For the 3 test items, after the WAIOT-N successfully detects the sound, the software will determine the result as PASS; if it fails to detect, the software will continue to play the sound.
- Page 9 Test Software – SIM Status This test item shows the network connection status of the WAIOT-N. ① Signal Strength ◆ Shows the value of current signal strength (range: -51 ~ - 113dBm). A smaller value represents that the signal is weaker.
- Page 10 Description and Solutions This function and the SD card are operating PASS properly. Record and report the situation to WhaleTeq, and FAIL (one time) then repeat the test. Please reinsert the SD card, or replace it with a FAIL (more than five times) new one.
- Page 11 Select Sales MGT. ③ In the Equipment No. field, enter the serial number of the AED that is newly installed with the WAIOT-N, and click Search. ④ Click Update of the corresponding AED to bring up Modify equipment sales information window. (see next page)
- Page 12 Establish the connection between the WAIOT-N and WhaleTeq AED AIMS Cloud CMS ① In the Modify equipment sales information window, scroll the Basic information tab to the bottom and click Next step to go to the Monitor information tab. ②...
- Page 13 Establish the connection between the WAIOT-N and WhaleTeq AED AIMS Cloud CMS ① In the Modification of monitor window, enter the serial number of WAIOT-N in the IoT Number field and click Confirm to save. The serial number will appear on the IoT Number field in the Monitor information tab.
- Page 14 ② Select Equipment data MGT. ③ In the Equipment No. field, enter the serial number of the AED that completed the WAIOT-N settings on the AIMS Cloud CMS, and click Search. ④ Click Detail of the corresponding AED to bring up the Equipment data details window.
- Page 15 Copyright © 2013-2023, All Rights Reserved. WhaleTeq Co. LTD All information, documentation, firmware, software is a registered trademark of WhaleTeq Co. LTD. utilities, and specifications are subject to change All other trademarks or trade names are the property of their respective holders.
