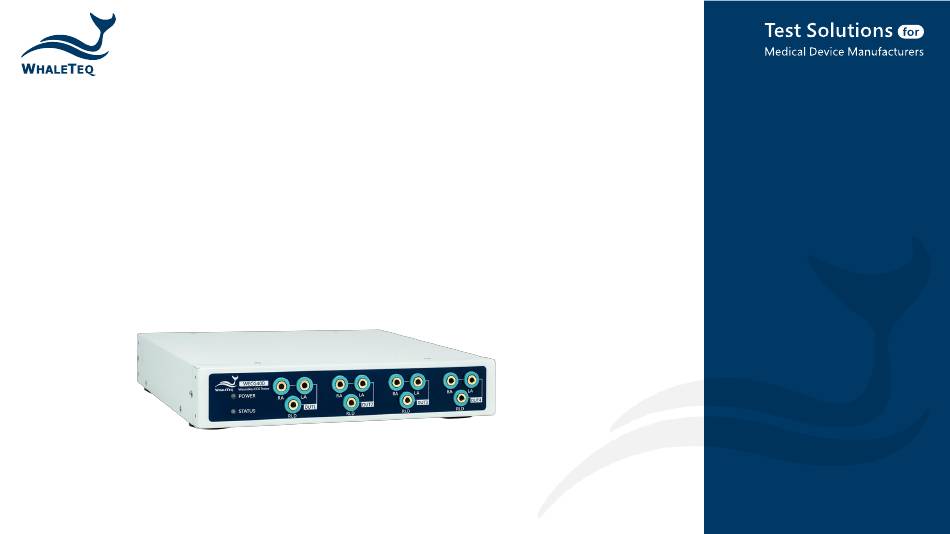

- Page 1 WECG400 Parallel Testing ECG Tester for wearable device production lines Quick Start Guide Released: 2022-11-28 Verify and Validate Your Product Design with Ease © 2022 WhaleTeq All Rights Reserved...
- Page 2 ◼ Performance Test Software – Quick Mode: IEC 60601-2-47 test items ◼ Performance Test Software – Quick Mode: Play raw data Note: This software is for quickly verifying the WECG400 performance only, not the actual test software on production lines.
-

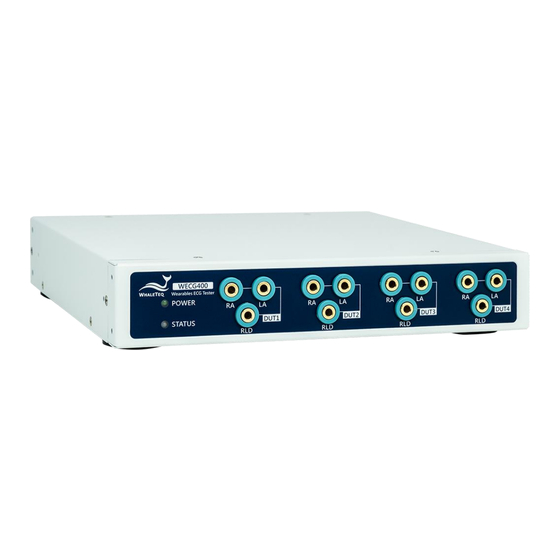

Page 3: Hardware Overview
Connects to an oscilloscope to monitor the amplified ECG signal output (1mV=1000mV output) Dimensions (W x L x H): 270 x 225 x 50 mm Note: The WECG400 is rack-mountable with the 1U height (excluding the foot pads) and 1U half-width design. © 2022 WhaleTeq All Rights Reserved... -
Page 4: Installation
Front View Connection ① (Optional) Ground the WECG400 by connecting one end of a grounding wire to the GND terminal and the other end to a suitable grounded object ② Connect the RA, LA, and RLD electrodes of DUTs respectively to the RA, LA, and RLD electrode terminals on the WECG400. -
Page 5: Operation
• The WECG400 is not a standalone model. Please connect the WECG400 to a PC/laptop to conduct testing. • Parallel testing Connect 4 DUTs to the WECG400, then choose the test items through PC to send signals to the 4 DUTs simultaneously. - Page 6 1. Shorter cables are recommended by bringing a closer connection between the WECG400 and DUTs to reduce possible interference. 2. The metal plate's size should cover the WECG400 and the PC at least. It's unnecessary to ground the metal plate itself.
-
Page 7: Led Description
• Off: The WECG400 is powered off. Status LED • Flashes green: The WECG400 connects to a computer (flashes every 2 seconds). • Flashes red: The WECG400 is powered on but disconnects to a computer (flashes every 2 seconds). © 2022 WhaleTeq All Rights Reserved... - Page 8 Select desired input impedance. ⑧ Check RA or LA for testing. ⑨ Click ''Play'' to output configured signals. *Note: Pulse width is only available when Rectangle Pulse or Triangle Pulse is selected in the Waveform section. © 2022 WhaleTeq All Rights Reserved...
- Page 9 ③ Set the values on the selected test item*. ④ Check RA or LA for testing. ⑤ Click ''Play'' to output configured signals. *Note: Dropdown lists showing in light gray provide selectable values. © 2022 WhaleTeq All Rights Reserved...
- Page 10 ③ Click the ''…'' button to select a raw data file. ④ (Optional) Check ''Loop'' to play the raw data in a loop. ⑤ Check RA or LA for testing. ⑥ Click ''Play'' to output raw data signals. © 2022 WhaleTeq All Rights Reserved...
- Page 11 Copyright © 2013-2022, All Rights Reserved. WhaleTeq Co. LTD All information, documentation, firmware, software is a registered trademark of WhaleTeq Co. LTD. utilities, and specifications are subject to change All other trademarks or trade names are the property of their respective holders.
