AECG100 | User Manual
WHALETEQ
AECG100
User Manual
Revision 2022-06-10
AECG100 PC Software Version 1.0.6.67

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AECG100 and is the answer not in the manual?

Questions and answers

Related Manuals for WHALETEQ AECG100

Summary of Contents for WHALETEQ AECG100

  • Page 1 AECG100 | User Manual WHALETEQ AECG100 User Manual Revision 2022-06-10 AECG100 PC Software Version 1.0.6.67...

  • Page 2: Module And Transmission Spo

    WhaleTeq Co. LTD. Disclaimer WhaleTeq Co. LTD. provides this document and the programs "as is" without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose.

  • Page 3: Table Of Contents

    AECG100 | User Manual Contents Product Introduction ................... 9 System Setup ....................... 10 Product Appearance (AECG100 + Reflective Modules)..........10 Transmission SpO module (PPG-2TF-660) ..............14 Product Wiring Diagram ....................15 DUT Best Position Adjustment ..................18 ....................18 2.4.1 Reflective SpO Testing Device ...................
  • Page 4 AECG100 | User Manual PPG Test Mode ......................76 PWTT Test Mode ......................77 Reflective PPG Module + SpO Test Mode ..............77 Transmission PPG Module + SpO Test Mode .............. 78 General Specification ....................80 Ordering Information ..................81 Package Contents ....................
  • Page 5 Test Mode Specification ..... 77 Table 8: Transmission PPG Module + SpO Test Mode Specification..78 Table 9: AECG100 Main Console Unit General Specification ....80 Table 10: PPG Module General Specification ..........80 Table 11: AECG100 Test System Ordering Information ......81 Table 12: AECG100 Main Console Unit Ordering Information ....
  • Page 6 Figure 2: Set Mode A/B/C ................12 Figure 3: Product Appearance (2).............. 14 Figure 4: Direct Connection between AECG100 and PPG Module .... 15 Figure 5: Connection through DB15 ............15 Figure 6: Direct Connection between AECG100 and PPG-2TF-660 ... 15 Figure 7: ECG Test Mode Product Wiring Diagram ........
  • Page 7 AECG100 | User Manual Figure 41: Player Tab ................. 39 Figure 42: Signal Tab .................. 39 Figure 43: Sampling Tab: Sampling PD ............39 Figure 44: Sampling Tab: Sampling LED Switch ......... 40 Figure 45: Player Tab ................. 40 Figure 46: Save Test Parameters ............... 40 Figure 47: Waveform Player ..............
  • Page 8 Figure 82: Add Waveform Files ..............65 Figure 83: AECG100 Interface Setup ............70 Figure 84: Self-Calibration Setup ............... 71 Figure 85: AECG100 ±300 mV DC offset ............ 71 Figure 86: DC Voltage Verification (300mV) ..........72 Figure 87: Self-Calibration Setup ............... 72...

  • Page 9: Product Introduction

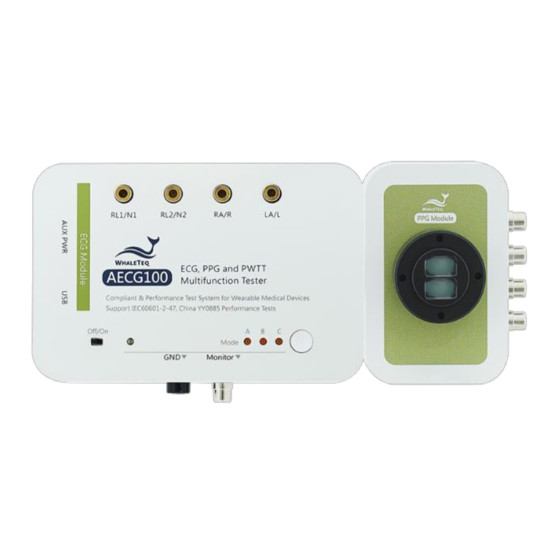

    AECG100 | User Manual Product Introduction WhaleTeq’s AECG100 is a multifunction testing unit, which could function as ECG (Electrocardiogram) tester, PPG (Photoplethysmography) tester, PWTT (Pulse Wave Transit Time) tester, and SpO (Peripheral Oxyhemoglobin Saturation) tester parameter adjustment control. The main ECG module is a single-lead ECG tester that could produce signals according to IEC standards for medical equipment.

  • Page 10: System Setup

    AECG100 | User Manual System Setup 2.1 Product Appearance (AECG100 + Reflective Modules) The left figure shows the AECG100 main console, the upper right figure shows the reflective single-light module, and the lower right figure shows the reflective SpO module.
  • Page 11 (9) Power Switch: To control power on and power off. (10) Power Indicator:  Red LED remains on or no LED display: The AECG100 system is crashed and needs further troubleshooting. Please see Chapter 7 Troubleshooting for further details. ...

  • Page 12: Figure 2: Set Mode A/B/C

    (14) Mode Selection Button: To select amongst Mode A/B/C. (15) DB15 Port (Female): The port on the AECG100 main console to be connected with various PPG modules. (16) DB15 Port (Male): The port on the PPG module to be connected with that of (1)AECG100 main console.
  • Page 13 (21) PD1 Monitor Port: This is for the PPG-2R-880 or the PPG-2R-940 PPG module to connect to the oscilloscope to measure electrical signal transferred by AECG100 PD. This port is for monitoring the optical signal of DUT’s red LED. (22) LED2 Monitor Port: This is for the PPG-2R-880 or the PPG-2R-940 PPG module to connect to the oscilloscope and measure the output voltage of the infrared LED AC signal.

  • Page 14: Transmission Spo Module (Ppg-2Tf-660)

    (1) Index Finger Simulation: To simulate the scenario of an index finger using an oximeter. (2) EXT DB15 Connector: To connect with AECG100. (3) PD Monitor Port: With MCX to BNC port, PPG-2TF-660 can be connected to an oscilloscope to measure the optical signal sent by the red LED of the DUT to the PD.

  • Page 15: Product Wiring Diagram

     Main Console and PPG Module Connection: 。 Directly connect with PPG module Figure 4: Direct Connection between AECG100 and PPG Module 。 Connect with PPG module with DB15 Figure 5: Connection through DB15 Figure 6: Direct Connection between AECG100 and PPG-2TF-660...

  • Page 16: Figure 7: Ecg Test Mode Product Wiring Diagram

    AECG100 | User Manual  ECG Test Mode Figure 7: ECG Test Mode Product Wiring Diagram Note: When testing ECG only, the system will not be forced to connect with the reflective module.  ECG Test Mode with Noise Reduction Suggestion (see 2.1 (11)

  • Page 17: Figure 10: Pulse Wave Transit Time Test Mode Product Wiring Diagram

    AECG100 | User Manual  Pulse Wave Transit Time Test Mode Figure 10: Pulse Wave Transit Time Test Mode Product Wiring Diagram  Test Mode Figure 11: SpO Test Mode Product Wiring Diagram  Auto Sequence Test Mode Figure 12: Auto Sequence Test Mode Product Wiring Diagram...

  • Page 18: Dut Best Position Adjustment

    Testing Device Figure 13: Reflective PPG-1R-525 Module (as example) Step 1: Line up the DUT’s LED with the PD of AECG100. Step 2: Confirm the position of the DUT’s LED and AECG100’s PD are lined up: Connect AECG100 to the computer and power on AECG100.

  • Page 19: Transmission Spo Testing Device

    DB15 port on the AECG100 main console. Plug the USB Type-B connectors of the USB cables provided to the AUX PWR port and USB port on the AECG100 main console; at the other end of the USB cables, plug the USB Type-A connectors into a laptop or a PC.

  • Page 20: Operation Modes

    AECG100 can be controlled through PC software operation or standalone operation. 2.5.1 PC Software Operation AECG100 must be connected to the computer and the PC software should be installed properly. AECG100 offers a total of 4 test modes, including ECG test mode, PPG test mode, PWTT test mode, and SpO test mode.
  • Page 21  PPG mode: Users can choose different testing waveforms and adjust waveform parameters under this test mode. To test the PPG heart rate accuracy of the DUT, AECG100 can simulate human skin reflection signals and noise. Moreover, users can record or program a set of signals, and play the signals using this test mode.

  • Page 22: Standalone Operation

    AECG100 | User Manual 2.5.2 Standalone Operation Up to 3 quick test modes can be stored in AECG100. This is designed for quick testing without opening AECG100’s PC software. A USB hub can be used as a power source. 2.6 Reflective PPG Module Fixture Mounting Base Dimensions Below are the dimensions of PPG module fixture mounting base.

  • Page 23: Software Installation

    Figure 18: Sectional View Software Installation 3.1 System Requirements AECG100 Test System uses a Windows PC to connect and control the USB module of AECG100 unit. PC requirements: - Windows PC (Windows 7 or later, suggest to use the genuine version) - Microsoft .NET 4.0 or higher...

  • Page 24: Usb Driver Installation

    AECG100 | User Manual Note: If this is the first time using WhaleTeq’s product, please refer to the two sections below (3.2 and 3.3) to confirm that the USB driver and Microsoft .Net Framework 4.0 are both installed. 3.2 USB Driver Installation If Windows device manager can’t recognize WhaleTeq’s product,...

  • Page 25: Microsoft .Net Framework 4.0 Installation

    AECG100 | User Manual Microsoft Windows 7 ⚫ If Windows 7 can’t recognize AECG100 unit, please download “mchpcdc.inf” from WhaleTeq website. This driver is provided by Microchip® to be used with PIC microprocessors having built-in USB function. ⚫ When the USB module is connected for the first time, select manual installation, and point to the folder containing the above file.

  • Page 26: Software Interface

    Figure 20: PPG Config. Trigger level: Set the trigger level that drives the AECG100 LED to turn on after the AECG100 PD detects the value of the LED brightness of the DUT. Ambient light: Available when connecting the transmission SpO...

  • Page 27: Figure 21: Trigger Level And Ambient Light

    Sampling of SpO and PPG tabs. - Select “Device Information” to check the device serial number. - Select “License” to confirm AECG100 device ID and check the activation status of ECG standard assistant software and PPG/ PWTT database player.

  • Page 28: Ecg Mode

    AECG100 | User Manual introduction. Figure 22: Settings Function List 4.2 ECG Mode ECG Mode can be separated into 2 sections. The upper section is for waveform selection and test parameter setting; the lower section is for waveform playback display and setting.

  • Page 29: Figure 24: Pacemaker Simulation Setting

    Figure 24: Pacemaker Simulation Setting (9) RLD: Right Leg Detection for measurement of reference voltage difference of DUT. (10) Respiration: AECG100 uses the impedance pneumography method to simulate the impedance changes of human skin when breathing. “Respiration Rate” is the number of breaths taken during 60 seconds intervals.

  • Page 30: Figure 25: Ecg Respiration Setting

    (12) Std. Assistant software: Standard assistant software supports international medical standards of IEC 60601-2-47 and YY 0885. It simplifies the standards into test parameters, test criteria, and test sequences. This is an optional function, please contact WhaleTeq for detailed information and purchase.

  • Page 31: Figure 27: Ecg Auto Heart Rate Testing Setting

    AECG100 | User Manual (13) Auto Heart Rate: By using the ECG waveform, the auto heart rate function can set different test combinations of BPM, QRS Amplitude, QRS duration, and interval. Figure 27: ECG Auto Heart Rate Testing Setting Lower section: * The UI is illustration only.

  • Page 32: Figure 30: Save Function

    (9) Load: User can load and play raw data via selecting the raw data file either saved from (1) Signal tab “Waveform Raw” or self- constructed according to WhaleTeq rule (click “Help” for more details). The total length shows the total playback time of raw...

  • Page 33: Ppg Mode

    The upper section is for waveform selection and test parameter setting; the lower section is for waveform playback display and setting. Upper section: The software UI is for AECG100 main console unit with PPG-1R-525 module Figure 32: PPG mode UI for PPG-1R-525 module...

  • Page 34: Figure 33: Ppg Mode Ui For Reflective Spo

    AECG100 | User Manual The PPG mode UI is for AECG100 main console unit with reflective SpO module (PPG-2R-880/PPG-2R-940)/transmission SpO module (PPG- 2TF-660) Figure 33: PPG mode UI for reflective SpO module and transmission SpO module (1) BPM: Adjust for different heart rates. The value is from 10 BPM to 300 BPM.

  • Page 35: Figure 34: Ppg Respiration And Modulation [2]

    AECG100 | User Manual breathing. Inspiration corresponds to decreased left ventricular (the main pumping chamber) stroke volume, which leads to decreased pulse amplitude iii. Frequency Modulation (FM): As a result of autonomic nervous system activity fluctuation, breathing leads to changes in heartbeats [ 1 ] .

  • Page 36: Figure 35: Ppg Respiration Setting

    AECG100 | User Manual means that the amplitude itself of the PPG wave changes -16 ~ 16% of the original amplitude during one breathing cycle. FM shifts the pulse duration instead of amplitude: in one breathing cycle, the interval change between the heartbeat is -16 ~ 16% of the original set heartbeat.

  • Page 37: Figure 36: Ppg Respiration Setting

    AECG100 | User Manual Figure 36: PPG Respiration Setting (9) Database Player: The WhaleTeq database includes 30 records of PPG waveforms recorded in clinical trials to be used in PPG test mode and 10 records of PPG and ECG waveforms recorded in clinical trials to use in PWTT test mode.

  • Page 38: Figure 38: Signal Tab

    (10) R/IR Test Parameter Selection: Click to see settings of Red LED or Infrared LED. Lower section: The software UI is for AECG100 main console unit with PPG-1R-525 module * The UI is illustration only. For detailed display please check on oscilloscope.

  • Page 39: Figure 41: Player Tab

    AECG100 | User Manual Player Tab Figure 41: Player Tab The PPG mode UI is for AECG100 main console unit with reflective module (PPG-2R-880/PPG-2R-940)/transmission SpO module (PPG-2TF-660) * The UI is illustration only. For detailed display please check on oscilloscope.

  • Page 40: Figure 44: Sampling Tab: Sampling Led Switch

    (1) Signal tab: Users can reset/ save/ recall/ play waveform with preset parameters. (2) Sampling tab for PD/LED Switch: Users can observe DUT LED brightness and AECG100 LED switch status. (3) Player tab: Users can load/ play/ loop raw data file. (4) Reset: Resume the default setting in the upper section.

  • Page 41: Table 1: Inverted/ Sync Pulse Function Description

    AECG100’s PD. Displayed in Blue and Purple curves. Switch-Green/ Switch-RED/ Switch-Infrared: It shows the timing AECG100 switches LED on or off. Waveform displays low means AECG100 turn on LED. Waveform displays high means AECG100 turns off LED. Displayed in Blue and Red curves.

  • Page 42: Pwtt Mode

    “File” section. The raw data file is either saved from (1) Signal tab “Waveform Raw” or self-constructed according to the WhaleTeq rule (click “Help” for more details). The “Signal” number corresponds to channel types. The “Total Length” displays the total playback time.

  • Page 43: Figure 48: Pwtt Mode Ui For Ppg-1R-525 Module

    Upper section: The software UI is for AECG100 main console unit with PPG-1R-525 module Figure 48: PWTT Mode UI for PPG-1R-525 module The PWTT mode UI is for AECG100 main console unit with reflective SpO module (PPG-2R-880/PPG-2R-940)/transmission SpO module (PPG-2TF- 660)
  • Page 44 PPG waveform (peak or trough). PTTp is the time to peak and PTTf is the time to trough. (9) Database Player: In PWTT test mode, AECG100 can download and play PhysioNet MIMIC database (mimicdb). Furthermore, the WhaleTeq database includes 30 records of PPG waveforms recorded in clinical trials to use in PPG test mode and 10 records of PPG and ECG waveforms recorded in clinical trials to use in PWTT test mode.

  • Page 45: Figure 50: Pwtt Mode Ui For Ppg-1R-525 Module

    * The UI is illustration only. For detailed display please check on oscilloscope. Figure 50: PWTT mode UI for PPG-1R-525 module The PWTT mode UI is for AECG100 main console unit with reflective module (PPG-2R-880/PPG-2R-940)/transmission SpO module (PPG-2TF-660) * The UI is illustration only. For detailed display please check on...

  • Page 46: Figure 51: Pwtt Mode Ui For Reflective Spo

    AECG100 | User Manual Figure 51: PWTT mode UI for reflective SpO module and transmission SpO module (1) Signal tab: Users can reset/ save/ recall/ play waveform with preset parameters. (2) Player tab: Users can load/ play/ loop raw data file.

  • Page 47: Figure 53: Waveform Player Setting

    “Channels” (ECG/ PPG Green/ PPG RED/ PPG Infrared). Either saved from (1) Signal tab “Waveform Raw” or self- constructed according to WhaleTeq rule (click “Help” for more details), the raw data file can be loaded by clicking the “File”...

  • Page 48: Auto Test Spo

    Mode This mode is only applicable to the PPG-2TF-660. The PPG-2TF-660 can be used only after it is connected to the AECG100. When the PPG-2TF-660 detects the DUT, the system will identify the parameter settings such as Trigger Level and DC value of R/IR, and record Trigger Level to SpO and PPG tabs.

  • Page 49: Figure 55: Auto Test Spo 2 Interface

    Note: The Masimo and Nellcor's R curve samples are not provided by their respective owners. The data are collected through the AECG100 main console measurement and for reference only. *The UI is illustration only. For detailed display please check on your software UI.

  • Page 50: Figure 56: Auto Test Spo Mode Is Operating

    AECG100 | User Manual Figure 56: Auto Test SpO mode is operating Click ‘’Stop’’ to show the DUT’s DC values of R and IR, as the figure 57. Figure 57: The DUT’s DC values of R and IR appears...

  • Page 51: Figure 58: The Dc Value Of R And Ac And Dc Values Of Ir Are Automatically

    AECG100 | User Manual Click ‘’Table’’ to bring up the SpO Table window, then click ‘’New Table’’ and create a name for a new table. The DC value of R and AC and DC values of IR are automatically filled in, as the figure 58.

  • Page 52: Figure 60: The Dut's R Curve

    AECG100 | User Manual Repeat the above steps to gather enough information, then click ‘’Graph’’ to bring up the DUT’s R curve. Figure 60: The DUT’s R curve Lower Section: * The UI is illustration only. For detailed display please check on oscilloscope.

  • Page 53: Figure 62: Sampling Pd

    (1) Signal tab: Users can play waveform with preset parameters. (2) Sampling tab for PD/LED Switch: Users can observe the DUT LED brightness and AECG100 LED switch status. (3) Play/Stop: Play the selected waveform with preset parameters. Once stopped, play from the beginning.

  • Page 54: Table 2: Inverted/Sync Pulse/Ambient Light Function Description

    (8) Freeze: After enabling this function, the display of PD/ LED switch sampling would stay as it is. (9) Max Peak: Display the peak value of DUT LED, sampled by AECG100 (10) Time Axis: Adjust the time axis of PD sampling and switch.

  • Page 55: Spo 2 Mode

    AECG100 | User Manual 4.6 SpO Mode It requires connecting the PPG-2R-940, PPG-2R-880 or PPG-2TF-660 module to initiate SpO test mode. SpO test mode can be separated into 2 sections. The upper section is for waveform selection and test parameter setting;...

  • Page 56: Figure 65: Setting R Curve

    AECG100 | User Manual desired SpO level (%) without modifying the intercept and slope, the R value will be generated in accordance with R-Curve equation. The same R Value is used to display the corresponding RED/Infrared parameters. For unknown R curve, users may obtain the intercept and slope of...

  • Page 57: Figure 67: Equation For Obtaining The R Curve

    R curve to the main screen. Users can directly set designated SpO level (%), and AECG100 will output optical signals accordingly. Please notice that the SpO level can only be set in accordance with the SpO values stored in (12) Table.

  • Page 58: Figure 69: Use Calibration Curve Interface

    AECG100 | User Manual Figure 69: Use Calibration Curve Interface After adjusting parameters of RED or Infrared LED, R value and level are changed simultaneously. Press “Play” to have AECG100 output optical signals. (6) Degree: Change the degree of polynomial between linear and quadratic when not using the SpO table.

  • Page 59: Figure 70: Using Spo 2 Table

    Click “New Table” button to add a SpO table, and DUT shall be put onto AECG100 to test. As shown in the following figure 71, users may set PPG R-AC (12.5), R-DC (625), IR-AC (25), and IR-DC (625). AECG100 automatically output optical signal. Users shall...

  • Page 60: Figure 73: Automatic Calculation Of The Intercept And Slope Of The Spo

    AECG100 | User Manual Figure 73: Automatic Calculation of the Intercept and Slope of the SpO Lower Section: * The UI is illustration only. For detailed display please check on oscilloscope. Signal Tab: Figure 74: Signal Tab Sampling Tab: Sampling PD...

  • Page 61: Figure 76: Sampling Led Switch

    (2) Sampling tab for PD/ LED Switch: Users can observe the DUT LED brightness and AECG100 LED switch status. (3) Player tab: Users can load/ play/ loop raw data file. (4) Reset: Resume the default setting in the upper section.

  • Page 62: Figure 78: Save Setting

    “Recall” and Auto Sequence Mode. Only Waveform Raw can be played in (2) Player tab. Saving in Waveform Raw requires license purchase. Please send the “AECG ID” to WhaleTeq to purchase and obtain the “Activation Key” to access the software. Figure 79: Enter Activation Key Screen Display (6) Recall: Load the previously saved test parameters stored in Standalone (device Mode A/B/C) or as a PC file (*.spo format).

  • Page 63: Table 3: Inverted/ Sync Pulse Function Description

    (12) Freeze: After enabling this function, the display of PD/ LED switch sampling would stay as it is. (13) Max Peak: Display the peak value of DUT LED, sampled by AECG100 (14) Time Axis: Adjust the time axis of PD sampling and switch.

  • Page 64: Auto Sequence Mode

    (19) Current Position: Display the timing of the played raw data. (20) Display Scale: Adjust the display scale for 2 sec, 5 sec, or 10 sec time frames of AECG100 PD sampling windows. (21) Output waveform selection: Select to play R and IR signals together or separately.

  • Page 65: Figure 81: Auto Sequence Mode

    AECG100 | User Manual Figure 81: Auto Sequence Mode (1) Add: To add new waveform file of ECG/SpO /PWTT/PPG to auto sequence combination. Files must be saved from Standalone option or as PC file. Figure 82: Add Waveform Files (2) Save: To save auto sequence combination as an automatic testing sequence (in *.seq format).

  • Page 66: Supported Raw Data File Format

    (9) Loop: To replay the selected test sequence repeatedly. (10) Total: Show the total playback time of the set sequence. 4.8 Supported Raw Data File Format AECG100 support Text file (*.txt) only and file content describes as below: File Format:...
  • Page 67 For PPG, there are no limits for the range of the raw data, but you can scale the range to [0, AC], which can be adjusted in AECG100 PC software. If we set AC level for 10mV in AECG100 PC software, this means the [0, AC] becomes [0,10].
  • Page 68 AECG100 | User Manual 0.564,1.129 0.595,1.191 0.627,1.253 0.658,1.316 0.689,1.378 0.720,1.440 0.751,1.502 0.782,1.564 0.813,1.626 0.844,1.688 ..-1.029,-2.059 -0.999,-1.997 -0.968,-1.935 -0.937,-1.874 -0.906,-1.812 -0.875,-1.750 -0.844,-1.688 -0.813,-1.626 -0.782,-1.564 -0.751,-1.502 -0.720,-1.440 -0.689,-1.378 -0.658,-1.316 -0.627,-1.253 -0.595,-1.191 -0.564,-1.129 -0.533,-1.066 -0.502,-1.004 -0.471,-0.941 -0.439,-0.879 -0.408,-0.816 -0.377,-0.753 -0.345,-0.691 -0.314,-0.628 -0.283,-0.565 -0.251,-0.502...

  • Page 69: Software Development Kit (Sdk)

    -0.063,-0.126 -0.031,-0.063 Software Development Kit (SDK) WhaleTeq provides the software development kit (SDK) for AECG100. All test parameters correspond to specific SDK commands and DLL (Dynamic-link library) shared library can be used for efficient program binding and version upgrade. Support C/C++ header, C# interface, third- party tools, and script language integration.

  • Page 70: Self-Calibration

    Please follow the steps below to conduct self-calibration. Set up the parameters of the AECG100 AP to “Square, 5 mV, 0.1 Hz” and output to the RA lead electrode as the figure shown below:...

  • Page 71: Figure 84: Self-Calibration Setup

    (in the case, RA). Figure 85: AECG100 ±300 mV DC offset The user can verify the DC voltage by setting up the parameters of the AECG100 AP to “Square, 0 mV, 0.1 Hz and DC Offset Setting to 300 mV”.

  • Page 72: Figure 86: Dc Voltage Verification (300Mv)

    AECG100 | User Manual Figure 86: DC Voltage Verification (300mV) Connect the multimeter to RA and LA of the AECG100 and measure the DC voltage. The value should be in 1% of 300 mV. The setup is shown in the below figure.

  • Page 73: Troubleshooting

    (2) When Red LED of the power indicator remains on: If Red LED remains on, the AECG100 system is crashed. Please try turning off and then turning on the AECG100 test system. (3) No LED display at the power indicator: For no LED display, either the system is crashed or no power is supplied to the test system.

  • Page 74: Cautions

    DB15 cable in between. The cable spec is DB15 male to female. (3) It is suggested to warm up AECG100 Test System for at least 30 minutes before testing. (4) Before using PPG-related functions, please assure the distance between the PPG module head and DUT PPG sensor is fixed.

  • Page 75: Specification

    AECG100 | User Manual Specification 9.1 ECG Test Mode Table 4: ECG Test Mode Specification Parameter Specification Resolution 2.5μV (DAC resolution) Main Output Voltage ±1% for amplitudes of Accuracy 0.5mVpp or higher Frequency/ Pulse repetition Accuracy ±1 % rate ±1ms...

  • Page 76: Ppg Test Mode

    AECG100 | User Manual Parameter Specification (variable, may include up to ±1% Accuracy 50μVpp noise) ECG electrode output x1000, Range max 10V RCA output amplitude ±1% for amplitudes of 0.5Vpp Accuracy or higher 9.2 PPG Test Mode Table 5: PPG Test Mode Specification...

  • Page 77: Pwtt Test Mode

    AECG100 | User Manual 9.3 PWTT Test Mode Table 6: PWTT Test Mode Specification Parameter Specification 0 ~ 999ms (decrease with Range increased BPM) Time Difference (PTTp, PTTf) Resolution 1ms Accuracy ±1ms 9.4 Reflective PPG Module + SpO Test Mode...

  • Page 78: Transmission Ppg Module + Spo 2 Test Mode

    AECG100 | User Manual Parameter Specification Rising 1μs Typical* PD response time Falling 1μs Typical* Range 1~100 (%) Resolution 1 (%) ±1% + specified accuracy of the DUT (using Masimo Radical-7 Pulse CO-Oximeter Accuracy or “Covidien” Nellcor Portable SpO Patient Monitoring System) §...
  • Page 79 AECG100 | User Manual Parameter Specification Range 0.5% ~ 15% PI（AC level/DC level） Accuracy 1K (Normal mode) rate 10K (Raw data mode) LED scan rate ±5μs Accuracy rate 250K (single channel) PD sample rate ±5μs Accuracy PD response time Rising 1μs Typical...

  • Page 80: General Specification

    AECG100 | User Manual 9.6 General Specification AECG100 Main Console Unit Table 9: AECG100 Main Console Unit General Specification 10℃ ~ 40℃ Operating Temp. 0℃ ~ 50℃ Environment Storage Temp. Humidity 0 – 80% RH, Non-condensing Housing Plastic Physical Weight...

  • Page 81: Ordering Information

    PPG-2TF-660 module. Support ECG/ PWTT/ Auto Test SpO / SpO /PPG/ Auto Sequence test modes. AECG100 Main Console Unit Table 12: AECG100 Main Console Unit Ordering Information Model No. Description Function Details AECG100 AECG100 main Support ECG and Auto Sequence console unit with test modes.

  • Page 82: Table 13: Ppg Module Ordering Information

    /SpO /Auto Sequence Test Modes Note: Connect the AECG100 main console with the reflective and transmission PPG modules PPG-2R-940, PPG-2R-880 and PPG-2TF-660 can conduct SpO2 testing as the reflective and transmission SpO2 testing device. Optional Software Add-on Pack Table 14: Optional Software Add-on Pack Ordering Information Model No.

  • Page 83: Package Contents

    ECG signals and have physicians determined the arrhythmia marks via ECG signals. The WhaleTeq database includes 30 records of PPG waveforms recorded in clinical trials to use in PPG test mode and 10 records of PPG and ECG waveforms recorded in clinical trials to use in PWTT test mode.

  • Page 84: Table 16: Aecg100-2R-940 Package Contents

    AECG100 | User Manual Table 16: AECG100-2R-940 Package Contents AECG100-2R-940 Item Q'ty AECG100 Main Console Unit PPG-2R-940 Module USB Cable (Type-A Plug to Type-B Plug) Grounding Cable RCA to BNC Cable Compound Terminal DB15 Cable Table 17: AECG100-2R-880 Package Contents...

  • Page 85: Table 19: Aecg100 Package Contents

    AECG100 | User Manual AECG100 Main Console Unit and PPG Modules Table 19: AECG100 Package Contents AECG100 Item Q'ty AECG100 Main Console Unit USB Cable (Type-A Plug to Type-B Plug) Grounding Cable RCA to BNC Cable Compound Terminal Table 20: PPG-1R-525 Package Contents...

  • Page 86: Revision History

    PPG-2TF-660 Module MCX (RF) to BNC Cable Note 1. PPG module is required to connect to AECG100 main console unit to enable PWTT/ / PPG test modes. 2. SpO test mode is only available when the reflective PPG module or transmission SpO module is connected to AECG100 main console.

  • Page 87: Contact Whaleteq

    。 Added 9.5 Transmission PPG Module + SpO Test Mode 。 Updated Chapter 10 Ordering Information 。 Updated Chapter 11 Package Contents Contact WhaleTeq WHALETEQ Co., LTD service@whaleteq.com | (O)+886 2 2517 6255 8F., No. 125, Songjiang Rd., Zhongshan Dist., Taipei City , Taiwan 104474...
