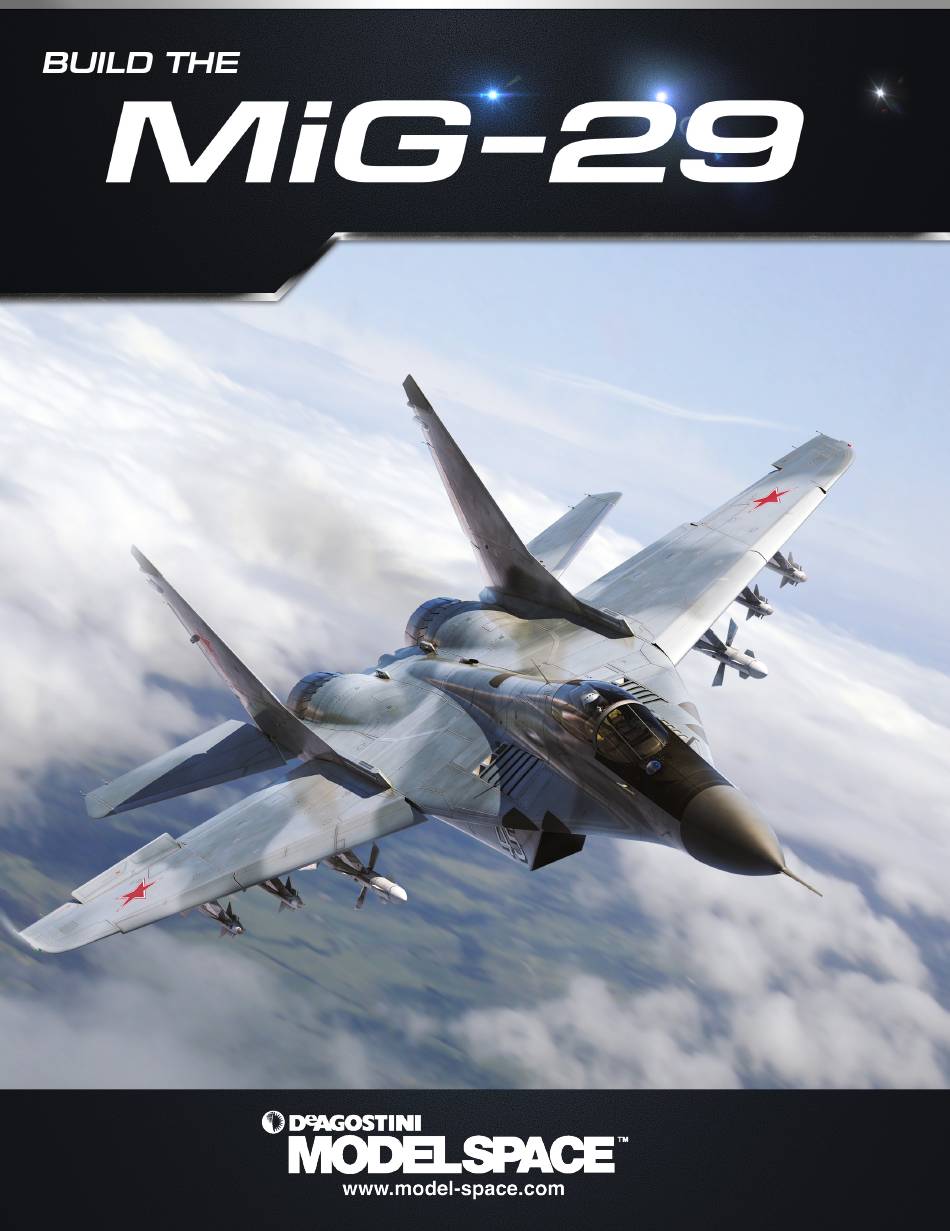

- Page 1 PACK 13 PACK 13...
- Page 2 Published in the UK by De Agostini UK Ltd, Royds Withy King, 65 Carter Lane, London EC4V 5EQ. Published in the USA by De Agostini Publishing USA, Inc., 299 Park Avenue • New York, New York 10171. All rights reserved © 2020 Warning: Not suitable for children under the age of 14.
- Page 3 Stage 61: Port engine air intake Your parts P184 P184 - Port engine air intake HP screws KP screws Assembly P180 P184 For this stage you will need the parts supplied, as well as the assemblies from Stages 58 and 60, as well as part P183 supplied with Stage 60.
- Page 4 P184 P183 Fit the lower part of the air intake (P183) onto the underside of the assembly and secure with a KP screw. D076 Place the assembled air intake on the underside of the lower fuselage section (Stage 58). P184 D076 Secure the air intake from inside the...
- Page 5 Stage 62: Starboard engine air intake X014 P185 Your parts 1. P185 - Starboard air intake section 2. X014 - Hinges (2 pcs.) JP screws...
- Page 6 Assembly X014 Fix a hinge (X014) to the starboard air intake section (P185) with two JP screws. P185 X014 Secure the second hinge (X014) at the other end of the section with two more JP screws. P185...
- Page 7 Stage 63: Starboard engine air intake P186 P187 P188 Your parts 1. P186 - Starboard air intake section 2. P187 - Starboard air intake section 3. P188 - Starboard air intake section JP screws...
- Page 8 Assembly Retrieve the assembly from the previous stage. Fit part P186 onto the assembly, over the hinge, as shown. P186 P185 X014 Carefully secure the parts together with two JP screws. P186 P185 P187 Fit part P187 onto the hinge at the other end of the assembly.
- Page 9 Stage 64: Starboard engine air intake Your parts P189 - Starboard engine P189 air intake HP screws KP screws. Assembly P185 P189 P189 For this stage, you will need the parts supplied, as Secure the parts together with an HP screw. well as the assemblies from Stage 61 and 63, and part P188 suppled with Stage 63.
- Page 10 P185 P188 Fit the lower part of the air intake (P189) onto the underside of the assembly and secure with a KP screw. D076 Place the assembled air intake on the underside of the lower fuselage section. P189 D076 Secure the air intake from inside the fuselage with three KP screws.
- Page 11 Stage 65: Air intake covers P191 P190 Your parts 1. P190 - Port air intake cover 2. P191 - Starboard air intake cover...
- Page 12 Assembly D076 P190 Retrieve the lower fuselage section assembly from the previous stage. Insert the port air intake cover (P190) into the port air intake, as shown. D076 Then install the starboard air intake cover (P191) into the starboard air intake as shown.
