Summary of Contents for TECE U2 TECEfilo

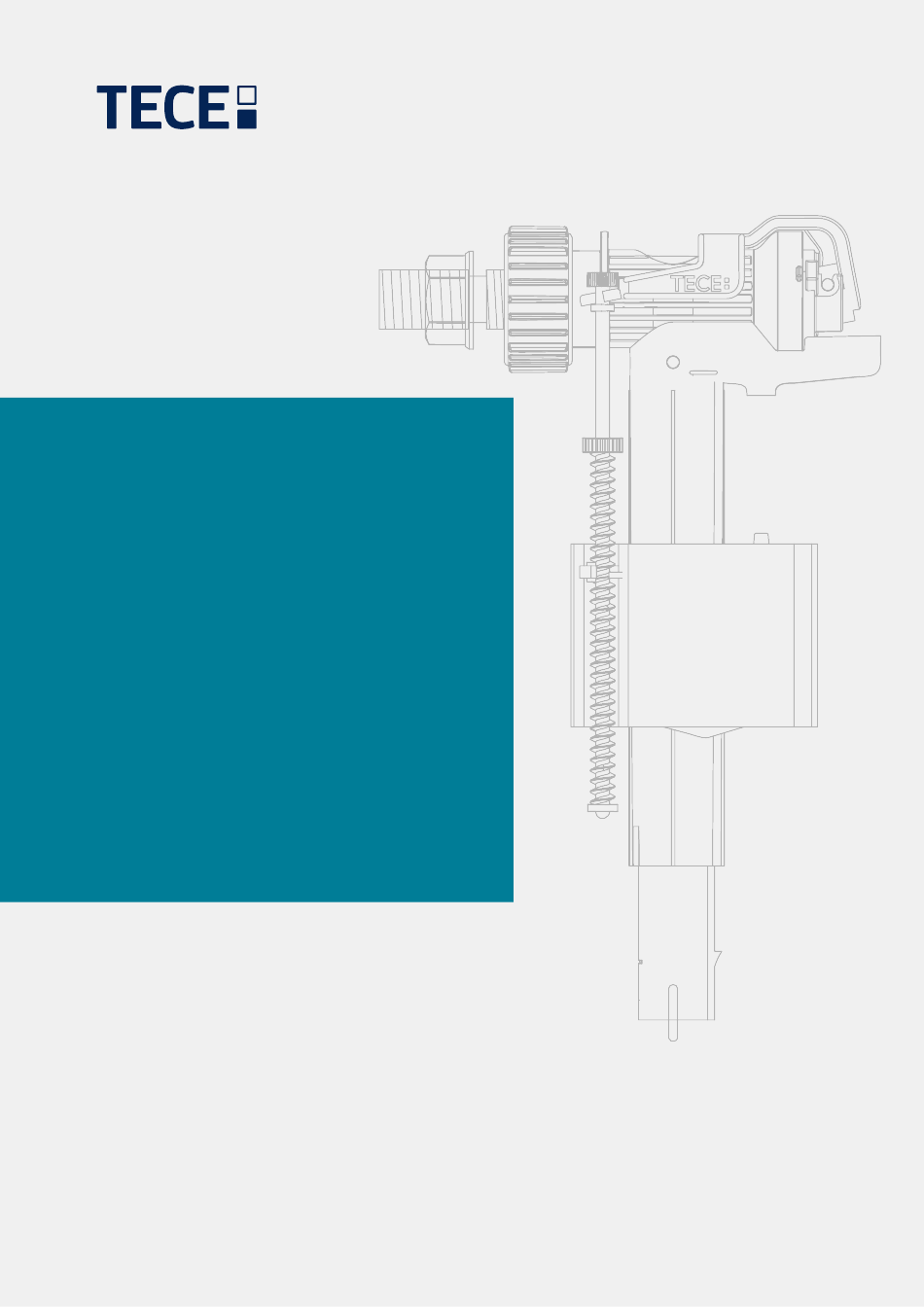

- Page 1 Sanitary systems TECE FLUSHING TECHNOLOGY TECHNICAL GUIDELINES...
-
Page 3: Table Of Contents
A2 drain valve Converting the A1 drain valve to the A2 drain valve F 10 filling valve Cleaning the filling valve Assembly Toilet flush plates U 1 TECE urinal flush valve 6-10 Mechanical flush valve 6-10 U 1 electronic flush valve 6-11 Installation of urinal flush valves 6-13 Installing the mechanical U 1 urinal flush valve housing... -
Page 4: Tece Cistern
A2 drain valve a clearly organised range and storage and the supply of spare parts is straightforward. A2 drain valve has been installed in the TECE cistern since the middle of 2009. Properties of the cistern: • Pre-assembled and sealed... - Page 5 Setting the flush volumes Increasing the flushing pressure: The flush volumes are adjusted centrally using an adjust- If a toilet ceramic is not being correctly cleaned then the ment slide on the rear of the drain valve. The flush volumes flushing pressure for standard cisterns can be subse- which can be set are clearly marked on the valve.
-
Page 6: Converting The A1 Drain Valve To The A2 Drain Valve
F 10 filling valve 42 mm The F 10 replacement filling valve (order number 9820353) universally fits in all TECE cisterns and in many competing cisterns. 36 mm Conversion set 9820223, scope of delivery The TECE cistern drain valve can be replaced easily. -
Page 7: Cleaning The Filling Valve
Setting the fill level (filling valve) Cleaning the filling valve The fill level in the cistern can be set by turning the adjust- ment spindle on the filling valve. The inlet component (A) or the membrane of the pilot valve (B) can be cleaned if they become dirty due to polluted water. -
Page 8: Assembly
Shell construction stage destroying the seal on the splash protection. If the seal is The corner valve of the TECE concealed cistern is closed intact at the fine installation stage, the inner workings of and pre-installed as a complete unit. The pressure can the cistern are intact and free of contamination. -
Page 9: Toilet Flush Plates
Toilet flush plates All TECE flush plates fit all standard cisterns! For more information on TECE push plates, refer to the “Flush plates” technical guidelines. TECEbase Overview of TECE toilet flush plates Toilet flush handle TECElux Mini The toilet flush plates shown here only give an overview of the available product range. -
Page 10: U 1 Tece Urinal Flush Valve
The flush housing contains the inlet flow control, this is adjusted using an Allen key (3 mm). A 90° anti-clockwise The TECE U 1 urinal flush valve is based on a further turn closes the inlet flow control, a 90° clockwise turn development of tried and tested flush valve technology. -
Page 11: U 1 Electronic Flush Valve
(connector with white marking) and one to an electronic cartridge (connector with black marking). Adjusting the volume on the mechanical cartridge All TECE manual urinal push plates can be used together with the U 1 mechanical urinal flush valve. U 1 electronic flush valve Touch-free electronics are often particularly required in the public sector. - Page 12 TECE flushing technology – U 1 urinal flush valve Pre-flush, factory setting It is recommended that only TECE original products are Pre-flush, setting range 0.5-2 s used for the installation. Make sure that the polarity is cor- Pause function, factory setting rect when connecting the cables.
-
Page 13: Installation Of Urinal Flush Valves
Protection class Observe the following: CE low voltage power When performing the pressure test, the inlet flow control of supply the flush valve must be set to free-flow. Operating temperature - 20 °C to + 40 °C Safety standard EN 61 558/EN 60 950 EMV standard EN 55 022/B Technology... -
Page 14: Installing The Mechanical U 1 Urinal Flush Valve Housing
TECE flushing technology – U 1 urinal flush valve Installing the mechanical U 1 urinal flush valve housing Open the inlet flow control. If applicable, set the flush volume before mounting the cartridge (factory setting = 2 litres). To do this, remove the... -
Page 15: Installing The Electronic U 1 Urinal Flush Valve Housing, 6 V Version
Installing the electronic U 1 urinal flush valve housing, 6 V version Screw the support frame onto the urinal flush valve hous- ing. Unscrew the fastening screws on the bare-wall protection. Place the connector adapter on the battery and position it in the opening provided for the purpose. -
Page 16: Installing The Electronic Urinal Flush Valve, 230 V/12 V Mains Version
TECE flushing technology – U 1 urinal flush valve Note the maximum number of connected electronics (= 5) and the maximum length of the connection cable (= 10 m). Remove the bare-wall plug and unscrew the fastening screws on the bare-wall protection. - Page 17 Earth the electronics via the fastening screw on the flush valve housing (see details) and screw the support frame onto the urinal flush valve housing. Finally, install the flush plate cover and mount the van- dal-resistant screw supplied. Connect the electronics to the mains and to the cartridge. 6-17...
-
Page 18: Programming The Urinal Infrared Electronics
TECE flushing technology – U 1 urinal flush valve effect: The pre-flush stimulates the urge to urinate. Programming the urinal infrared electronics • Pause function (optional): After installing the electrical supply, the electronics can be The volume of water is automatically reduced if the urinal programmed within one hour using the magnetic key sup- is flushed at intervals of less than two minutes. -
Page 19: Urinal Flush Plates For The New U 1 Urinal Flush Valve
The urinal flush plates shown here only give an overview of the available product range. See the whole range online at www.tece.de. All urinal flush plates are shown in this overview. For more information on TECE push plates, refer to the “Flush plates” technical guidelines. -
Page 20: U 2 Tecefilo Urinal Flush Valve
TECE flushing technology – U 2 TECEfilo urinal flush valve U 2 TECEfilo urinal flush valve The U 2 TECE urinal flusher is suitable for installation in dry and brick-wall constructions. For dry-wall structures, instal- The new TECEfilo urinal electronics are available with a lation is performed together with the TECE urinal module. -
Page 21: Bare Wall - Mounting And Installation
Bare wall – mounting and installation 230 V R 1/2 " To connect the pipe, hold the connection housing as shown in fig. 4. The U 2 flush valve housing can be installed in dry-walls and brick-walls. The transformer is already integrated into the flush valve housing to facilitate coordination of the Installing the wall-mounted TECEfilo urinal different trades carrying out the assembly work. - Page 22 TECE flushing technology – U 2 TECEfilo urinal flush valve min. 20 s To flush out the connection pipe, open the inlet flow con- Make sure that the connection piece is fitted with a seal. trol and sufficiently flush out the pipe.
- Page 23 Open the inlet flow control. Hook in the bottom of the cover panel. Screw the support frame onto the urinal flush valve hous- The top of the anti-theft device must be detached for the ing. installation. Connect the plug-in connection for the infrared sensor on Mount the anti-theft device from the top of the cover using the cover plate.
-
Page 24: Installing The Flush-Mounted Tecefilo Urinal Flush Plate 230/12
TECE flushing technology – U 2 TECEfilo urinal flush valve Installing the flush-mounted TECEfilo urinal flush plate 230/12 V Then click the cover into place. (18) Programmieranleitung Programming instructions Instructions de programmation Istruzioni per la programmazione Instrucciones de programación Instrukcje programowania Инструкция... - Page 25 Before mounting the flusher, make sure that the inlet flow control is closed so that no water can leak out during assembly. Close the shut-off using a flat-head screwdriver. In the free-flow setting (fig. 3), the shut-off slot is parallel with the housing, and in the closed setting (fig.
- Page 26 TECE flushing technology – U 2 TECEfilo urinal flush valve 9 242 050 ...054 9 242 060 ...062 Stick the spacers to the back of the support frame of the Mount the cover. plastic electronics, and screw the frame onto the urinal flush valve housing.
-
Page 27: Programming The Urinal Electronics
(17) To program the TECEfilo urinal electronics, the program- ming key provided in the scope of supply is required. The TECE electronics can be programmed during the first 30 Programmieranleitung minutes after connection to the power supply. In the event Programming instructions of a power failure, the last settings saved are retained. - Page 28 TECE flushing technology – U 2 TECEfilo urinal flush valve How to program TECE electronics: Adjustable functions: • Hold the programming key in front of the Pause function/stadium function red diode (see diagram). The program- When the pause function is activated, the flushing time is...
- Page 29 All data contained in the Technical Guidelines has been compiled with the utmost care. The correctness of the data presented cannot be guaranteed, however. TECE assumes no liability for damages resulting from the use of this information. Text and images are protected by copyright law.
- Page 30 More information on www.tece.com TECE GmbH P + 4 9 25 72 / 9 28 999 international-business@tece.com www.tece.com...
