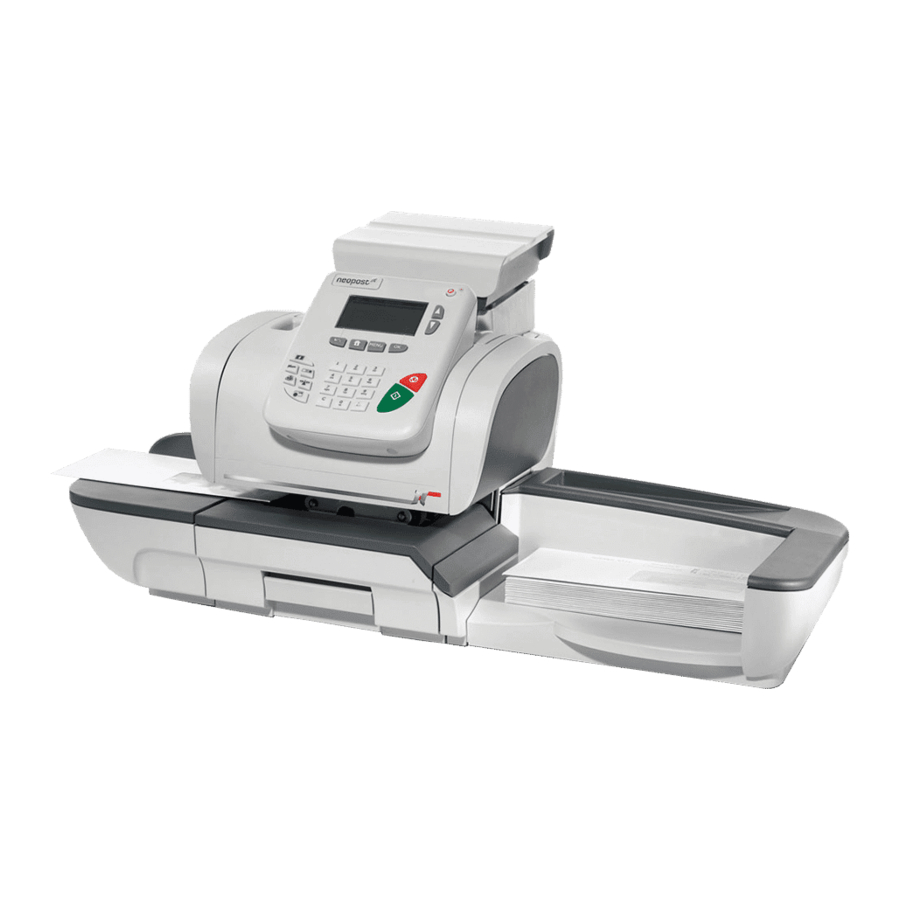

quadient IS-420 Quick Installation Manual
Hide thumbs
Also See for IS-420:
- User manual (220 pages) ,
- Quick installation manual (2 pages) ,
- Installation manual (18 pages)
Advertisement
Quick Links
CAUTION:
use a solid and steady table, far
from any door or fan.
Pour plus d'information concernant votre
machine à affranchir, rendez-vous sur:
kb.quadient.us
2
2
3
1
INSTALL AND CONNECT THE ELEMENTS:
1
Hand feed table,
2
Base,
Catch tray.
3
6
WRITE DOWN THE PSD
number, you may need the number
later.
1
Check the box contents.
A
3
CONNECT THE LAN
to a network RJ45 plug of the Base and
to the LAN wall socket using the LAN cable
.
B
7
INSTALL THE PSD
in one of the slots then close the cover.
IS-420 QUICK INSTALLATION GUIDE
B
4
CONNECT THE SCALE
If included in your system,
Quick Install Guide).
8
C
CONNECT THE SYSTEM POWERPLUG.
Follow the installation wizard on the screen. Refer to the installation section in the User Guide.
C
5
OPEN THE BASE COVER,
remove the headset protecting
(see its
strips and insert the headset in its compartment, then push
the headset back until it clicks.
