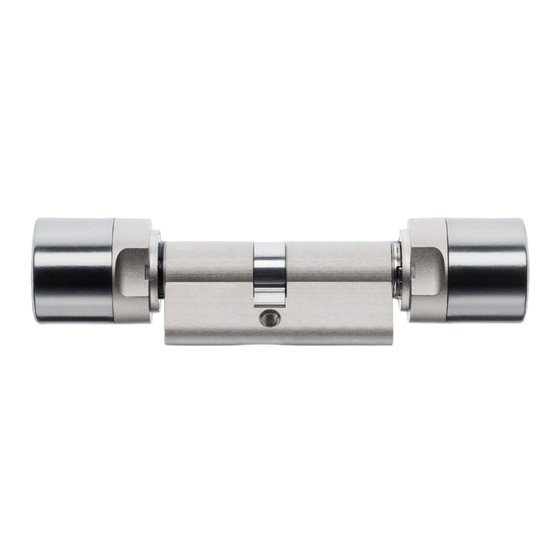

- Page 1 SmartIntego Locking cylinder Manual 28.10.2020...
-
Page 2: Table Of Contents
Contents SmartIntego Locking cylinder (Manual) 2 / 44 Contents Intended use .............................. 4 General safety instructions........................ 5 Product specific safety notices ...................... 8 General information on SmartIntego .................... 11 Product description............................ 11 Locking cylinder design .......................... 11 Half cylinder design............................ 12 Opening and locking from the outside .................... 12 Opening and locking from the inner side..................... 13 SmartIntego designs.......................... - Page 3 Contents SmartIntego Locking cylinder (Manual) 3 / 44 10.1 General................................ 32 10.2 Fire doors................................ 32 10.3 Doors along rescue routes......................... 32 10.4 Installation outdoors ............................ 32 Networking .............................. 33 11.1 Networking Online ............................ 33 11.2 Networking Offline (Virtual networking) .................... 33 'SmartIntego' accessories ........................ 34 12.1 Core protection adapter Z4.MP.KA.SET.................... 34 12.2 Tool..................................
-
Page 4: Intended Use
(Manual) 4 / 44 1 Intended use Digital SimonsVoss SI-Locking Cylinder are installed in designated door locks, such as DIN mortise locks, to integrate them into a digital locking system. The digital SI-Locking Cylinder may only be used for its intended purpose in a designated door locking device. -
Page 5: General Safety Instructions
Blocked access Access through a door may stay blocked due to incorrectly fitted and/or in- correctly programmed components. SimonsVoss Technologies GmbH is not liable for the consequences of blocked access such as access to in- jured or endangered persons, material damage or other damage! - Page 6 This product communicates wirelessly. Metallic surfaces can greatly reduce the range of the product. Do not mount or place the product on or near metallic surfaces. NOTE Intended use SimonsVoss-products are designed exclusively for opening and closing doors and similar objects. Do not use SimonsVoss products for any other purposes. ...
- Page 7 Only trained personnel may install and commission the product. Incorrect installation SimonsVoss Technologies GmbH accepts no liability for damage caused to doors or compon- ents due to incorrect fitting or installation. Modifications or further technical developments cannot be excluded and may be implemented without notice.
-
Page 8: Product Specific Safety Notices
1. Only use the anti-panic version of the locking cylinder in locks for which the locking cylinder is expressly approved. 2. Please refer to the documentation of the respective lock manufacturer. 3. Contact SimonsVoss Technologies GmbH for further information on this Help and other information [ 43]... - Page 9 SmartIntego Locking cylinder 3. Product specific safety notices (Manual) 9 / 44 Mechanical damage to the thumb-turn as a result of obstacles If the thumb-turn can knock against the wall or other objects as a result of the installation situ- ation, it may become damaged.
- Page 10 SmartIntego Locking cylinder 3. Product specific safety notices (Manual) 10 / 44 Difficulty of operation of the lock due to stiff latch or bolt If the latch or bolt of the mortice lock are stiff, the closing cylinder will also be stiff. Check that the latch or the bolt of the mortice lock are free-moving.
-
Page 11: General Information On Smartintego
(Manual) 11 / 44 4 General information on SmartIntego 4.1 Product description Locking cylinders from the SmartIntego series can be integrated into existing locking systems. SI Wireless ONLINE With Wireless Online, the SmartIntego components are wirelessly connected online. An electronic locking cylinder reads out the relevant card data and sends it wirelessly to a gateway. -
Page 12: Half Cylinder Design
SmartIntego Locking cylinder 4. General information on SmartIntego (Manual) 12 / 44 1. Inside thumb-turn 2. Batteries/electronics 3. Actuator 4. Drilling protection 5. Outer thumb-turn 4.3 Half cylinder design 1. Actuator 2. Electronics 3. Batteries 4. Thumb-turn 4.4 Opening and locking from the outside With freely rotating locking cylinders (FD) The outer and inside thumb-turn rotate freely when not activated in the freely rotating SI-Locking Cylinder, meaning it is not possible to open or... -
Page 13: Opening And Locking From The Inner Side
SmartIntego Locking cylinder 4. General information on SmartIntego (Manual) 13 / 44 signal will then sound and the outer or inside thumb-turn will rotate freely again. Ensure that the outside or inside locking cylinder thumb-turn rotates freely again after the thumb-turn has been engaged ready for use. NOTE If the user has an ID medium which is not authorised for use at that particu- lar moment due to the time zone plan, a single audible signal will sound. -
Page 14: Smartintego Designs
SmartIntego Locking cylinder 5. SmartIntego designs (Manual) 14 / 44 5 SmartIntego designs Different versions of the digital locking cylinder are offered to cover the different needs of the market. The different versions are indicated by a code. The different versions can be combined: LOCKING CYLIN- ABBREVIATION ITEM... -
Page 15: Ap Version
SmartIntego Locking cylinder 5. SmartIntego designs (Manual) 15 / 44 5.5 AP version A cylinder with an anti-panic function must be fitted to all doors where the lock's panic function may be adversely affected by the position of the cam. This version contains an integrated spring mechanism which places the locking cam in a non-critical position, meaning a panic lock's panic function cannot be blocked. -
Page 16: Co Version
SmartIntego Locking cylinder 5. SmartIntego designs (Manual) 16 / 44 (anti-panic cylinder) must be used for all exit devices where the SI-Locking Cylinder cam position affects the lock's function. This must be stated in the lock manufacturer's approval. DANGER Due to the structural design of panic locks, it is not permitted to turn the SI- Locking Cylinder thumb-turn to the stop position when the door is locked since this may affect the lock's panic function. -
Page 17: Installation Guide For 'Smartintego
SmartIntego Locking cylinder 6. Installation guide for 'SmartIntego' (Manual) 17 / 44 6 Installation guide for 'SmartIntego' 6.1 General instructions When installing the digital , ensure that there are no sources of low- frequency radio interference in the surrounding area. The profile cylinder housing should be fitted flush in outside areas;... - Page 18 SmartIntego Locking cylinder 6. Installation guide for 'SmartIntego' (Manual) 18 / 44 3. Recessed grip ring 4. Inside thumb-turn 5. Battery replacement key 6. Locking disc with opening (identical on outside) 7. Outside thumb-turn 6.3.1.1 Removing the outside thumb-turn Place the installation key on the outside thumb-turn in such a way that its two teeth engage into the outside thumb-turn;...
- Page 19 SmartIntego Locking cylinder 6. Installation guide for 'SmartIntego' (Manual) 19 / 44 Turning the bayonet disc when not installed may prevent the thumb-turn from being fastened into position. In such a case, push the disc back into the original 'bayonet disc open' position using the installation tool. (see dia- grams) 1.
-
Page 20: Fitting An Anti-Panic Cylinder
SmartIntego Locking cylinder 6. Installation guide for 'SmartIntego' (Manual) 20 / 44 6.3.2 Fitting an anti-panic cylinder 1. Inside thumb-turn 2. Recessed grip ring 3. Battery replacement key 4. Outside thumb-turn The locking cam is always in a pre-defined position in the AP cylinder when disengaged. - Page 21 SmartIntego Locking cylinder 6. Installation guide for 'SmartIntego' (Manual) 21 / 44 NOTE You must not strike the thumb turns when installing the cylinder. Do not al- low the cylinder to come into contact with oil, paint or acids. 6.3.2.3 Fastening the inside thumb-turn Screw the inside thumb-turn onto the thread until it locks into place as it comes up against the cam in the lock.
-
Page 22: Half Cylinder Dk/Mr
SmartIntego Locking cylinder 6. Installation guide for 'SmartIntego' (Manual) 22 / 44 Top dead point in deadbolt throw - no restore force on O section: the cam Top threshold section Lower threshold section Thumb-turn Cam position (concealed) 1. With the cylinder engaged, first turn the thumb-turn in the direction of locking as far as the deadbolt throw in the 'R' section. - Page 23 SmartIntego Locking cylinder 6. Installation guide for 'SmartIntego' (Manual) 23 / 44 6.3.3.1 Disassembly If you need to disassemble the half cylinder, please proceed as follows: 1. Using a tool such as a screwdriver, grip into the two slots in the plastic disc between the thumb-turn and the profile cylinder housing and turn the tool while applying a little pressure.
-
Page 24: Installing Swiss Round
SmartIntego Locking cylinder 6. Installation guide for 'SmartIntego' (Manual) 24 / 44 6.3.3.2 Installation 1. Remove the metal discs on the inside tube and push a plastic disc onto it instead. You will find the plastic disc in the supplied package. 2. - Page 25 SmartIntego Locking cylinder 6. Installation guide for 'SmartIntego' (Manual) 25 / 44 1. Disassemble inside thumb-turn and outside thumb-turn. Remove a fit- ting from the door. 2. Push cylinder into the profile and fasten with the fastening screw. 3. Fit inside thumb-turn and outside thumb-turn. Mount fitting again.
-
Page 26: Smartintego Audible Signals
SmartIntego Locking cylinder 7. SmartIntego audible signals (Manual) 26 / 44 7 SmartIntego audible signals The can emit an audible signal to indicate its status or an authorisation. The system integrator can programme the audible signals as required to indicate each different event. -
Page 27: Battery Warnings
SmartIntego Locking cylinder 8. Battery warnings (Manual) 27 / 44 8 Battery warnings 8.1 SI online battery warning Online via the system In SmartIntego Online, a low battery status is signalled to the system by a designated bit when a booking (locking device event or 'Get status') is made. - Page 28 SmartIntego Locking cylinder 8. Battery warnings (Manual) 28 / 44 using a battery replacement card and an authorised ID medium (to open the door + replace the batteries). Once the batteries are replaced, the SI-Locking Cylinder needs to read the battery replacement card again.
-
Page 29: Battery Replacement In Smartintego
Fingerprints on batteries may reduce battery life considerably. Only use batteries which have been approved by SimonsVoss. NOTE You may cause damage to the SI-Locking Cylinder if you reverse the polar- ity. -
Page 30: Procedure
SmartIntego Locking cylinder 9. Battery replacement in SmartIntego (Manual) 30 / 44 9.3 Procedure 1. Place the installation/battery key on the inside thumb-turn in such a way that the two teeth lock into the openings in the locking disc; if ne- cessary, turn the thumb-turn until both teeth engage into the locking disc. - Page 31 SmartIntego Locking cylinder 9. Battery replacement in SmartIntego (Manual) 31 / 44 10. Replace the thumb-turn (align the triangle mark as in the diagram), hold the recessed grip ring firmly and fasten the inside thumb-turn by turning in a clockwise direction (about 10°). (Diagram may differ slightly from the purchased product) 11.
-
Page 32: Areas Of Use
SmartIntego Locking cylinder 10. Areas of use (Manual) 32 / 44 10 Areas of use 10.1 General The digital locking cylinder is compatible with locks for Euro profile cylinder as per DIN 18252 and EN1303. 10.2 Fire doors As a general rule, this cylinder can be fitted into fire doors. However, you must check that it is actually approved for use in fire doors. -
Page 33: Networking
SmartIntego Locking cylinder 11. Networking (Manual) 33 / 44 11 Networking 11.1 Networking Online Opening by enabling the ZK system (short activation) with variable time settings Permanent activation (On / Off) Deactivation | Activation "Whitelist" function with up to 250 offline cards ... -
Page 34: 12 'Smartintego' Accessories
You can use this tool to install or remove outside thumb-turns and replace batteries. 12.3 Battery set A new set of batteries can be ordered, which contains ten CR2450 batteries. Only ever use batteries approved by SimonsVoss. -
Page 35: 13 'Smartintego' Data Sheets
SmartIntego Locking cylinder 13. 'SmartIntego' data sheets (Manual) 35 / 44 13 'SmartIntego' data sheets Radio emissions RFID (depending on 13.564 MHz - 13.564 -19.57 dBµA/m (10 m equipment) distance) SRD (WaveNet) (de- 868.000 MHz - <25 mW ERP pending on equipment) 868.600 MHz There are no geographical restrictions within the EU. -
Page 36: Half Cylinder
SmartIntego Locking cylinder 13. 'SmartIntego' data sheets (Manual) 36 / 44 Online networking Opened after release by access control system(short release interval) with variable time settings Permanent release (on/off) Activation | Deactivation White List function with up to 250 offline cards ... -
Page 37: Dimensional Drawings Cylinder
SmartIntego Locking cylinder 13. 'SmartIntego' data sheets (Manual) 37 / 44 Profile cylinder Basic length: outside 30 mm, internal 10 mm Installation lengths in 5 mm increments (no installation kit) an overall length of up to 100 mm with a maximum length of 90 mm on the outer side of the cylinder. - Page 38 SmartIntego Locking cylinder 13. 'SmartIntego' data sheets (Manual) 38 / 44 Freely rotating - Passive/hybrid (FD MP/MH) Exterior side Interior side Half Cylinder - Passive (HZ MP) Anti-panic Free rotating - passive (AP2 FD MP) Exterior side Interior side...
- Page 39 SmartIntego Locking cylinder 13. 'SmartIntego' data sheets (Manual) 39 / 44 Anti-panic Reader on both sides - Passive (AP2 BL MP) Exterior side Interior side Scandinavian Oval - Passive (SO MP) Scandinavian Round - Passive (RS MP)
- Page 40 SmartIntego Locking cylinder 13. 'SmartIntego' data sheets (Manual) 40 / 44 Swiss Round Comfort - Passive (SR CO MP) Exterior side Interior side...
-
Page 41: Maintenance, Cleaning And Disinfection
HZ.SL: It is recommended to grease the latching edge on the electrical en- closure lever handle. Empty batteries always must be replaced by new ones approved for use by SimonsVoss. Dispose of old batteries in the proper manner. Carry out a new functional test after changing the batteries in anti-panic cylinders. -
Page 42: Declaration Of Conformity
SmartIntego Locking cylinder 15. Declaration of conformity (Manual) 42 / 44 15 Declaration of conformity You can access documents such as declarations of conformity and other certificates online at www.smartintego.com. -
Page 43: Help And Other Information
Take the packaging to an environmentally responsible recycling point. Hotline If you have any questions, the SimonsVoss Service Hotline will be happy to help you on +49 (0)89 99 228 333 (German fixed network; call charges vary depending on the operator). - Page 44 Unterföhring, near Munich, and its production site in Osterfeld, eastern Germany, the company employs around 300 staff in eight countries. SimonsVoss is a company in the ALLEGION Group, a globally active network in the security sector. Allegion is represented in around 130 countries worldwide (www.allegion.com).
