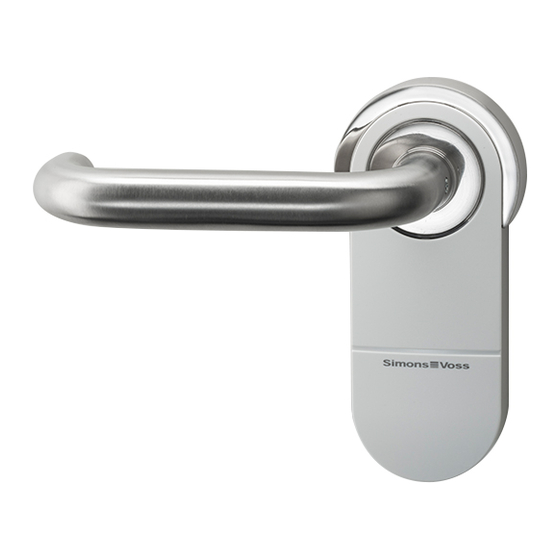

SmartHandle AX
SmartIntego
Manual
28.10.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartIntego SmartHandle AX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SimonsVoss SmartIntego SmartHandle AX Series

  • Page 1 SmartHandle AX SmartIntego Manual 28.10.2020...
  • Page 2: Table Of Contents

    Contents SmartHandle AX SmartIntego (Manual) 2 / 165 Contents Intended use .............................. 4 General ................................ 5 General safety instructions........................ 7 Product-specific safety instructions.................... 10 Meaning of the text formatting ...................... 11 Versions................................ 12 Mechanical Override (MO)......................... 12 Profiles.................................. 12 Fastening................................ 12 Distances and door thicknesses...................... 13 PAS24..................................
  • Page 3 Contents SmartHandle AX SmartIntego (Manual) 3 / 165 7.5.3 Tools.............................. 83 7.5.4 Procedure (BKS) .........................  85 7.5.5 Procedure (CISA) ........................ 99 7.5.6 Information for panic bar...................... 110 Variants E0 and E1 (Scandinavian Oval) .................. 110 7.6.1 Contents of packaging.......................  111 7.6.2 Tools..............................
  • Page 4: Intended Use

    SmartIntego interface. The integrator is usually a manufacturer of building management software (access control software, EMEA solution, fire alarm system, etc.), in which the SimonsVoss SmartIntego locking devices are also managed. It develops the interface to his system independently and is also responsible for the connected functions.
  • Page 5: General

    SmartHandle AX SmartIntego 2. General (Manual) 5 / 165 2 General The SI.SmartHandle AX is an electronic fitting that can be used to open and close a door. Electronic fittings in the this range are available in the following models (also see Versions [  12]...
  • Page 6 SmartHandle AX SmartIntego 2. General (Manual) 6 / 165 Digital SI.SmartHandle AX Description DS version Electronic door handle for mounting on prepared  escutcheon holes for stationary installation Suitable for handle locks with Euro profile (A) or  SwissRound (B) Outside and inside can only be operated with identification ...
  • Page 7: General Safety Instructions

    Blocked access Access through a door may stay blocked due to incorrectly fitted and/or in- correctly programmed components. SimonsVoss Technologies GmbH is not liable for the consequences of blocked access such as access to in- jured or endangered persons, material damage or other damage!
  • Page 8 This product communicates wirelessly. Metallic surfaces can greatly reduce the range of the product. Do not mount or place the product on or near metallic surfaces.  NOTE Intended use SimonsVoss-products are designed exclusively for opening and closing doors and similar objects. Do not use SimonsVoss products for any other purposes. ...
  • Page 9 Only trained personnel may install and commission the product.  Incorrect installation SimonsVoss Technologies GmbH accepts no liability for damage caused to doors or compon- ents due to incorrect fitting or installation. Modifications or further technical developments cannot be excluded and may be implemented without notice.
  • Page 10: Product-Specific Safety Instructions

    10 / 165 4 Product-specific safety instructions IMPORTANT Damage by drilling You drill at your own risk. SimonsVoss Technologies GmbH is not liable for damage caused by drilling. Please also observe the safety instructions of the drilling machine.  Damage caused by unsuitable tools If you try to open the case with unsuitable tools, the case may be damaged.
  • Page 11: Meaning Of The Text Formatting

    SmartHandle AX SmartIntego 5. Meaning of the text formatting (Manual) 11 / 165 5 Meaning of the text formatting This documentation uses text formatting and design elements to facilitate understanding. The table explains the meaning of possible text formatting: Example button Example checkbox...
  • Page 12: Versions

    SmartHandle AX SmartIntego 6. Versions (Manual) 12 / 165 6 Versions NOTE Avoidance of incorrect orders through the order placement guide SmartIntego components offer a wide variety of combinations. Not every combination makes sense and is actually available. A manual compilation of the product features can lead to combinations that are not available or to incorrect orders.
  • Page 13: Distances And Door Thicknesses

    SmartHandle AX SmartIntego 6. Versions (Manual) 13 / 165 Fastening Variant A0 (vertical  installation) [  20] Variants A1 and A2  (suspended You fix the SI.Smart- Escutcheon fastening mounting) [  44] Handle AX with drill with (optional) mech- holes and holes in the DS variant (reader ...
  • Page 14: Pas24

    SmartHandle AX SmartIntego 6. Versions (Manual) 14 / 165 Versions Centres distance Door thickness S: 38 - 60 mm M: 59 - 80 mm A2/B2 70 - 110 mm Suspended, long L: 79 - 100 mm X: 100–200 mm S: 38 - 57 mm not relevant (stationary installation: Handle M: 58 - 77 mm shaft axis and profile...
  • Page 15: Spindle

    SmartHandle AX SmartIntego 6. Versions (Manual) 15 / 165 If you want to lock the door, you need a variant with mechanical override (MO). Here you can lock the door with an additional cylinder (see Profiles  12] 6.7 Spindle You can use the following square sizes: Square size 7 mm 8 mm...
  • Page 16: Surface Finishes

    SmartHandle AX SmartIntego 6. Versions (Manual) 16 / 165 Letter Description U-shaped R (rounded) U-shaped G (mitred) U-shaped (round and offset) Supplied without handle (for use with adapter sets and third-party Accessories [  149] handles, see Images are similar. 6.9 Surface finishes Select the upper surface for your SI.SmartHandle AX: Silver/black grey Silver/white...
  • Page 17: Escape&Return Function

    SmartHandle AX SmartIntego 6. Versions (Manual) 17 / 165 BLE (Bluetooth Low Energy. SI.SmartHandle AX is prepared and can be  retrofitted after release) The 2L variant is a special version of the stationary SmartHandle AX, which can be combined with an additional stationary SmartHandle AX to form a fitting that reads from both sides.
  • Page 18 SmartHandle AX SmartIntego 6. Versions (Manual) 18 / 165 Example 2: Student residence / retirement home: In many cases, the user notices that he forgot the card immediately after he or she closed the door. With Escape & Return the user can solve this problem himself.
  • Page 19: Installation

    SmartHandle AX SmartIntego 7. Installation (Manual) 19 / 165 7 Installation You can programme the SI.SmartHandle AX while it is still in the packaging (except MP) and then install it. You will also find information on installing the SI.SmartHandle AX in the accompanying quick guide.
  • Page 20: Variant A0 (Vertical Installation)

    SmartHandle AX SmartIntego 7. Installation (Manual) 20 / 165 7.2 Variant A0 (vertical installation) 7.2.1 Contents of packaging Quantity Object External fitting assembly, incl: 1× 4× Battery (CR2450) 1× Inlay...
  • Page 21: Tools

    SmartHandle AX SmartIntego 7. Installation (Manual) 21 / 165 Quantity Object Exterior handle, incl: 1× 1× Headless screw Interior handle, incl: 1× 1× Headless screw 1× pre-assembled escutcheon base 1× Exchangeable plate 1× Spring element 2× Escutcheon base for cylinder opening 1×...
  • Page 22: Procedure

    SmartHandle AX SmartIntego 7. Installation (Manual) 22 / 165 7.2.3 Procedure Preparing drill holes Diameter A Drill B 5.5 - 6.3 mm 8.5 mm 6.4 - 7.3 mm 8.5 mm 7.4 - 8.7 mm 9.5 mm 8.8 or larger 10.5 mm...
  • Page 23 SmartHandle AX SmartIntego 7. Installation (Manual) 23 / 165 1. Pull out the mortise lock.
  • Page 24 SmartHandle AX SmartIntego 7. Installation (Manual) 24 / 165 2. Measure the diameter of the fixing holes on the mortise lock.
  • Page 25 SmartHandle AX SmartIntego 7. Installation (Manual) 25 / 165 3. Slide the mortise lock back into the door. 4. Insert the square into the mortise lock. 5. Using the square and the recess in the drilling template, position the drilling template on the door. IMPORTANT Horizontal alignment required The drill holes must be aligned horizontally.
  • Page 26 SmartHandle AX SmartIntego 7. Installation (Manual) 26 / 165 6. Use a pointed object (e.g. pin needle) to pierce the position of the drill holes in the door. 7. Remove the drilling template. 8. Remove the square. 9. Remove the mortise lock. 10.
  • Page 27 SmartHandle AX SmartIntego 7. Installation (Manual) 27 / 165 11. Drill the holes in the door. 12. Reassemble the mortise lock. The drill holes are prepared. Performing programming See TechGuide WO/SVCN.
  • Page 28 SmartHandle AX SmartIntego 7. Installation (Manual) 28 / 165 Shorten screws Screw/square Length 2× L1 T - 8 mm (± 3 mm) 2× L2 T + 8 mm (± 3 mm) Spindle T + 37 mm (± 3 mm)
  • Page 29 SmartHandle AX SmartIntego 7. Installation (Manual) 29 / 165 1. Measure the thickness of the door (T). 2. Calculate the screw lengths (see table). 3. Select suitable predetermined breaking points that are no more than 3 mm from the calculated length.
  • Page 30 SmartHandle AX SmartIntego 7. Installation (Manual) 30 / 165 4. Separate the predetermined breaking points with pliers. Screws are shortened. NOTE X-variant If you have ordered version X for very thick doors, your delivery includes an extra long square rod and threaded rods together with extension sleeves. In this case the length specification refers to the total length of the screw (= screw, extension sleeve and threaded rod).
  • Page 31 SmartHandle AX SmartIntego 7. Installation (Manual) 31 / 165 2. Shorten the screws and the square. Screws and square of the X-variant are shortened. Identify door direction The preparation of the inside handle varies depending on the opening side of the door (DIN R or DIN L). DIN L - Left stop DIN R - Right stop Compare the illustration with your door and prepare the inside lever...
  • Page 32 SmartHandle AX SmartIntego 7. Installation (Manual) 32 / 165 1. Insert the switching plate as shown. 2. Position the spring sub-assembly at an angle to the escutcheon base until it touches the switching plate. 3. Draw the spring sub-assembly back, so that the spring is compressed. 4.
  • Page 33 SmartHandle AX SmartIntego 7. Installation (Manual) 33 / 165 5. Press the rear clip into the designated pawl. Spring plate is inserted. Prepare the interior handle (*DIN R)
  • Page 34 SmartHandle AX SmartIntego 7. Installation (Manual) 34 / 165 1. Insert the switching plate as shown. 2. Position the spring sub-assembly at an angle to the escutcheon base until it touches the switching plate. 3. Draw the spring sub-assembly back, so that the spring is compressed. 4.
  • Page 35 SmartHandle AX SmartIntego 7. Installation (Manual) 35 / 165 5. Press the rear clip into the designated pawl. Spring plate is inserted. Insert square 7 mm square The 7 mm square only fits into the 8 mm receptacle of the SI.SmartHandle AX with an adapter shoe (included in the scope of delivery for the 7 mm version).
  • Page 36 SmartHandle AX SmartIntego 7. Installation (Manual) 36 / 165 Slide the square into the outer assembly of the SI.SmartHandle AX until  the pin engages the square. Square is inserted. Mounting the assembly 1 Square > 8 mm The SI.SmartHandle AX is supplied with 8 mm square. If the slot of the mortise lock is larger than 8 mm, the square has play.
  • Page 37 SmartHandle AX SmartIntego 7. Installation (Manual) 37 / 165...
  • Page 38 SmartHandle AX SmartIntego 7. Installation (Manual) 38 / 165 1. Select the appropriate adapter sleeves according to the diameter of the mounting holes of your mortise lock. 2. Push the adapter sleeves onto your SI.SmartHandle AX. 3. Insert your SI.SmartHandle AX into the door from the outside. 4.
  • Page 39 SmartHandle AX SmartIntego 7. Installation (Manual) 39 / 165 Mounting the assembly 2 7 mm square The 7 mm square only fits into the 8 mm receptacle of the inside handle of the SI.SmartHandle AX with an adapter sleeve (supplied with the 7 mm version). Before mounting, insert the adapter sleeve on the free side of the square.
  • Page 40 SmartHandle AX SmartIntego 7. Installation (Manual) 40 / 165 Mounting the assembly 3 1. If necessary (FH variant), insert the dummy cylinder into the cylinder opening. 2. Place the interior handle on the square. 3. Tighten the base of the interior handle with the L1 screws (PH2, torque: 1.1 Nm).
  • Page 41 SmartHandle AX SmartIntego 7. Installation (Manual) 41 / 165 Mounting the assembly 4 1. Screw the dummy cylinder tight (PH2, torque: 1.1 Nm). 2. Tighten the set screw of the interior handle (T15, torque: 5.0 Nm). 3. Push the cover onto the base of the interior handle until it clicks into place (recess in the cover fits the teeth of the base).
  • Page 42 SmartHandle AX SmartIntego 7. Installation (Manual) 42 / 165 Mounting the assembly 5 Slide the escutcheon cover onto the outer escutcheon base until it  clicks into place (recess in the cover fits the teeth of the escutcheon base). SI.SmartHandle AX is mounted without an external lever handle.
  • Page 43 SmartHandle AX SmartIntego 7. Installation (Manual) 43 / 165 Mounting the exterior handle 1. Push the exterior handle onto the mount on the SI.SmartHandle AX un- til it engages. 2. Tighten the set screw of the exterior handle (T15, torque: 5.0 Nm). 3.
  • Page 44: Variants A1 And A2 (Suspended Mounting)

    SmartHandle AX SmartIntego 7. Installation (Manual) 44 / 165 7.3 Variants A1 and A2 (suspended mounting) 7.3.1 Contents of packaging Quantity Object External fitting assembly, incl: 1× 4× Battery (CR2450) 1× Inlay Exterior handle, incl: 1× 1× Headless screw Interior handle, incl: 1×...
  • Page 45: Tools

    SmartHandle AX SmartIntego 7. Installation (Manual) 45 / 165 Quantity Object 4× Screw with predetermined breaking points 1× Spindle 1× Installation tool 1× Dummy cylinder (FH version only) 1× Quick guide with integrated drilling template 7.3.2 Tools You require the following tools for installation: TX-15 screwdriver ...
  • Page 46: Procedure

    SmartHandle AX SmartIntego 7. Installation (Manual) 46 / 165 7.3.3 Procedure Preparing drill holes...
  • Page 47 SmartHandle AX SmartIntego 7. Installation (Manual) 47 / 165 1. Pull out the mortise lock.
  • Page 48 SmartHandle AX SmartIntego 7. Installation (Manual) 48 / 165 2. Measure the distance between the fixing holes of your mortise lock (dis- tance).
  • Page 49 SmartHandle AX SmartIntego 7. Installation (Manual) 49 / 165 3. Slide the mortise lock back into the door. 4. Insert the square into the mortise lock. 5. Using the square and the recess in the drilling template, position the drilling template on the door. IMPORTANT Horizontal alignment required The drill holes must be aligned horizontally.
  • Page 50 SmartHandle AX SmartIntego 7. Installation (Manual) 50 / 165 7. Use a pointed object (e.g. pin needle) to pierce the position of the drill holes in the door. 8. Remove the drilling template. 9. Remove the square. 10. Remove the mortise lock.
  • Page 51 SmartHandle AX SmartIntego 7. Installation (Manual) 51 / 165 11. Drill the holes in the door (Ø 8.5 mm). 12. Reassemble the mortise lock. The drill holes are prepared. Programme See TechGuide WO/SVCN. Shorten screws Screw/square Length 2× L1 T - 8 mm (± 3 mm)
  • Page 52 SmartHandle AX SmartIntego 7. Installation (Manual) 52 / 165 Screw/square Length 2× L2 T + 8 mm (± 3 mm) Spindle T + 37 mm (± 4 mm) 1. Measure the thickness of the door (T). 2. Calculate the screw lengths. 3. Select suitable predetermined breaking points which are no more than 3 mm longer than the calculated length.
  • Page 53 SmartHandle AX SmartIntego 7. Installation (Manual) 53 / 165 2. Shorten the screws and the square. Screws and square of the X-variant are shortened. Identify door direction The preparation of the inside handle varies depending on the opening side of the door (DIN R or DIN L). DIN L - Left stop DIN R - Right stop Prepare the interior handle (DIN R)
  • Page 54 SmartHandle AX SmartIntego 7. Installation (Manual) 54 / 165 1. Insert the switching plate as shown. 2. Position the spring sub-assembly at an angle to the escutcheon base until it touches the switching plate. 3. Draw the spring sub-assembly back, so that the spring is compressed. 4.
  • Page 55 SmartHandle AX SmartIntego 7. Installation (Manual) 55 / 165 5. Press the rear clip into the designated pawl. Spring plate is inserted. Prepare the interior handle (DIN L) The mounting is different depending on the opening side of the door (DIN R or DIN L).
  • Page 56 SmartHandle AX SmartIntego 7. Installation (Manual) 56 / 165 1. Insert the switching plate as shown. 2. Position the spring sub-assembly at an angle to the escutcheon base until it touches the switching plate. 3. Draw the spring sub-assembly back, so that the spring is compressed. 4.
  • Page 57 SmartHandle AX SmartIntego 7. Installation (Manual) 57 / 165 5. Press the rear clip into the designated pawl. Spring plate is inserted.
  • Page 58 SmartHandle AX SmartIntego 7. Installation (Manual) 58 / 165 Insert square If you use a 7 mm spindle, attach the adapter shoe to the spindle before fitting the spindle. Insert the spindle into the outer sub-assembly until the pin locks into the ...
  • Page 59 SmartHandle AX SmartIntego 7. Installation (Manual) 59 / 165 Mount the assembly NOTE Square > 8 mm The SI.SmartHandle AX is supplied with 8 mm square. If the slot of the mortise lock is larger than 8 mm, the square has play. 1.
  • Page 60 SmartHandle AX SmartIntego 7. Installation (Manual) 60 / 165 1. Push the sub-assembly with the spindle into the door from the outer side. 2. Position the escutcheon base for the cylinder opening on the other side of the door. 3. Screw the escutcheon base to the assembly using the L2 screws (PH2, torque: 1.1 Nm).
  • Page 61 SmartHandle AX SmartIntego 7. Installation (Manual) 61 / 165 4. Place the inner side handle on the spindle. 5. Screw the handle to the assembly with the L1 screws (PH2, torque: 1.1 Nm). NOTE Press the handle downwards if there is not enough room. NOTE Mount the dummy cylinder (FH only) Slide the dummy cylinder through the mounted escutcheon base into the...
  • Page 62 SmartHandle AX SmartIntego 7. Installation (Manual) 62 / 165 6. Screw the headless screw into the handle to fix it in place (T15, torque: 5.0 Nm)
  • Page 63 SmartHandle AX SmartIntego 7. Installation (Manual) 63 / 165 7. Slide the escutcheon along the handle and press the escutcheon onto the escutcheon base until it locks into position. 8. Press the escutcheon onto the escutcheon base on the cylinder opening until it locks into place.
  • Page 64: Glass Door Fitting

    5.0 Nm) SI.SmartHandle AXmounted. 7.3.4 Glass door fitting You can also use an A1 SI.SmartHandle AX design with an optional lock case on glass doors. The glass door must feature the following holes for SimonsVoss glass door fittings (dimensions in mm):...
  • Page 65 SmartHandle AX SmartIntego 7. Installation (Manual) 65 / 165...
  • Page 66: Variant A3 (Steel Frame)

    SmartHandle AX SmartIntego 7. Installation (Manual) 66 / 165 7.4 Variant A3 (steel frame) 7.4.1 Contents of packaging Quantity Object External fitting assembly, incl: 1× 4× Battery (CR2450) 1× Inlay Exterior handle, incl: 1× 1× Headless screw Interior handle, incl: 1×...
  • Page 67: Tools

    SmartHandle AX SmartIntego 7. Installation (Manual) 67 / 165 Quantity Object 1× Escutcheon base for cylinder opening (plastic with metal insert) 1× Escutcheon covers for inside handle 2× Escutcheon covers for cylinder opening 8× Blind rivet nut 1× Square with circlip 1×...
  • Page 68: Procedure

    SmartHandle AX SmartIntego 7. Installation (Manual) 68 / 165 7.4.3 Procedure Preparing drill holes...
  • Page 69 SmartHandle AX SmartIntego 7. Installation (Manual) 69 / 165 1. Pull out the mortise lock. 2. Measure the distance between the fixing holes of your mortise lock (dis- tance). 3. Slide the mortise lock back into the door. 4. Insert the square into the mortise lock. 5.
  • Page 70 SmartHandle AX SmartIntego 7. Installation (Manual) 70 / 165 7. Use a pointed object (e.g. pin needle) to pierce the position of the drill holes in the door. 8. Remove the drilling template. 9. Remove the square. 10. Remove the mortise lock. 11.
  • Page 71 SmartHandle AX SmartIntego 7. Installation (Manual) 71 / 165 12. Debur the drill holes so that the blind rivet nuts will later lie flat. 13. Reassemble the mortise lock. The drill holes are prepared. Programme See TechGuide WO/SVCN.
  • Page 72 SmartHandle AX SmartIntego 7. Installation (Manual) 72 / 165 Prepare the square NOTE Shorten the square of the extra long version (X) The square of the extra long version is supplied with 200 mm. If you have the extra-long version, you shorten the square yourself with ...
  • Page 73 SmartHandle AX SmartIntego 7. Installation (Manual) 73 / 165 Blind rivet nuts are set. Mount external fitting Blind rivet nuts set. ü 1. Tighten the adapter plate on the outside (PH2, torque: 1.1 Nm).
  • Page 74 SmartHandle AX SmartIntego 7. Installation (Manual) 74 / 165 2. Screw the escutcheon base to the outside (PH2, torque: 1.1 Nm). NOTE Alignment of the adapter plate The adapter plate contains spring elements and creates a form fit with the fitting. Make sure that the spring elements are located on the adapter plate on ...
  • Page 75 SmartHandle AX SmartIntego 7. Installation (Manual) 75 / 165 3. Insert the fitting into the adapter plate.
  • Page 76 SmartHandle AX SmartIntego 7. Installation (Manual) 76 / 165 4. Slide the fitting down as far as it will go.
  • Page 77 SmartHandle AX SmartIntego 7. Installation (Manual) 77 / 165 5. Screw the fitting tight (PH1, torque: 0.8 Nm). 6. Replace the outer escutcheon base cover.
  • Page 78 SmartHandle AX SmartIntego 7. Installation (Manual) 78 / 165 7. Attach the outer handle. 8. Put on the outer cover. Outer fitting is mounted. Prepare the square Door thickness (S, M, L or X) and ring position Notch 1 Notch 2 Notch 3 Notch 4 38-43 mm...
  • Page 79 SmartHandle AX SmartIntego 7. Installation (Manual) 79 / 165 Door thickness (S, M, L or X) and ring position Ring is not used. Slide the ring onto the correct notch of the square.  Square is prepared. Mount square and dummy cylinder 1.
  • Page 80 SmartHandle AX SmartIntego 7. Installation (Manual) 80 / 165 3. If necessary, screw the dummy cylinder tight (torque: 1.1 Nm). Square and dummy cylinder mounted. Mounting the inside handle 1. Screw down the inside handle (PH2, torque: 1.1 Nm). 2. Screw the escutcheon base on the inside (PH2, torque: 1.1 Nm).
  • Page 81: Variant A4 (Panic Bar)

    SmartHandle AX SmartIntego 7. Installation (Manual) 81 / 165 3. Tighten the set screws on both lever handles (T15, torque: 5.0 Nm). 4. Fit the cover of the inside handle. 5. Replace the inlay of the inner escutcheon base. SI.SmartHandle AX variable is fully assembled. 7.5 Variant A4 (Panic bar) 7.5.1 Package contents (BKS)
  • Page 82 SmartHandle AX SmartIntego 7. Installation (Manual) 82 / 165 Quantity Object External fitting assembly, incl: 1× 4× Battery (CR2450) 1× Inlay Exterior handle, incl: 1× 1× Headless screw 1× Adapter plate (pre-bent) 1× Spacer sleeve for adapter plate with square head 5×...
  • Page 83: Package Contents (Cisa)

    SmartHandle AX SmartIntego 7. Installation (Manual) 83 / 165 7.5.2 Package contents (CISA) Quantity Object External fitting assembly, incl: 1× 4× Battery (CR2450) 1× Inlay Exterior handle, incl: 1× 1× Headless screw 1× Adapter plate (pre-bent) with welded-on sleeve nut 1×...
  • Page 84 SmartHandle AX SmartIntego 7. Installation (Manual) 84 / 165 NOTE Use saw instead of pliers for shortening If no suitable pliers are available to shorten the screws, you can alternat- ively use a hacksaw. T15 screwdriver  PH2 screwdriver  Suitable pliers for shortening the screws, e.g.
  • Page 85: Procedure (Bks)

    SmartHandle AX SmartIntego 7. Installation (Manual) 85 / 165 7.5.4 Procedure (BKS) Preparing drill holes...
  • Page 86 SmartHandle AX SmartIntego 7. Installation (Manual) 86 / 165 1. Remove the mortise lock. 2. Measure the distance between the mounting holes of your mortise lock (distance).
  • Page 87 SmartHandle AX SmartIntego 7. Installation (Manual) 87 / 165 3. Slide the mortise lock back into the door. 4. Insert the square into the mortise lock. 5. Using the square and the recess in the drilling template, position the drilling template on the door. IMPORTANT Horizontal alignment required The drill holes must be aligned horizontally.
  • Page 88 SmartHandle AX SmartIntego 7. Installation (Manual) 88 / 165 7. Use a pointed object (e.g. pin needle) to pierce the position of the BKS drill holes in the door. 8. Remove the drilling template. 9. Remove the square. 10. Remove the mortise lock. 11.
  • Page 89 SmartHandle AX SmartIntego 7. Installation (Manual) 89 / 165 12. Reassemble the mortise lock. The drill holes are prepared. Programme See TechGuide WO/SVCN. Prepare square and screws 1. Measure the thickness of your door.
  • Page 90 SmartHandle AX SmartIntego 7. Installation (Manual) 90 / 165 2. Use a saw to shorten the supplied screws and the square (screws: door thickness+12 mm, square : door thickness+23 mm/ square (panic bar) (panic bar) door thickness+32 mm). Square and screws prepared. The L1 screw must meet increased requirements and is not included in the scope of delivery.
  • Page 91 SmartHandle AX SmartIntego 7. Installation (Manual) 91 / 165 NOTE Aligning the holes of the fitting and adapter plate Offset holes in the adapter plate and threaded mountings in the fitting make installation more difficult. Align the holes in the adapter plate and the threaded holders in the ...
  • Page 92 SmartHandle AX SmartIntego 7. Installation (Manual) 92 / 165 3. Tighten the fitting crosswise with the first two fixing screws (PH2, torque: 1.1 Nm).
  • Page 93 SmartHandle AX SmartIntego 7. Installation (Manual) 93 / 165 4. Tighten the other two screws crosswise (PH2, torque: 1.1 Nm). 5. Slide the square into the square socket of the fitting.
  • Page 94 SmartHandle AX SmartIntego 7. Installation (Manual) 94 / 165 Mount the fitting and fix the support plate 1. Insert the prepared fitting into the door from the outside. 2. Insert the escutcheon base onto the adapter plate. 3. Insert the two sleeve nuts into the escutcheon base. 4.
  • Page 95 SmartHandle AX SmartIntego 7. Installation (Manual) 95 / 165...
  • Page 96 SmartHandle AX SmartIntego 7. Installation (Manual) 96 / 165 5. Screw the escutcheon base tight on the inside (L2 screws with PH2, 1.1 Nm). The fitting is fastened.
  • Page 97 SmartHandle AX SmartIntego 7. Installation (Manual) 97 / 165 Mount dummy cylinder and handle 1. Insert the dummy cylinder. 2. Insert the escutcheon cover on the inner escutcheon base. 3. Push the handle onto the fitting. 4. Push the escutcheon cover onto the outer escutcheon base.
  • Page 98 SmartHandle AX SmartIntego 7. Installation (Manual) 98 / 165 5. Tighten the handle (T15, torque: 5.0 Nm). 6. Screw the dummy cylinder tight (PH2, torque: 1.1 Nm). SI.SmartHandle AX completely assembled. Mounting the panic bar NOTE Third party product with own documentation The panic bar holder is a third-party product.
  • Page 99: Procedure (Cisa)

    SmartHandle AX SmartIntego 7. Installation (Manual) 99 / 165 7.5.5 Procedure (CISA) Preparing drill holes 1. Insert the square into the mortise lock. 2. Using the square and the recess in the drilling template, position the drilling template on the door. IMPORTANT Horizontal alignment required The drill holes must be aligned horizontally.
  • Page 100 SmartHandle AX SmartIntego 7. Installation (Manual) 100 / 165 3. Use a pointed object (e.g. pin needle) to pierce the position of the CISA drill holes in the door. 4. Remove the drilling template. 5. Remove the square. 6. Remove the mortise lock. 7.
  • Page 101 SmartHandle AX SmartIntego 7. Installation (Manual) 101 / 165 8. Countersink the boreholes as shown with a 90° countersink. 9. Reassemble the mortise lock. The drill holes are prepared. Programme See TechGuide WO/SVCN.
  • Page 102 SmartHandle AX SmartIntego 7. Installation (Manual) 102 / 165 Prepare square and screws 1. Measure the thickness of your door. 2. Use a saw to shorten the screws and the square (screws: Door thick- ness-10 mm, square: door thickness+14.5 mm). Square and screws prepared.
  • Page 103 SmartHandle AX SmartIntego 7. Installation (Manual) 103 / 165 Preparing the fitting 1. Insert the spacer sleeve into the adapter plate. 2. Place the fitting against the adapter plate from the opposite side. NOTE Aligning the holes of the fitting and adapter plate Offset holes in the adapter plate and threaded mountings in the fitting make installation more difficult.
  • Page 104 SmartHandle AX SmartIntego 7. Installation (Manual) 104 / 165 3. Tighten the fitting crosswise with the first two fixing screws (PH2, torque: 1.1 Nm).
  • Page 105 SmartHandle AX SmartIntego 7. Installation (Manual) 105 / 165 4. Tighten the other two screws crosswise (PH2, torque: 1.1 Nm). 5. Slide the square into the square socket of the fitting.
  • Page 106 SmartHandle AX SmartIntego 7. Installation (Manual) 106 / 165 Mount the fitting and fix the support plate 1. Insert the prepared fitting into the door from the outside.
  • Page 107 SmartHandle AX SmartIntego 7. Installation (Manual) 107 / 165 2. Tighten the CISA mount with the centre mounting screw.
  • Page 108 SmartHandle AX SmartIntego 7. Installation (Manual) 108 / 165 3. Tighten the bottom mounting screw. 4. Tighten the upper fastening screw (wood screw). NOTE Third party product with own documentation The panic bar holder is a third-party product. Please follow the manufacturer's instructions and safety instructions. ...
  • Page 109 SmartHandle AX SmartIntego 7. Installation (Manual) 109 / 165 The fitting is fastened. Mount dummy cylinder and handle 1. Push the handle onto the fitting.
  • Page 110: Information For Panic Bar

    SmartHandle AX SmartIntego 7. Installation (Manual) 110 / 165 2. Insert the dummy cylinder. 3. Tighten the handle (T15, torque: 5.0 Nm). 4. Screw the dummy cylinder tight (PH2, torque: 1.1 Nm). SI.SmartHandle AX completely assembled. Mounting the panic bar NOTE Third party product with own documentation The panic bar holder is a third-party product.
  • Page 111: Contents Of Packaging

    SmartHandle AX SmartIntego 7. Installation (Manual) 111 / 165 7.6.1 Contents of packaging E1 (With mechanical overriding) E0 (Without mechanical overriding) Quantity Object External fitting assembly, incl: 4× Battery (CR2450) 1× Inlay 1× 1× Support plate 2× PH2 screws 1× MO top group (not with MO) 2×...
  • Page 112: Tools

    SmartHandle AX SmartIntego 7. Installation (Manual) 112 / 165 7.6.2 Tools You require the following tools for installation: TX-15 screwdriver  TX-8 screwdriver  PH2 screwdriver  Suitable pliers for shortening screws, e.g. mechanic's nippers  (X-variant: Saw for shortening square, e.g. hacksaw) ...
  • Page 113 SmartHandle AX SmartIntego 7. Installation (Manual) 113 / 165 1. Measure the thickness of the door (T). 2. Calculate the screw lengths. 3. Select suitable predetermined breaking points that are no more than 3 mm from the calculated length. 4. Separate the predetermined breaking points with pliers. Screws shortened.
  • Page 114 SmartHandle AX SmartIntego 7. Installation (Manual) 114 / 165 1. Assemble the screws, the extension sleeves and the threaded rods. 2. Shorten the screws and the square. Screws and square of the X-variant are shortened. Identify door direction The preparation of the inside handle varies depending on the opening side of the door (DIN R or DIN L).
  • Page 115 SmartHandle AX SmartIntego 7. Installation (Manual) 115 / 165 Prepare the interior handle (DIN R) 1. Insert the switching plate as shown. 2. Position the spring sub-assembly at an angle to the escutcheon base until it touches the switching plate. 3.
  • Page 116 SmartHandle AX SmartIntego 7. Installation (Manual) 116 / 165 4. Slide the spring sub-assembly pawls into the escutcheon base. 5. Press the rear clip into the designated pawl. Spring plate is inserted.
  • Page 117 SmartHandle AX SmartIntego 7. Installation (Manual) 117 / 165 Prepare the interior handle (DIN L) 1. Insert the switching plate as shown. 2. Position the spring sub-assembly at an angle to the escutcheon base until it touches the switching plate.
  • Page 118 SmartHandle AX SmartIntego 7. Installation (Manual) 118 / 165 3. Draw the spring sub-assembly back, so that the spring is compressed. 4. Slide the spring sub-assembly pawls into the escutcheon base. 5. Press the rear clip into the designated pawl. Spring plate is inserted.
  • Page 119 SmartHandle AX SmartIntego 7. Installation (Manual) 119 / 165 Turn stud bolt (only for DIN R) Your SI.SmartHandle AX is supplied ex works in the Scandinavian Oval version with matching stud bolts for DIN L doors. If you want to use your SI.SmartHandle AX on a DIN R door, then screw the stud bolts around as follows: 1.
  • Page 120 SmartHandle AX SmartIntego 7. Installation (Manual) 120 / 165 3. Unscrew the stud bolts. 4. Screw in the stud bolts as shown. 5. Put the cover plate back in place.
  • Page 121 SmartHandle AX SmartIntego 7. Installation (Manual) 121 / 165 NOTE Recesses congruent with stud bolts The cover plate has recesses which later prevent the stud bolts from loosening. 1. Make sure that the recesses enclose the hexagon of the stud bolts. 2.
  • Page 122 SmartHandle AX SmartIntego 7. Installation (Manual) 122 / 165 Slide the square into the square socket of your SI.SmartHandle AX until  the pin of the square engages. Square is inserted.
  • Page 123 SmartHandle AX SmartIntego 7. Installation (Manual) 123 / 165 Mount the assembly 1. Push the sub-assembly with the spindle into the door from the outer side. 2. Position the escutcheon base for the cylinder opening on the other side of the door. 3.
  • Page 124 SmartHandle AX SmartIntego 7. Installation (Manual) 124 / 165 4. Screw the handle to the assembly with the L2 screws (PH2, torque: variable mounted. 1.1 Nm). NOTE Press the handle downwards if there is not enough room.
  • Page 125 SmartHandle AX SmartIntego 7. Installation (Manual) 125 / 165 5. Press the escutcheon onto the escutcheon base on the cylinder opening until it locks into place.
  • Page 126 SmartHandle AX SmartIntego 7. Installation (Manual) 126 / 165 6. Screw the headless screw into the handle to fix it in place (T15, torque: 5.0 Nm) 7. Slide the escutcheon along the handle and press the escutcheon onto the escutcheon base until it locks into position. The sub-assembly is mounted.
  • Page 127 SmartHandle AX SmartIntego 7. Installation (Manual) 127 / 165 Fit exterior handle 1. Push the outer handle into the sub-assembly until the pin locks into the spindle.
  • Page 128 SmartHandle AX SmartIntego 7. Installation (Manual) 128 / 165 2. Screw the headless screw into the handle to fix it in place (T15, torque: 5.0 Nm) SI.SmartHandle AXmounted.
  • Page 129: Programming

    SmartHandle AX SmartIntego 8. Programming (Manual) 129 / 165 8 Programming See TechGuide WO/SVCN.
  • Page 130: Configuration

    SmartHandle AX SmartIntego 9. Configuration (Manual) 130 / 165 9 Configuration See TechGuide WO/SVCN.
  • Page 131: Status Messages

    SmartHandle AX SmartIntego 10. Status messages (Manual) 131 / 165 10 Status messages See TechGuide WO/SVCN.
  • Page 132: Signal

    SmartHandle AX SmartIntego 11. Signal (Manual) 132 / 165 11 Signal See TechGuide WO/SVCN.
  • Page 133: Battery Warning

    SmartHandle AX SmartIntego 12. Battery warning (Manual) 133 / 165 12 Battery warning You or the user will be warned of a failure of the SI.SmartHandle AX by flat Battery replacement [  134] batteries. Replace the batteries in time (see The electronic part with the batteries is located on the outside.
  • Page 134: Battery Replacement

    The batteries are located under the cover of the SI.SmartHandle AX. You will need the SimonsVoss installation tool to change the batteries. 1. Place the SimonsVoss installation tool in the recesses provided in the cover. These are located on the side facing away from the electronics.
  • Page 135 SmartHandle AX SmartIntego 13. Battery replacement (Manual) 135 / 165 5. Press the end of the battery clip inwards until it pops out. IMPORTANT Loss of the battery clip The battery clip is plugged in. If both ends of the clip are pushed inwards and released from the holder at the same time, the battery clip may fall out.
  • Page 136 SmartHandle AX SmartIntego 13. Battery replacement (Manual) 136 / 165 12. Slide the cover back onto the SI.SmartHandle AX. 13. Press the cover firmly in the area of the recesses for the mounting tool until it snaps into place. Sabotage contact in the cover triggers battery measurement. Batteries are replaced.
  • Page 137: Maintenance, Cleaning And Disinfection

    14. Maintenance, cleaning and disinfec- SmartHandle AX SmartIntego tion (Manual) 137 / 165 14 Maintenance, cleaning and disinfection If necessary, clean the SI.SmartHandle AX with a soft and, if necessary,  damp cloth. When disinfecting the SI.SmartHandle AX, only use agents that are ...
  • Page 138: Disassembly

    SmartHandle AX SmartIntego 15. Disassembly (Manual) 138 / 165 15 Disassembly You will also find information on disassembly in the supplied quick guides. 15.1 Variant A0 (vertical) You need the following tools for disassembly: TX-15 screwdriver  Slotted-head screwdriver  PH-2 screwdriver ...
  • Page 139: Variant A1/A2 (Suspended Short/Long)

    SmartHandle AX SmartIntego 15. Disassembly (Manual) 139 / 165 Removing the handle from the assembly 1. Insert the Allen wrench into the hole provided in the square socket. 2. Push the Allen wrench towards the nearer edge and hold it pressed. 3.
  • Page 140 SmartHandle AX SmartIntego 15. Disassembly (Manual) 140 / 165 1.5 mm hex key  Remove fittings 1. Disassemble electronic cylinders if necessary. 2. Unscrew the headless screws of both handles. 3. If necessary, remove the escutcheon covers with a slotted screwdriver. 4.
  • Page 141: Variant A3 (Steel Frame)

    SmartHandle AX SmartIntego 15. Disassembly (Manual) 141 / 165 2. Push the Allen wrench towards the nearer edge and hold it pressed. 3. Remove the handle from the assembly. SI.SmartHandle AX is disassembled. 15.3 Variant A3 (steel frame) Remove fittings 1.
  • Page 142: Variant A4 (Panic Bar)

    SmartHandle AX SmartIntego 15. Disassembly (Manual) 142 / 165 Removing the handle from the assembly 1. Insert the Allen wrench into the hole provided in the square socket. 2. Push the Allen wrench towards the nearer edge and hold it pressed. 3.
  • Page 143 SmartHandle AX SmartIntego 15. Disassembly (Manual) 143 / 165 NOTE Third party product with own documentation The panic bar holder is a third-party product. Please follow the manufacturer's instructions and safety instructions.  2. Remove the covers of the escutcheons with a slotted screwdriver. 3.
  • Page 144: Cisa

    SmartHandle AX SmartIntego 15. Disassembly (Manual) 144 / 165 2. Push the Allen wrench towards the nearer edge and hold it pressed. 3. Remove the handle from the assembly. SI.SmartHandle AX is disassembled. 15.4.2 CISA 1. Remove the panic bar as described in the manufacturer's documenta- tion except for the adapter plate.
  • Page 145: Ds Variant (Reader On Both Sides)

    SmartHandle AX SmartIntego 15. Disassembly (Manual) 145 / 165 Removing the handle from the assembly 1. Insert the Allen wrench into the hole provided in the square socket. 2. Push the Allen wrench towards the nearer edge and hold it pressed. 3.
  • Page 146 SmartHandle AX SmartIntego 15. Disassembly (Manual) 146 / 165 5. If necessary, unscrew the escutcheon bases. 6. Remove the cover of the SmartHandles AX that is attached to the ad- apter plate. 7. Unscrew the screw above the card reader. 8.
  • Page 147: Variant E0 And E1 (Scandinavian Oval)

    SmartHandle AX SmartIntego 15. Disassembly (Manual) 147 / 165 3. Remove the handle from the assembly. SI.SmartHandle AX is disassembled. 15.6 Variant E0 and E1 (Scandinavian Oval) You need the following tools for disassembly: TX-15 screwdriver  Slotted-head screwdriver  PH-2 screwdriver ...
  • Page 148 SmartHandle AX SmartIntego 15. Disassembly (Manual) 148 / 165 Removing the handle from the assembly 1. Insert the Allen wrench into the hole provided in the square socket. 2. Push the Allen wrench towards the nearer edge and hold it pressed. 3.
  • Page 149: Accessories

    SmartHandle AX SmartIntego 16. Accessories (Manual) 149 / 165 16 Accessories Third party handle adapter Order code Description Compatibility Adapter set for FSB brand lever handles All FSB models from www.fsb.de ) from FSB 2018 with one of the model year 2018 up- following mounting wards types:...
  • Page 150 SmartHandle AX SmartIntego 16. Accessories (Manual) 150 / 165 Order code Description Square, please specify length (see Distances and door thicknesses  13]    S2.SQUARE.x.x  Please specify diameter (siehe Spindle [  15] 7 mm  8 mm  9 mm  Extension sleeve from 8 mm to SH.SLEEVES.8.5 8.5 mm in length (10 units)
  • Page 151 SmartHandle AX SmartIntego 16. Accessories (Manual) 151 / 165 Order code Description Cover for variant A2/B2 (suspended S2.COVER.2.SG long) in black-grey Cover for variant A2/B2 (suspended S2.COVER.2.W long) in white Cover for variant E0 (Scandinavian S2.COVER.E0.SG oval without locking cylinder cut- out) in black-grey Cover for variant E0 (Scandinavian S2.COVER.E0.W...
  • Page 152 SmartHandle AX SmartIntego 16. Accessories (Manual) 152 / 165 Order code Description Escutcheon cover with locking cylin- S2.ROSEPZ der opening for Euro profile cylinder for retrofitting Escutcheon cover with locking cylin- S2.ROSESO der opening for Scandinavian Oval Cylinders for retrofitting Dummy cylinders Order code Description...
  • Page 153: Technical Specifications

    SmartHandle AX SmartIntego 17. Technical specifications (Manual) 153 / 165 17 Technical specifications Euro Profile cylinder  Types Scandinavian Oval  Swiss Round  Passive  Read systems BLE ready  MIFARE® Classic  MIFARE DESFire® EV1/EV2  Supported cards (Wireless Online WO) UID (card serial number) according to ...
  • Page 154: Mechanical System

    SmartHandle AX SmartIntego 17. Technical specifications (Manual) 154 / 165 Administration and settings Wireless Online (WO): Integrated  LockNode (LNI) Networking capability SmartIntego Virtual Card Network  (SVCN): Not network-compatible Other information Can be upgraded Upgradeable firmware Entrys in the access list Max.
  • Page 155 SmartHandle AX SmartIntego 17. Technical specifications (Manual) 155 / 165 A0 (stationary)  A3 (metal frame)  120 mm DS (reader on both  sides) A1 (suspended short) 140 mm A2 (suspended  long) 174 mm E0/E1  Height (Scandinavian Oval) BKS (distance: ...
  • Page 156 SmartHandle AX SmartIntego 17. Technical specifications (Manual) 156 / 165 Available detailed dimensional drawings can be found at the end of the chapter. Distances and door thicknesses A* = Euro profile, B* = Swiss round, E* = Scandinavian Oval Versions Centres distance Door thickness S: 38 - 60 mm...
  • Page 157 SmartHandle AX SmartIntego 17. Technical specifications (Manual) 157 / 165 Versions Centres distance Door thickness S: 38 - 60 mm M:59 - 80 mm E0, E1 105 mm Scandinavian Oval L: 79 - 100 mm X: 100–200 mm Handle turning angle and colours Handle turning angle 48°...
  • Page 158 SmartHandle AX SmartIntego 17. Technical specifications (Manual) 158 / 165 Fig. 2: Dimensioning SmartHandle AX suspended (A1, A2)
  • Page 159 SmartHandle AX SmartIntego 17. Technical specifications (Manual) 159 / 165 Fig. 3: Dimensioning SmartHandle AX stationary (A0)
  • Page 160 SmartHandle AX SmartIntego 17. Technical specifications (Manual) 160 / 165 Fig. 4: Dimensioning SmartHandle AX Scandinavian Oval (E0, E1)
  • Page 161 SmartHandle AX SmartIntego 17. Technical specifications (Manual) 161 / 165 Fig. 5: Dimensioning SmartHandle AX metal frame (A3)
  • Page 162 SmartHandle AX SmartIntego 17. Technical specifications (Manual) 162 / 165 Fig. 6: Dimensioning SmartHandle AX BSL (DS)
  • Page 163: Declaration Of Conformity

    SmartHandle AX SmartIntego 18. Declaration of conformity (Manual) 163 / 165 18 Declaration of conformity The company SimonsVoss Technologies GmbH hereby declares that article SI.S2.*, S2.* complies with the following guidelines: 2014/53/EU "Radio equipment"  2014/30/EU "EMC"  2011/65/EU "RoHS"...
  • Page 164: Help And Other Information

    Take the packaging to an environmentally responsible recycling point.  Hotline If you have any questions, the SimonsVoss Service Hotline will be happy to help you on +49 (0)89 99 228 333 (German fixed network; call charges vary depending on the operator).
  • Page 165 Unterföhring, near Munich, and its production site in Osterfeld, eastern Germany, the company employs around 300 staff in eight countries. SimonsVoss is a company in the ALLEGION Group, a globally active network in the security sector. Allegion is represented in around 130 countries worldwide (www.allegion.com).
