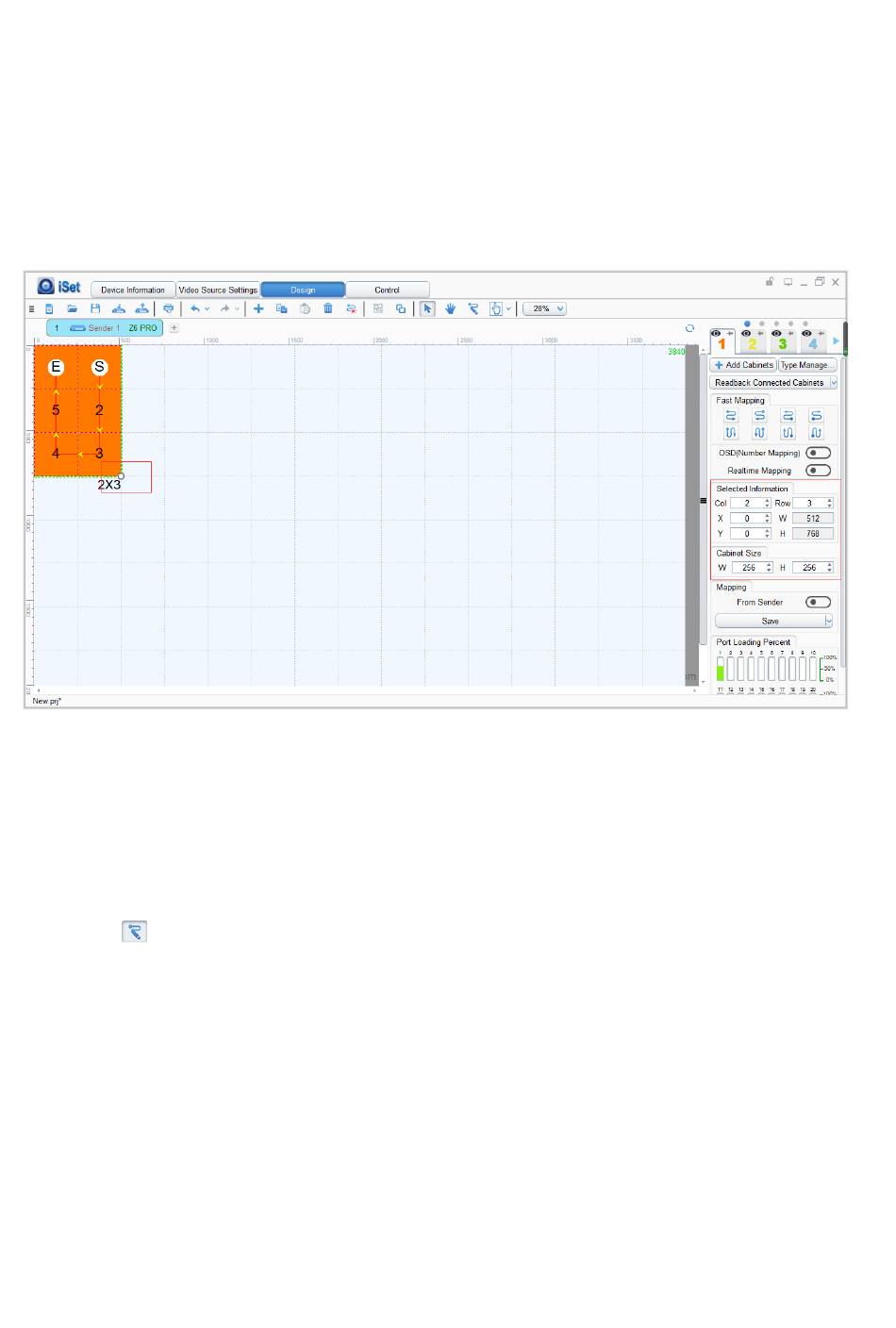

1. Add Cabinets
Select the right sender output port, and click [Add Cabinets], click [Custom], fill out in
the [Cabinets Size] box, and click [OK]. Moving a box with mouse to the right place and click,
the cabinets will be added. More boxes can be created by dragging the circle at the bottom
right corner or setting at [Seleted Information] on the right.
2. Setting Mapping
Added Cabinets will set default connection mapping, it may not correct. Before resetting
the new mapping, please make sure the sender port is correct.
① Manual number
Click " " at the top symbol line, then click the cabinets one by one from the start to the
end.
