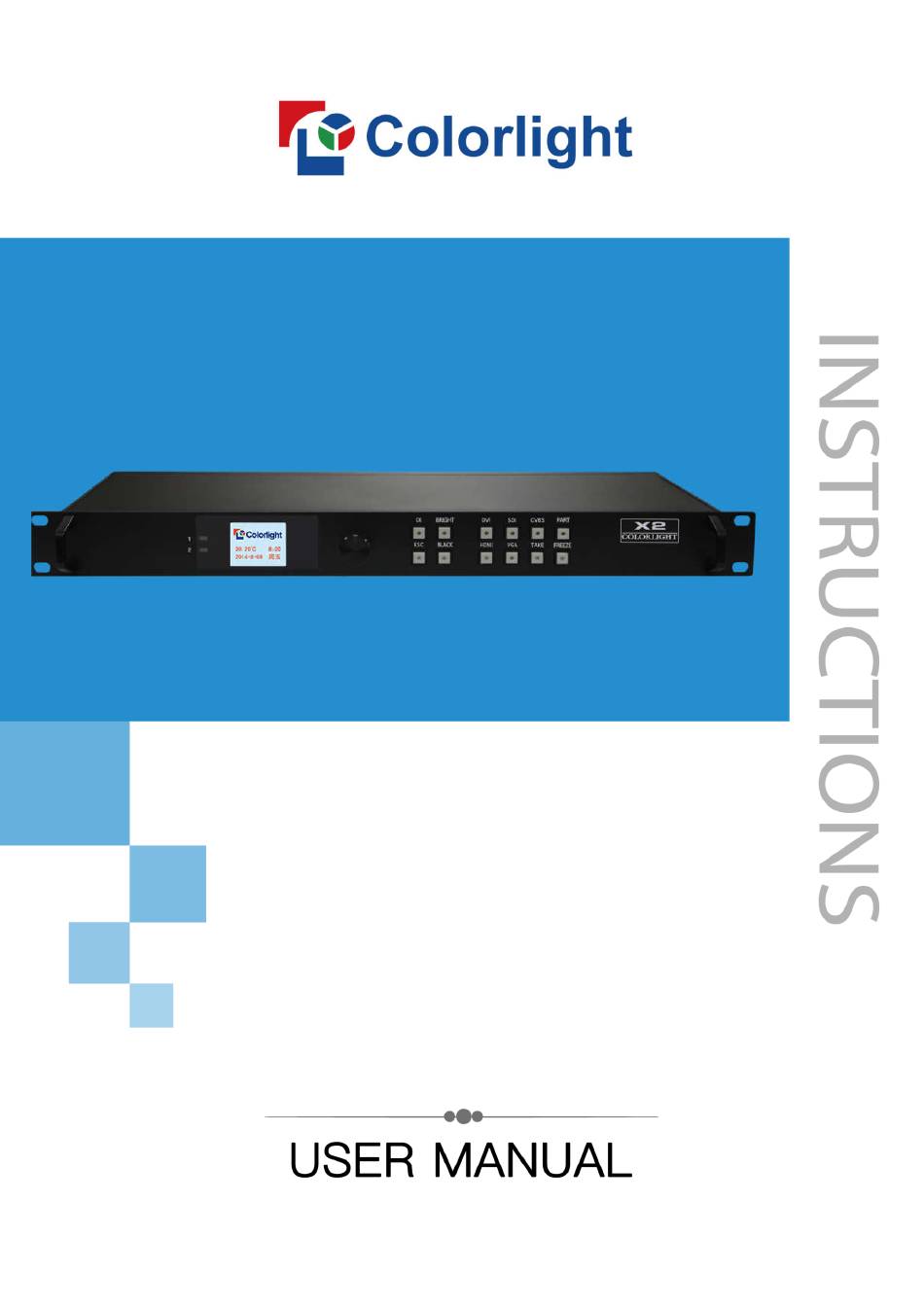

- Page 1 X2 Controller...
-
Page 2: Table Of Contents
www.colorlightinside.com Content 1. Overview ................................1 2. Appearance ................................. 1 3. Signal Connection .............................. 3 4. LEDVISION Installation ............................. 3 5. Parameter Configuration ........................... 4 5.1 Detect Sender and Receiving Card ....................... 4 5.2 LED Screen Setting..........................6 5.2.1 Sending Device Setting ........................ 6 5.2.2 Screen Parameters Setting ....................... -
Page 3: Overview
1. Overview X2 is a professional LED display controller, it possesses powerful video signal receiving capacity, and supports multiple signal inputs, in which max input resolution is 1920*1200 pixels. Meanwhile, 2 Gigabit Ethernet outputs support big LED display of 4096 pixels in maximum width or 2560 pixels in maximum height. - Page 4 www.colorlightinside.com Name Function 1.8-inch LCD Display operation menu and system information Knob Turning knob to select or adjust OK: Enter key ESC: Escape current operation or selection BRIGHT: Brightness option Function Keys BLACK: Blank screen TAKE: Switch input signal source PART: Screen clipping FREEZE: Freeze screen Selection Keys...
-
Page 5: Signal Connection
3. Signal Connection 4. LEDVISION Installation Please download the installation package of the LEDVISION software from Colorlight’s official website www.colorlightinside.com, and complete the installation according to the diagrams shown below. ① Run the software package, and select [English] for installer language. Click [OK] to... -
Page 6: Parameter Configuration
www.colorlightinside.com ② After selecting a language, an installation wizard like below will appear, click [Next]; Then choose installation location, click [Browse] to change default target location, then click [Next] after completing; Choose components according to your own computer status, click [Install] to complete; After the installation is complete you are ready to use LEDVISION. - Page 7 www.colorlightinside.com 2. [Select Sending Device] for [Sender], click [Detect Senders] in [Sender Settings]. Please check the hardware connection or the installation of relevant driver if cannot detect senders. Select network port and click [Detect Receiver Cards] respectively, the software will automatically acquire the receiver card quantity of each network port of the sender.
-
Page 8: Led Screen Setting
1, Output ① Signal Source When the input signal source of X2 is normal, the upper right of the software interface will display the input signal information auto acquired via the software. Users can select specific signal source (HDMI/DVI/SDI/VGA/AV) according to needs in [Main], at the moment, the image of selected signal source will display in the Image View Area on the left of the software interface. - Page 9 www.colorlightinside.com ② Scaling In Image View Area, select the image that needs to be scaled, set X, Y, width and height of it in [Main Image], or you can click the white box in the bottom right corner of the image and drag it with the mouse, finally click [Save].
- Page 10 www.colorlightinside.com ③ Clipping Select signal source of the image that needs to be clipped in Input Signal Area, click [Set] to enter the clipping interface. In the clipping interface, check [Clipping], and set X, Y, width and height in [Clipping Information], then click [Save] to complete.
- Page 11 3, Other: Advanced Parameters Setting, Test Mode Selection, Sender Time Setting, Restore Factory Set. 4, Detect Receivers: Detect receivers under each net port of X2 controller, and acquire relevant information about the receivers (Port, Index, Version, Run Time, Support Chips).
-
Page 12: Screen Parameters Setting
www.colorlightinside.com 5.2.2 Screen Parameters Setting Observe the display screen with single cabinet as a unit, and if all cabinets themselves could display normally {it is normal circumstance even the picture between cabinets is not continuous}, please ignore this step and directly go to the next step. Otherwise, configuration must be done as follows: Click [Load], choose the correct parameter file. - Page 13 www.colorlightinside.com each sender, and the software will auto calculate and set up the port control area according to the connection relationship. Detailed setting steps as follows: ① Set up the quantity of receiving card Set how many receiver (receiving card) that one port manages in Row Count and Col Count (6*3 as an example) according to the actual loading of LED display, you will see LED display mapping area from the right side (Viewing from the front of LED display).
- Page 14 www.colorlightinside.com There are two methods to set up: ◆Use mouse to select one by one: In the mapping area, select the first receiving card based on the actual connection of the net port (view from the front), and then set up the actual loading width and height of the target receiving card in the right side (128*128 as an example).
- Page 15 www.colorlightinside.com ③ Send & Save to Receiving Card After setting up all the receiving card parameters and connection lines respectively, click [Send] to send the correct parameter to the receiving card, and the screen should display normally at this time. Then click [Save to Receiver] to save parameters to corresponding receiving card after confirming.
-
Page 16: Lcd Operation Instruction
ESC: Return key, exit current menu or operation. 6.2 Main Interface After starting X2, main interface of LCD display is as follows: First row: Company name. Second row: Image resolution. -
Page 17: Display Setting
www.colorlightinside.com 6.3.1 Display Setting Rotate the knob to select display setting, then press the knob/OK to enter submenu of “Display Setting”. ① Brightness: Rotate the knob to change the brightness. ② CCT: Enter the adjustment interface of CCT, rotate the knob to change the value of color temperature in the option of “Color Temperature”, and you can also press the knob/OK to reset the value of color temperature as 6500 in the option of “Default”. -
Page 18: Edid Setting
www.colorlightinside.com ⑥ Video Change: Enter the setting interface of “Video Change”, and press the knob/OK to turn on/off the option of “By Take”. If “By Take” is in the closed status, you can directly press the selection key of video source to switch the playing video; if “By Take” has been turned on, you must continue pressing “Take”... -
Page 19: Input Setting
www.colorlightinside.com 6.3.3 Input Setting Rotate the knob to select input setting, then press the knob/OK to enter submenu of “Input Setting”. In the submenu, press the knob/OK to turn on/off “VGA/CVBS”. If “VGA/CVBS” is in the closed status, CVBS signal is regarded as video input resource in preference to VGA signal;... -
Page 20: Output Setting
www.colorlightinside.com 6.3.5 Output Setting Rotate the knob to select output setting, then press the knob/OK to enter submenu of “Output Setting”. Continue pressing the knob/OK to enter the output setting interface, rotate the knob to adjust X, Y, width and height of output, then save it. 6.3.6 Output Shift Rotate the knob to select output shift, then press the knob/OK to enter submenu of “Output Shift”. -
Page 21: Language Setting
www.colorlightinside.com 6.3.7 Language Setting Enter the setting interface of “Language”, press the knob/OK to switch the language. 6.3.8 System Setting In “System Setting”, users can set date and time, restore factory settings and check current firmware information.
