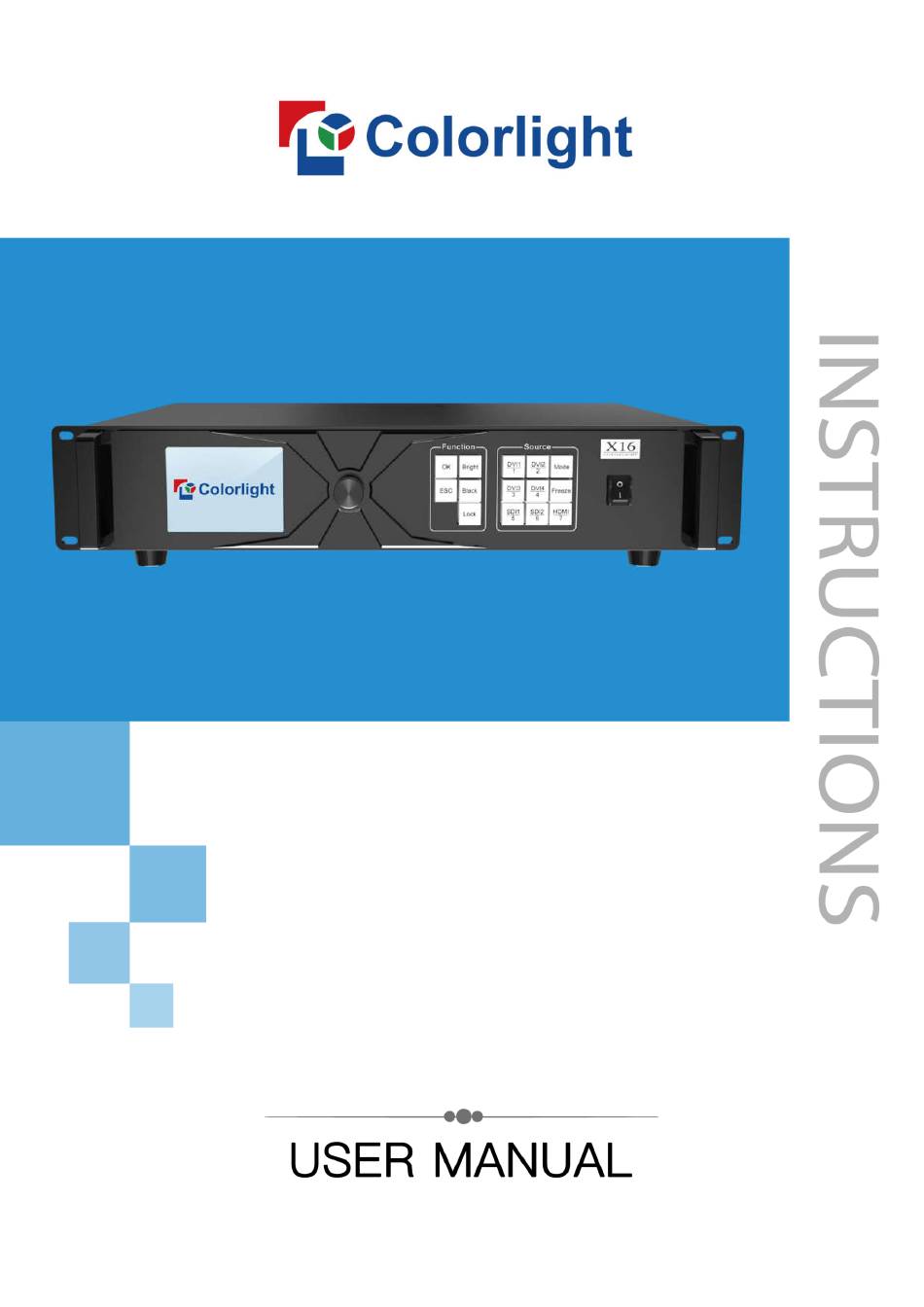

- Page 1 X16 Controller...
-
Page 2: Table Of Contents
Content 1. Overview ..............................1 2. Appearance ............................2 3. Signal Connection ..........................4 4. iSet Installation ............................5 5. Parameter Configuration ........................7 5.1 Detect Senders and Receiver Cards .................... 7 5.2 LED Screen Setting ........................7 5.2.1 Video Source Setting ......................7 5.2.2 Sender Setting ........................ -
Page 3: Overview
(HDMI, DVI, SDI), and seamless switching between signals. It also supports splicing, broadcast quality scaling, and seven-pictures displays. The X16 adopts 16 Gigabit Ethernet outputs, and it supports large LED displays of up to 8192 pixels in maximum width/height. Meanwhile, the X16 is equipped with a series of versatile functions which can provide flexible screen control and high-quality image displays. -
Page 4: Appearance

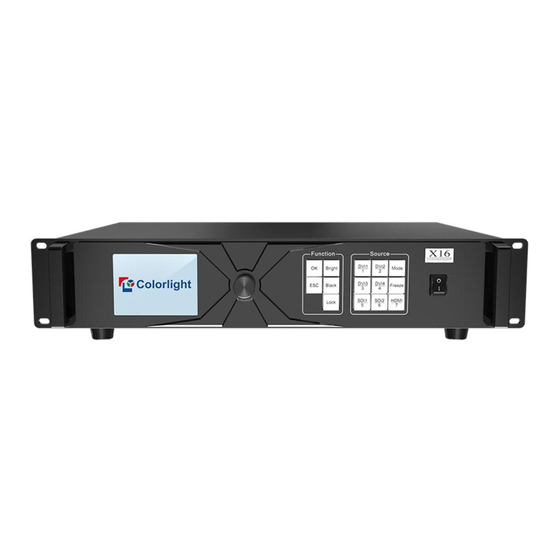

www.colorlightinside.com 2. Appearance The front panel Name Function 3.5-inch LCD Displays the operation menu and system information Knob Turn knob to select or adjust OK: Enter key ESC: Escape current operation or selection Function Keys Bright: Brightness option Black: Blank screen Lock: Lock keys HDMI/DVI1/DVI2/DVI3/DVI4/SDI1/SDI2: Video source selection Selection Keys... - Page 5 www.colorlightinside.com The back panel Input Interface HDMI 2.0 input, EIA/CEA-861 Standard, in accordance with HDMI HDMI 2.0 standard, supports 4096×2160@60Hz, supports HDCP 4 DVI inputs, VESA Standard (supports 1920×1200@60Hz), supports HDCP 2 SDI-3G inputs, 1920×1080P Output Interface Port1-16 RJ45, 16 Gigabit Ethernet outputs Controlling Interface Network control (communication with PC or access network) USB IN...
-
Page 6: Signal Connection
www.colorlightinside.com 3. Signal Connection... -
Page 7: Iset Installation
4. iSet Installation Please download the iSet installation package from Colorlight’s official website www.colorlightinside.com. Follow the instructions and complete the software installation. 1. Run the software package, select language [English] and click [OK]. 2. You will see the iSet installation guidance as below. Click [Next]. - Page 8 www.colorlightinside.com 3. Select the installation location, click [Browse] to change the default target location, then click [Next] after completion. Select the components to install according to your PC status, then click [Install] to complete. After the installation is complete you are ready to use iSet.
-
Page 9: Parameter Configuration
www.colorlightinside.com 5. Parameter Configuration Please make sure the hardware is properly connected before setup, and that all senders & receiver cards can be detected by the software. 5.1 Detect Senders and Receiver Cards Click [Device Information] to enter the device information page. 1. - Page 10 X16 is normal, the upper right of the software interface will automatically display the input signal information obtained by the software. At this point, users can set up the related parameters of “Video Source” according to their own needs.
- Page 11 www.colorlightinside.com Cropping Select the signal source of the image that needs to be cropped in Input Signal Area, then click “ ” to enter the cropping interface. In the cropping interface, check out [Crop], set the row starting point (X), column starting point (Y), width (W) and height (H) in [Cropping Information], then the cropping will be completed.
- Page 12 Seven Layers Displays The X16 supports seven layers displays so that users can select 1-7 (the number of layers) based on the demand in [Number of Layer], then you can complete the Screen Setup Wizard. Take 2 (number of layers) as the example, select [Number of Layer] for 2, and the screen setup wizard will pop up.
- Page 13 www.colorlightinside.com EDID In Input Signal Area, select the specific signal source, then click “ ” to enter the EDID setting interface. In the EDID setting interface, the first one is the default as current resolution. Click the dropdown button to display the resolution list to select the mainstream resolution.
-
Page 14: Sender Setting
www.colorlightinside.com according to their needs so that they don’t need to set up all the parameters again. After completing the video source parameters setup, click [Save As Preset], select unnamed preset and rename it, then click [OK] to save the preset to the sending device; click [Recall From Preset], send the saved preset to the receiver cards, at this time, the image should display on the basis of the preset parameter. - Page 15 IP settings. Select “Obtain an IP Address Automatically” and the X16 will automatically obtain the assigned IP address; you can also set the IP address, subnet mask and default gateway manually. Click [OK] after...
-
Page 16: Screen Connection Setting
www.colorlightinside.com 5.2.3 Screen Connection Setting Click [Design] to enter the screen connection setting interface. The specific steps are as follows: 1. Add cabinets Choose the sender network port that needs cabinets added, click [Add Cabinets] and a drop-down box will appear. You can choose to add cabinets directly if the type management has the corresponding types, or you can click [Custom] to add customized cabinets according to the actual size of cabinets if the type management doesn’t have the corresponding types. - Page 17 www.colorlightinside.com When adding cabinets, hold the left mouse button on the View Area and move the mouse to add the amount of cabinets after choosing the cabinet type. After adding the amount of cabinets, if the array of the cabinets does not match with the real situation then the array needs to be set.
- Page 18 www.colorlightinside.com one by one according to the actual cable connection until the last one for this network port loads. ② Auto Routing While aiming at the LED screen with the standard cable connections, first cover the corresponding area of net port loading in the mapping area, then select the cable connection you want from the right side, then complete the setting.
-
Page 19: Lcd Operation Instructions
ESC: Return key, to exit the current menu or operation. 6.2 Main Interface After starting the X16, the main interface of the LCD display will be as follows: First row: Company Logo Second row: Signal source and resolution of the main image, Brightness... -
Page 20: Operation Instructions
www.colorlightinside.com 6.3 Operation Instructions Press the knob/OK to enter the operation interface of the main menu. It will include 11 operation instructions: Display Setting, EDID Setting, Cropping Setting, Preset Setting, Output Setting, Output Shift, Lock to Input, Tile Mapping, Network Setting, Language Setting, and System Setting. -
Page 21: Edid Setting
www.colorlightinside.com Color Temperature Enter the adjustment interface of “Color Temperature”. In the “Color Temperature” option, press the knob/OK to select the current menu, then rotate the knob to change the value of color temperature; in the “Reset to Default” option, press the knob/OK to reset the value of color temperature as 6500. -
Page 22: Cropping Setting
www.colorlightinside.com Enter the EDID setting interface of “HDMI” or “DVI1/2/3/4” (take “HDMI” as an example). Rotate the knob to select conventional resolution; or set width, height and frame rate by knob in the “Custom” option. 6.3.3 Cropping Setting Rotate the knob to select cropping setting, then press the knob/OK to enter the “Cropping Setting”... -
Page 23: Preset Setting
www.colorlightinside.com 6.3.4 Preset Setting Rotate the knob to select preset setting, then press the knob/OK to enter the “Preset Setting” submenu. In the submenu, 16 preset parameters can be saved, and every preset parameter includes all parameter information of the video source setting (scaling, cropping, several layers display, EDID, etc.). -
Page 24: Output Shift
www.colorlightinside.com 6.3.6 Output Shift Rotate the knob to select output shift, then press the knob/OK to enter the “Output Shift” submenu. Output shift includes two selections: “Whole” and “By Port”. In the setting interface of “Whole”, you can rotate the knob to set X and Y of the whole image, then save it; in the setting interface of “By Port”, you can set X and Y of the image of each net port respectively and also save it. -
Page 25: Lock To Input
www.colorlightinside.com 6.3.7 Lock to Input When several controllers are cascaded with each other, “Lock to Input” is necessary to ensure the synchronization of the video displays. Rotate the knob to select “Lock to Input”, then press the knob/OK to enter the submenu. Rotate the knob to select the sync signal source in the submenu, then press the knob/OK for completion. -
Page 26: Network Setting
www.colorlightinside.com 6.3.9 Network Setting Users can automatically obtain an IP address or set it manually. Enter the “Network Setting”, press the knob/OK to turn on/off HDCP or press the knob/OK to enter IP settings manually. You can set up IP, subnet, and gateway respectively via the knob. 3.6.10 Language Setting Enter the setting interface of “Language”, then press the knob/OK to switch the language.
