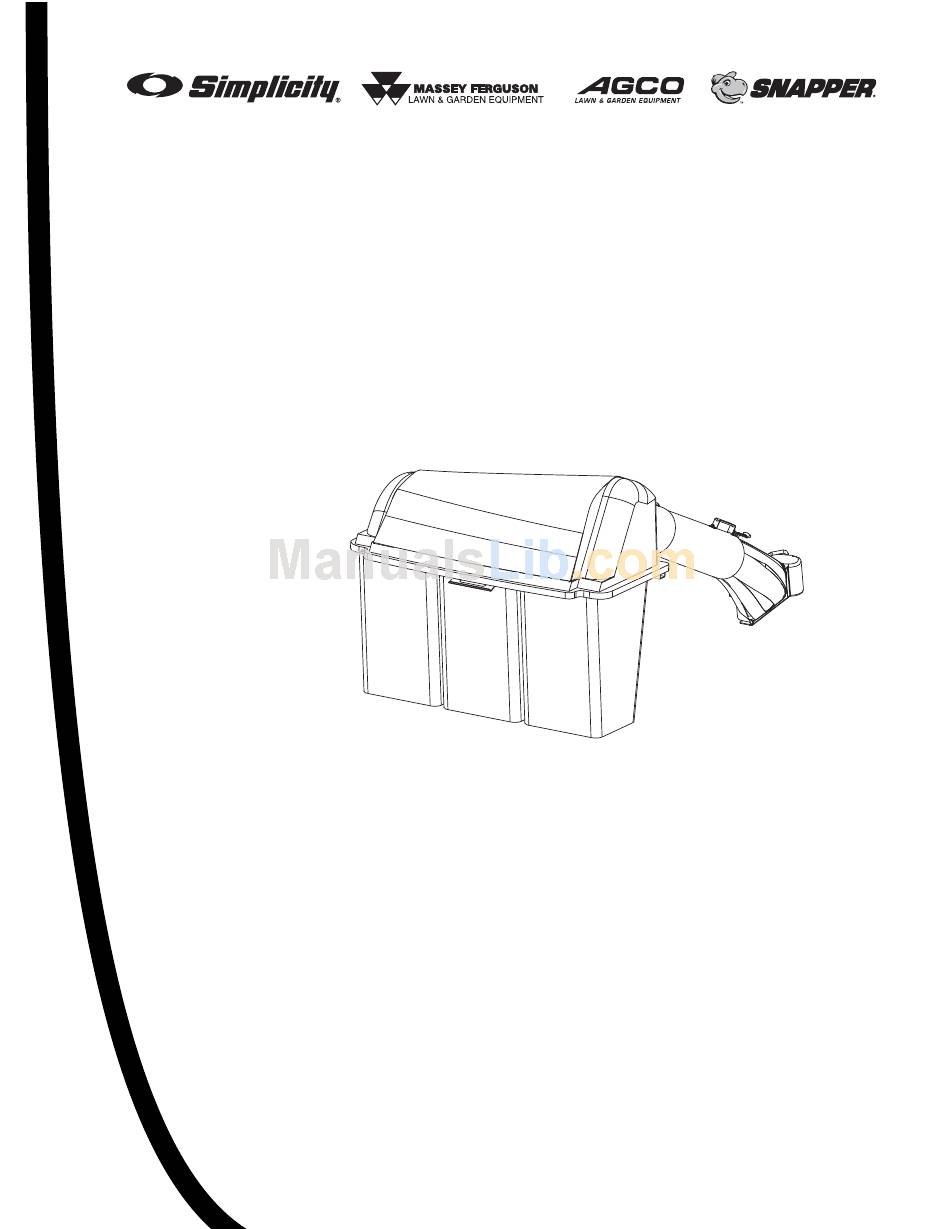

ATTACHMENT
OPERATOR'S
MANUAL
Clean Sweep
Triple Catcher
Clean Sweep Triple Catcher
Mfg. No.
Description
5900703
Clean Sweep Triple Catcher
1735596
Rev. 00
Rev. Date 10/2007
TP 100-4785-00-AT-SMAN

Advertisement

Table of Contents
loading

Related Manuals for Briggs & Stratton 5900703

Summary of Contents for Briggs & Stratton 5900703

  • Page 1 ATTACHMENT OPERATOR’S MANUAL Clean Sweep Triple Catcher Clean Sweep Triple Catcher Mfg. No. Description 5900703 Clean Sweep Triple Catcher 1735596 Rev. 00 Rev. Date 10/2007 TP 100-4785-00-AT-SMAN...
  • Page 2 THIS PAGE INTENTIONALLY BLANK (FOR PLACEMENT ONLY - DO NOT PRINT)

  • Page 3: Table Of Contents

    Safety Rules & Information General Warnings...2 Safety Decals ...2 Storing the Grass Catcher ...3 General Operating Information Before Operation ...3 Mowing with the Catcher ...3 Required Accessories...3 After Operation ...3 Storing the Grass Catcher ...3 Tube Component Assembly ...4 Baffle Installation ...4 Component Installation Install Mounting Plate ...5 Lower Chute Rod and Pin Installation ...5...

  • Page 4: Safety Rules & Information

    Safety Rules and Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The triangle in text signifies important cautions or warnings which must be followed.

  • Page 5: Storing The Grass Catcher

    Mowing with the Catcher Always operate with throttle at full speed when mowing. Grass should be cut often, and not too short. If grass is too long or lush it may be necessary to keep ground speed to a minimum or to cut only half the width of the mower to prevent clogging.

  • Page 6: Tube Component Assembly

    Tube Component Assembly BAFFLE INSTALLATION 1. Determine which baffle to use (See Chart). 2. Lift side discharge chute (H, Figure 1). 3. Insert baffle (F) through discharge opening and posi- tion baffle into place. 4. Tighten carriage bolts (A) and locknut(s) (E) on baffle (F). 5.

  • Page 7: Component Installation

    Figure 2. Install Mounting Plate A. Mounting Plate B. Locknuts, 5/16-18 C. Carriage Bolts, 5/16-18 x 5/8 Component Installation INSTALL MOUNTING PLATE 1. Install mounting plate (A, Figure 2) to mower deck as shown. Secure with carriage bolts (C) and locknuts (B).

  • Page 8: Bag And Cover Support Installation

    Bag and Cover Support Installation INSTALL BAG AND COVER SUPPORT 1. Install the bag and cover support (B, Figure 5) to upright support (A) using the capscrews (C) and the locknuts (D). Figure 5. Install Bag and Cover Support A. Upright Support B.

  • Page 9: Cover And Bag Installation

    INSTALL COVER ASSEMBLY 1. Attach cover assembly (B, Figure 6) to bag support bracket (A) using hinge pivots (E). Secure cover using cover hinge pins (C) and hair pins (D). Figure 6. Install Cover Assembly A. Bag Support Bracket B. Cover Assembly C.

  • Page 10: Tube Installation

    Tube Installation LOWER TUBE INSTALLATION 1. Lift discharge deflector up (D, Figure 8). 2. Insert lower chute rod (A) into mounting plate (B). 3. Pull rubber strap (C) and secure by placing hole closest to knob in strap completely over locknut (E). Figure 8.

  • Page 11: Collector Installation And Removal

    Figure 11. Collector Installation and Removal COLLECTOR INSTALLATION Note: See previous pages for more detailed installation and operation instructions if necessary. 1. Mount the hitch support assembly (A, Figure 11) onto rear tractor frame. 2. Attach cover (B) to support assembly using pins (C) and hair pins (D).

  • Page 12: Carrier Installation

    Carrier Installation FRONT WEIGHT CARRIER INSTALLATION 1. Install carrier (F, Fgure 12) as shown securing with capscrews (B), and locknuts (C). 2. Secure required weights using rod (D) and safety clip (E). Figure 12. Front Weight Carrier Installation A. Holes B.

  • Page 13: Hitch Plate And Back Plate Installation

    FLAT STYLE BUMBER 1. Remove and discard hardware holding heat shield (B, Figure 13) to upper and lower bumper (E). 2. Open existing holes (F) in heat shield (B) and upper & lower bumper (E) to 17/32”. 3. Install hitch plate (A) to upper and lower bumper (E) keeping heat shield (B) in between.

  • Page 14: Grass Catcher Removal And Attachment

    Grass Catcher Removal an d Attachment REMOVING THE GRASS CATCHER 1. Remove the hair pin clips (B, Figure 16) and hinge pins (D) and remove the cover (A). Figure 16. Remove the Cover A. Cover C. Hinge B. Hair Pin Clip E.

  • Page 15: Attaching The Grass Catcher

    ATTACHING THE GRASS CATCHER 1. Set the back plate and support (A, Figure 19) onto the pins of the hitch plate (C). Secure with rod (D) and hair pin (B). 2. Hook the bags on the back plate (Figure 7). 3.
  • Page 16 M A N U F A C T U R I N G , I N C . Simplicity Mfg. Inc.500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.SimplicityMfg.com Simplicity Mfg. Inc. - Snapper Products 535 Macon Street McDonough, GA 30253 www.Snapper.com Briggs &...
