Summary of Contents for Rittal DK 7030.111

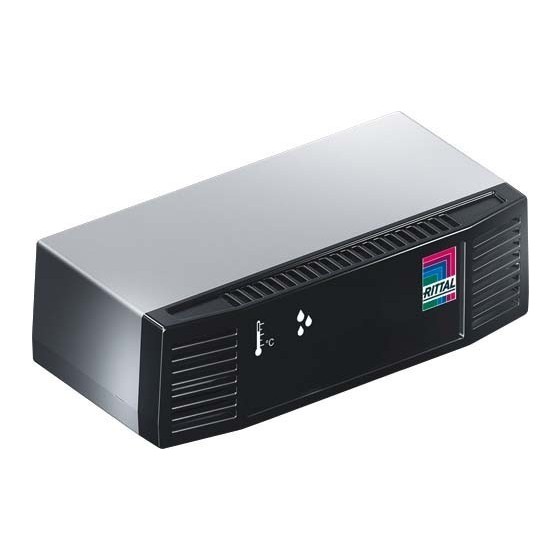

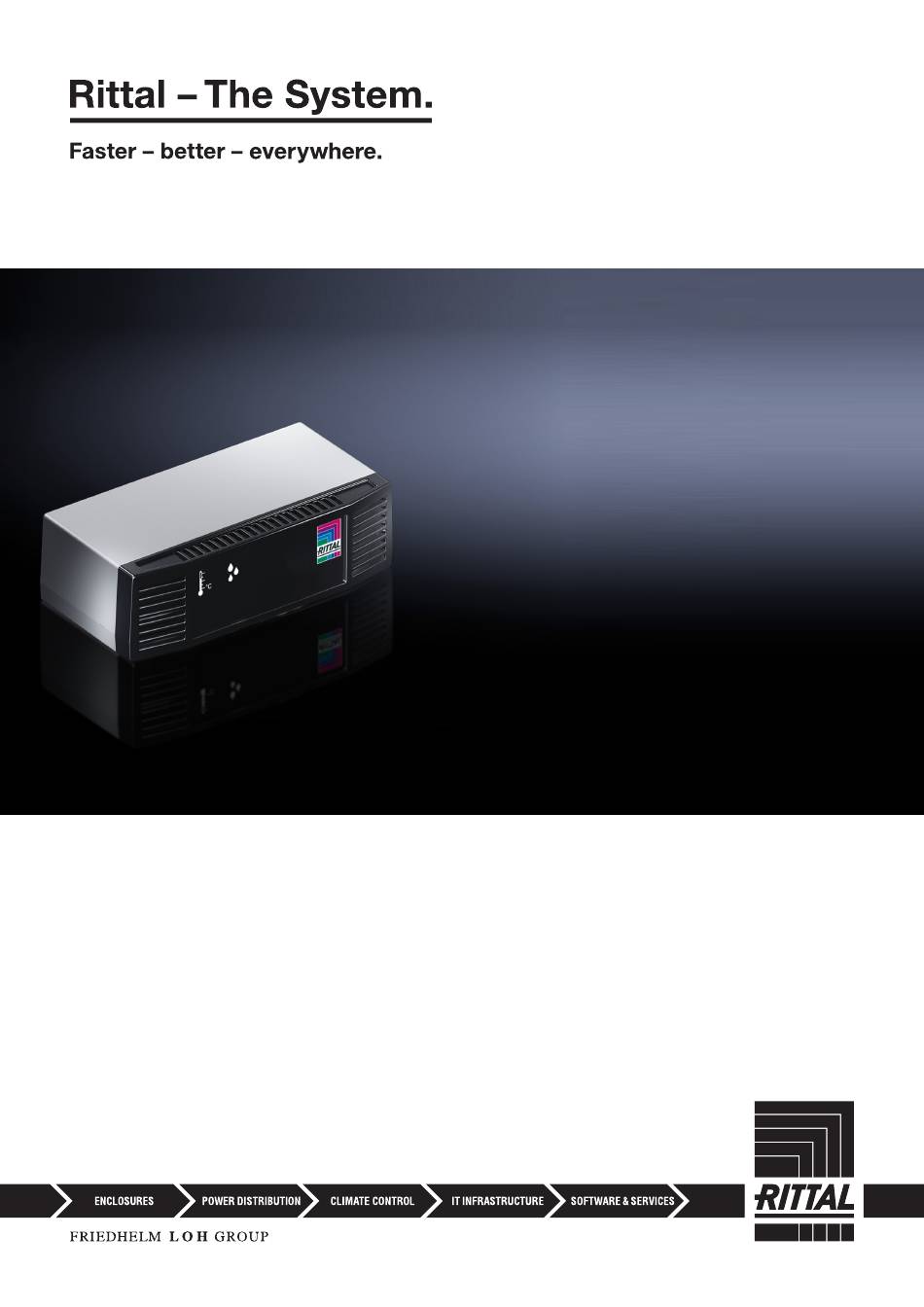

- Page 1 CMC III Temperature/Humidity Sensor DK 7030.111 Assembly and operating instructions...
- Page 2 Thank you for choosing our CMC III temperature/humid- ity sensor (referred to hereafter as "temperature/humidi- ty sensor")! We wish you every success. Yours Rittal GmbH & Co. KG Rittal GmbH & Co. KG Auf dem Stützelberg 35745 Herborn Germany Tel.: +49(0)2772 505-0 Fax: +49(0)2772 505-2319 E-mail: info@rittal.com...
-
Page 3: Table Of Contents
..........10 6.4.1 Device ..............10 6.4.2 Temperature ............11 6.4.3 Humidity ............. 11 Storage and disposal ..... 12 Storage ............12 Disposal ............12 Technical specifications ....13 Customer service addresses ..14 Rittal CMC III Temperature/Humidity Sensor... -
Page 4: Notes On Documentation
1 Notes on documentation Notes on documentation CE labelling Rittal GmbH & Co. KG hereby confirms that the CMC III temperature/humidity sensor is compliant with the EU EMC Directive 2014/30/EU. An appropriate declaration of conformity has been prepared. It can be provided on request. -
Page 5: Safety Instructions
General safety instructions Please observe the subsequent general safety instruc- tions for the installation and operation of the system: – Use only original Rittal products or products recom- mended by Rittal in conjunction with the temperature/ humidity sensor. – Please do not make any changes to the temperature/ humidity sensor that are not described in this manual or in the associated manuals. -
Page 6: Product Description
It may only be used together with the CMC III Processing Unit. Any other use is not permitted. Scope of supply – CMC III temperature/humidity sensor – Accessories provided (fig. 1) – Installation and Short User's Guide Fig. 1: Accessories provided Rittal CMC III Temperature/Humidity Sensor... -
Page 7: Transport And Handling
Check the unit for any damage that occurred during transport. Note: Damage and other faults, e.g. incomplete de- livery, should immediately be reported to the shipping company and to Rittal GmbH & Co. KG in writing. Remove the unit from the PE film. ... -
Page 8: Installation
Mounting the sensor in the enclosure or IT enclosure 5.3.3 Installation on a top-hat rail The sensor can also be mounted on a top-hat rail using the bracket along with the spring clip included in the scope of delivery. Rittal CMC III Temperature/Humidity Sensor... -
Page 9: Connecting The Sensor
Note: The following CAN bus connection cables from the See section 6.3.1 "Multi-LED displays" for a CMC III accessories can be used: list of all of the multi-LED displays. – DK 7030.090 (length 0.5 m) Rittal CMC III Temperature/Humidity Sensor... -
Page 10: Operation
There are also display values that provide in- time. formation. Red (contin- Invalid measured value 6.4.1 Device uously lit) General settings for the temperature/humidity sensor Tab. 1: Multi-LED continuously lit are configured at the "Device" level. Flashing codes Rittal CMC III Temperature/Humidity Sensor... -
Page 11: Temperature
The following parameters are also displayed for the tem- perature/humidity sensor: Parameter Explanation Value Currently measured temperature value. Status Current status of the sensor's temperature value, taking into account the hysteresis. Tab. 6: Displays in the "Temperature" level Rittal CMC III Temperature/Humidity Sensor... -
Page 12: Storage And Disposal
7 Storage and disposal Storage and disposal Storage If the device is not used for a long period, Rittal recom- mends that it is disconnected from the mains power supply and protected from damp and dust. Disposal Since the temperature/humidity sensor consists mainly of the "housing"... -
Page 13: Technical Specifications
±3% relative humidity in the range 20%…80% relative humidity Protection category IP 30 to IEC 60 529 Inputs and outputs CAN bus (RJ 45) Operation/signals LED display OK / warning / alarm / network status Tab. 9: Technical specifications Rittal CMC III Temperature/Humidity Sensor... -
Page 14: Customer Service Addresses
9 Customer service addresses Customer service addresses For technical queries, please contact: Tel.: +49(0)2772 505-9052 E-mail: info@rittal.com Homepage: www.rittal.com For complaints or service requests, please contact: Tel.: +49(0)2772 505-1855 E-mail: service@rittal.de Rittal CMC III Temperature/Humidity Sensor... - Page 16 ◾ Enclosures ◾ Power Distribution ◾ Climate Control ◾ IT Infrastructure ◾ Software & Services You can find the contact details of all Rittal companies throughout the world here. www.rittal.com/contact...
