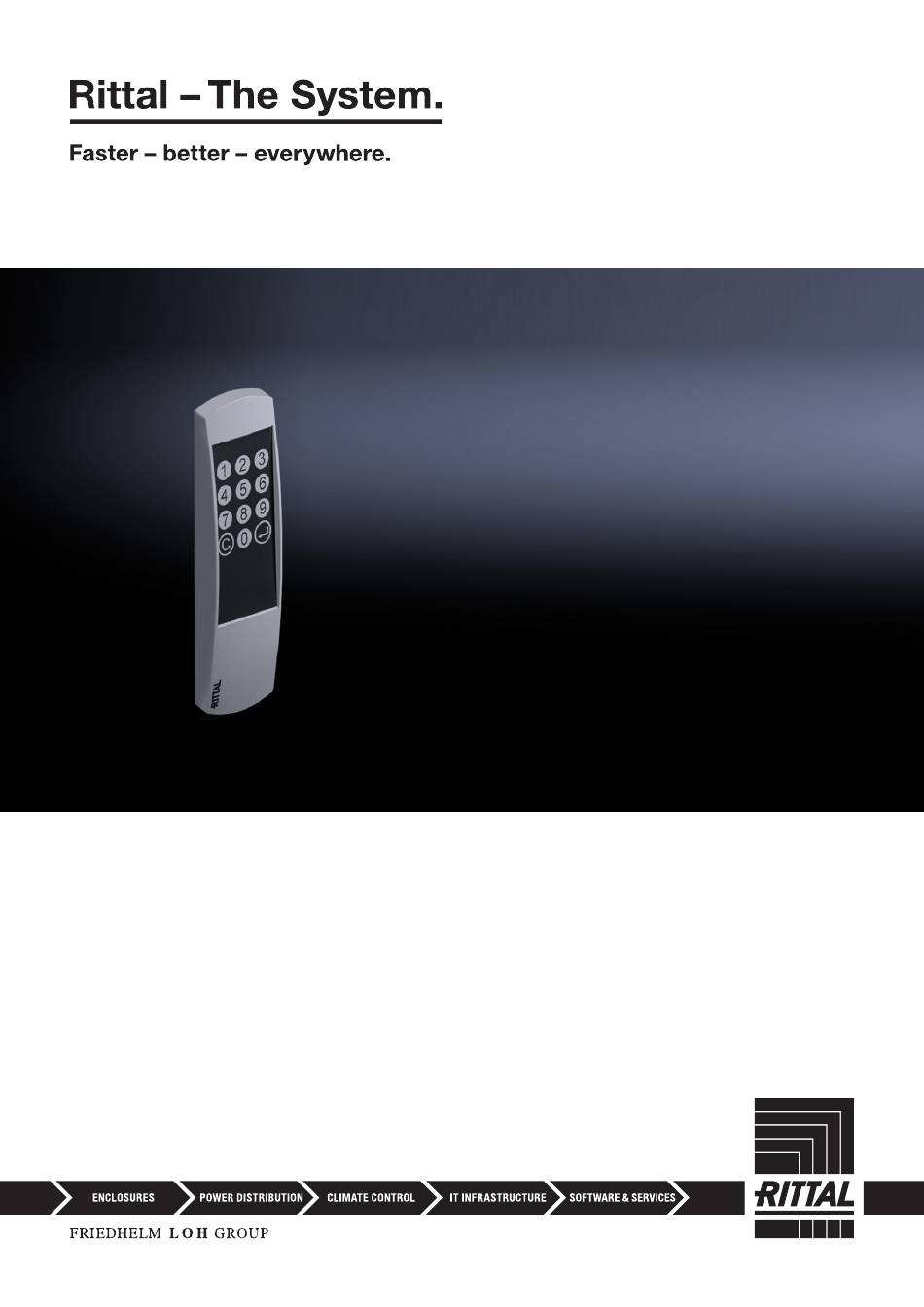

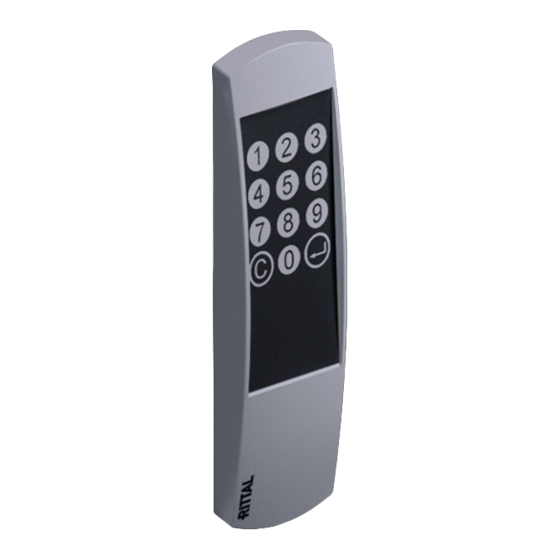

- Page 1 CMC III Zahlencodeschloss CMC III Coded Lock 7030.220 Montage-, Installations- und Bedienungsanleitung Assembly and operating instructions...
- Page 2 Foreword Foreword Dear Customer, Thank you for choosing our CMC III coded lock (referred to hereafter as "coded lock")! We wish you every success. Yours, Rittal GmbH & Co. KG Rittal GmbH & Co. KG Auf dem Stützelberg 35745 Herborn Germany Tel.: +49(0)2772 505-0...
-
Page 3: Table Of Contents
Operation ........10 Activating the coded lock ......10 Operating and display elements ....10 LED displays ..........10 Operating the CMC III Processing Unit from the website ..........10 6.4.1 Configuration tab ..........10 6.4.2 Observation tab ..........11 Manual changes to the "access.cmc3" file .. 11 6.5.1 Downloading the file ........... -
Page 4: Notes On Documentation
1 Notes on documentation Notes on documentation CE labelling Rittal GmbH & Co. KG hereby confirms that the CMC III coded lock is compliant with the EC EMC Directive 2004/108/EC. An appropriate declaration of conformity has been prepared. It can be provided on request. -
Page 5: Safety Instructions
Please observe the subsequent general safety instruc- tions for the installation and operation of the system: – Use only original Rittal products or products recom- mended by Rittal in conjunction with the coded lock. – Please do not make any changes to the coded lock that are not described in this manual or in the associ- ated manuals. -
Page 6: Product Description
CMC III Processing Unit and the corresponding door release is initiated where applicable. The coded lock has an identification that al- lows it to be detected automatically by the CMC III CAN bus access. Note: Fig. -
Page 7: Transport And Handling
Note: Damage and other faults, e.g. incomplete de- livery, should be reported immediately, in writing, to the shipping company and to Rittal GmbH & Co. KG. Remove the unit from the packaging. Rittal CMC III Coded Lock... -
Page 8: Installation
Clean away any splinters at the point where the coded lock is to be attached. Attach the compensating panel for the TS glazed door incl. coded lock to the prepared location using the flat- headed screws provided. Rittal CMC III Coded Lock... -
Page 9: Connecting The Coded Lock
Connect this handle via the connection cable to the CAN bus access. Connect the coded lock via the connection cable to the CAN bus access. Connect the CAN bus to the CAN bus access again. Rittal CMC III Coded Lock... -
Page 10: Operation
(virtual) access controller to which the ac- Operating the CMC III Processing Unit cess module to be switched is connected. from the website After logging on to the CMC III Processing Unit, the web Tab. 3: "Devices" table interface for operating the device is displayed. -
Page 11: Observation Tab
Editing the file As the coded lock does not have a separate The file can now be edited using a text editor. Rittal rec- entry in the left tree structure, all information ommends using "Notepad++" for this instead of the on this point can be found in the CMC III CAN standard "Notepad"... -
Page 12: Uploading The File
– Both handles are opened using access code "12345678" (line 13). User "admin" and the informa- tion "Info 3" are entered in the CMC III PU logfile. In lines 15 to 17, a transponder card has also been as- signed to each of the users. These transponder cards open the same handles as the access codes above. -
Page 13: Storage And Disposal
7 Storage and disposal Storage and disposal Storage If the device is not used for a long period, Rittal recom- mends that it be disconnected from the mains power supply and protected from damp and dust. Disposal Since the coded lock consists mainly of the "housing"... -
Page 14: Technical Specifications
00000000 to 99999999 (variable) Keys 0-9, C, Enter Connection cable (m) Protection category IP 30 to IEC 60 529 Inputs and outputs Interface for CAN bus access Operation/signals LED display Green/Red Tab. 5: Technical specifications Rittal CMC III Coded Lock... -
Page 15: Customer Service Addresses
9 Customer service addresses Customer service addresses For technical queries, please contact: Tel.: +49(0)2772 505-9052 E-mail: info@rittal.de Homepage: www.rittal.com For complaints or service requests, please contact: Tel.: +49(0)2772 505-1855 E-mail: service@rittal.de Rittal CMC III Coded Lock... - Page 16 Enclosures Power Distribution Climate Control IT Infrastructure Software & Services RITTAL GmbH & Co. KG Postfach 1662 · D-35726 Herborn Phone +49(0)2772 505-0 · Fax +49(0)2772 505-2319 E-mail: info@rittal.de · www.rittal.com...
