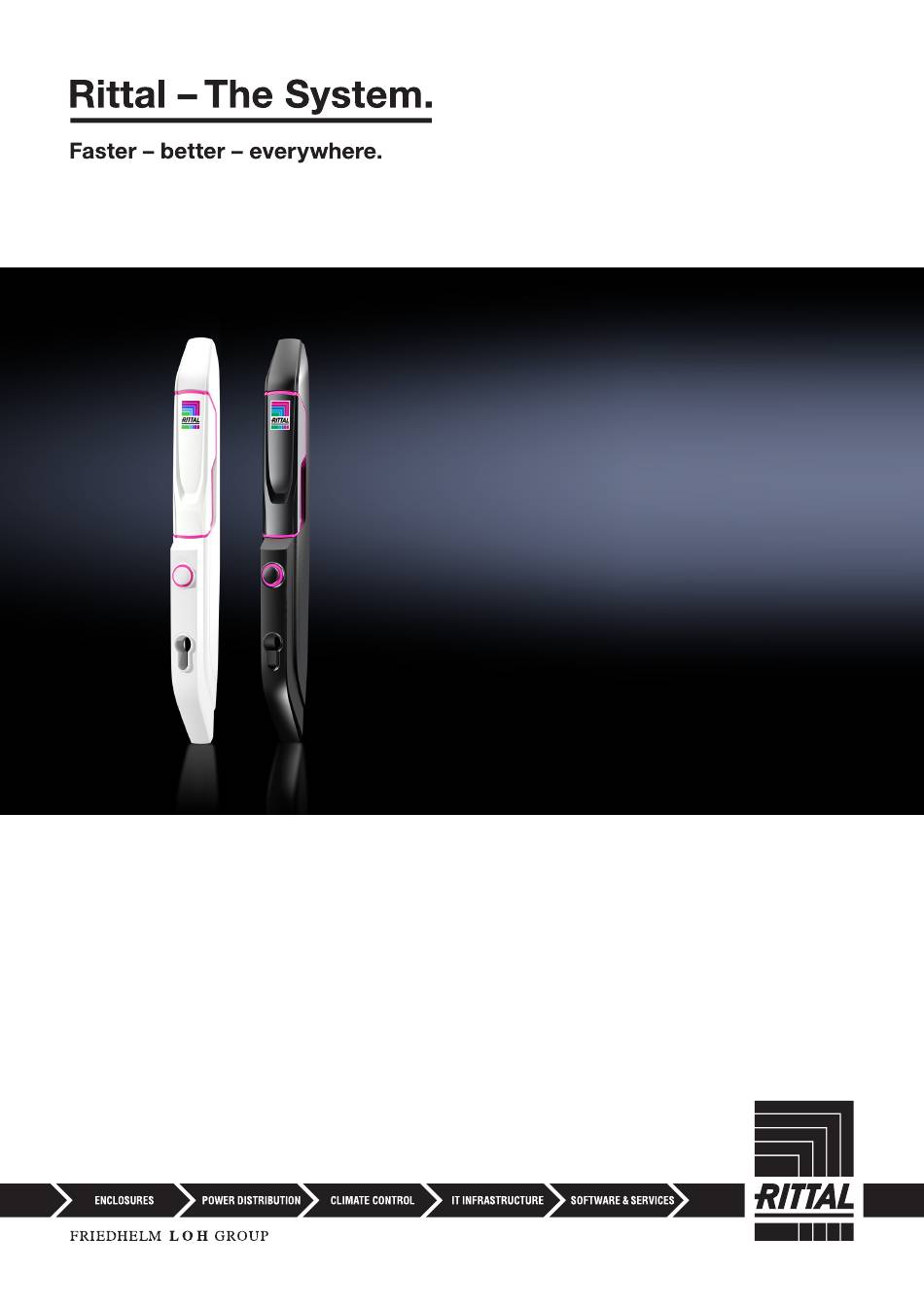

- Page 1 CMC III online comfort handle VX DK 7030.610 DK 7030.611 Assembly and operating instructions...
- Page 2 Foreword Foreword Dear Customer, Thank you for choosing our CMC III online comfort handle VX (referred to hereafter as "comfort handle")! We wish you every success. Yours, Rittal GmbH & Co. KG Rittal GmbH & Co. KG Auf dem Stuetzelberg...
-
Page 3: Table Of Contents
Activating the comfort handle ......13 Operating and display elements ...... 13 Opening and closing the door ......13 LED displays ..........13 Operating the CMC III Processing Unit from the website ............. 13 6.5.1 Monitoring tab ..........13 Storage and disposal ......14 Storage ............ -
Page 4: Notes On Documentation
Additional compatible base systems can CE labelling be found on the internet at www.rittal.com. Rittal GmbH & Co. KG hereby confirms that the CMC III The term "base systems" is used in these instructions as placeholder for the various online comfort handle VX is compliant with the EC EMC systems. -
Page 5: Safety Instructions
General safety instructions Please observe the subsequent general safety instruc- tions for the installation and operation of the system: – Use only original Rittal products or products recom- mended by Rittal in conjunction with the comfort handle. – Please do not make any changes to the comfort handle that are not described in this manual or in the associated manuals. -
Page 6: Product Description
This can be used to open the handle in an emergency. If the lever handle is closed, the latch mechanism inte- Rittal GmbH & Co. KG is not liable for any damage grated into the comfort handle locks automatically. which may result from failure to comply with the docu- The handle can be incorporated into the CMC III... -
Page 7: Transport And Handling
◾ Check the unit for any damage that may have oc- curred during transport. Note: Damage and other faults, e.g. incomplete delivery, should be reported immediately, in writing, to the shipping company and to Rittal. ◾ Remove the unit from the PE film. Rittal CMC III online comfort handle VX... -
Page 8: Installation
(fig. 3, M VX and VX IT sheet steel door. 2 + 1 Nm). ◾ Drill suitably sized holes in the required position in the sheet steel door, depending on the position of the hinge (fig. 5). Rittal CMC III online comfort handle VX... -
Page 9: Installation On A Vx Glazed Door
The installation is performed directly on the frame of a VX glazed door. ◾ Drill appropriately sized holes in the required position Fig. 7: Attaching the handle in the VX glazed door (fig. 11). ◾ Push the handle upwards and lock it (fig. 8). Rittal CMC III online comfort handle VX... -
Page 10: Installation On A Vx It Glazed Door Or Vx It Vented Door
The installation on the frame of a VX IT glazed door or VX IT vented door is performed with the provided Fig. 13: Attaching the handle compensating panel. ◾ Push the handle upwards and lock it (fig. 14). Rittal CMC III online comfort handle VX... - Page 11 Locking the handle (right-hand hinge / left-hand hinge accordingly) ◾ Screw the designer compensating panel including comfort handle to the VX IT glazed door, depending on the position of the hinge (fig. 22 or fig. 23, M 1.5 ± 1 Nm). Rittal CMC III online comfort handle VX...
-
Page 12: Connecting The Comfort Handle
Access Control, connected coded lock or transponder reader. In such cases, the required voltage supply and the signal for opening the handle lever must be provided by the external controller via the PLC interface. Rittal CMC III online comfort handle VX... -
Page 13: Operation
Operating the CMC III Processing Unit from the website Activating the comfort handle After logging on to the CMC III Processing Unit, the web interface for operating the device is displayed. After connecting the comfort handle to the Access Control or external controller with the connection cable, 6.5.1... -
Page 14: Storage And Disposal
7 Storage and disposal Storage and disposal Storage If the device is not used for a long period, Rittal recom- mends that it be disconnected from the mains power supply and protected from damp and dust. Disposal Since the comfort handle consists mainly of the "housing"... -
Page 15: Technical Specifications
100 mA Operating temperature range +5 °C…+55 °C Operating humidity range 5 %…70 % relative humidity, non-condensing Protection category IP 30 to IEC 60 529 Connection cable 2.9 m with RJ12 connector Operation/signals 1 x Multi-LED Tab. 2: Technical specifications Rittal CMC III online comfort handle VX... -
Page 16: Customer Service Addresses
9 Customer service addresses Customer service addresses For technical queries, please contact: Tel.: +49(0)2772 505-9052 E-mail: info@rittal.de Homepage: www.rittal.com For complaints or service requests, please contact: Tel.: +49(0)2772 505-1855 E-mail: service@rittal.de Rittal CMC III online comfort handle VX... - Page 17 Notes Rittal CMC III online comfort handle VX...
- Page 18 Notes Rittal CMC III online comfort handle VX...
- Page 19 Notes Rittal CMC III online comfort handle VX...
- Page 20 ◾ Climate Control ◾ IT Infrastructure ◾ Software & Services You can find the contact details of all Rittal companies throughout the world here. www.rittal.com/contact RITTAL GmbH & Co. KG Auf dem Stuetzelberg · 35745 Herborn · Germany Phone +49 2772 505-0...
