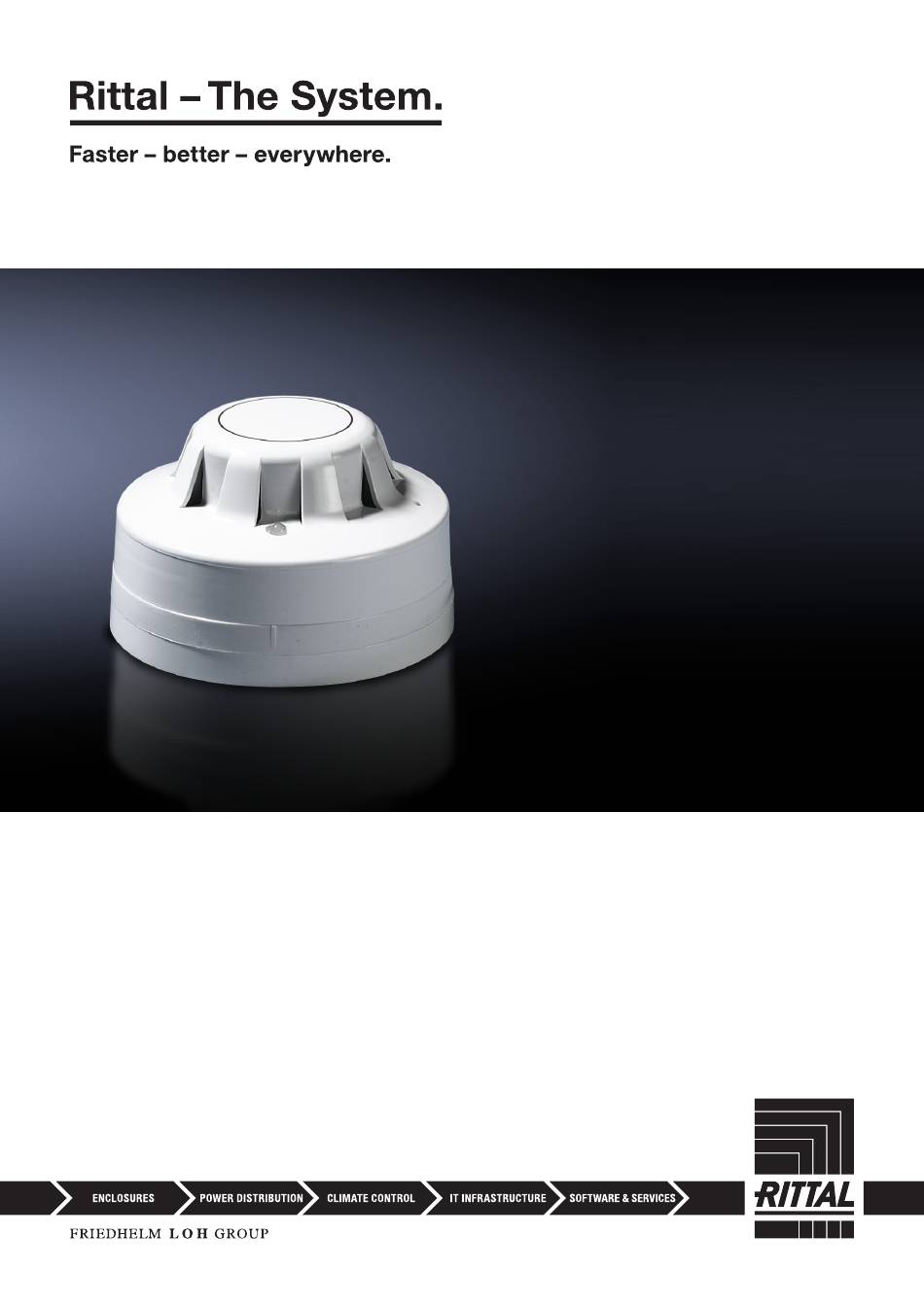

- Page 1 CMC III Rauchmelder CMC III smoke alarm 7030.400 Montage-, Installations- und Bedienungsanleitung Assembly and operating instructions...
- Page 2 Preface Preface Dear Customer! Thank you for choosing a CMC III smoke alarm (hereaf- ter referred to as "smoke alarm") from Rittal. We wish you every success. Yours, Rittal GmbH & Co. KG Rittal GmbH & Co. KG Auf dem Stützelberg...
-
Page 3: Table Of Contents
LED displays ..........10 6.3.1 Multi-LED displays ..........10 6.3.2 LED displays on the CAN bus connection ... 10 Operation............ 10 Operating via the CMC III Processing Unit website ............10 6.5.1 Device ..............10 6.5.2 Smoke ..............11 Storage and disposal ..... 12 Storage............ -
Page 4: Notes On Documentation
This documentation shows the English screenshots. The descriptions of individual parameters on the Rittal GmbH & Co. KG hereby confirms that the CMC III CMC III PU website likewise use English terminology. smoke alarm is compliant with the EC EMC Directive Depending on the set language, the displays on the 2004/108/EC. -
Page 5: Safety Instructions
Please observe the general safety instructions below when installing and operating the system: – Use only original Rittal products or products recom- mended by Rittal in conjunction with the smoke alarm. – Please do not make any changes to the smoke alarm that are not described in this user manual or in the as- sociated assembly and operating instructions. -
Page 6: Product Description

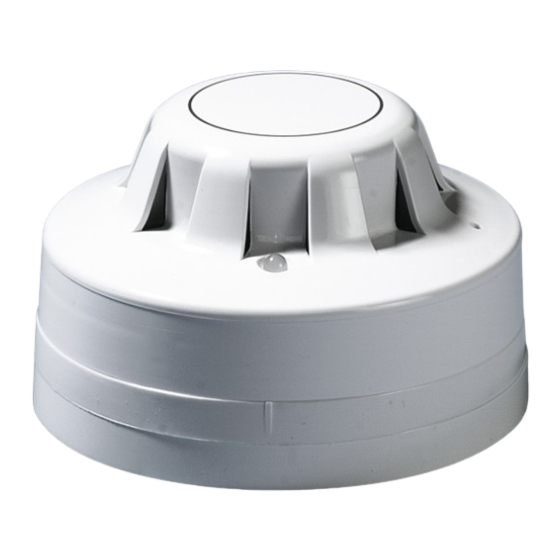

The smoke alarm is an optical smoke detector with a measurement chamber that detects any smoke occur- ring at the installation site and on the connected CMC III PU. The smoke alarm has an identifier that allows it to be detected automatically by the CMC III PU. -
Page 7: Transport And Handling
Note: Damage and other faults, e.g. incomplete de- livery, should be reported immediately, in writing, to the shipping company and to Rittal GmbH & Co. KG. Remove the protective film from the unit. Rittal CMC III smoke alarm... -
Page 8: Installation
Installing the smoke alarm Note: Attach the base to the mounting plate using the M4 x If the housing of the CMC III smoke alarm is 18 screws provided. opened, please be very careful not to touch Replace the sensor head onto the base and secure it the circuit board of the smoke alarm with by twisting until it locks home. - Page 9 – The multi-LED of the smoke alarm flashes blue con- tinuously. – Press the "C" key on the CMC III Processing Unit (an initial audio signal will sound) and keep it pressed for approx. 3 seconds until a second audio signal is heard.
-
Page 10: Operation
Operating via the CMC III Processing Unit website After logging on to the CMC III Processing Unit, the web interface for operating the device is displayed. First select the "CMCIII-SMK" entry in the navigation area. -
Page 11: Smoke
Parameter Explanation Value Currently measured smoke level (0 = no smoke/OK, 1 = smoke/alarm). Status Current status of the sensor, taking ac- count of the time delay. Tab. 5: Settings at "Smoke" level Rittal CMC III smoke alarm... -
Page 12: Storage And Disposal
7 Storage and disposal Storage and disposal Storage If the device is not used for a long period, Rittal recom- mends that it be disconnected from the mains power supply and protected from damp and dust. Disposal Since the smoke alarm consists mainly of the "housing"... -
Page 13: Technical Specifications
5%...95% relative humidity, non-condensing Protection category IP 30 to IEC 60 529 Measurement technique Silicon PIN photodiode/GaAs infrared LED Inputs and outputs CAN bus (RJ 45) Operation/signals LED display OK/Alarm/CAN bus status Tab. 6: Technical specifications Rittal CMC III smoke alarm... -
Page 14: Customer Service Addresses
9 Customer service addresses Customer service addresses For technical queries, please contact: Tel.: +49(0)2772 505-9052 E-mail: info@rittal.de Homepage: www.rittal.com For complaints or service requests, please contact: Tel.: +49(0)2772 505-1855 E-mail: service@rittal.de Rittal CMC III smoke alarm... - Page 16 Enclosures Power Distribution Climate Control IT Infrastructure Software & Services RITTAL GmbH & Co. KG Postfach 1662 · D-35726 Herborn Phone +49(0)2772 505-0 · Fax +49(0)2772 505-2319 E-mail: info@rittal.de · www.rittal.com...
