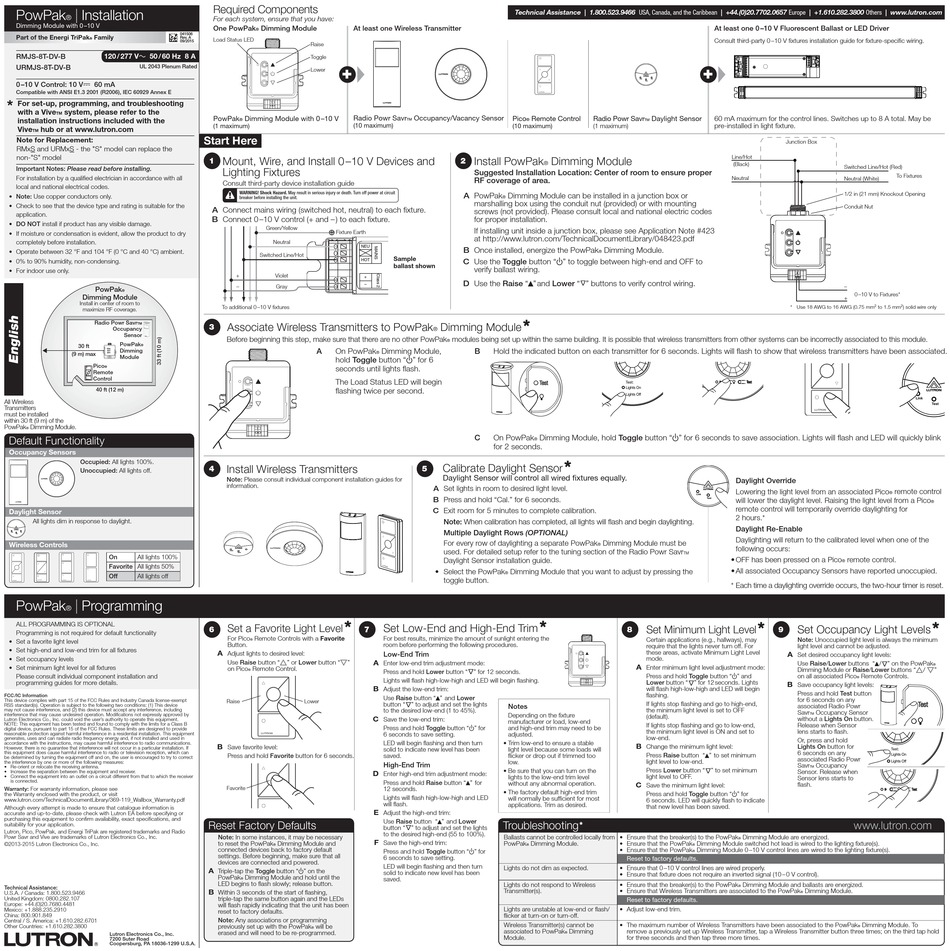

Lutron Electronics Energi TriPak Series Quick Start Quide

PowPak | Installation
®
Dimming Module with 0 –10 V
041506
Part of the Energi TriPak Family
Rev. A
®
09/2015
RMJS-8T-DV-B 120 / 277 V~ 50 / 60 Hz 8 A
UL 2043 Plenum Rated
URMJS-8T-DV-B
0 –10 V Control: 10 V- 60 mA
Compatible with ANSI E1.3 2001 (R2006), IEC 60929 Annex E
* For set-up, programming, and troubleshooting
with a Vive system, please refer to the
TM
installation instructions included with the
Vive hub or at www.lutron.com
TM
Note for Replacement:
RMxS and URMxS - the "S" model can replace the
non-"S" model
Important Notes: Please read before installing.
For installation by a qualified electrician in accordance with all
local and national electrical codes.
• Note: Use copper conductors only.
• Check to see that the device type and rating is suitable for the
application.
• DO NOT install if product has any visible damage.
• If moisture or condensation is evident, allow the product to dry
completely before installation.
• Operate between 32 °F and 104 °F (0 °C and 40 °C) ambient.
• 0% to 90% humidity, non-condensing.
• For indoor use only.
PowPak
®
Dimming Module
Install in center of room to
maximize RF coverage.
Radio Powr Savr
TM
Occupancy
Sensor
PowPak
30 ft ®
Dimming
(9 m) max
Module
Pico
®
Remote
Control
40 ft (12 m)
All Wireless
Transmitters
must be installed
within 30 ft (9 m) of the
PowPak Dimming Module.
®
Default Functionality
Occupancy Sensors
Occupied: All lights 100%.
Unoccupied: All lights off.
Daylight Sensor
All lights dim in response to daylight.
Link Cal.
Test
Wireless Controls
On All lights 100%
Favorite All lights 50%
Off All lights off
PowPak | Programming
®
ALL PROGRAMMING IS OPTIONAL
Programming is not required for default functionality
• Set a favorite light level
• Set high-end and low-end trim for all fixtures
• Set occupancy levels
• Set minimum light level for all fixtures
Please consult individual component installation and
programming guides for more details.
FCC /IC Information
This device complies with part 15 of the FCC Rules and Industry Canada license-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) This device
may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation. Modifications not expressly approved by
Lutron Electronics Co., Inc. could void the user's authority to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Warranty: For warranty information, please see
the Warranty enclosed with the product, or visit
www.lutron.com/TechnicalDocumentLibrary/369-119_Wallbox_Warranty.pdf
Although every attempt is made to ensure that catalogue information is
accurate and up-to-date, please check with Lutron EA before specifying or
purchasing this equipment to confirm availability, exact specifications, and
suitability for your application.
Lutron, Pico, PowPak, and Energi TriPak are registered trademarks and Radio
Powr Savr and Vive are trademarks of Lutron Electronics Co., Inc.
©2013-2015 Lutron Electronics Co., Inc.
Technical Assistance:
U.S.A. / Canada: 1.800.523.9466
United Kingdom: 0800.282.107
Europe: +44.(0)20.7680.4481
Mexico: +1.888.235.2910
China: 800.901.849
Central / S. America: +1.610.282.6701
Other Countries: +1.610.282.3800
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299 U.S.A.
Required Components
For each system, ensure that you have:
One PowPak Dimming Module At least one Wireless Transmitter
®
Load Status LED
Raise
Toggle
+
Lower
Radio Powr Savr
PowPak Dimming Module with 0 –10 V
®
(1 maximum) (10 maximum)
Start Here
1
Mount, Wire, and Install 0 –10 V Devices and
Lighting Fixtures
Consult third-party device installation guide
WARNING! Shock Hazard. May result in serious injury or death. Turn off power at circuit
breaker before installing the unit.
A Connect mains wiring (switched hot, neutral) to each fixture.
B Connect 0 –10 V control (+ and – ) to each fixture.
Green/Yellow
Fixture Earth
Neutral
NEU
Switched Line/Hot
HOT
+ Violet
+
–
– Gray
To additional 0 –10 V fixtures
3
Associate Wireless Transmitters to PowPak
Before beginning this step, make sure that there are no other PowPak
A On PowPak Dimming Module,
®
hold Toggle button " u " for 6
seconds until lights flash.
The Load Status LED will begin
flashing twice per second.
4
Install Wireless Transmitters
Note: Please consult individual component installation guides for
information.
Link
Test
*
Set a Favorite Light Level
6 7
For Pico Remote Controls with a Favorite
®
Button.
A Adjust lights to desired level:
Use Raise button " " or Lower button " " A
on Pico Remote Control.
®
B
Raise Lower
C
B
Save favorite level:
Press and hold Favorite button for 6 seconds.
D
Favorite
E
Reset Factory Defaults
Note: In some instances, it may be necessary
F
to reset the PowPak Dimming Module and
®
connected devices back to factory default
settings. Before beginning, make sure that all
devices are connected and powered.
A Triple-tap the Toggle button " u " on the
PowPak Dimming Module and hold until the
®
LED begins to flash slowly; release button.
B Within 3 seconds of the start of flashing,
triple-tap the same button again and the LEDs
will flash rapidly indicating that the unit has been
reset to factory defaults.
Note: Any associations or programming
previously set up with the PowPak will be
®
erased and will need to be re-programmed.
Technical Assistance | 1.800.523.9466 USA, Canada, and the Caribbean | +44.(0)20.7702.0657 Europe | +1.610.282.3800 Others | www.lutron.com
Occupancy/Vacancy Sensor
Pico Remote Control
TM ®
(10 maximum)
2
Install PowPak Dimming Module
®
Suggested Installation Location: Center of room to ensure proper
RF coverage of area.
A PowPak Dimming Module can be installed in a junction box or
®
marshalling box using the conduit nut (provided) or with mounting
screws (not provided). Please consult local and national electric codes
for proper installation.
If installing unit inside a junction box, please see Application Note #423
at http://www.lutron.com/TechnicalDocumentLibrary/048423.pdf
B Once installed, energize the PowPak
Sample
C Use the Toggle button " u " to toggle between high-end and OFF to
ballast shown
verify ballast wiring.
D Use the Raise " " and Lower " " buttons to verify control wiring.
*
Dimming Module
®
modules being set up within the same building. It is possible that wireless transmitters from other systems can be incorrectly associated to this module.
®
B Hold the indicated button on each transmitter for 6 seconds. Lights will flash to show that wireless transmitters have been associated.
Dimming Module, hold Toggle button " u " for 6 seconds to save association. Lights will flash and LED will quickly blink
C On PowPak
®
for 2 seconds.
5 Calibrate Daylight Sensor
Daylight Sensor will control all wired fixtures equally.
A Set lights in room to desired light level.
B Press and hold "Cal." for 6 seconds.
C Exit room for 5 minutes to complete calibration.
Note: When calibration has completed, all lights will flash and begin daylighting.
Multiple Daylight Rows (OPTIONAL)
For every row of daylighting a separate PowPak
used. For detailed setup refer to the tuning section of the Radio Powr Savr
Daylight Sensor installation guide.
• Select the PowPak Dimming Module that you want to adjust by pressing the
®
toggle button.
*
Set Low-End and High-End Trim
For best results, minimize the amount of sunlight entering the
room before performing the following procedures.
Low-End Trim
Enter low-end trim adjustment mode:
Press and hold Lower button " " for 12 seconds.
Lights will flash high-low-high and LED will begin flashing.
Adjust the low-end trim:
Use Raise button " " and Lower
button " " to adjust and set the lights
Notes
to the desired low-end (1 to 45%).
Depending on the fixture
Save the low-end trim:
manufacturer or load, low-end
Press and hold Toggle button " u " for
and high-end trim may need to be
6 seconds to save setting. adjusted.
LED will begin flashing and then turn • Trim low-end to ensure a stable
solid to indicate new level has been light level because some loads will
saved. flicker or drop out if trimmed too
low.
High-End Trim
• Be sure that you can turn on the
Enter high-end trim adjustment mode:
lights to the low-end trim level
Press and hold Raise button " " for
without any abnormal operation.
12 seconds.
• The factory default high-end trim
Lights will flash high-low-high and LED
will normally be sufficient for most
will flash. applications. Trim as desired.
Adjust the high-end trim:
Use Raise button " " and Lower
Troubleshooting
button " " to adjust and set the lights
to the desired high-end (55 to 100%).
Ballasts cannot be controlled locally from
Save the high-end trim:
PowPak Dimming Module.
®
Press and hold Toggle button " u " for
6 seconds to save setting.
LED will begin flashing and then turn
Lights do not dim as expected.
solid to indicate new level has been
saved.
Lights do not respond to Wireless
Transmitter(s).
Lights are unstable at low-end or flash/
flicker at turn-on or turn-off.
Wireless Transmitter(s) cannot be
associated to PowPak
Module.
At least one 0 –10 V Fluorescent Ballast or LED Driver
Consult third-party 0 –10 V fixtures installation guide for fixture-specific wiring.
+
Link Cal.
Test
Radio Powr Savr Daylight Sensor 60 mA maximum for the control lines. Switches up to 8 A total. May be
TM
(1 maximum) pre-installed in light fixture.
Line/Hot
(Black)
Neutral
Dimming Module.
®
*
Daylight Override
Lowering the light level from an associated Pico
Link Cal.
Test will lower the daylight level. Raising the light level from a Pico
remote control will temporarily override daylighting for
2 hours.*
Daylight Re-Enable
Daylighting will return to the calibrated level when one of the
Dimming Module must be
®
following occurs:
TM
• OFF has been pressed on a Pico
• All associated Occupancy Sensors have reported unoccupied.
* Each time a daylighting override occurs, the two-hour timer is reset.
8 Set Minimum Light Level
Certain applications (e.g., hallways), may
require that the lights never turn off. For
these areas, activate Minimum Light Level
mode.
A
Enter minimum light level adjustment mode:
Press and hold Toggle button " u " and
Lower button " " for 12 seconds. Lights
will flash high-low-high and LED will begin
flashing.
If lights stop flashing and go to high-end,
the minimum light level is set to OFF
(default).
If lights stop flashing and go to low-end,
the minimum light level is ON and set to
low-end.
B Change the minimum light level:
Press Raise button " " to set minimum
light level to low-end.
Press Lower button " " to set minimum
light level to OFF.
C
Save the minimum light level:
Press and hold Toggle button " u " for
6 seconds. LED will quickly flash to indicate
that new level has been saved.
*
• Ensure that the breaker(s) to the PowPak Dimming Module are energized.
®
• Ensure that the PowPak Dimming Module switched hot lead is wired to the lighting fixture(s).
®
• Ensure that the PowPak Dimming Module 0 –10 V control lines are wired to the lighting fixture(s).
®
Reset to factory defaults.
• Ensure that 0 –10 V control lines are wired properly.
• Ensure that fixture does not require an inverted signal (10 – 0 V control).
• Ensure that the breaker(s) to the PowPak Dimming Module and ballasts are energized.
®
• Ensure that Wireless Transmitters are associated to the PowPak
Reset to factory defaults.
• Adjust low-end trim.
• The maximum number of Wireless Transmitters have been associated to the PowPak
Dimming remove a previously set up Wireless Transmitter, tap a Wireless Transmitter button three times; on the third tap hold
®
for three seconds and then tap three more times.
Junction Box
Switched Line/Hot (Red)
To Fixtures
Neutral (White)
1/2 in (21 mm) Knockout Opening
Conduit Nut
–
0 –10 V to Fixtures*
+
2 2
* Use 18 AWG to 16 AWG (0.75 mm to 1.5 mm ) solid wire only
Link
Test
remote control
®
®
remote control.
®
* *
9 Set Occupancy Light Levels
Note: Unoccupied light level is always the minimum
light level and cannot be adjusted.
A Set desired occupancy light levels:
Use Raise/Lower buttons " / " on the PowPak
®
Dimming Module or Raise/Lower buttons " / "
on all associated Pico Remote Controls.
®
B Save occupancy light levels:
Press and hold Test button
for 6 seconds on any
associated Radio Powr
Savr Occupancy Sensor
TM
without a Lights On button.
Release when Sensor
lens starts to flash.
Or, press and hold
Lights On button for
6 seconds on any
associated Radio Powr
Savr Occupancy
TM
Sensor. Release when
Sensor lens starts to
flash.
www.lutron.com
Dimming Module.
®
Dimming Module. To
®
