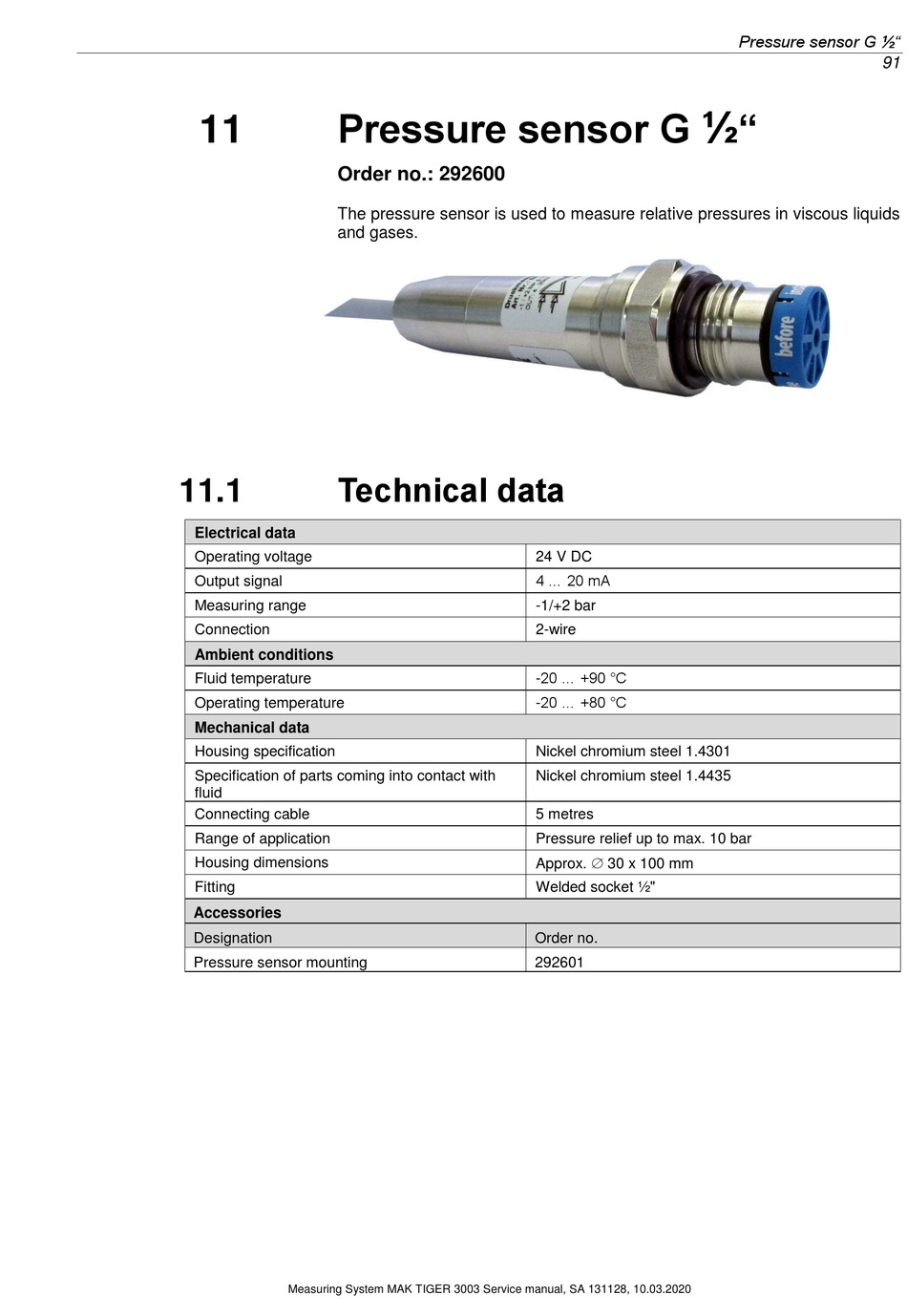

Pressure sensor G
11
Order no.: 292600
The pressure sensor is used to measure relative pressures in viscous liquids
and gases.

Technical data

11.1
Electrical data
Operating voltage
Output signal
Measuring range
Connection
Ambient conditions
Fluid temperature
Operating temperature
Mechanical data
Housing specification
Specification of parts coming into contact with
fluid
Connecting cable
Range of application
Housing dimensions
Fitting
Accessories
Designation
Pressure sensor mounting
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
½
24 V DC
4 ... 20 mA
-1/+2 bar
2-wire
-20 ... +90 °C
-20 ... +80 °C
Nickel chromium steel 1.4301
Nickel chromium steel 1.4435
5 metres
Pressure relief up to max. 10 bar
Approx.  30 x 100 mm
Welded socket ½"
Order no.
292601
Pressure sensor G ½"
