Quixolid ® Plus
EN
Installation manual
28-10-2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the Quixolid Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for Betafence Quixolid Plus

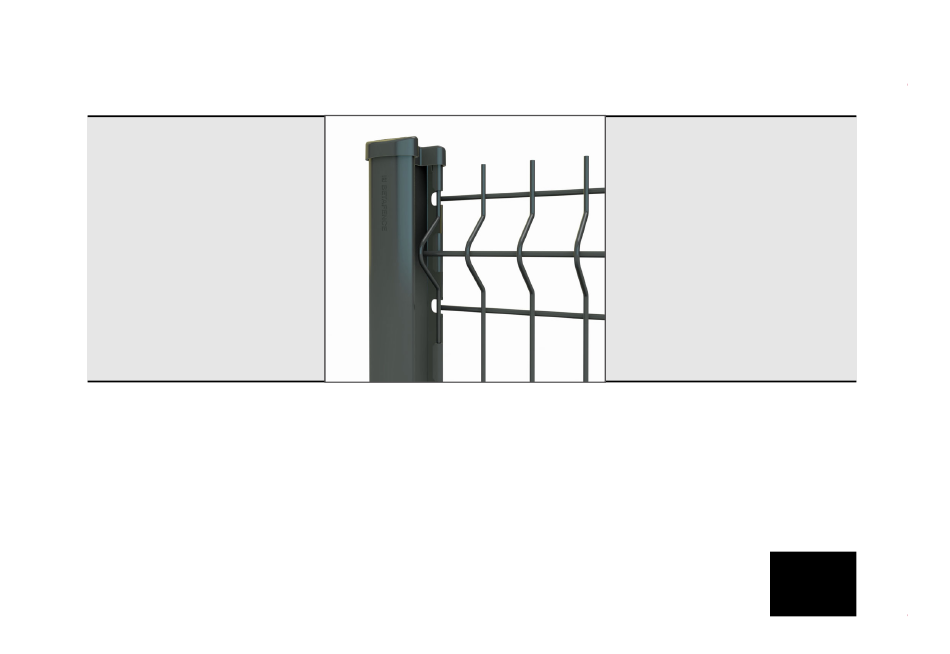

  • Page 1 Quixolid ® Plus Installation manual 28-10-2019...
  • Page 2 YOU TUBE • A detailed installation video can also be found online on YOUTUBE...
  • Page 3 0. Content Components of the fencing system The posts The Nylofor panels Installation of the fencing system Foundations Install posts & panels...
  • Page 4 1. Components of the fencing system The posts Profile 75x50x1mm (steel S 350) Post without accessories Posts are available for panels heights from 0.6 to 2.4 metres The posts are galvanised inside and outside and polyester- coated afterwards This type of post can be installed with all Bekafor / Nylofor 3D panel types, all Nyl 2D / 2DS / F panels Each post is fitted with a polyamide post cap A base plate / bent arm can be screwed onto the post...
  • Page 5 To obtain the best result, it is advisable to level the ground over the whole length of the fence For correct positioning, maintain the centre-centre distances. The distance is determined by the type of panel being installed Panel width Post system Centre-centre distance 2000 Quixolid PLUS 2040 mm 2500 Quixolid PLUS 2540 mm 3000 Quixolid PLUS...
  • Page 6 2. Installation of the fencing system Installation posts & panels Installation principle: Quixolid PLUS posts are installed according to the ‘post-panel-post’ system (1) Bring the panel into the “bounding box” of the post (2) Push to the panel towards the end of the post...
  • Page 7 2. Installation of the fencing system Installation posts & panels The panel is directly secured by the inner folding that blocks the vertical wire of the panel Use the tension tool to keep the panels in position while installing the fence...
  • Page 8 2. Installation of the fencing system Installation posts & panels MAKING CORNERS Corners between 60° and 180° can be made with one and the same post...
  • Page 9 2. Installation of the fencing system Installation posts & panels INSTALLATION ON SLOPES Slopes are possible per steps of 100mm...
  • Page 10 2. Installation of the fencing system Installation posts & panels INSTALLATION OF THE BASE PLATE - Holes are already foreseen in the posts Screw M8x20 – stainless steel - 2x M8 washer - stainless steel - 4x M8 nut - stainless steel - 2x Note: bolts and washers are not included with the footplate...
  • Page 11 2. Installation of the fencing system Installation posts & panels INSTALLATION WITH CONCRETE PLATE - The post can be used to hold the concrete plate, no additional plate holder is required...
